Description

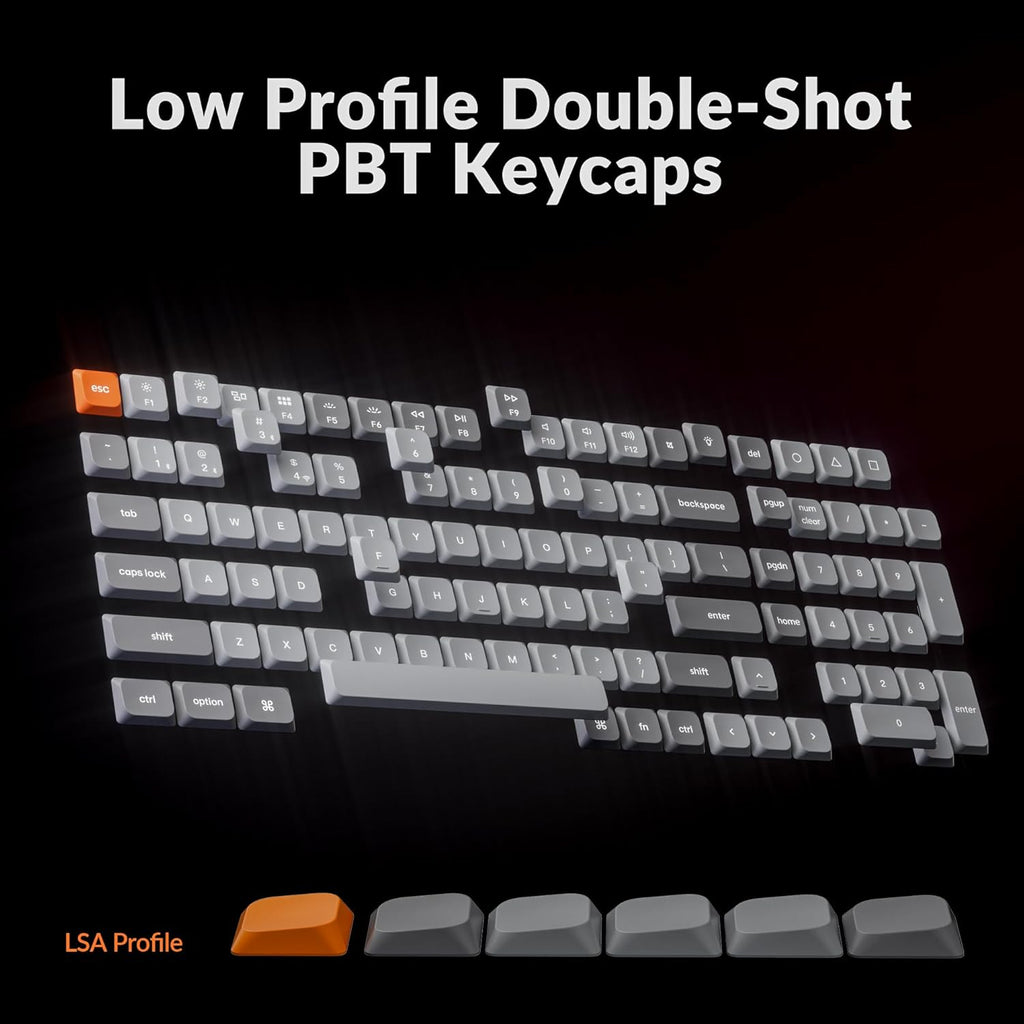

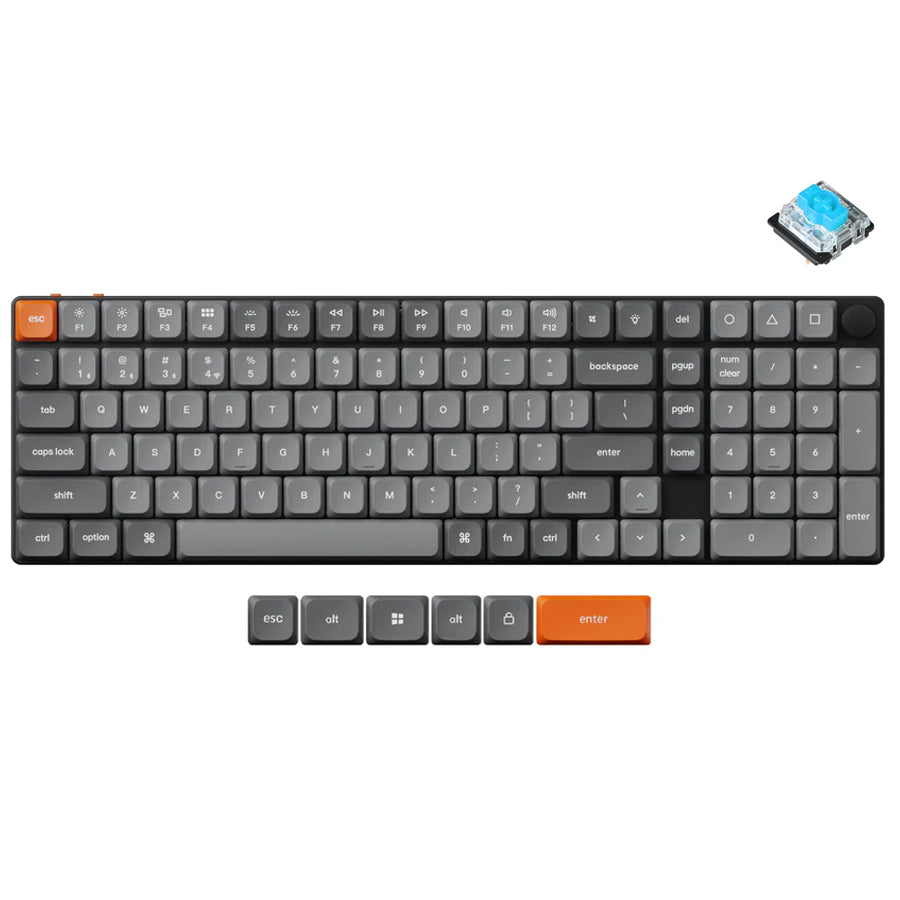

Keychron K17 Max is an ultra-slim wireless custom mechanical keyboard. It supports 2.4 GHz, Bluetooth, and a wired connection. It allows anyone to master any keys or macro commands on its 96% layout through Keychron Launcher web app. Besides, it has included LSA (low profile spherical-angled) profile keycaps for both Windows and macOS, and users can hot-swap with Gateron low-profile MX mechanical switch in a breeze (for RGB Backlight Hot-Swappable Version only).
| SPECIFICATION | |
| Number of Keys | 104 (96%) |
| Switches | Gateron low-profile mechanical |
| Switch Face | North-facing |
| Number of Multimedia Keys | 12 |
| Frame Material | ABS+Aluminum frame |
| Keycap Material | Low-profile double-shot PBT |
| Layout | ANSI |
| Polling Rate (2.4GHz and Wired Mode) | 1000Hz |
| Polling Rate (BT Mode) | 90Hz |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Switch Compatibility | Gateron/Keychron low-profile mechanical switches only |
| QMK Support | Not compatible with low-profile optical switches |
| CONNECTIVITY AND POWER | |

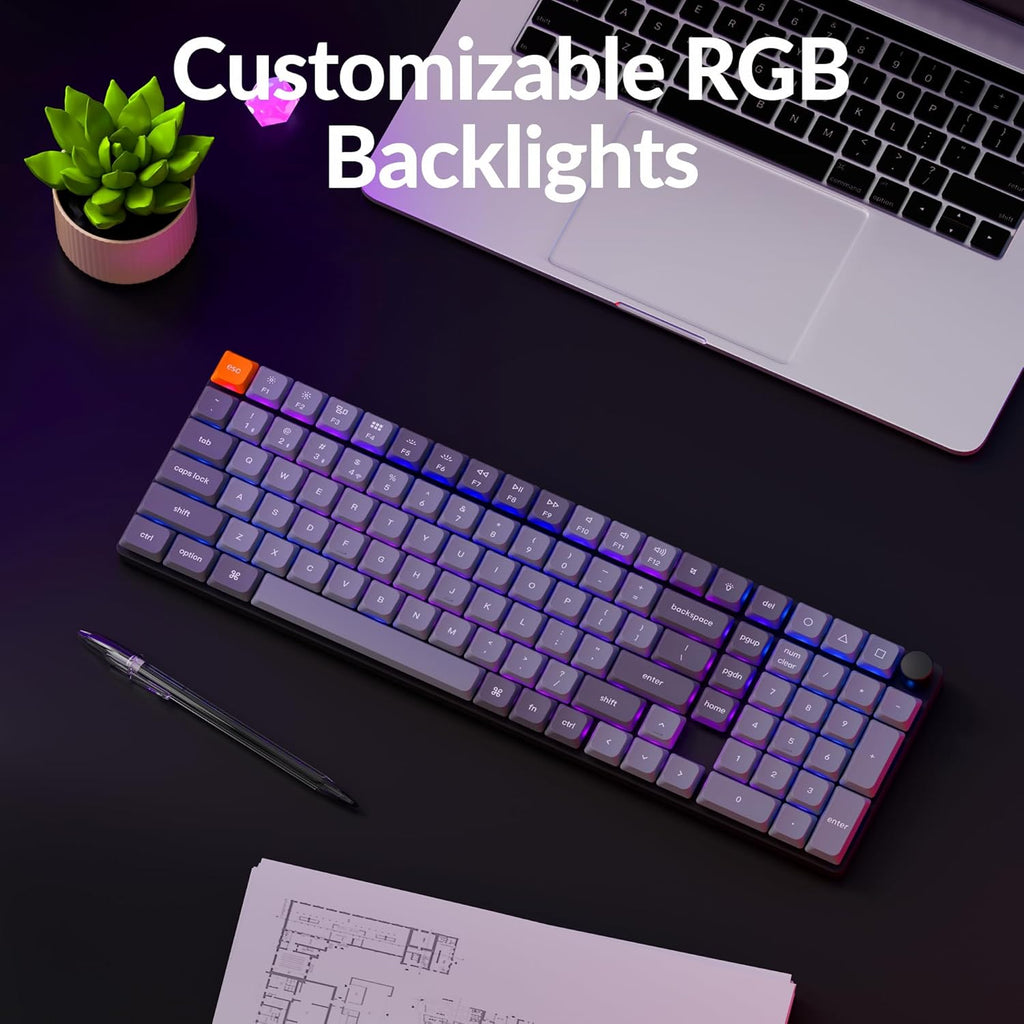

| Backlit | 22 types of RGB backlight options plus endless possibilities |
| Battery | 2000 mAh rechargeable li-polymer battery |
| Wireless Working Time (Backlit off) | Around 95 hours |
| Wireless Working Time (RGB) | Around 50 hours (Lowest brightness) |

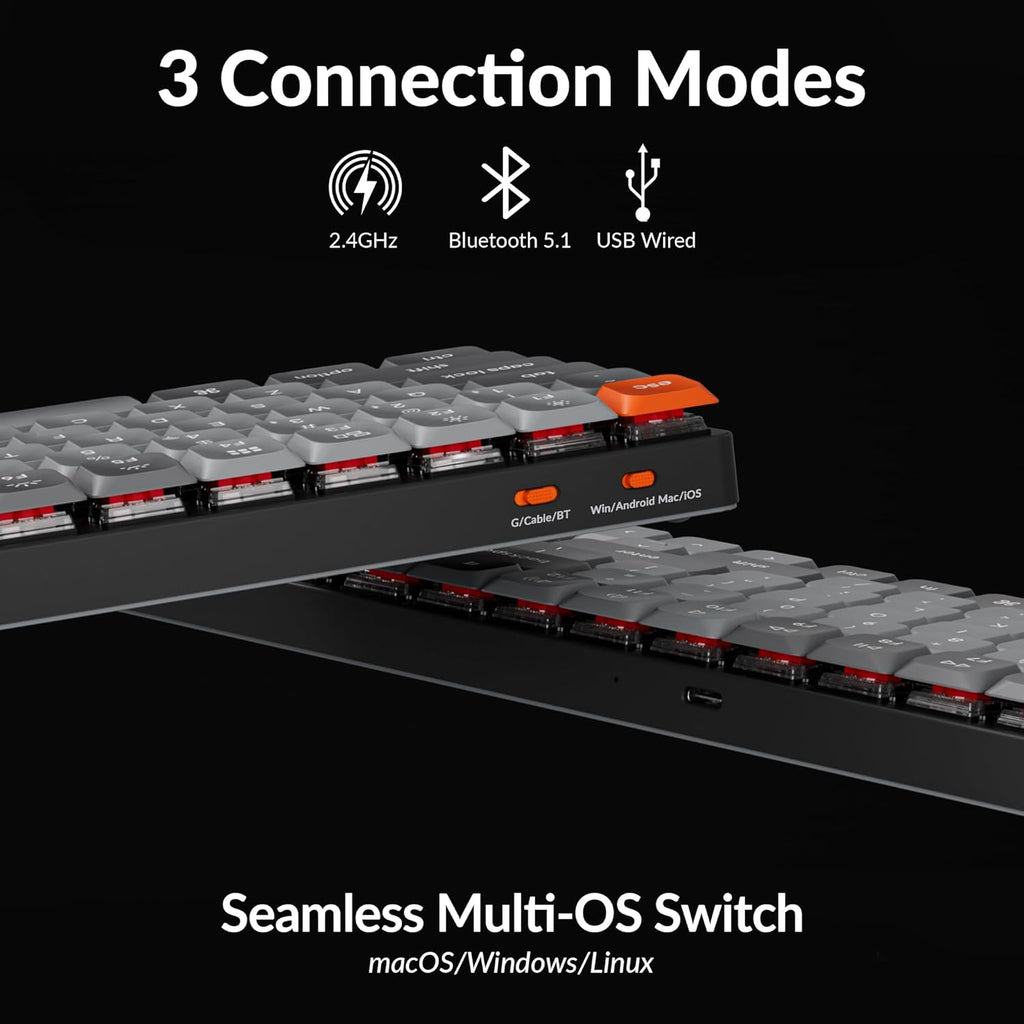

| Connection | 2.4 GHz / Bluetooth / Type-C wired |
| Bluetooth Version | 5.1 |
| Bluetooth Device Name | Keychron K17 Max |
| Compatible System | macOS / Windows / Linux |
| PHYSICAL UNIT | |

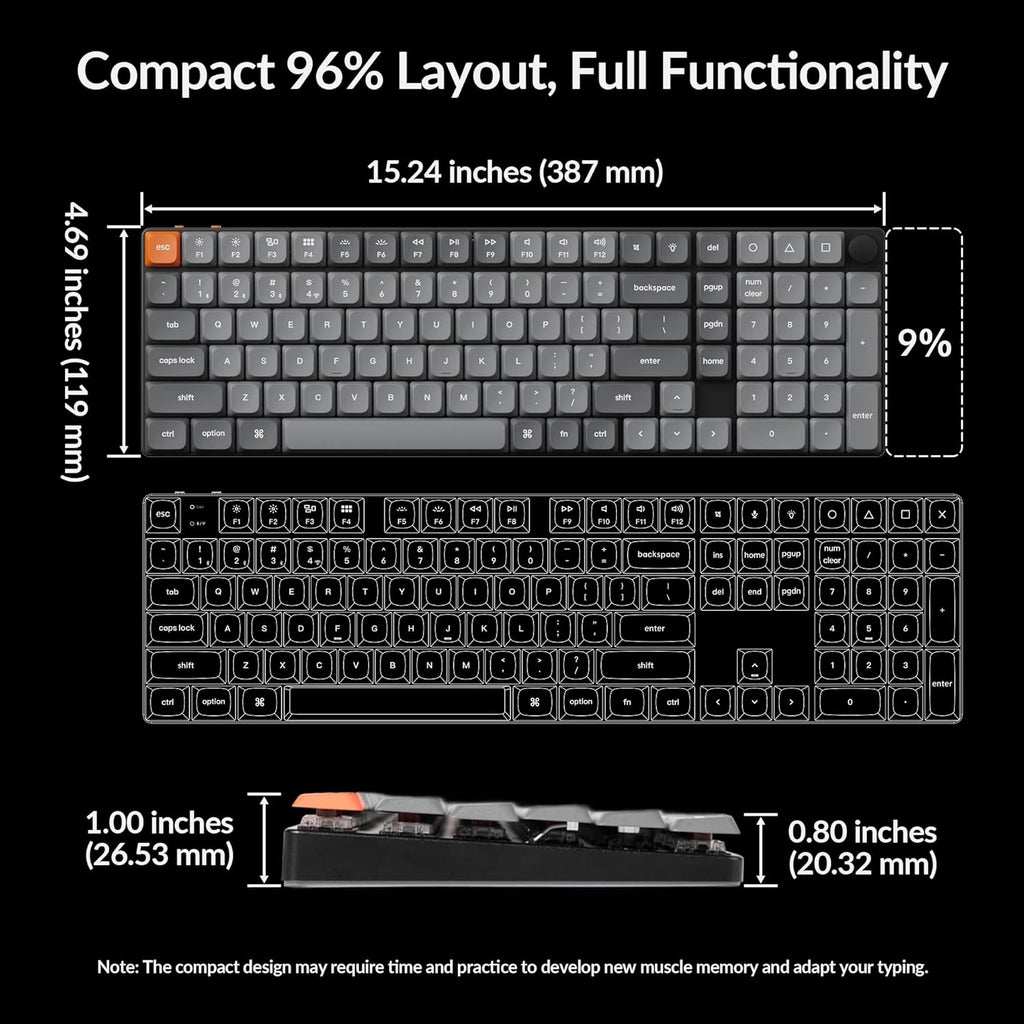

| Dimension | 387 x 119 mm (15.24 x 4.69") |
| Weight | 750 g / 1.65 lbs |
| Height without keycap (front) | 10.26 mm (0.40") |
| Height without keycap (rear) | 15.36 mm (0.60") |
| Height incl. keycap (front) | 20.32 mm (0.80") |
| Height incl. keycap (rear) | 26.53 mm (1.00") |
| Typing Angle | 2º, 4º, and 6º |
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Operating Environment | -10 to 50℃ |
