Description

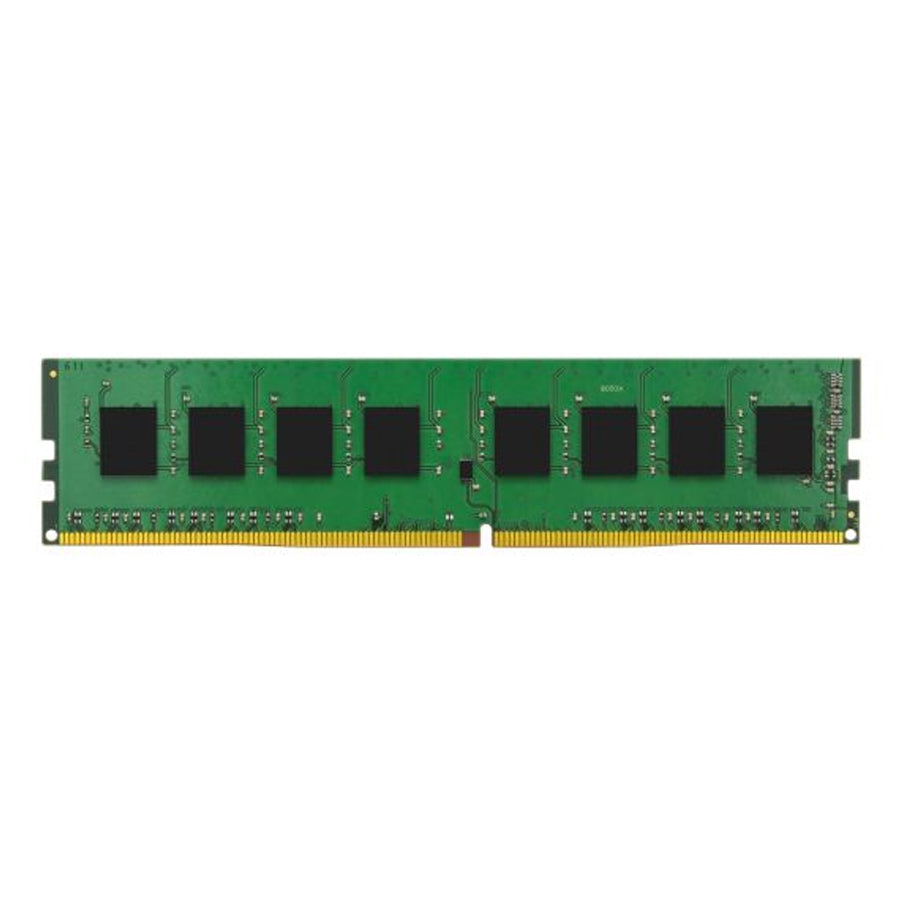

This document describes KVR32N22S8/8, a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) 1Rx8 memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to the JEDEC-standard DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers
Specifications:
| Power Supply | VDD = 1.2V Typical |
| VDDQ | 1.2V Typical |
| VPP | 2.5V Typical |
| VDDSPD | 2.2V to 3.6V |
| On-Die Termination | Nominal and dynamic ODT for data, strobe, and mask signals |
| LPASR | Low-power auto self refresh |
| DBI | Data bus inversion for data bus |
| VREFDQ | On-die generation and calibration |
| Rank | Single-rank |
| SPD EEPROM | On-board I2 serial presence-detect |
| Internal Banks | 16 banks; 4 groups of 4 each |
| Burst | Fixed BC4 and BL8 via MRS |
| OTF | Selectable BC4 or BL8 on-the-fly |
| Topology | Fly-by |
| Bus | Terminated control command and address bus |
| PCB Height | 1.23” (31.25mm) |
| Compliance | RoHS Compliant and Halogen-Free |
