Description
Specifications:
| System & Processor | |
|---|---|
| Model Name | UX5406AA |
| Colors | Antrim Gray |
| Operating System | Windows 11 Home |
| Processor | Intel® Core™ Ultra 9 Processor 386H 2.1 GHz (18MB Cache, up to 4.9 GHz, 16 cores, 16 Threads) |
| Neural Processor | Intel® NPU up to 50TOPS |
| Graphics | Intel® Graphics |
| Display & Memory | |

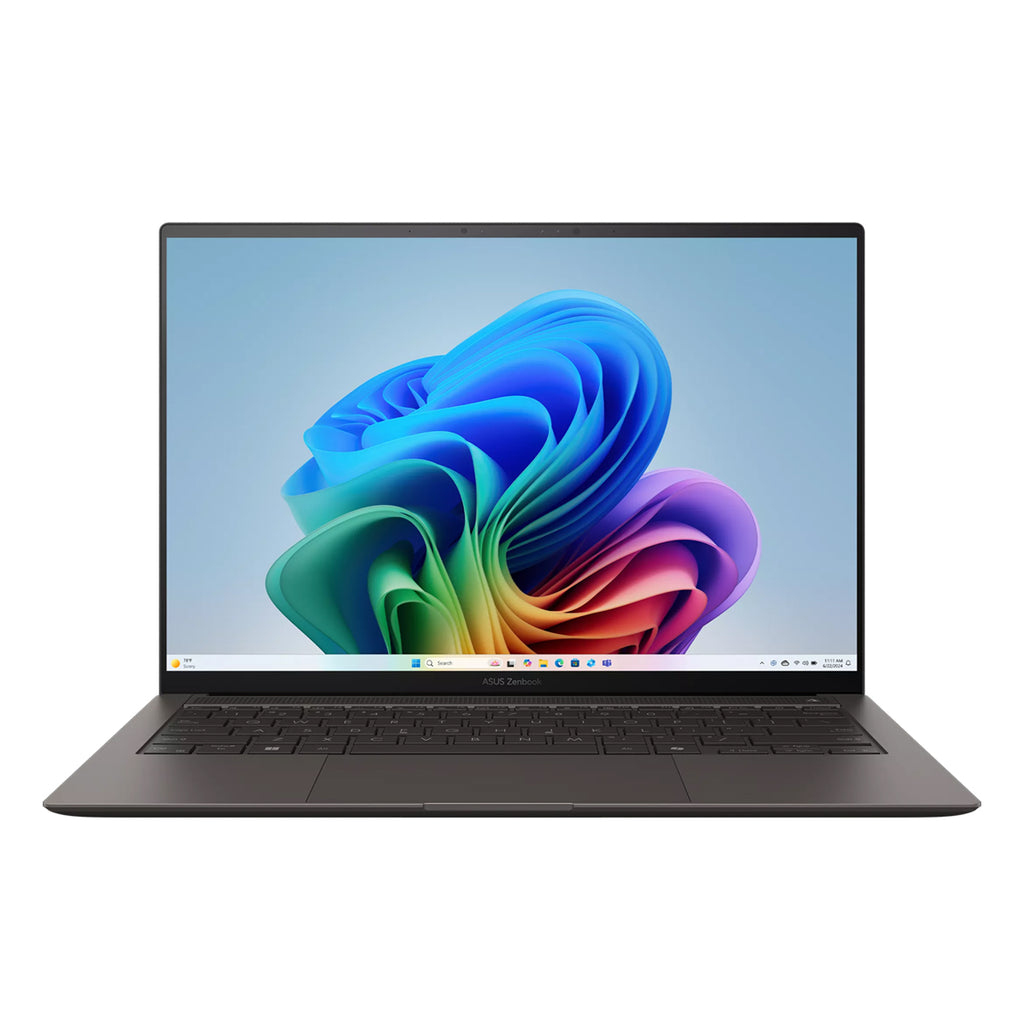

| Display | 14.0-inch, 3K (2880 x 1800) OLED 16:10 aspect ratio |
| Panel Features | 120Hz refresh rate, 0.2ms response time, 500nits (1100nits HDR peak brightness), 100% DCI-P3 color gamut, VESA CERTIFIED Display HDR True Black 1000, 1.07 billion colors, PANTONE Validated, Glossy display, 70% less harmful blue light, TÜV Rheinland-certified, SGS Eye Care Display |
| Memory | 32GB LPDDR5X on board |
| Storage | 1TB M.2 NVMe™ PCIe® 4.0 SSD |
| Expansion Slots | 1x M.2 2280 PCIe 4.0x4 |
| I/O & Connectivity | |

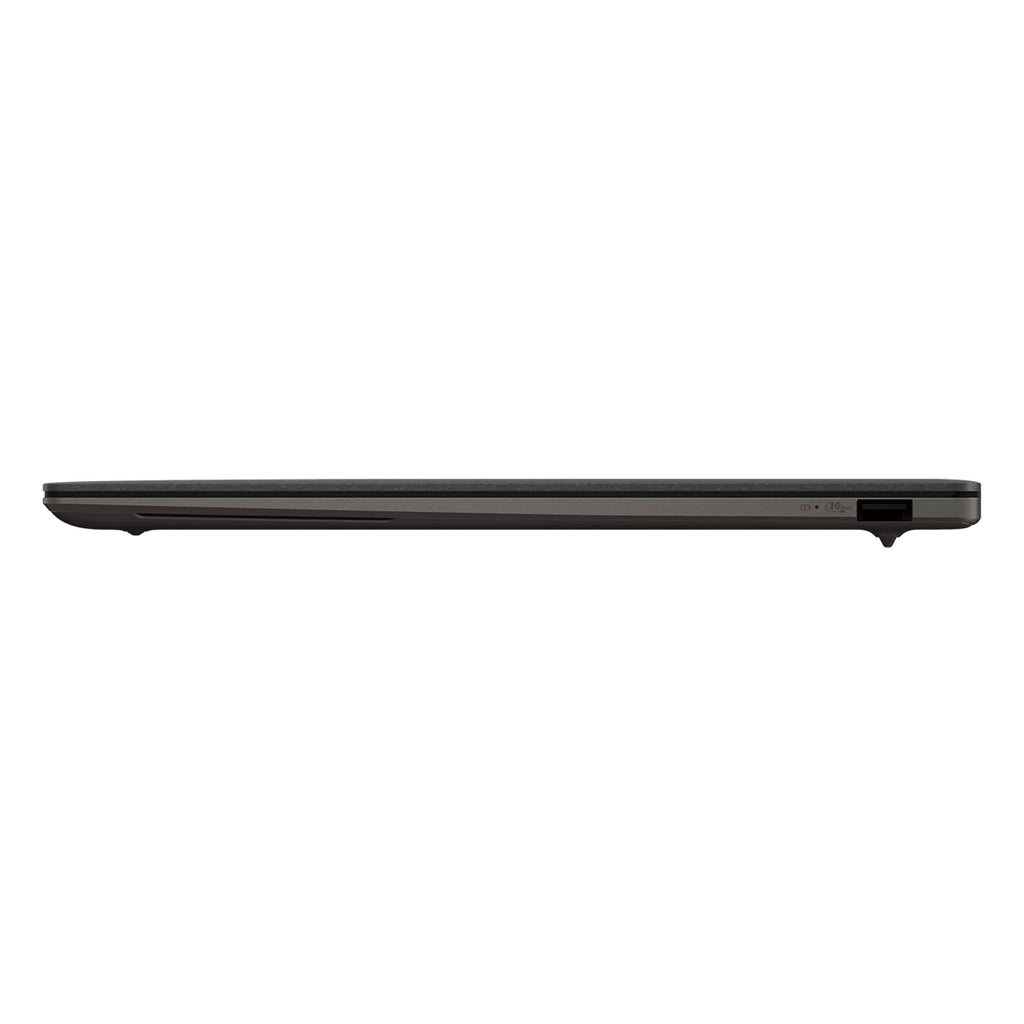

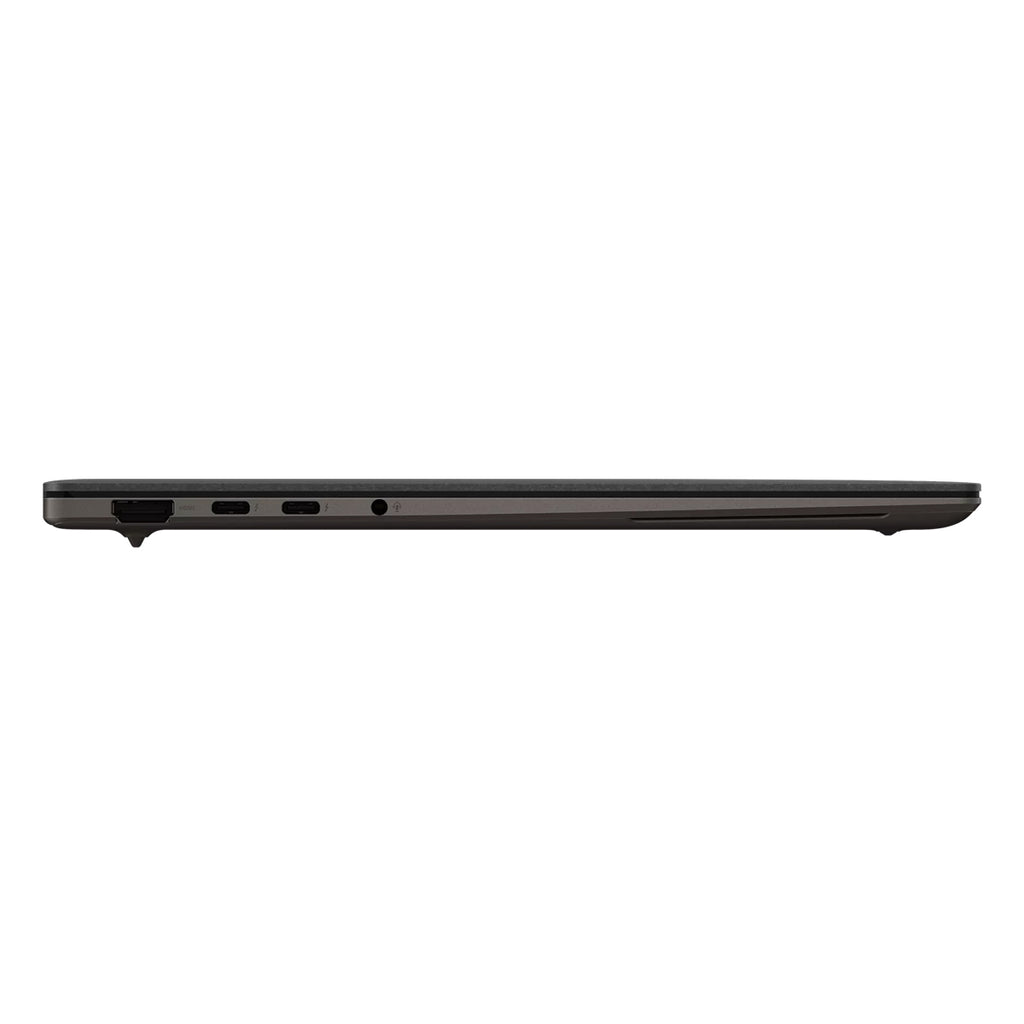

| I/O Ports | 1x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps), 2x Thunderbolt™ 4 with support for display / power delivery (data speed up to 40Gbps), 1x HDMI 2.1 TMDS, 1x 3.5mm Combo Audio Jack |
| Network | Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth® 6.0 Wireless Card |
| Camera | FHD camera with IR function to support Windows Hello |
| Audio | Smart Amp Technology, Built-in speaker, Built-in array microphone |
| Input & Power | |

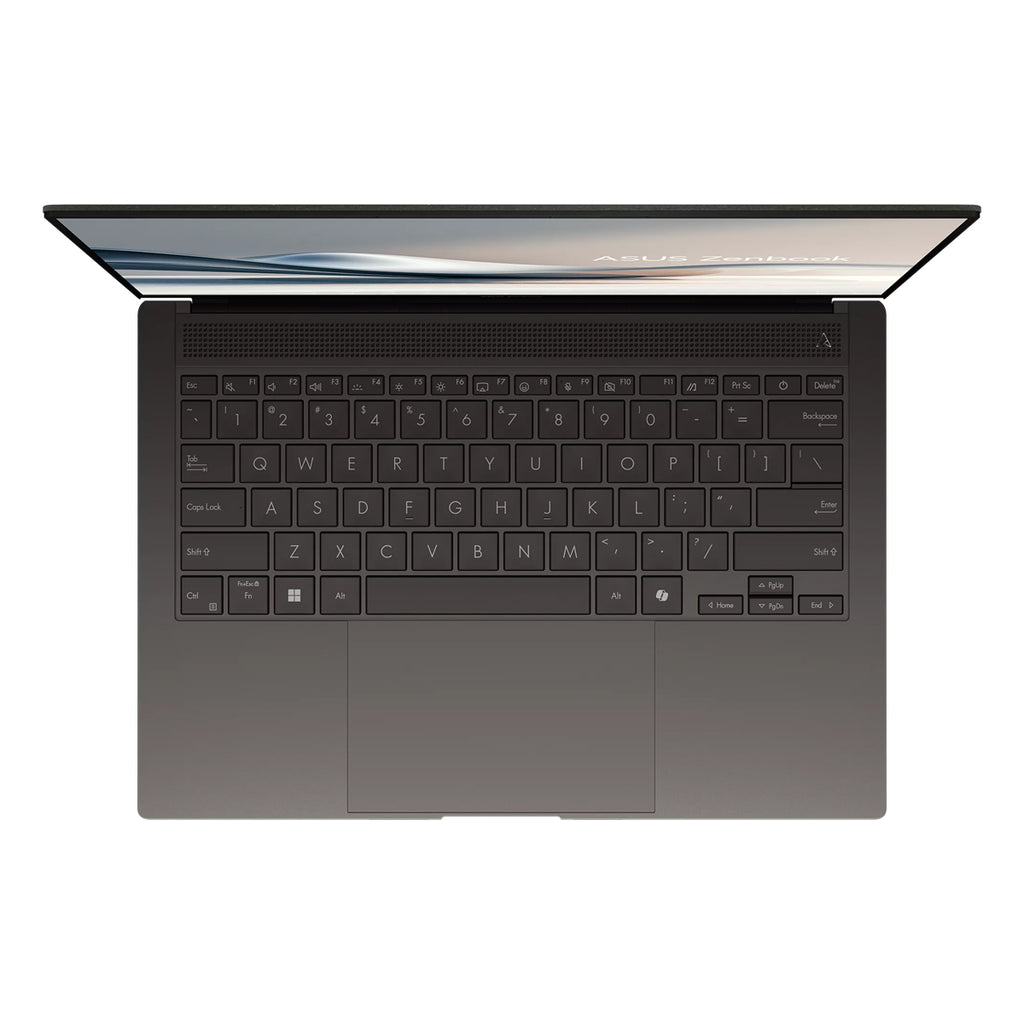

| Keyboard & Touchpad | Backlit Chiclet Keyboard, 1.1mm Key-travel, Precision touchpad |
| Battery | 77WHrs, 4S1P, 4-cell Li-ion |
| Power Supply | TYPE-C, 68W AC Adapter, Output: 20V DC, 3.4A, 68W, Input: 100~240V AC 50/60Hz universal, Fast-charge capable with 100W USB-C power delivery adapter |
| Physical & Additional Info | |
| Military Grade | US MIL-STD 810H military-grade standard |
| Weight | 1.20 kg (2.65 lbs) |
| Dimension (W x D x H) | 31.03 x 21.47 x 1.19 ~ 1.29 cm (12.22" x 8.45" x 0.47" ~ 0.51") |
| Security | Trusted Platform Module (Firmware TPM), Microsoft Pluton security processor, IR webcam with Windows Hello support |
