Description
- 2K 3MP Dual Lens - Capture the full picture with dual 2K high definition optics, monitoring two separate areas at the same time with just one device. Engineered to minimize blind spots for optimal coverage.
- Wide-Angle & Telephoto Lens - With 165° FOV wide-angle lens and 6mm telephoto lens, it ensures all-around awareness and down-to-the-detail protection of your home.

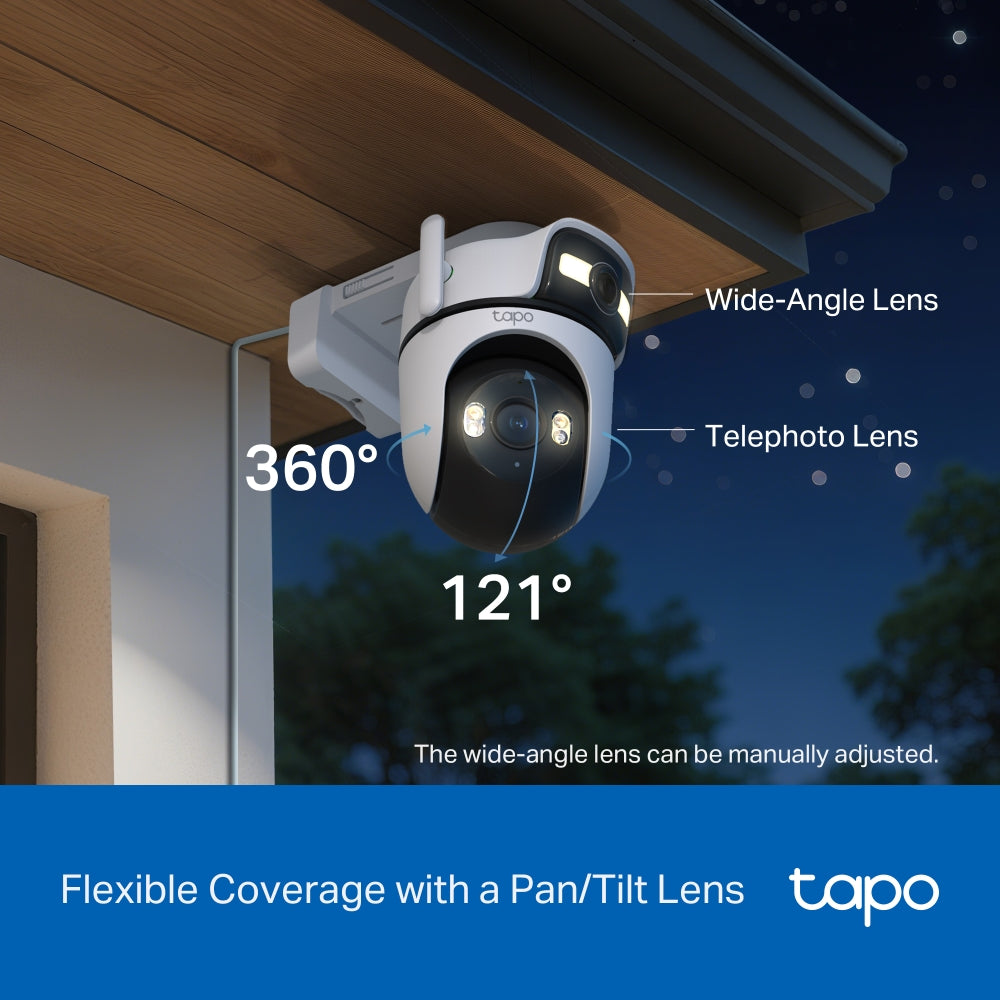

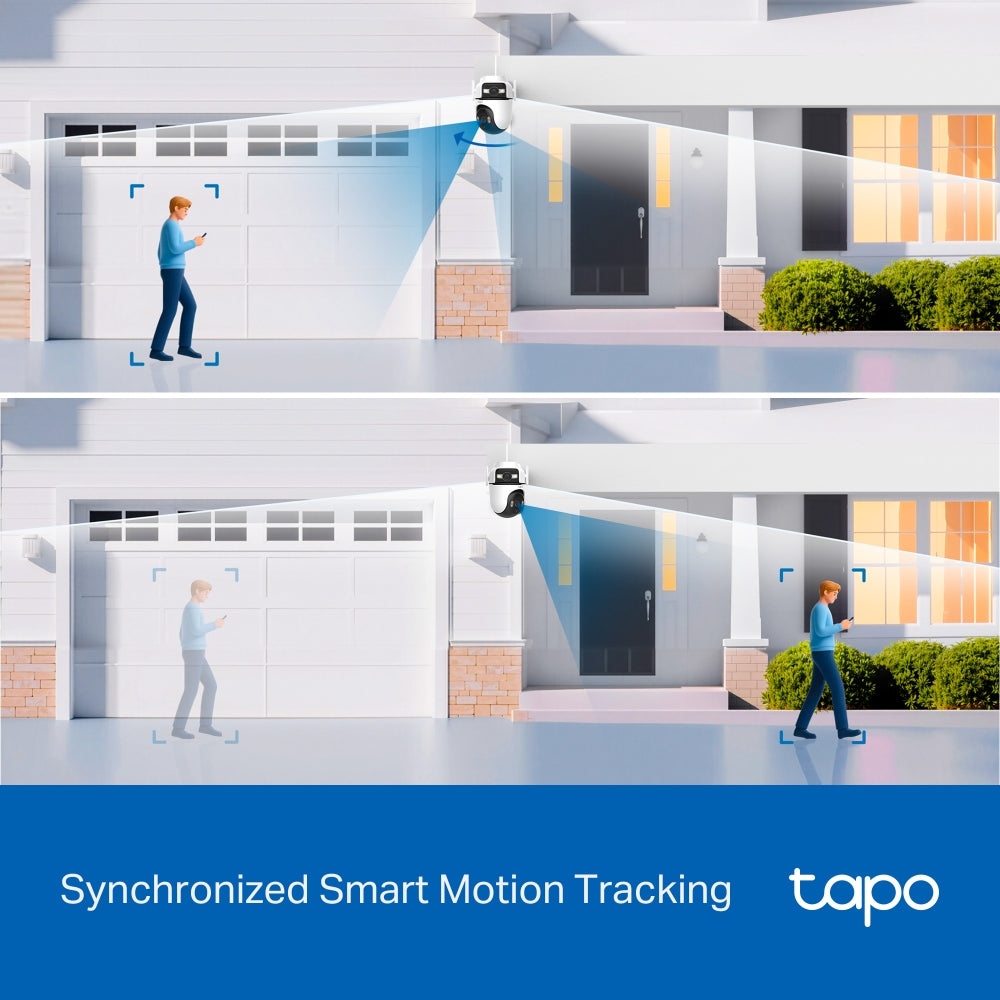

- Synchronized Smart Tracking - When the fixed lens detects events, the pan/tilt lens will automatically pivot to focus on and track the moving object.
- One-Tap Smart Focus - Select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly.
- IP66 Weather Resistance - Delivers reliable surveillance through rain, snow, dust, and scorching heat. Monitor your property with confidence, no matter the weather.
- Ethernet Support - Ideal for areas with weak Wi-Fi, an Ethernet connection guarantees smooth live streaming and faster data transmission.
- Free AI Detection & Notification - Get instant push notifications when motion, person, pets and vehicles are detected, there is no additional fee to use it.
- Works with Alexa, Google Assistant & Samsung SmartThings - Fully compatible with Amazon Alexa, Google Assistant and Samsung SmartThings.
- Smart Night Vision -Choose from vibrant full-color with spotlights, discreet black-and-white infrared, or an automatic Smart Mode based on Al light detection for optimal clarity in any nighttime scenario.
- Secure Local or Cloud Storage - Save footage continuously on up to a 512 GB microSD card (not included) or subscribe to Tapo Care for cloud storage which saves 30-day video.
- 2-Way Audio - Engage in seamless, real-time conversations with our two-way audio feature, designed for minimal latency and exceptional sound clarity.
| Image Sensor | 1/2.8“ Progressive Scan CMOS Sensor |
| Lens | Focal Length: 6 mm ± 5%, 2.53 mm±5% Aperture: F1.6 ± 10%, F1.6 ± 10% Field of View: 66.5° (Diagonal), 57.3° (Horizontal), 31.7° (Vertical); 165.1° (Diagonal), 137.6° (Horizontal), 73.0° (Vertical) |
| Night Vision | 850 nm IR LED (99 ft / 29.9 m), Color Night Vision |
| Day/Night Switch | IR-Cut Filter with Auto-Switching |
| Interface & Button | 1× RJ45 (10M/100M) Ethernet Port, 1× RESET Button, 1× microSD Card Slot (Up to 512 GB) |
| Maximum Resolution | 2K 3MP (2304 x 1296 px) + 2K 3MP (2304 x 1296 px) |
| Frame Rate | 15 fps |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99 dB (Level measured at 4-inch/10-cm distance) |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| AI Detection | Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Line-Crossing Detection, Camera Tampering |
| Activity Zones | Yes |
| Output Notification | System Notification, System Notification with Snapshot (Tapo Care Services) |
| Network Connectivity | Connect via Wi-Fi or Ethernet |
| Wireless Connectivity | IEEE 802.11 b/g/n/ax, 2.4 GHz |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Ethernet Port | Yes |
| RTSP | Yes |
| ONVIF | Yes |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72.2 Mbps, 11ax: 143.4 Mbps |
| Security | On-Device Machine Learning, 128-bit AES Encryption with SSL/TLS, WPA/WPA2-PSK/WPA3 |
| Power Source | 12 V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 12 V, 1 A (DC Power) |
| DC Power Connector Size | Inside Ø: 2.1 mm, Outside Ø: 5.5 mm |
| Power Cord Length | 3 m |
| Typical Power Consumption | 5.3 W |
| Maximum Power Consumption | 11.2 W |
| Smart Integration | Google Assistant, Amazon Alexa, Samsung SmartThings |
| Weather Resistance | IP66 |
| Mounting Options | Wall-Mounted, Eave-Mounted, Pole-Mounted |
| Operating Temperature | -30 ºC ~ 60 ºC (-22 °F ~ 140 °F) |
| Storage Temperature | -40 ºC ~ 60 ºC (-40 °F ~ 140 °F) |
| Operating Humidity | 10% ~ 90% RH, Non-condensing |
| Storage Humidity | 0 ~ 90% RH, Non-condensing |
| Dimensions (W x D x H) | 4.51 × 6.28 × 5.99 in (114.57 × 159.55 × 152.1 mm) |
| Weight | 17.32 oz / 491 g |
| Package Content | Tapo C545D Camera ×1, Mounting Bracket ×1, Mounting Template Sticker ×1, Mounting Screws ×4, Mounting Anchors ×4, Waterproof Seal ×1, Waterproof Cable Attachments ×1, Power Adapter ×1, Quick Start Guide |
