Description
Specifications:

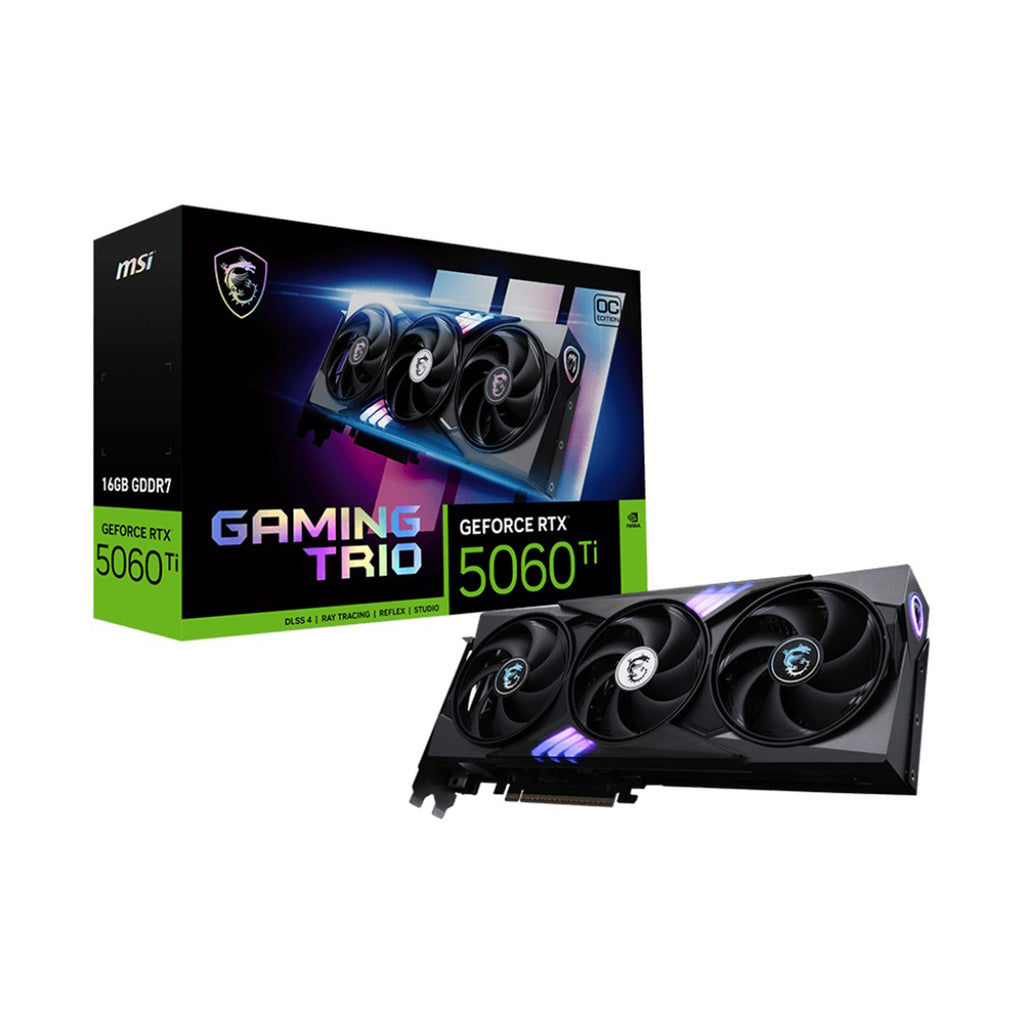

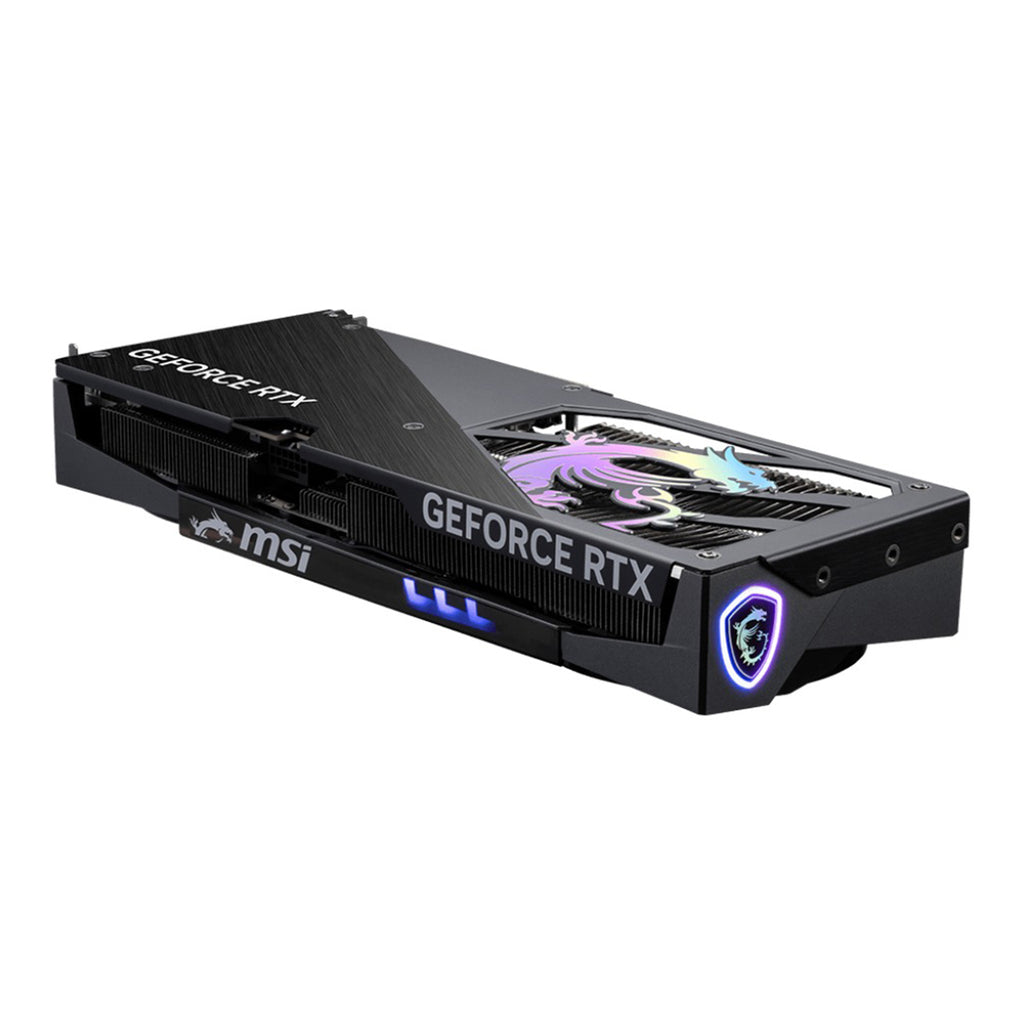

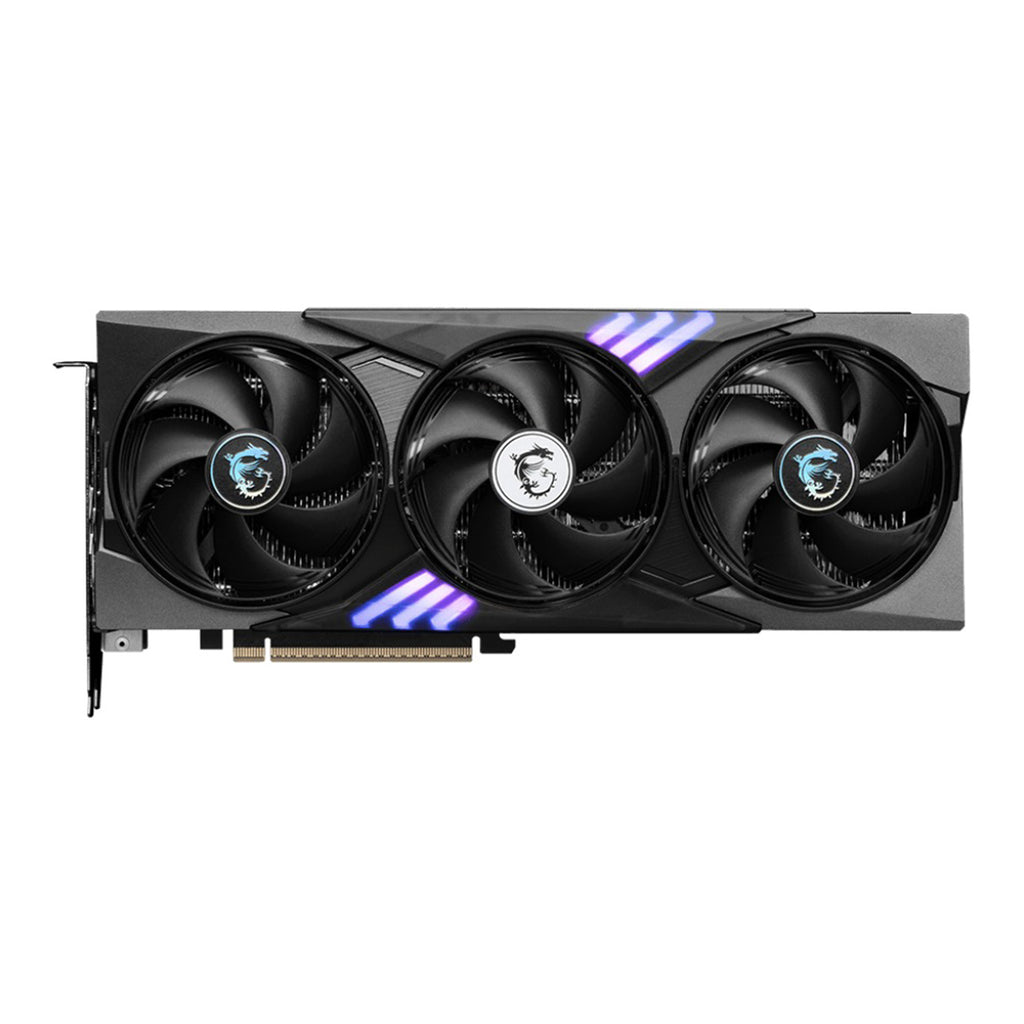

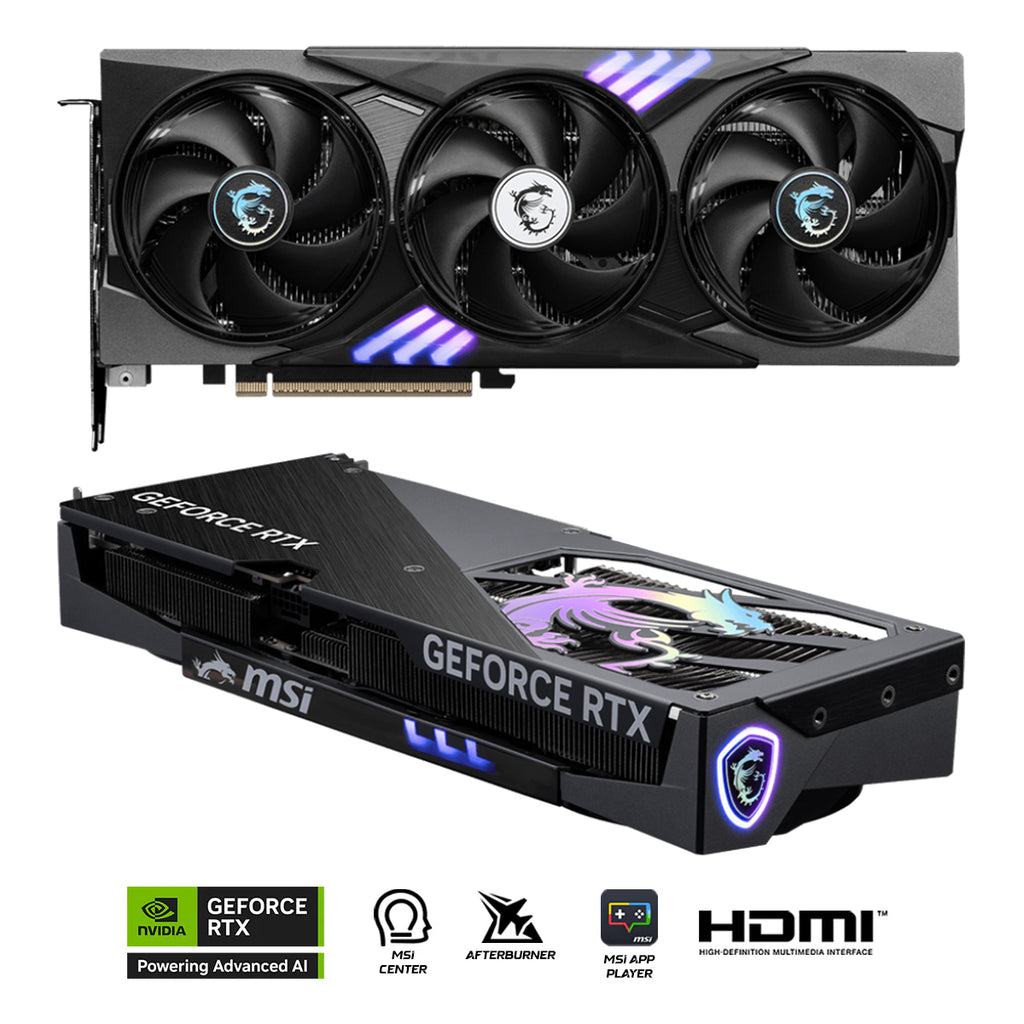

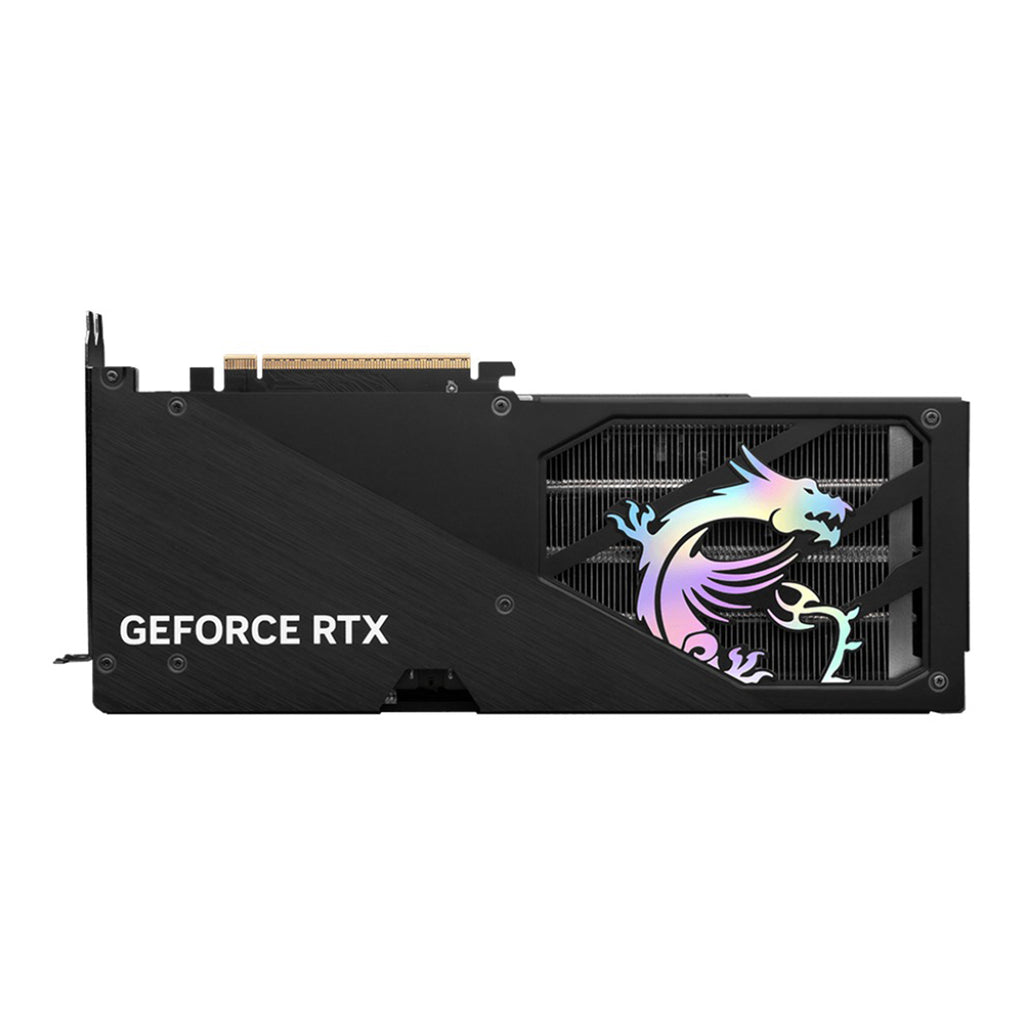

| Marketing Name | GeForce RTX™ 5060 Ti 16G GAMING TRIO OC |
| Model Name | G506T-16GTC |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2662 MHz (MSI Center) Boost: 2647 MHz |
| CUDA® CORES | 4608 Units |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 128-bit |

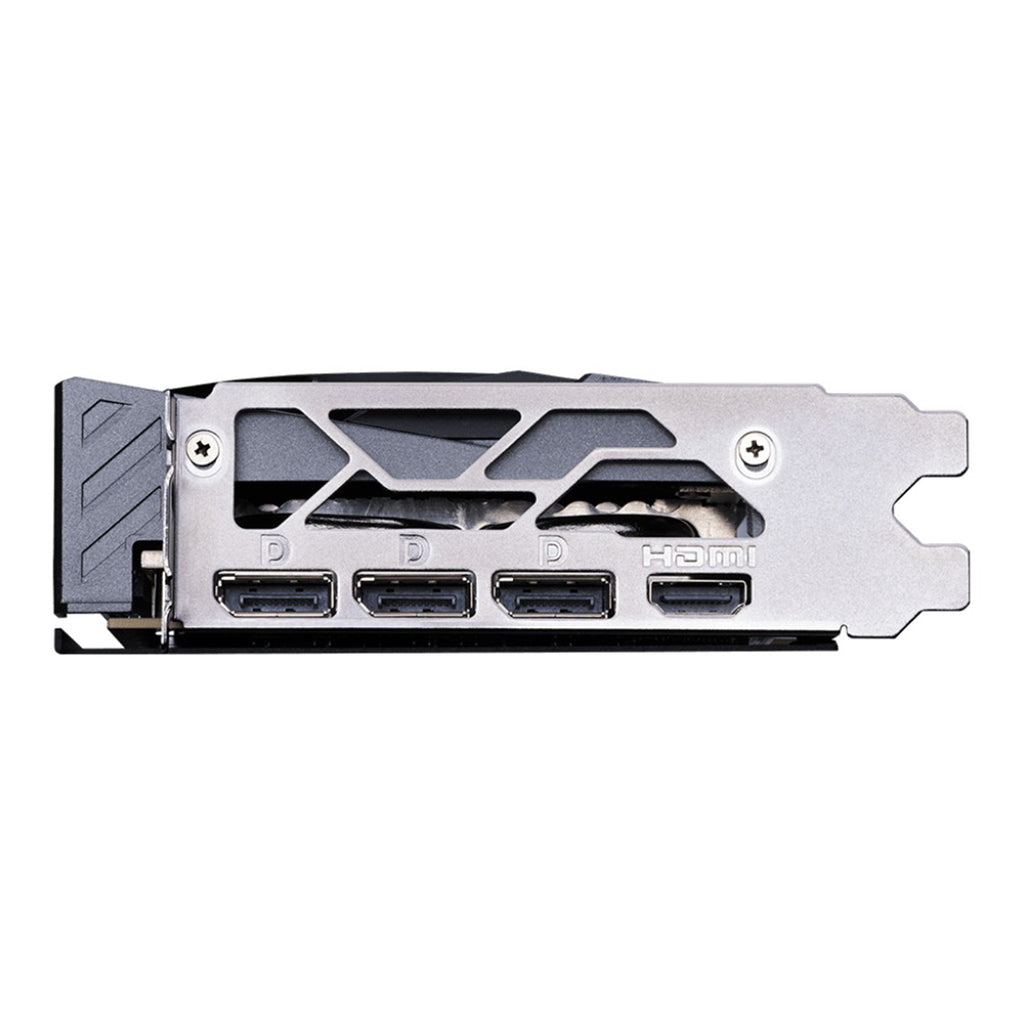

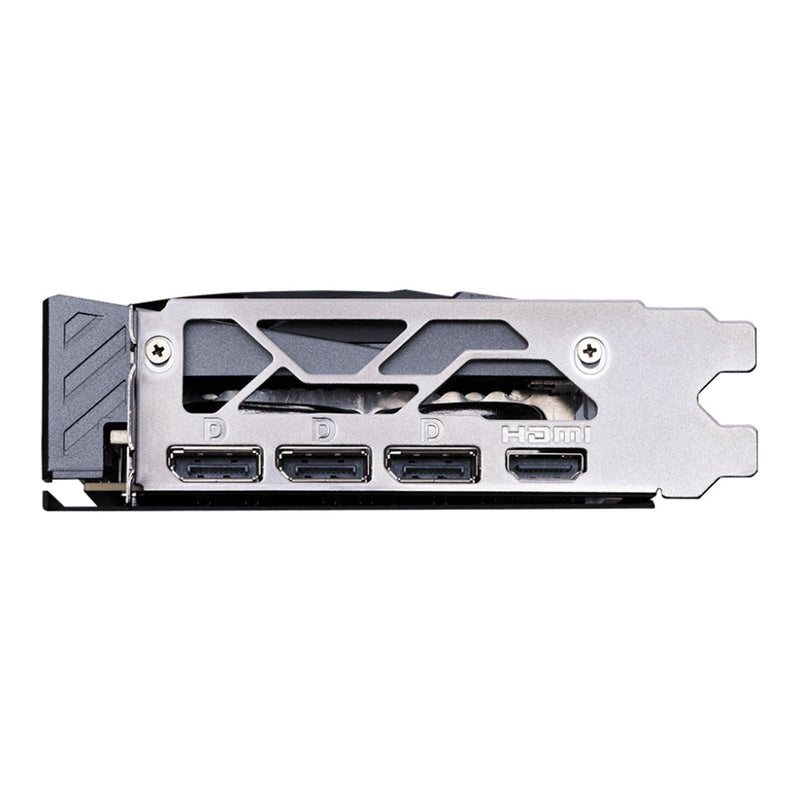

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 180 W |

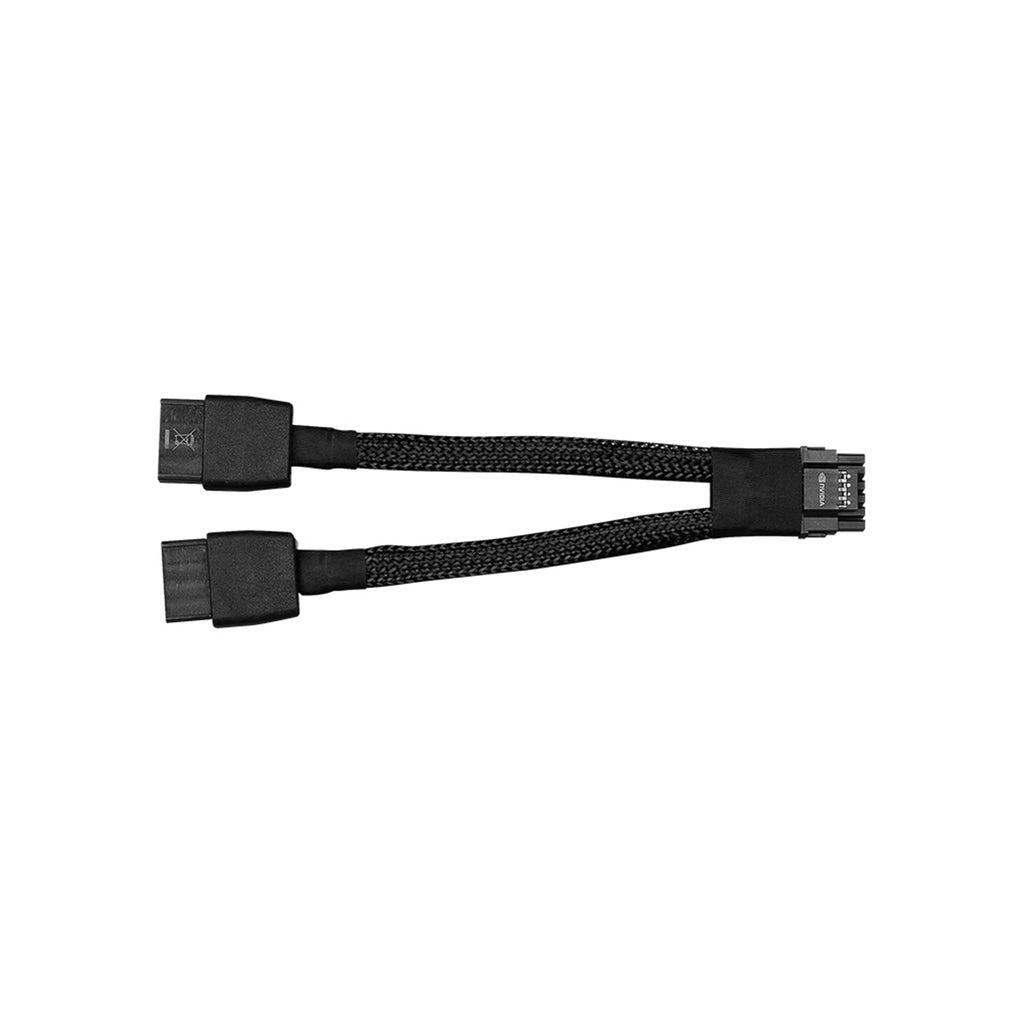

| Power Connectors | 16-pin x 1 |
| Recommended PSU | 600 W |
| Card Dimension (mm) | 300 x 125 x 44 mm |
| Weight (Card / Package) | 844 g / 1384 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
