Description

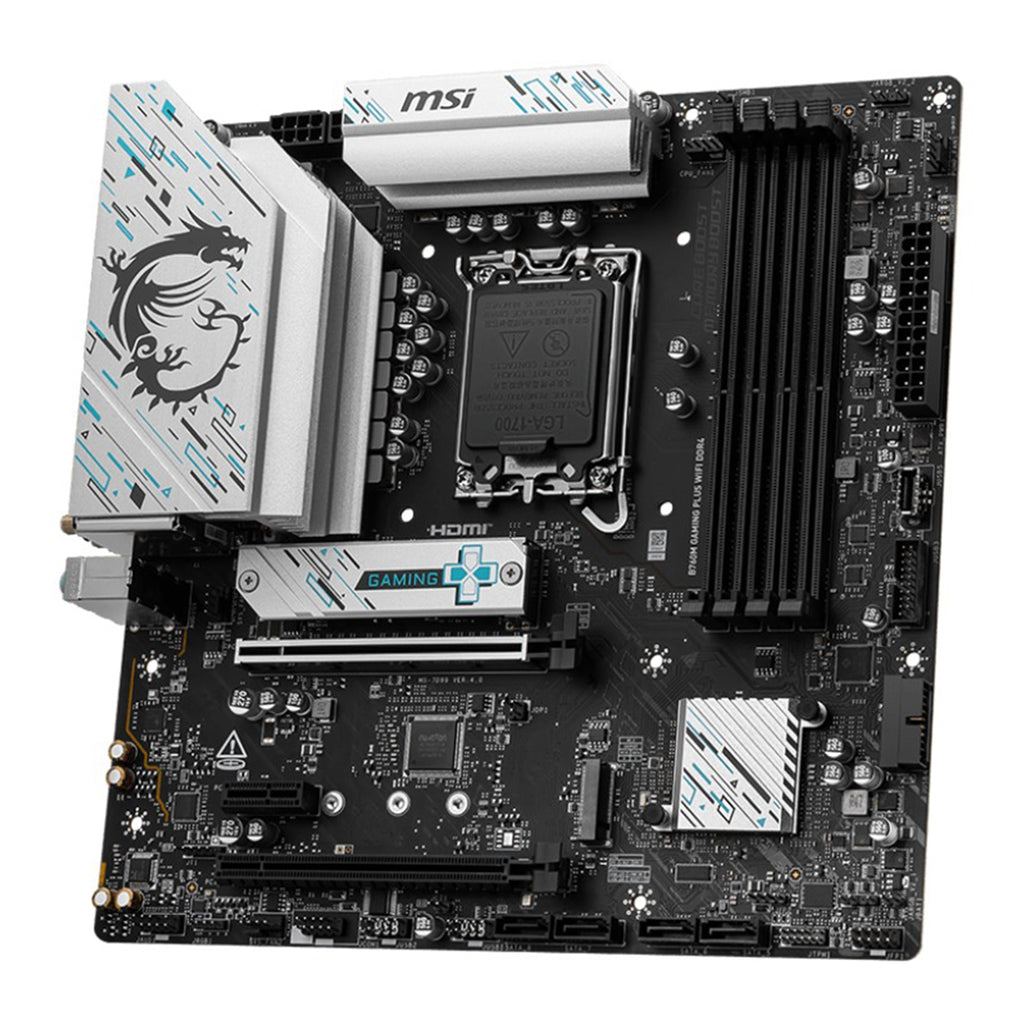

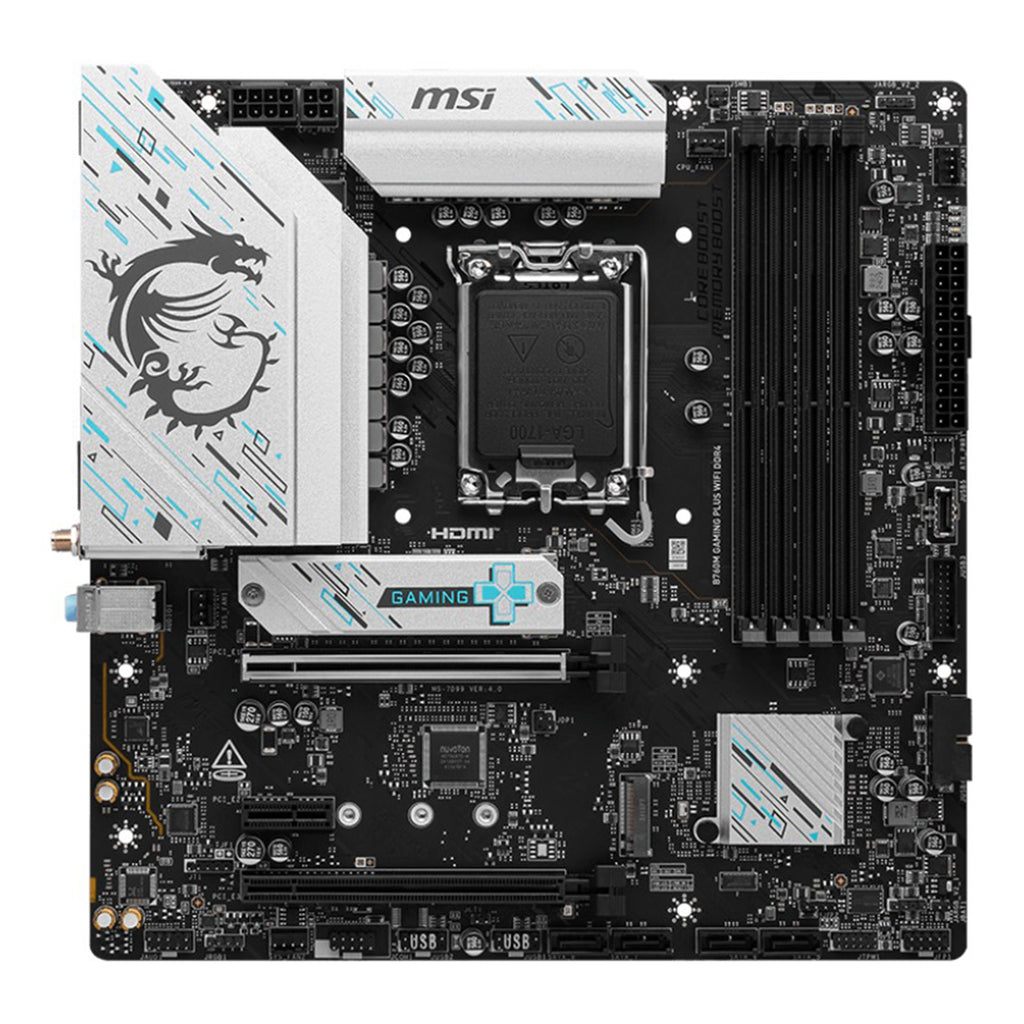

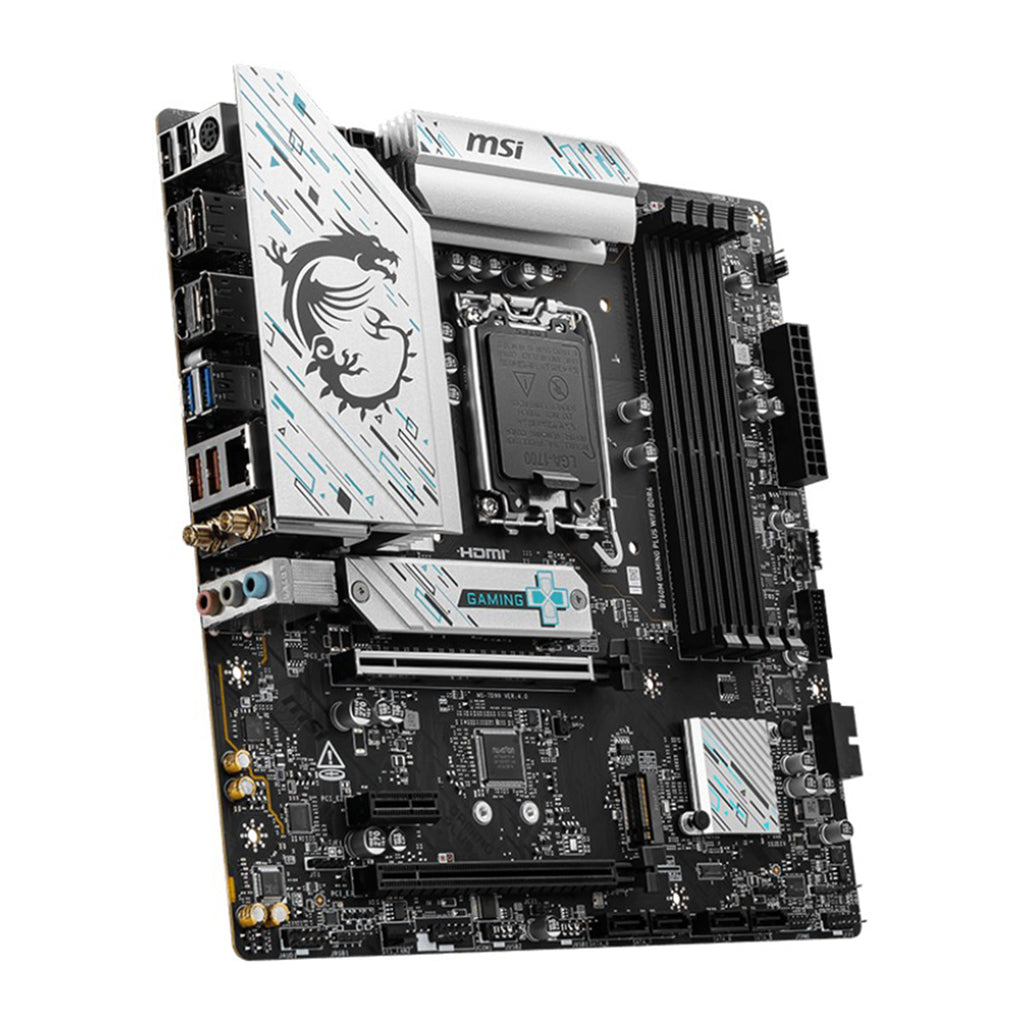

B760M GAMING PLUS WIFI DDR4
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5333+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

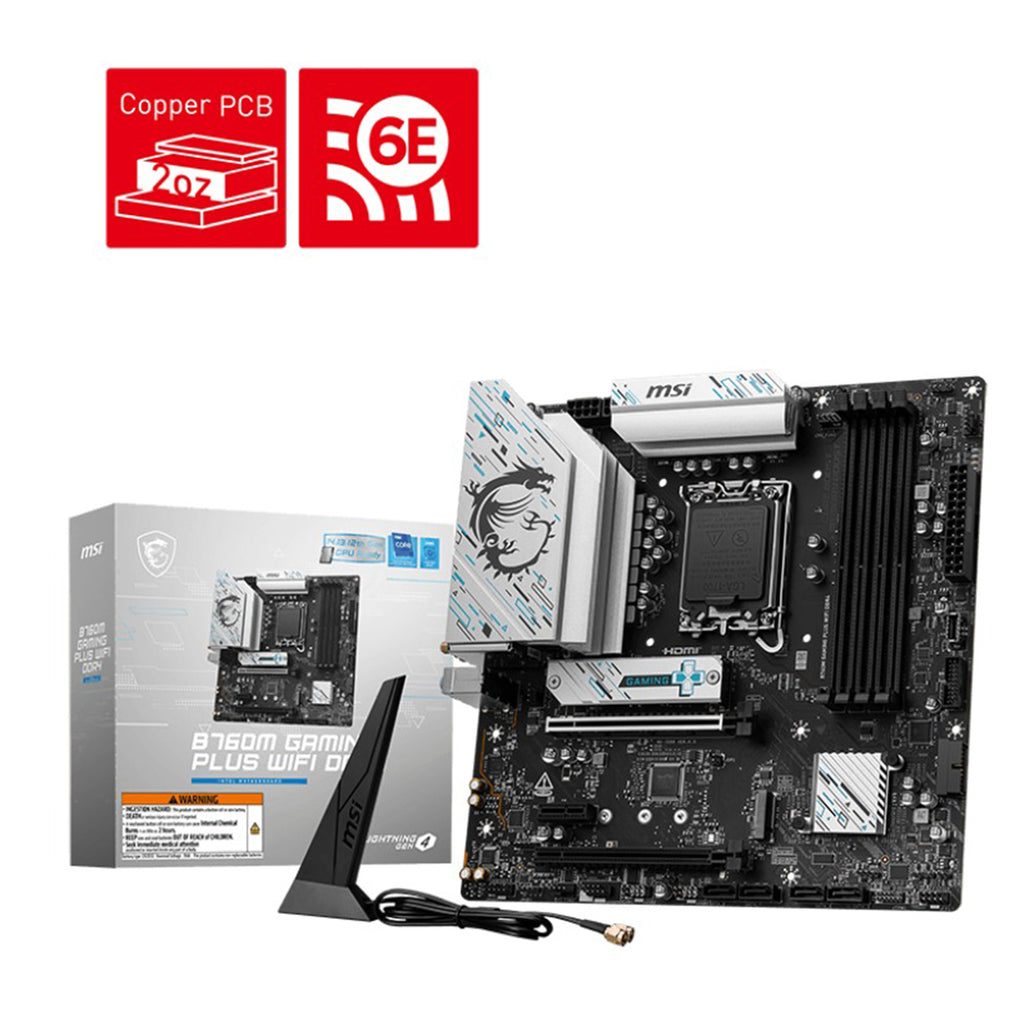

- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications:
| Chipset | INTEL B760 |
|---|---|
| CPU | Supports Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, and Celeron® Processors (LGA 1700) |
| Memory | 4x DDR4, up to 128GB Supported Frequencies: 5333(OC) to 2133(JEDEC) MHz Max OC: • 1DPC 1R: up to 5333+ MHz • 1DPC 2R: up to 4800+ MHz • 2DPC 1R: up to 4400+ MHz • 2DPC 2R: up to 4000+ MHz Supports Dual-Controller Dual-Channel, XMP 3.0, Non-ECC, Un-buffered |
| Onboard Graphics | 2x HDMI™ 2.1 (4K@60Hz) 2x DisplayPort 1.4 (4K@60Hz) * Only with CPUs that include integrated graphics |
| Expansion Slots | 2x PCI-E x16: • PCI_E1 (Gen 4.0 x16, from CPU) • PCI_E3 (Gen 4.0 x4, from Chipset) 1x PCI-E x1 (Gen 3.0 x1, from Chipset) |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| Storage | 2x M.2 (PCIe 4.0 x4), supports 2280/2260/2242 4x SATA 6G * SATA8 disabled when M.2 SATA is used in M2_2 RAID 0/1/5/10 supported |
| USB Ports | Rear: 2x USB 2.0, 2x USB 5Gbps Type A, 2x USB 10Gbps Type A Front: 4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 5Gbps Type C |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Wireless | Intel® Wi-Fi 6E (2.4/5/6GHz), MU-MIMO, up to 2.4Gbps Bluetooth® 5.3, FIPS, FISMA |
| Internal I/O | 1x ATX_PWR, 2x CPU_PWR 1x CPU Fan, 1x Pump Fan, 2x System Fan 2x JFP, 1x JAUD, 1x JCI, 1x JCOM 2x JARGB_V2, 1x JRGB, 1x TPM USB: 4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 5Gbps Type C |

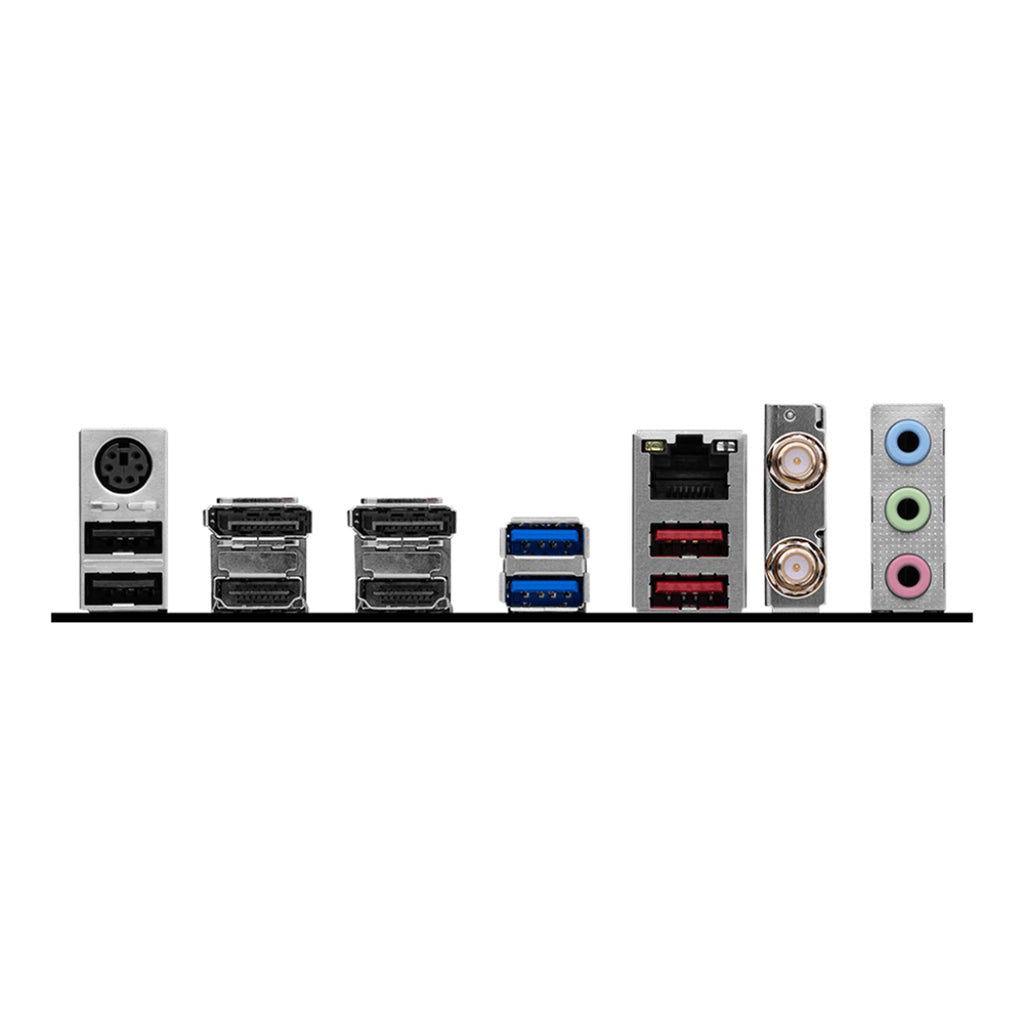

| Back Panel Ports | Keyboard / Mouse 2x DisplayPort 2x HDMI™ 2x USB 2.0 2x USB 5Gbps Type A 2x USB 10Gbps Type A 2.5G LAN Wi-Fi / Bluetooth Antenna Ports Audio Connectors |
| LED Features | 4x EZ Debug LED |
| OS Support | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | mATX (243.84mm x 243.84mm) |
