Description
GeForce RTX™ 4070 GAMING X TRIO 12G
WITH DLSS 3
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- 2610 MHz / 21 Gbps
- 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
SPECIFICATION
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 |
| INTERFACE | PCI Express Gen 4 |
| CORE CLOCKS | Extreme Performance: 2625 MHz (MSI Center) |
| Boost: 2610 MHz | |
| CUDA CORES | 5888 Units |
| MEMORY SPEED | 21 Gbps |
| MEMORY | 12GB GDDR6X |
| MEMORY BUS | 192-bit |
| OUTPUT | DisplayPort x 3(v1.4a) |
| HDMI x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI邃｢ 2.1a) | |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 215 W |
| POWER CONNECTORS | 16-pin x 1 |
| RECOMMENDED PSU | 650 W |
| CARD DIMENSION (MM) | 338 x 141 x 52 mm |
| WEIGHT (CARD / PACKAGE) | 1214 g / 2143 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
Customer Reviews
Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
p
- Great card
- thick bubble wrapped
- shipped immediately
G
Works great! It's a good buy at a price point lower than other retailers'.
D

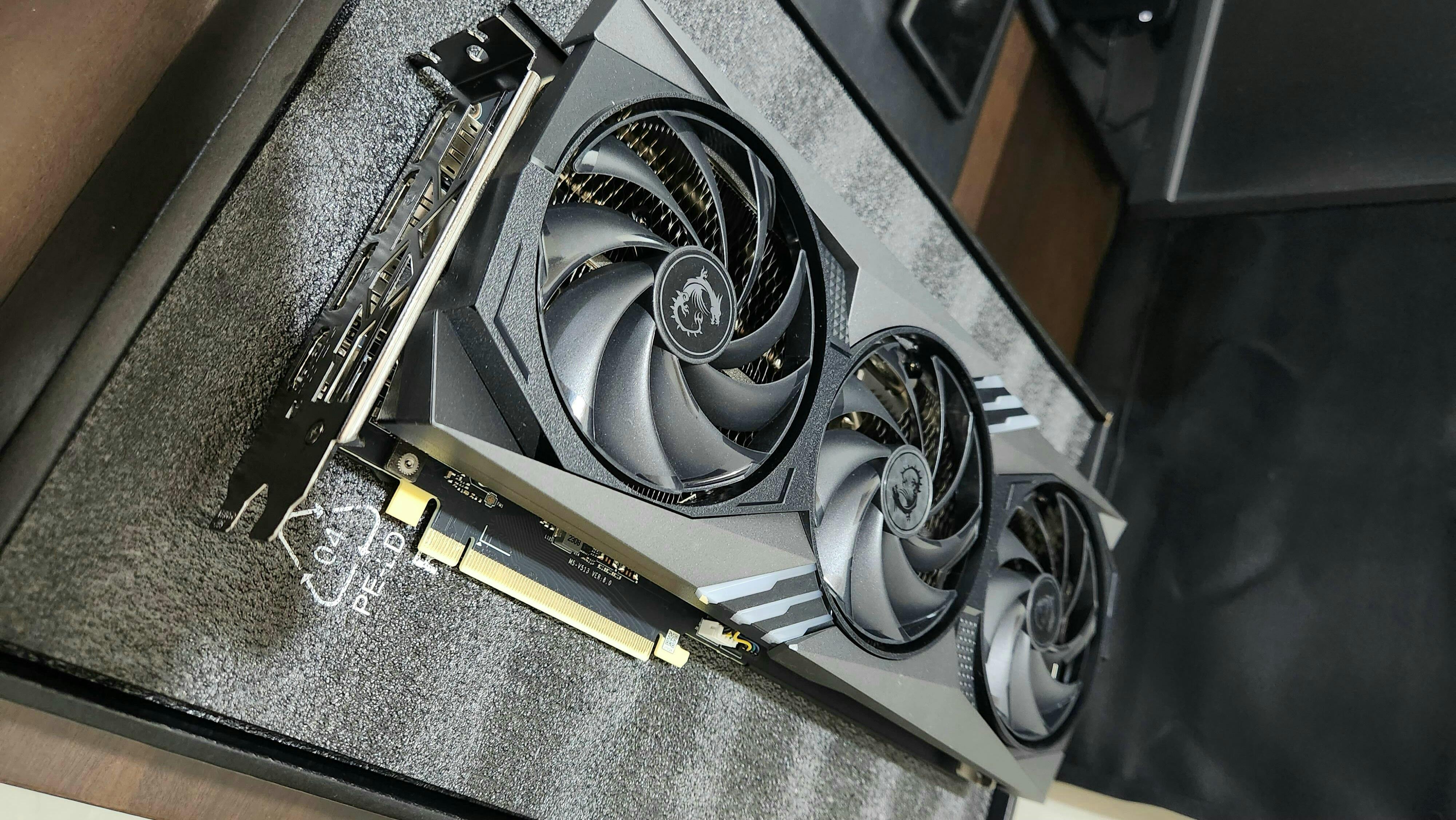

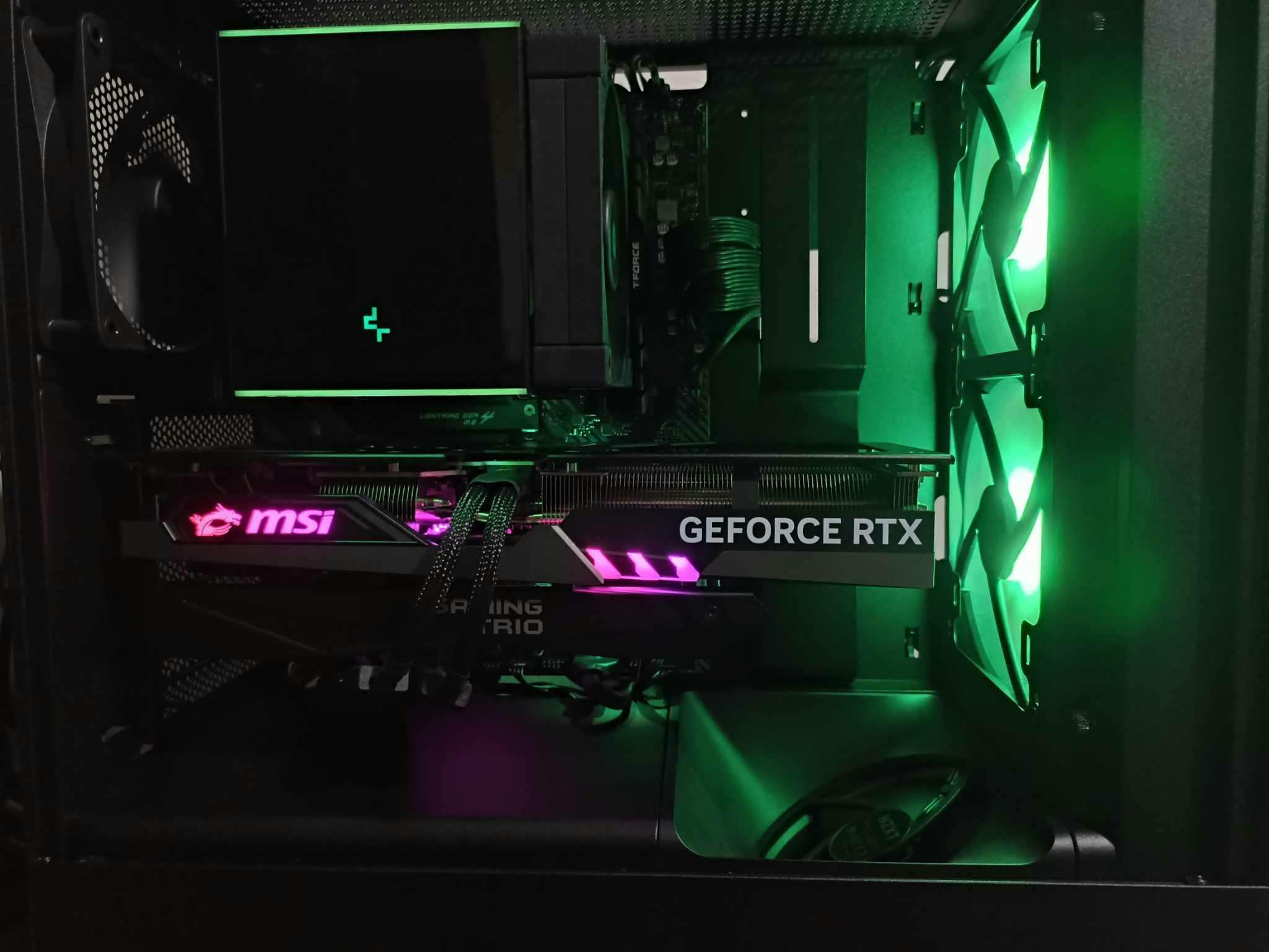

Just upgraded my 30 series GPU and I could say this one is worth it. I read that this card runs quiet and cool, and it surely does! I can run CP2077 @ 1440p RT Overdrive (DLSS3 + Frame Gen + Path Tracing) smoothly.
