Description

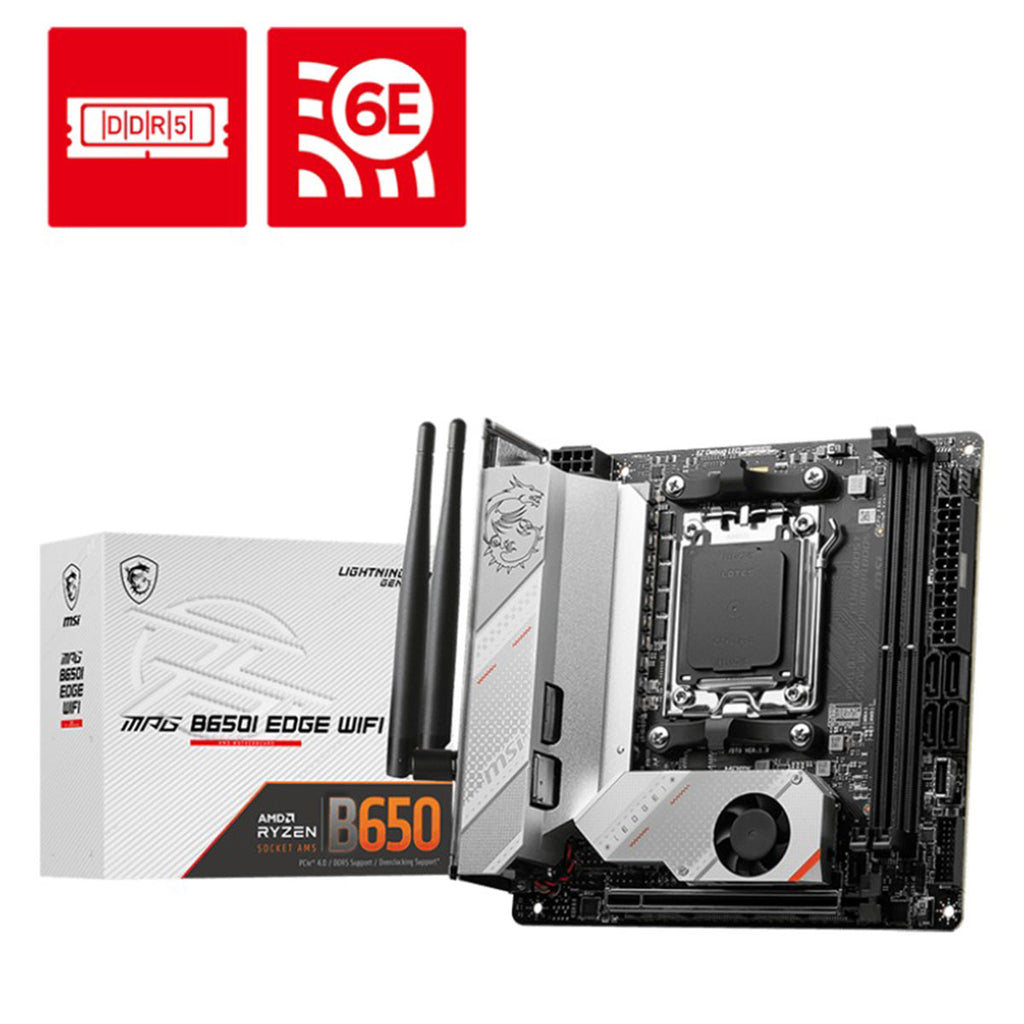

MPG B650I EDGE WIFI
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 6000+MHz (OC)
- Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
TECHNICAL SPECIFICATION
| CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
|---|---|
| MEMORY | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6000+ MHz • 1DPC 2R Max. speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
| ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 1x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| STORAGE | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
Customer Reviews
Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R

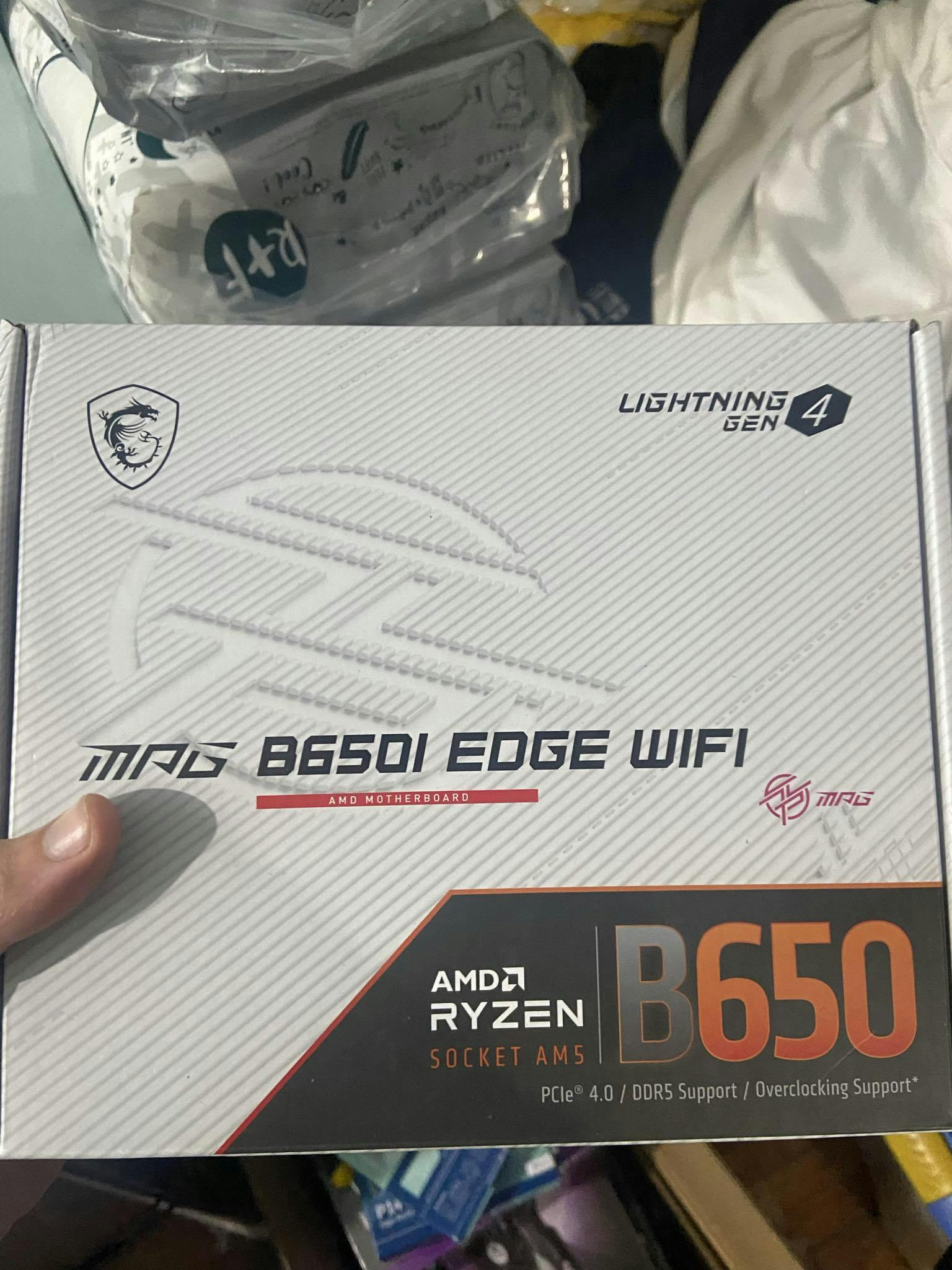

2nd msi ITX board and its the best budget for its class of quality
