Description

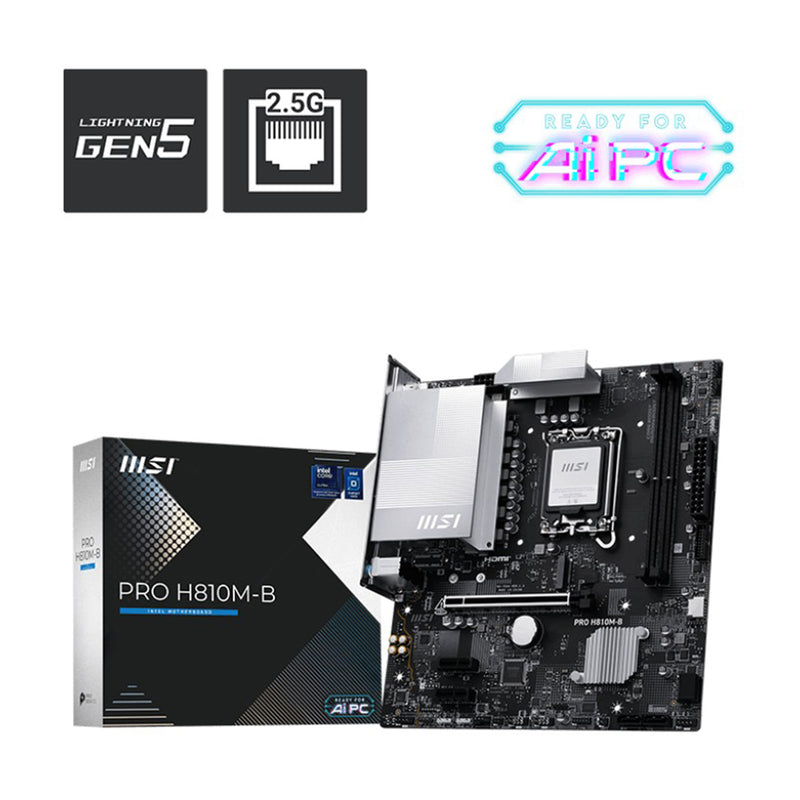

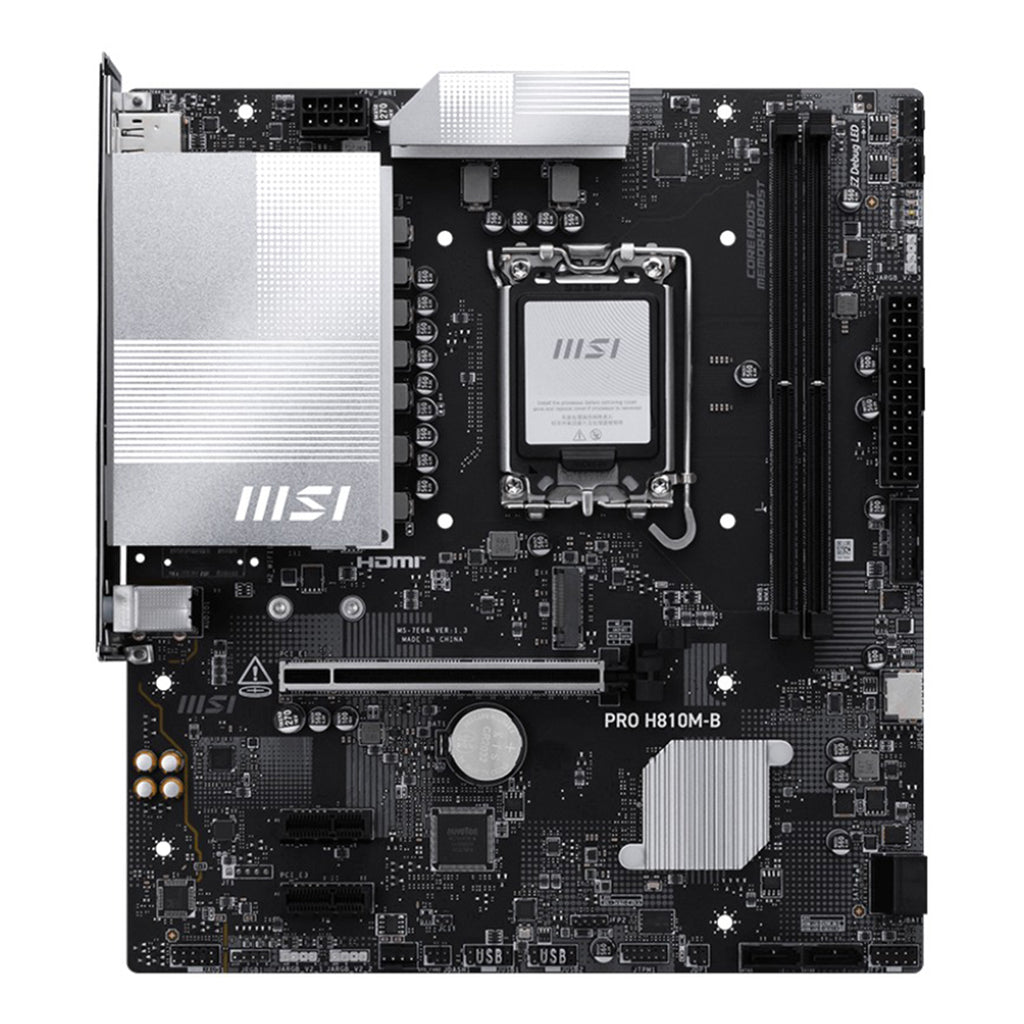

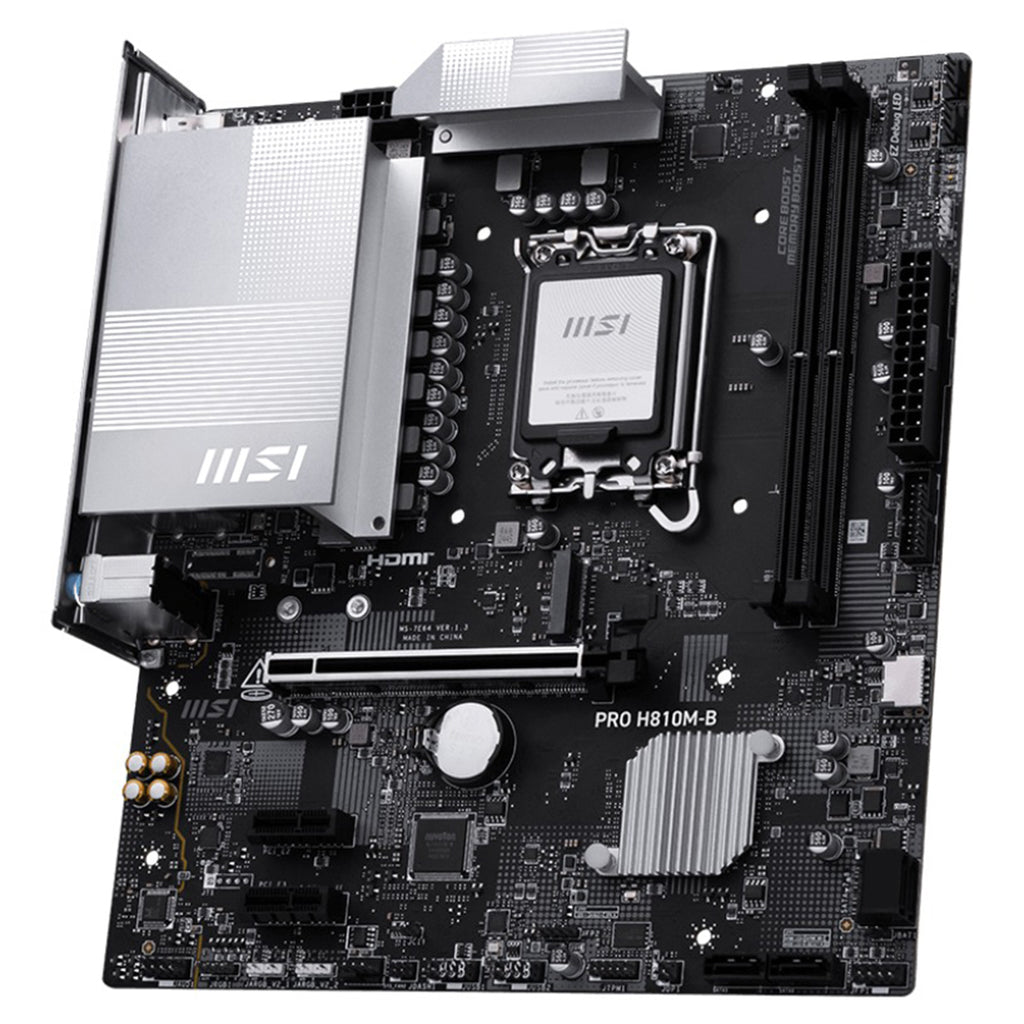

PRO H810M-B
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 6400 MT/s (MAX)
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Frozr Guard: Extended Heatsink and MOSFET thermal pads rated for 7W/mK are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Clip II and EZ PCIe Clip II
- Lightning Fast experience: PCIe 5.0 slot and Lightning Gen 4 x4 M.2
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications:
| Chipset | INTEL H810 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel® POR Speed and JEDEC Speed Supports Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions. |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) |
| LAN | Realtek® 8125 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |

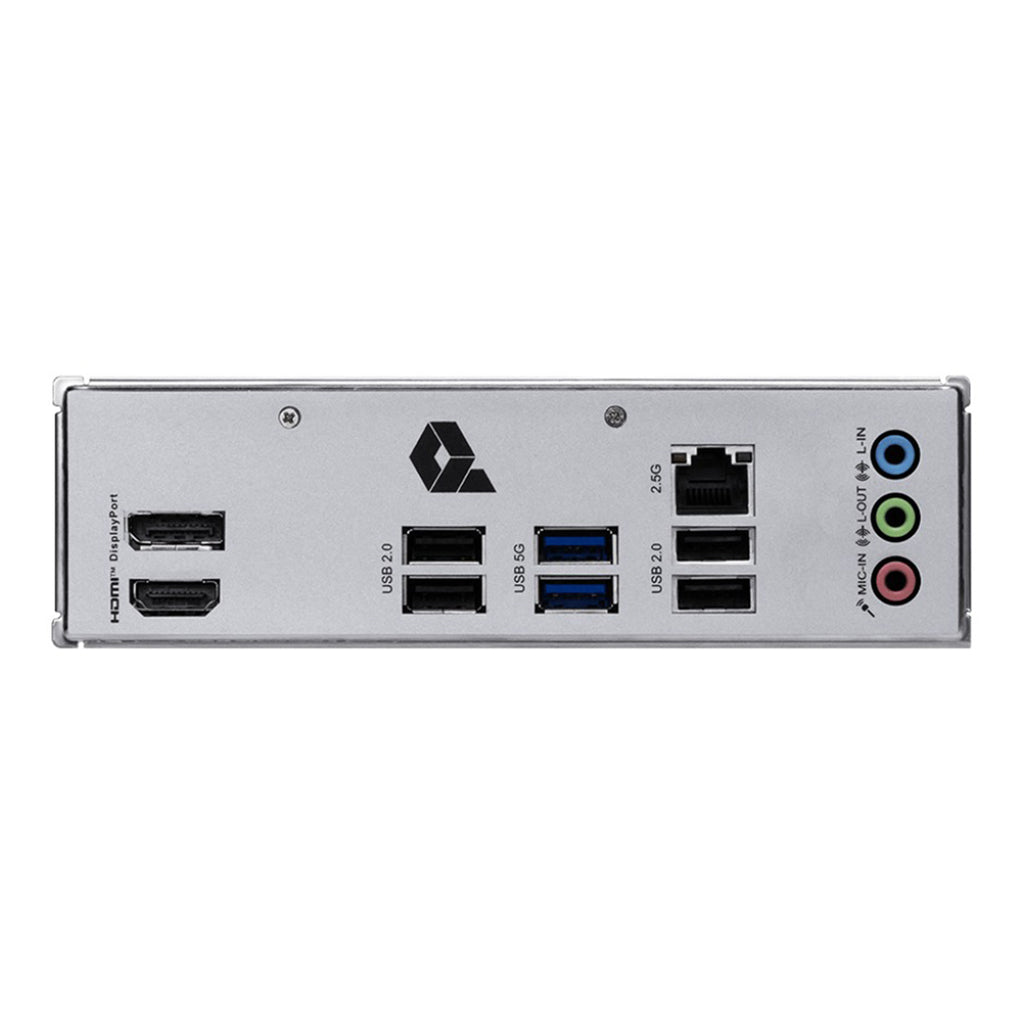

| BACK PANEL PORTS | DisplayPort USB 2.0 USB 5Gbps Type-A 2.5G LAN Audio Connectors HDMITM USB 2.0 |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
