Description
Specifications:
| Model | RT-BE50 |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 7 (802.11be) IPv4 IPv6 |
| Product Segment | BE3600 ultimate BE performance : 688+2882 Mbps |
| WiFi Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps WiFi 7 (802.11be) (5GHz): up to 2882 Mbps |
| Antenna | External antenna x 4 |
| Transmit / Receive | 2.4GHz 2x2 5GHz 2x2 |
| Processor | Quad-core processor |
| Memory | 128 MB Flash 256 MB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4GHz / 5GHz 2.4 GHz 5 GHz |
| Operating Mode | Wireless router mode Access point mode Media bridge mode Wireless Router Mode AiMesh Node Mode Range Extender Mode Access Point Mode Media Bridge Mode Repeater Mode |

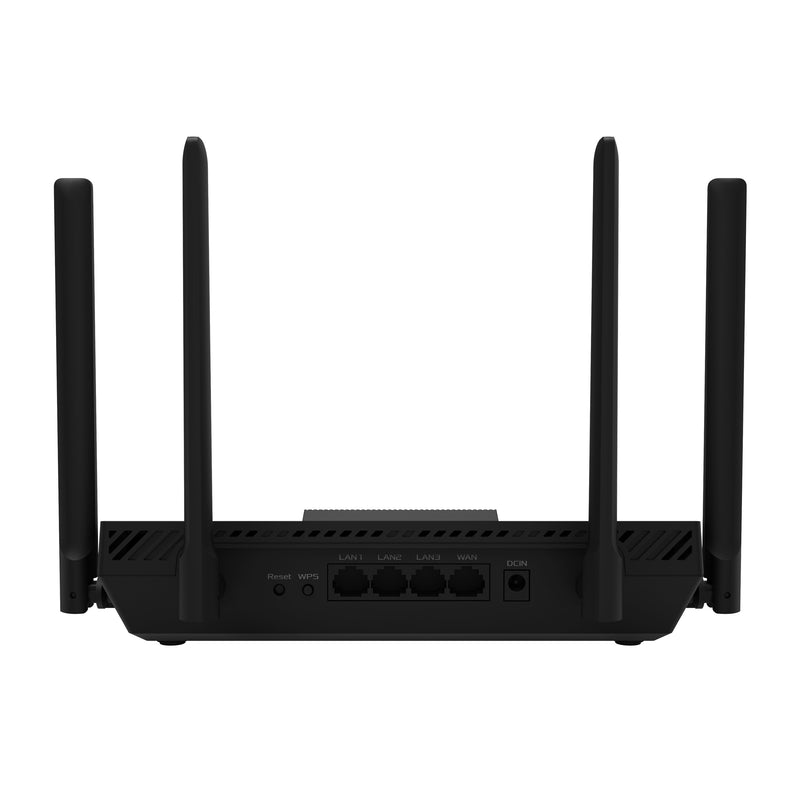

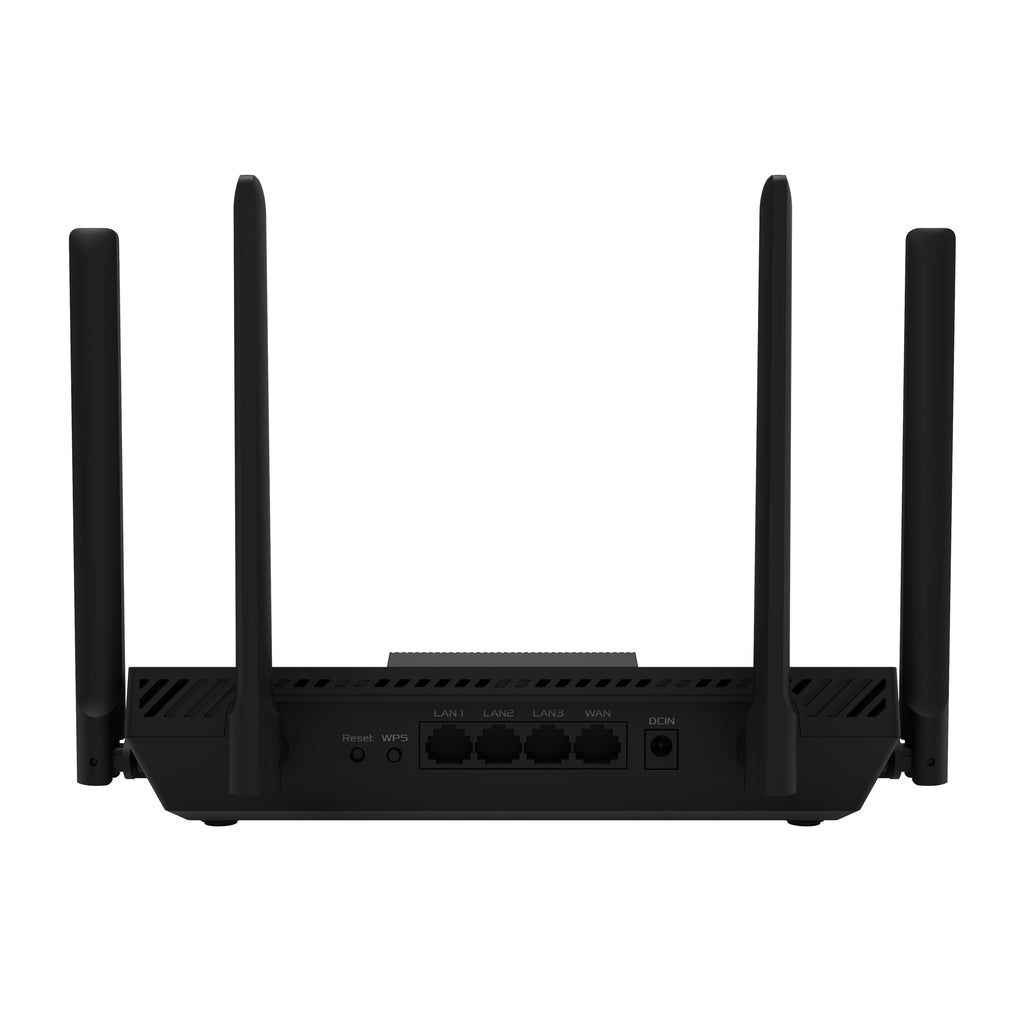

| I/O Ports | 1x 2.5G for WAN, 3x 1G for LAN, |
| Buttons | WPS Button, Reset Button |
| LED Indicator | Power x 1 |
| Power Supply | AC Input : 100V~240V (50~60Hz) DC Output : 12 V with max. 1.5 A current |
| Package Content | RT-BE50 RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 450g |
| Product Dimensions | 261 x 156 x 50 mm |
| AiMesh | AiMesh • Primary AiMesh Router • AiMesh Node |
| Parental Control | Allow you to block access to unwanted websites and apps. Web & Apps Filters Time Scheduling Safe Browsing Customized Internet Schedule |
| Guest Network | The Guest Network provides Internet connection for guests but restricts access to your local network. Support Guest Network • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 Guest Network Connection Time Limit |
| Security | VPN WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS Let's Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| VPN | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control | • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS -- Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor • Website History |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| LAN | DHCP Server IGMP Snooping IPTV Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) |
| Wireless | MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| User Interface | WEB: ASUSWRT APP: ASUS Router APP |
| Administration | Configuration Backup and Restore Diagnosis tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
