Description

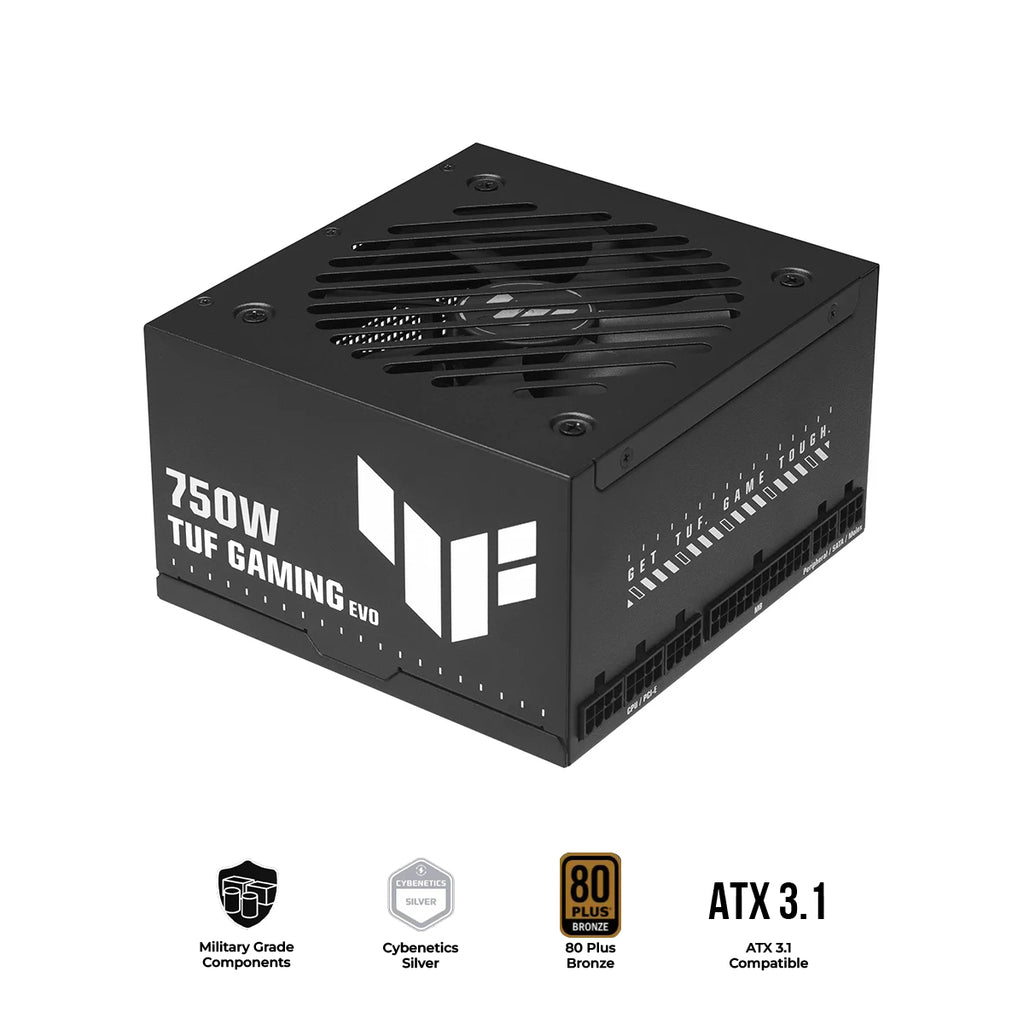

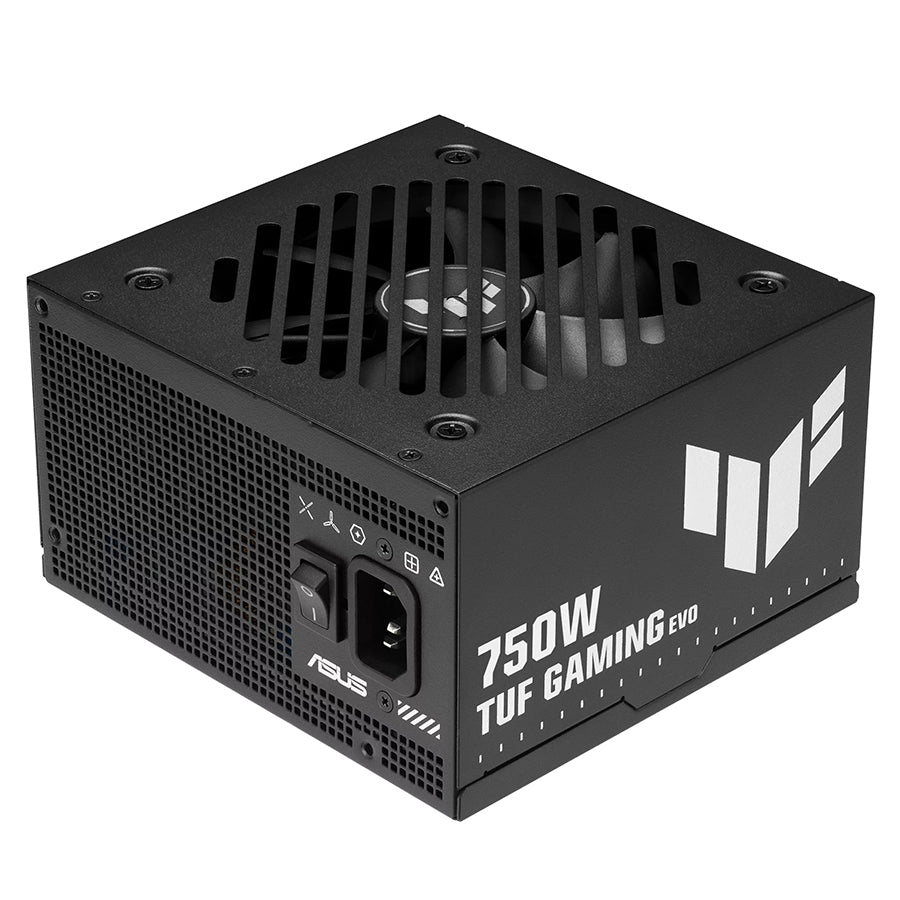

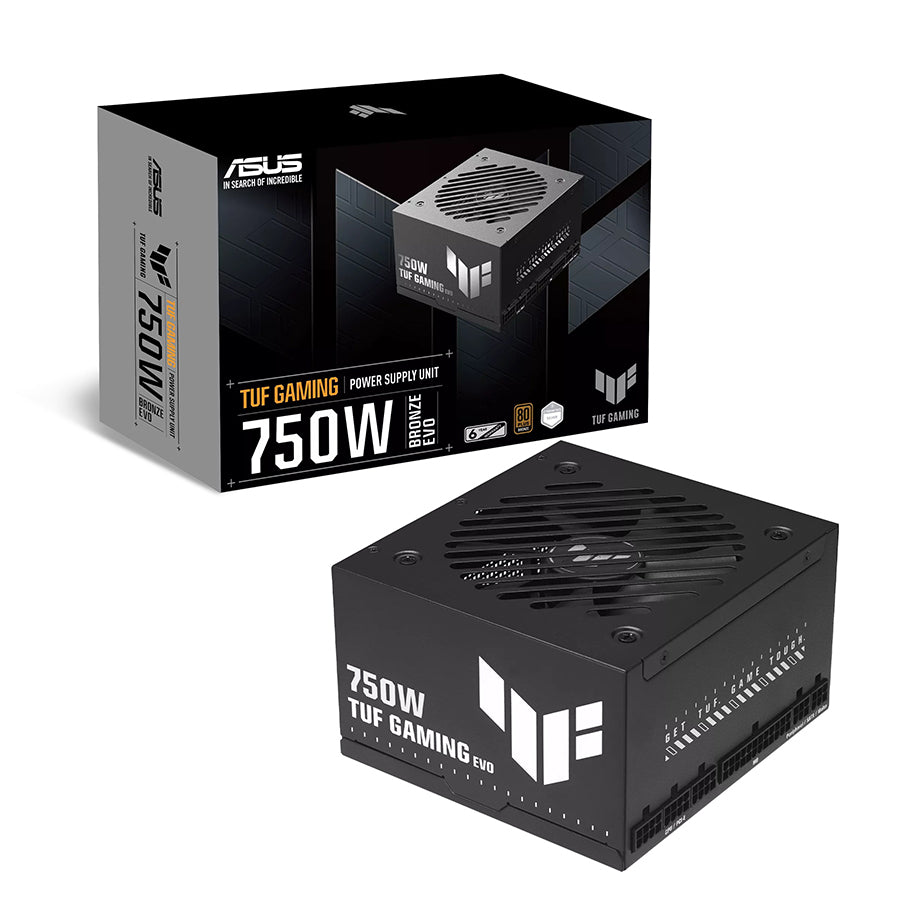

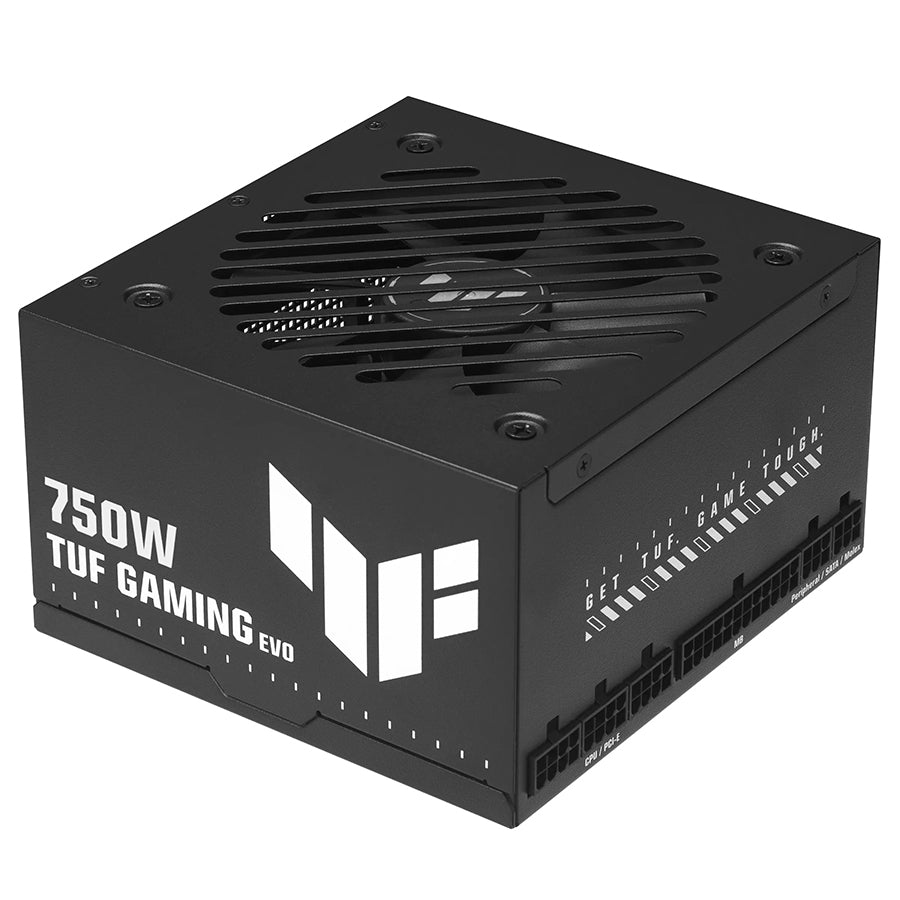

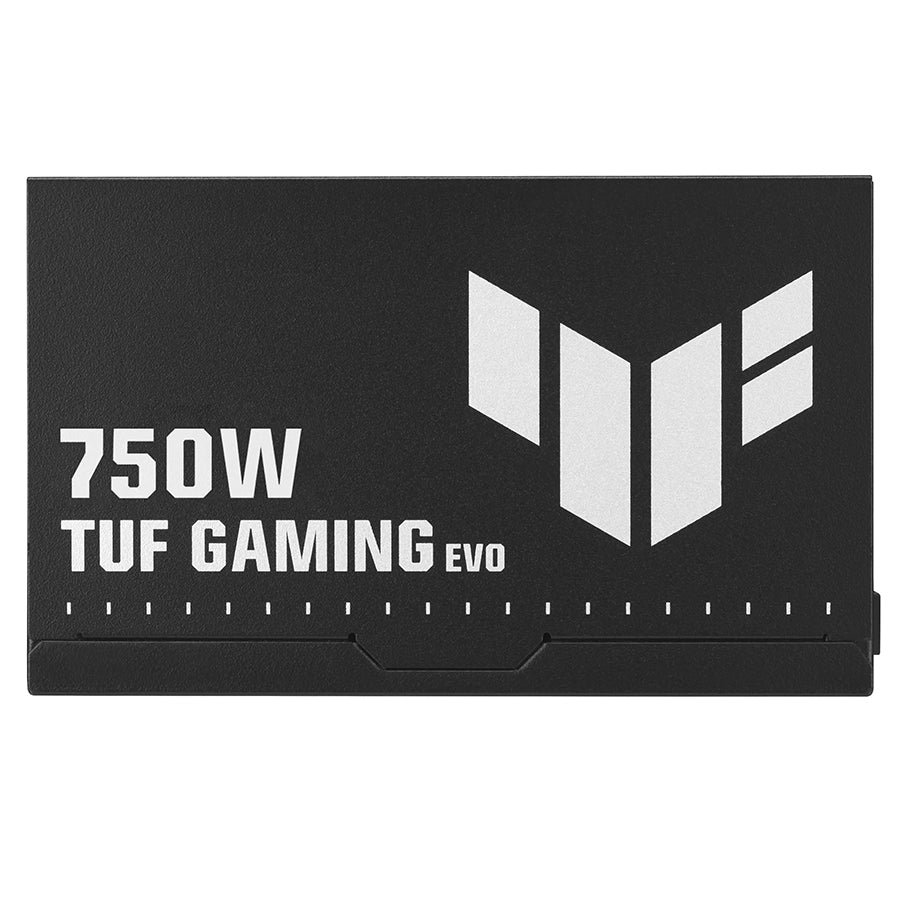

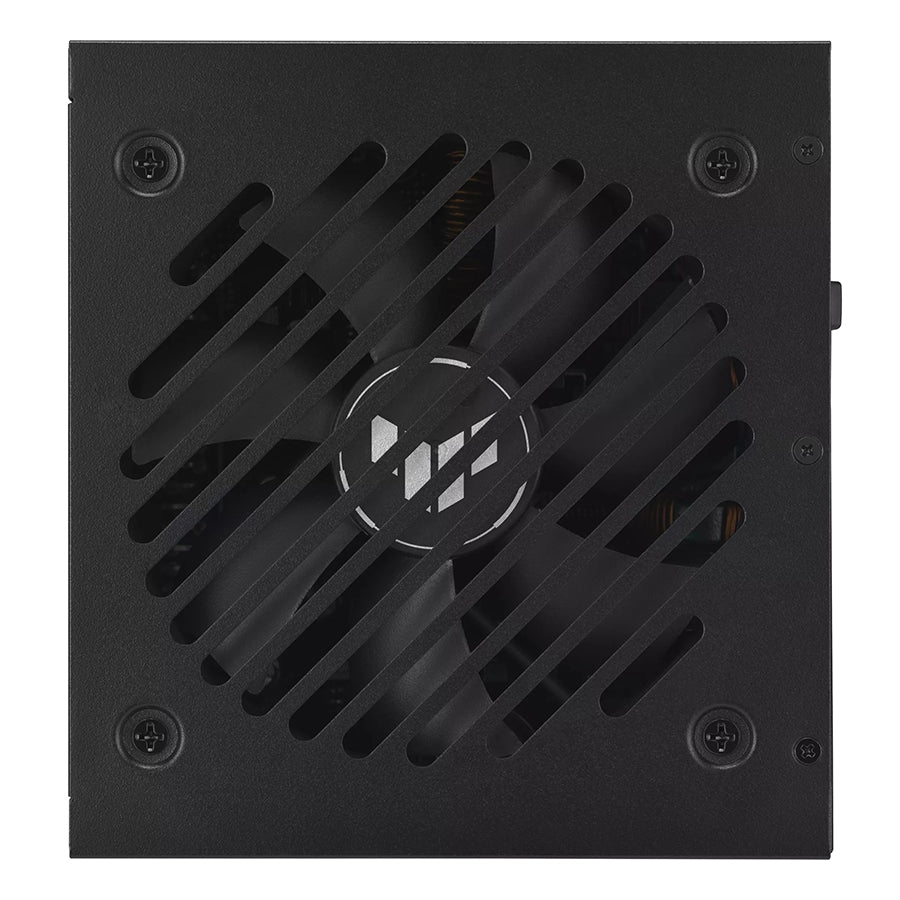

TUF Gaming Bronze EVO Series
Built For The Long Haul
The ASUS TUF Gaming 750W Bronze EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
Specifications:
| Model | TUF-GAMING-750B-EVO |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 140 x 150 x 86 mm |
| Efficiency | 80Plus Bronze |
| MTBF | >120,000 hrs @ 40°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 12A 12A 62.5A 0.3A 3A |
| Combined Load | 80W 80W 750W 3.6W 15W |
| Total Output | 750W |

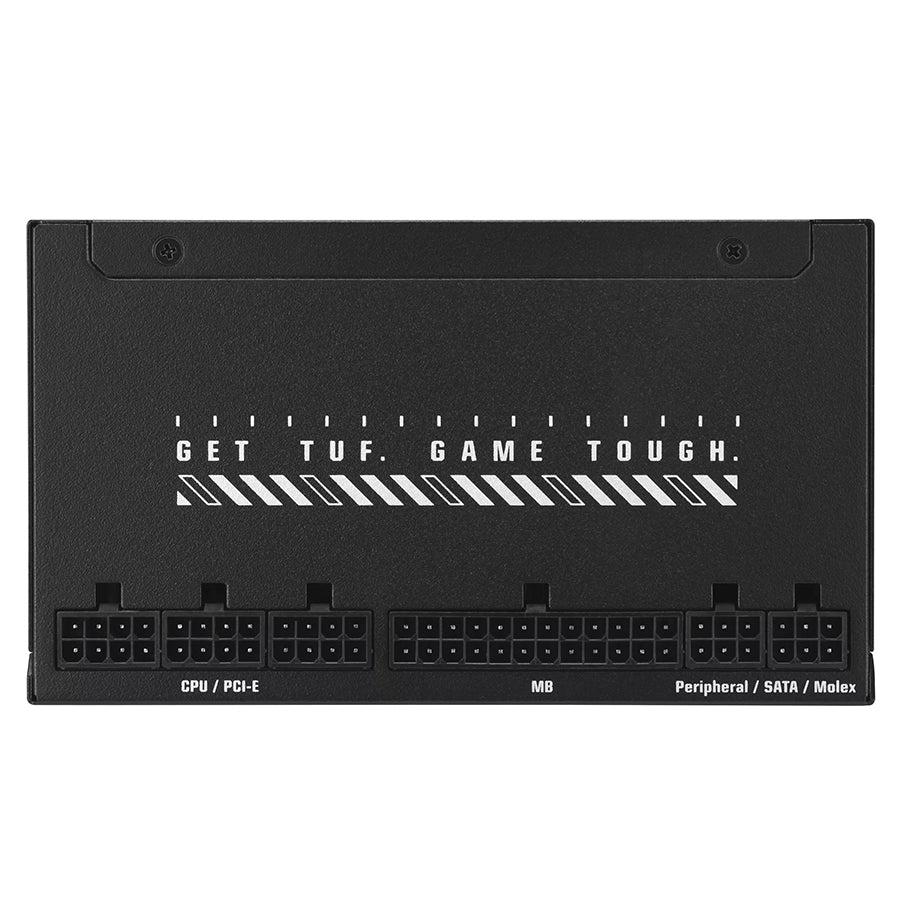

| Cable Connectors | MB 24/20-pin x 1, CPU 4+4-pin x 2, PCI-E 6+2-pin x 3, SATA x 4, PERIPHERAL x 2 |
| Package Contents | Power Cord, Motherboard Power Cable (500mm), CPU Cable (650mm), PCI-E 1-to-1 Cable (675mm), PCI-E 1-to-2 Cable (500+100mm), SATA & Peripheral 1-to-2+1 Cable x 2, Chassis Screws, User Manual |
| Weight | 1.411 KG (Single PSU) |
| Cybenetics Noise Level Certification | NA |
| 0dB Technology | No |
