Description

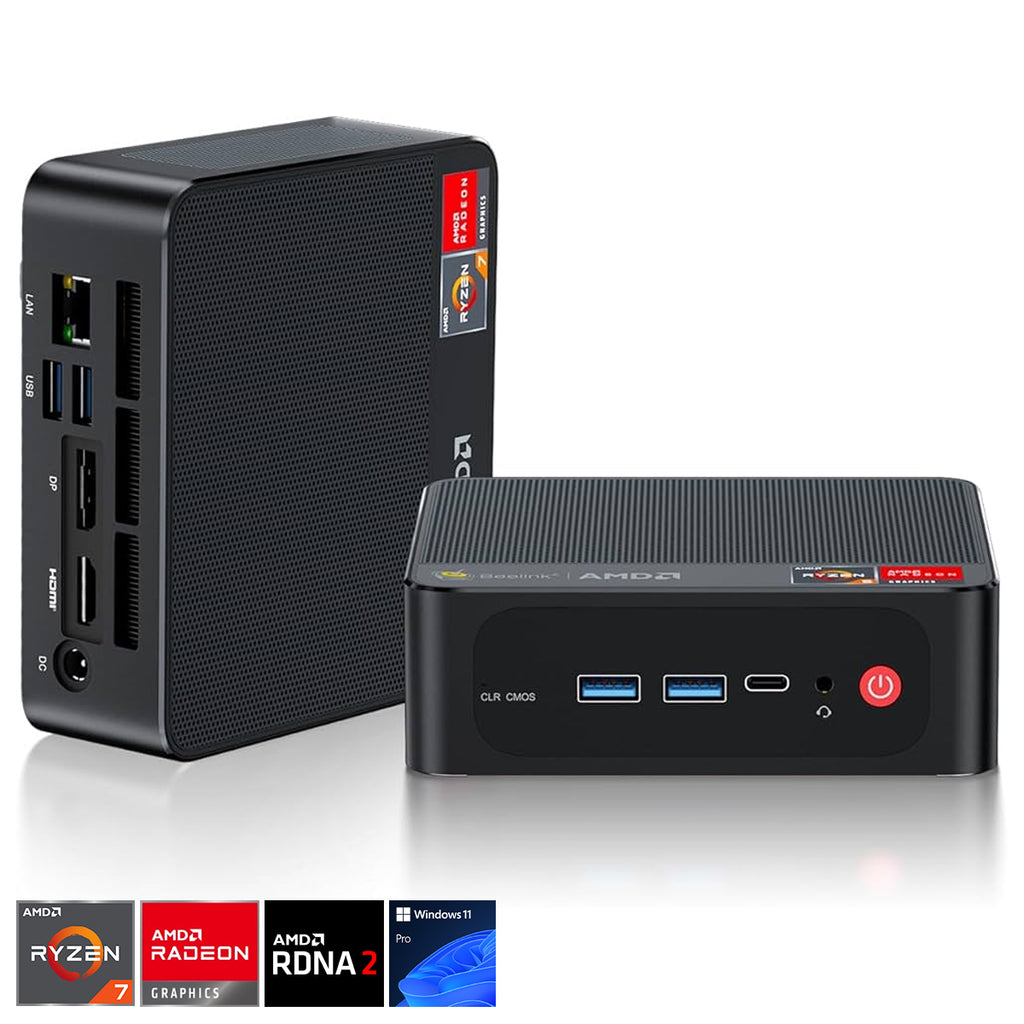

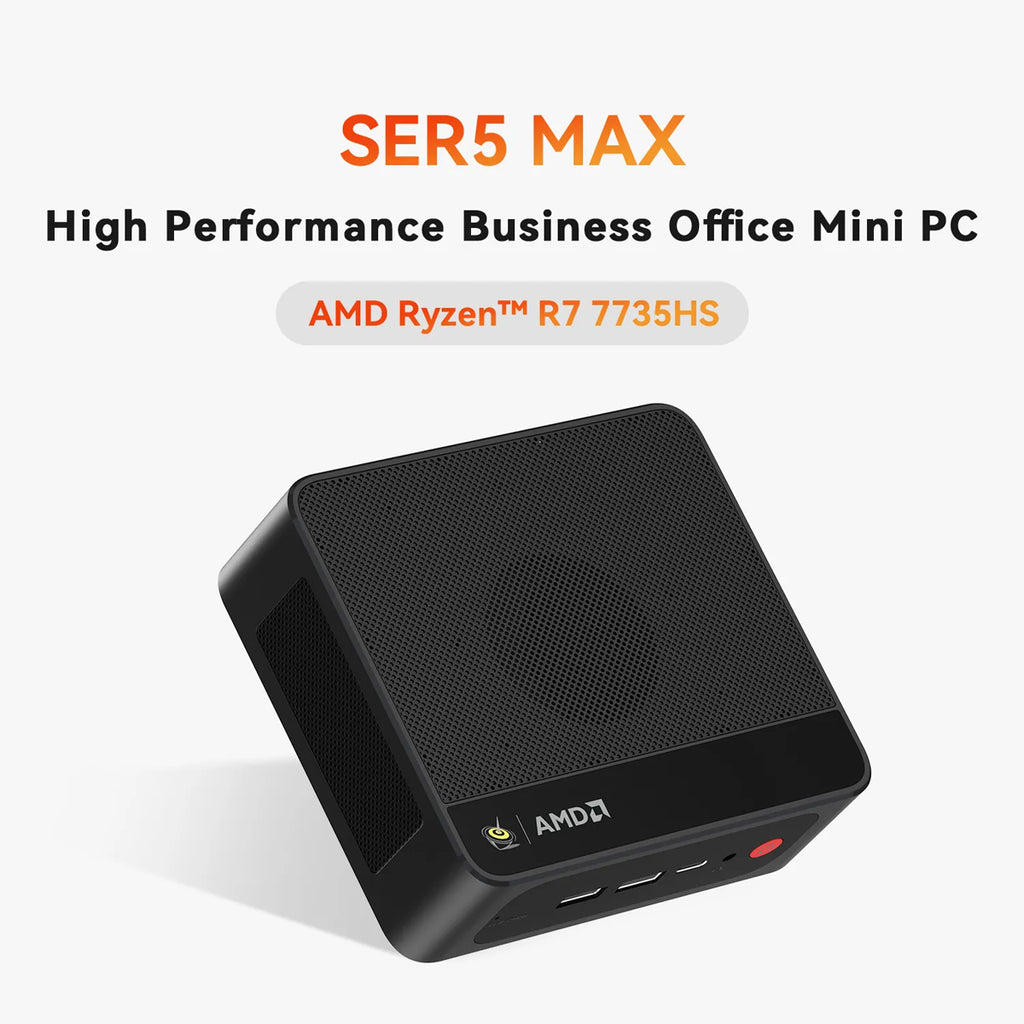

Beelink SER5 MAX — Compact Powerhouse for Work, Play & Creativity
Unleash next-level performance with the Beelink SER5 MAX, powered by the AMD Ryzen™ 7 7735HS (up to 4.75GHz) with 8 cores and 16 threads. From heavy multitasking to high-demand applications, this mini PC delivers blazing-fast speeds, exceptional energy efficiency, and seamless responsiveness.
Massive Memory & Storage
Equipped with a 6nm AMD processor, 24GB LPDDR5 RAM, and a 1TB PCIe 4.0 NVMe SSD, the SER5 MAX provides ultra-fast load times, smooth gaming, and ample space for all your files, projects, and media.
Powerful Graphics & Triple Display Support
Featuring integrated 12-core AMD Radeon™ graphics running up to 2200MHz, it effortlessly handles 4K@60Hz video editing, UHD playback, creative design work, and light gaming. Support for up to three displays boosts productivity and multitasking.
Rich Connectivity & Wireless Speed
Stay connected with 2.5G LAN, dual-band WiFi (2.4G/5G), and Bluetooth. The versatile I/O includes USB 3.2 and USB 2.0 ports, HDMI, DisplayPort, USB-C (data + video), audio jack, and DC power—everything you need in one compact system.
Lifetime Support You Can Trust
Beelink mini PCs undergo rigorous quality testing and are backed by lifetime technical support, a free 1-year warranty, and 24/7 customer service. All products are FCC, CE, and RoHS certified for reliability and peace of mind.
Upgrade your setup with the Beelink SER5 MAX—small in size, massive in performance
Specifications:
| Brand | Beelink |
| Model Name | SER5 MAX |
| CPU | AMD Ryzen™ 7 7735HS (8C/16T, 6nm, up to 4.75GHz) |
| Graphics | Integrated AMD Radeon™ 680M (12-core, 2200 MHz) |
| RAM | 24GB LPDDR5 |
| Storage | 1TB M.2 2280 NVMe PCIe 4.0 SSD |
| Operating System | Windows 11 Pro |
| Display Output | Triple Screen Support: 1x HDMI 2.0 (4K@60Hz), 1x DP 1.4 (4K@144Hz), 1x USB-C (4K@120Hz) |
| Wireless Connectivity | WiFi 6 (802.11ax), Bluetooth 5.2 |
| Ethernet | 2.5GbE RJ45 LAN |
| Interface (Front) | 2x USB 3.2 Gen2 (10Gbps), 1x Type-C (Data/Video), 1x Audio Jack (HP&MIC), 1x Clear CMOS button |
| Interface (Rear) | 2x USB 2.0 (480Mbps), 1x DP 1.4, 1x HDMI 2.0, 1x RJ45 2.5G LAN, 1x DC Jack |

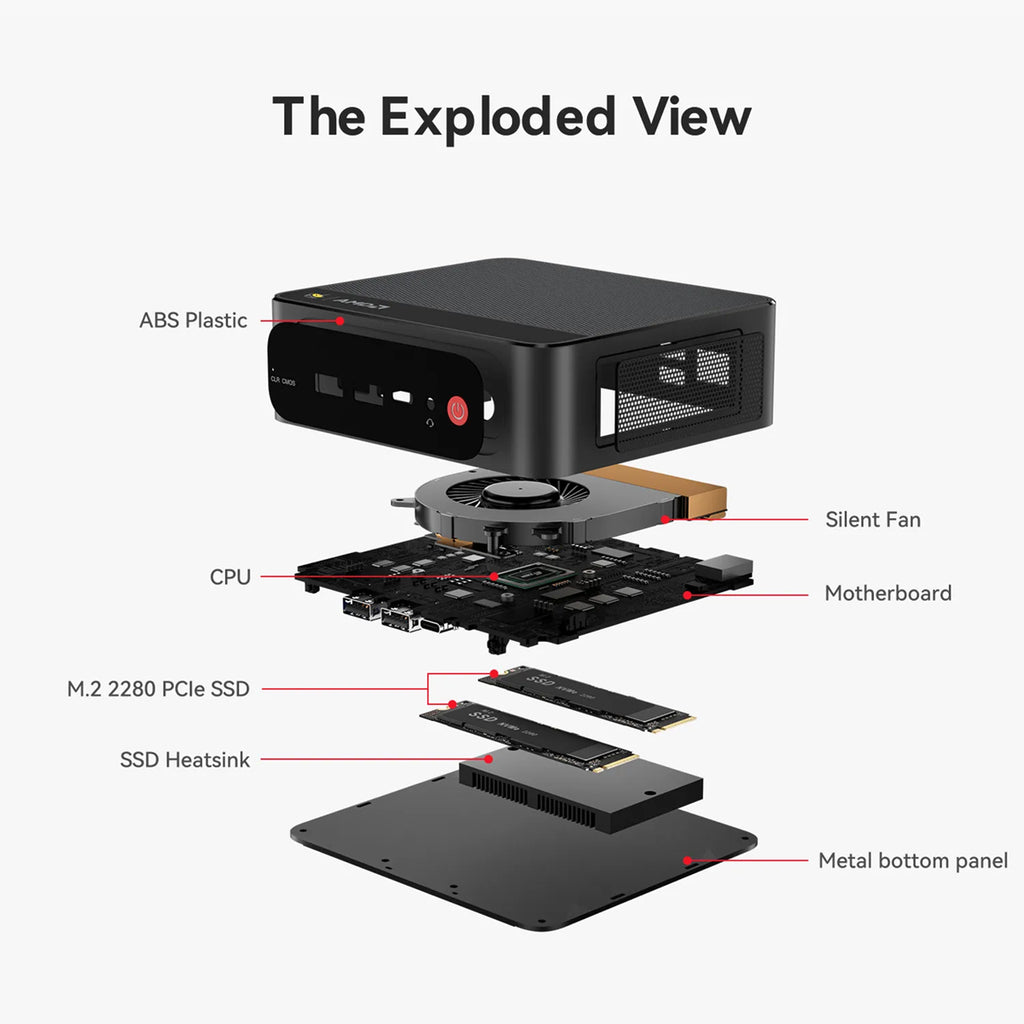

| Cooling System | Active Cooling (Heat sink + MSC technology cooling fan) |
| Additional Functions | WOL (Wake ON LAN), Auto Power On |
| Dimensions | 126 x 113 x 42 mm |
| Weight | Approx. 1.0 kg (2.2 lbs) |
