Description
360 DEGREES OF COOL

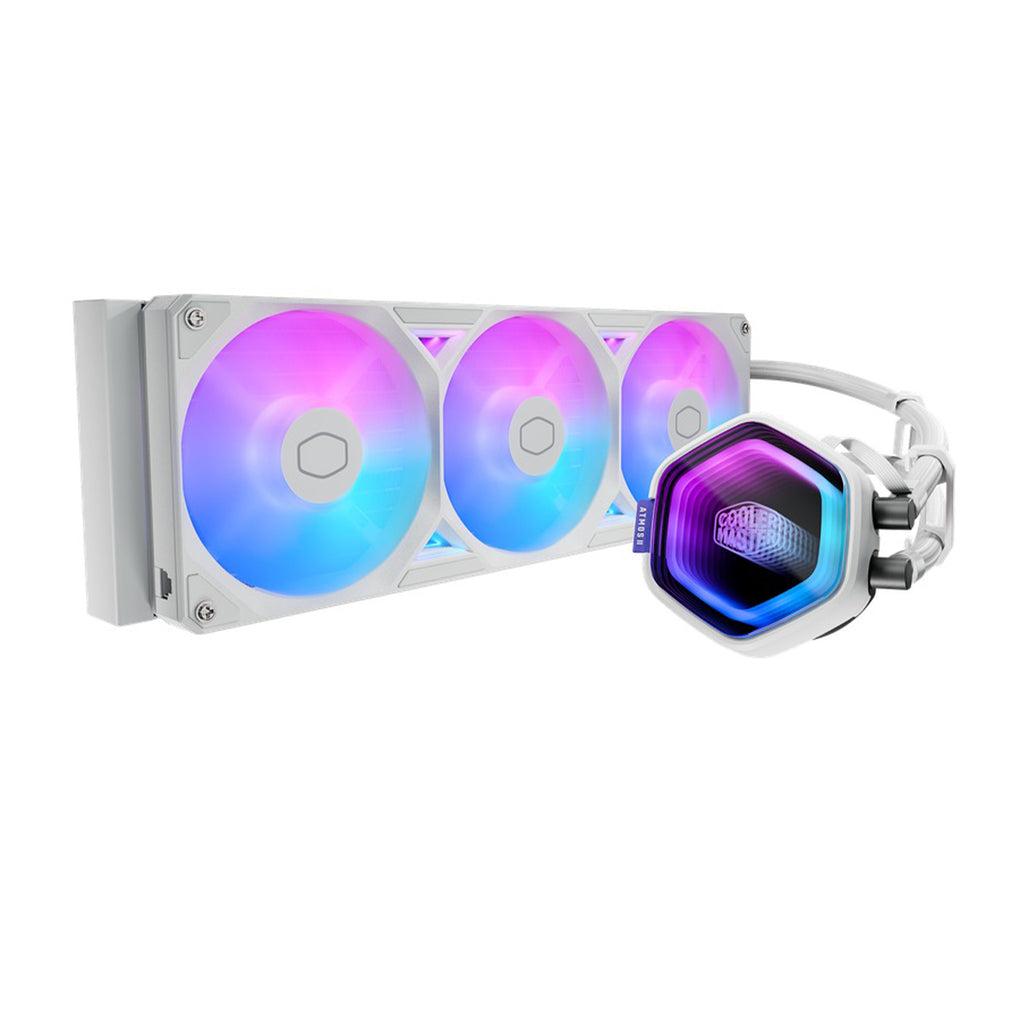

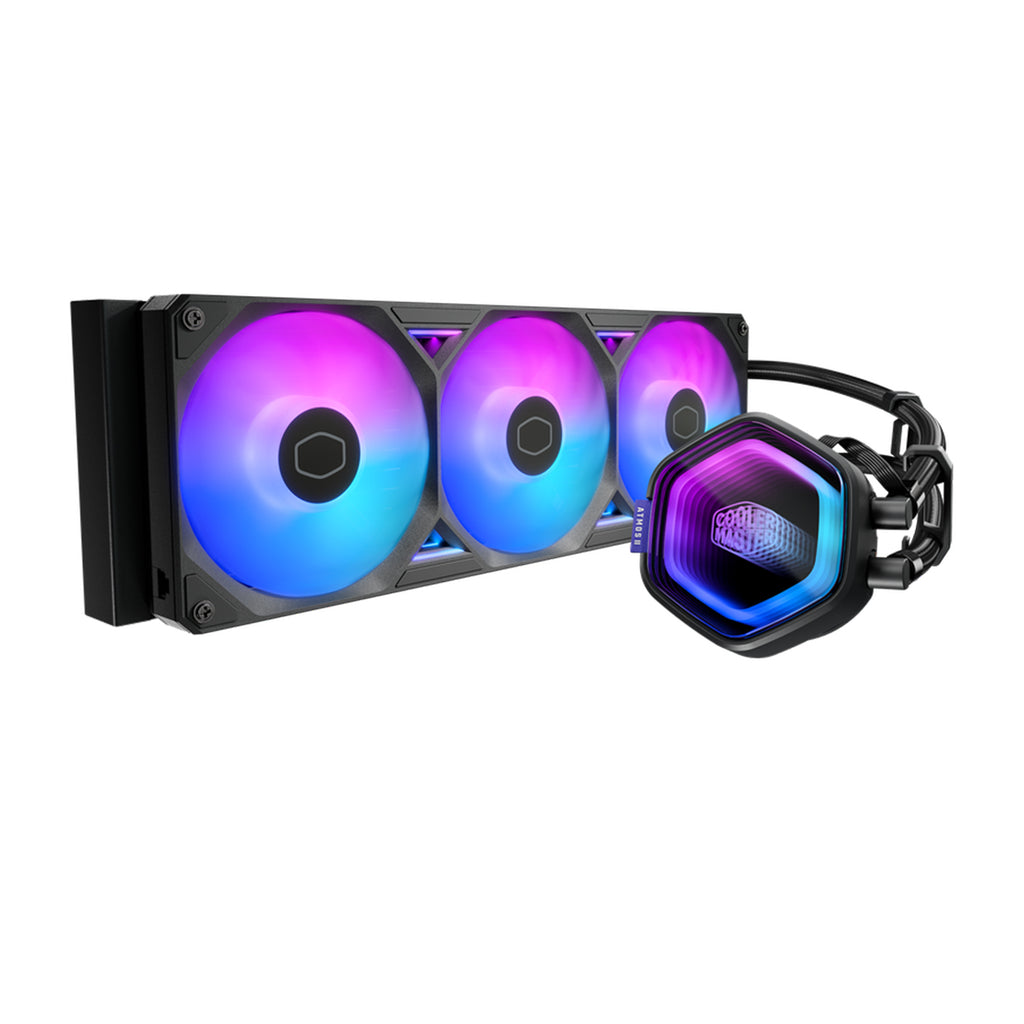

MasterLiquid Atmos II LCD

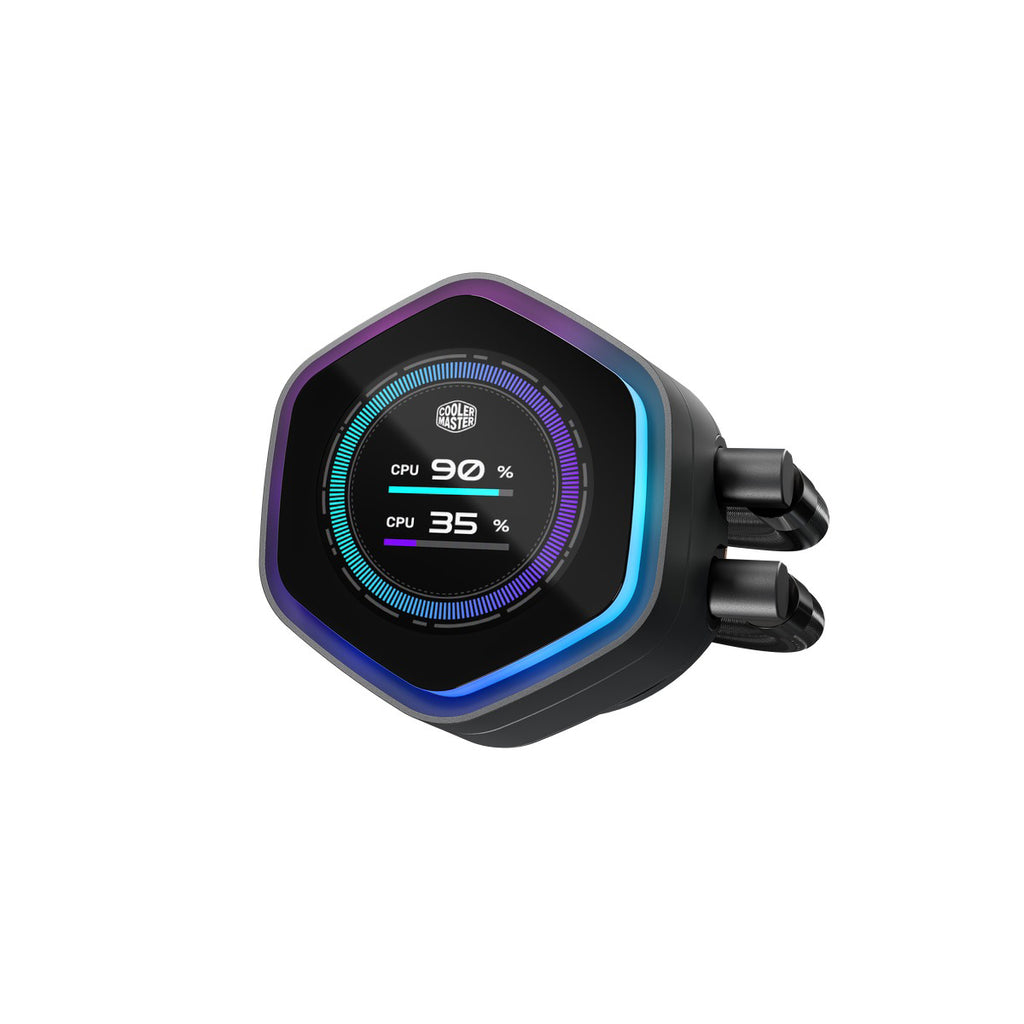

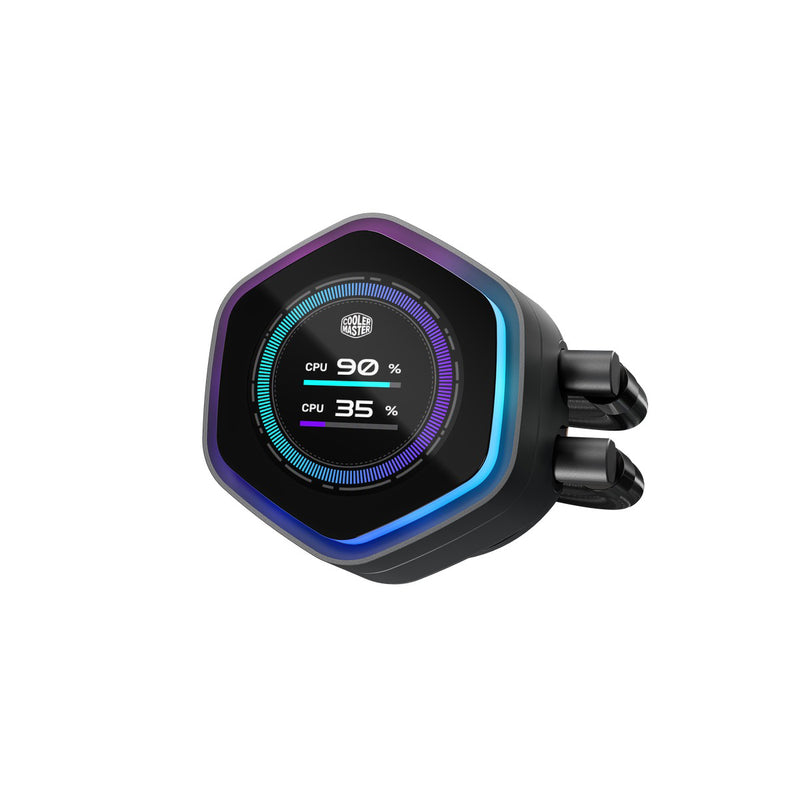

- LCD panel for enhanced personalization
- SickleFlow Edge ARGB fans
- Ultra-low profile pump design
- Quick and easy installation
Specifications:
| Product Number | (240 LCD Black) MLX-D24M-A25SZ-L1 (240 LCD White) MLX-D24M-A25SZ-LW (360 LCD Black) MLX-D36M-A25SZ-L1 (360 LCD White) MLX-D36M-A25SZ-LW (*SKU may vary by region) |
| CPU Socket | Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 |
| CPU Socket | AMD® AM5 / AM4 |
| Radiator Material | Aluminum |
| Radiator Dimensions | (240) 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch) |
| Radiator Dimensions | (360) 394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch) |
| Pump Dimensions | 92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch) |
| Pump Profiles | Addressable Gen2 RGB |
| Pump Speed | 3400 ± 300 RPM |
| Pump MTTF | >210,000 Hours |
| Pump Noise Level | 25 dBA (Max) |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 3.84 W |
| Pump Connector | 3-Pin ARGB + 4-Pin PWM |
| Tube Length | (240) 350 mm |
| Tube Length | (360) 400 mm |
| Fan Dimensions (L x W x H) | (240) 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch) |
| Fan Dimensions (L x W x H) | (360) 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch) |
| Profile | Addressable Gen 2 RGB |
| Fan Quantity | 1 PC |
| Fan Speed | 690 ~ 2500 RPM ± 15% |
| Fan Airflow | (240) 240.35 m³/h (141.4 CFM) |
| Fan Airflow | (360) 322.8 m³/h (190 CFM) |
| Fan Air Pressure | 3.61 mmH2O |
| Fan MTTF | >160,000 Hours |
| Fan Noise Level | (240) 36 dB(A) |
| Fan Noise Level | (360) 38.5 dB(A) |
| Fan Bearing Type | Loop Dynamic Bearing |
| Fan Connector | 7-Pin PWM + ARGB |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.5 A |
| Fan Safety Current | 0.8 A |
| Fan Power Consumption | 6 W |
| Radiator Size | 240 |
| Radiator Size | 360 |
| Cooler Type | Liquid Cooler |
| Series | MasterLiquid |

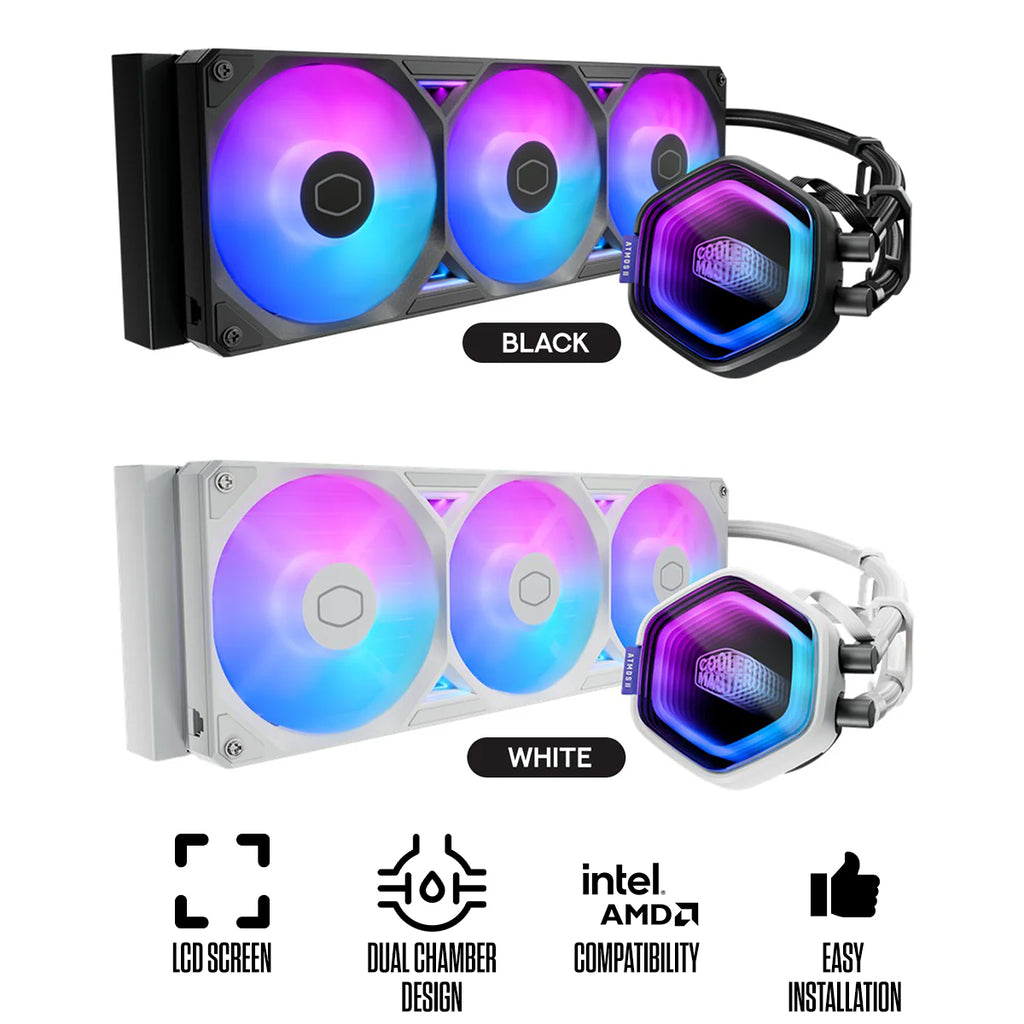

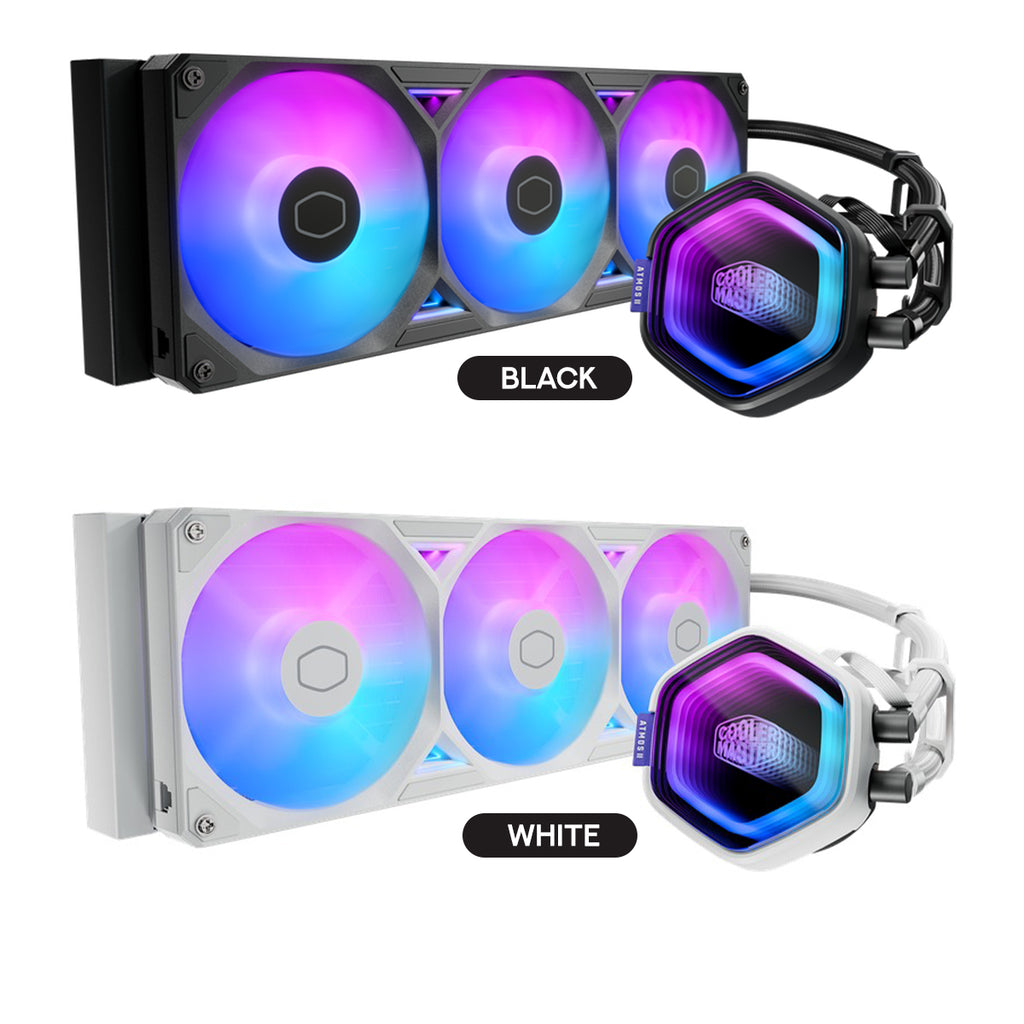

| LCD Exterior Color | Black / White |
| LCD Dimensions | 85 x 79.2 x 18.7 mm (3.4 x 3.1 x 0.7 inch) |
| LCD Connector | USB Type-C to Motherboard 9 pin |
| LCD Screen Size | 2.1 inches / Diameter 53.3 mm |
| LCD Screen Resolution | 480 x 480 px |
| LCD Screen Luminance | 300 cd/m² |
| LCD Screen Refresh Rate | 60 Hz |

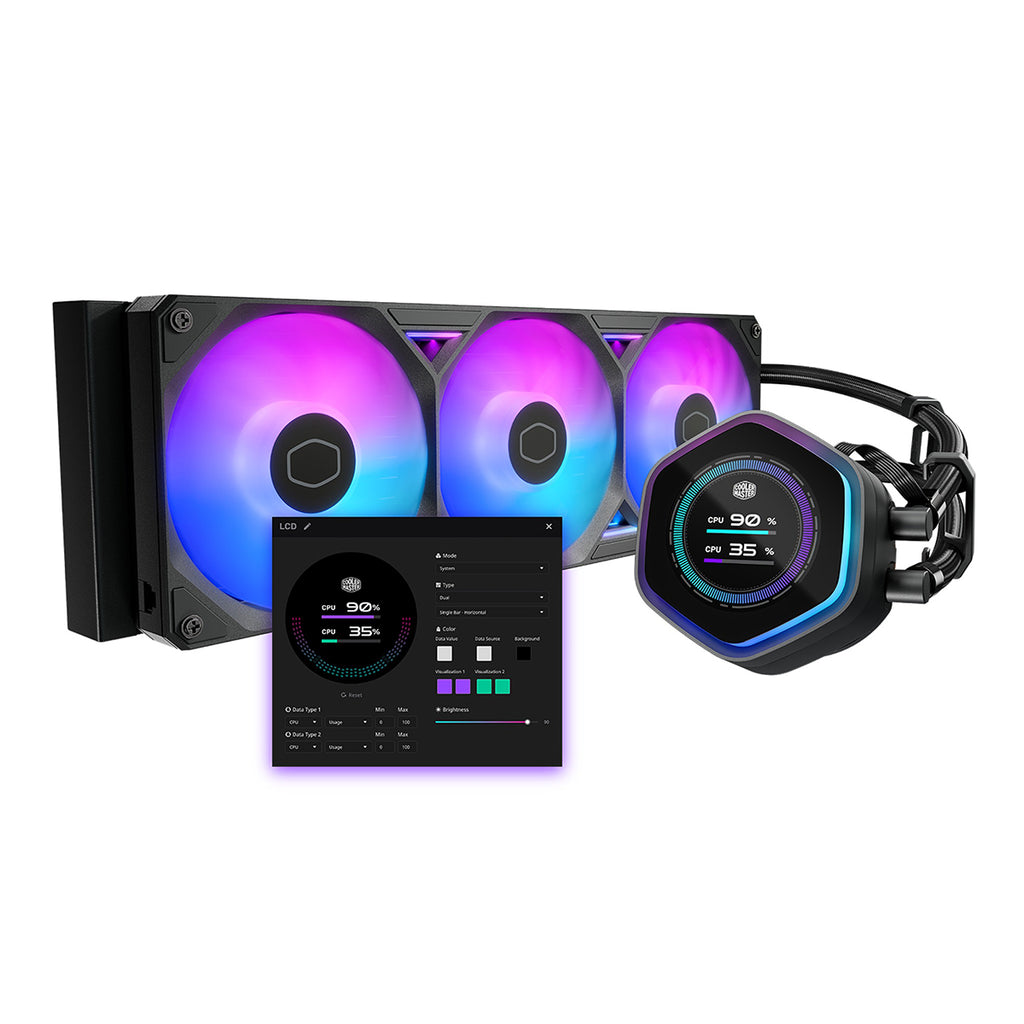

| LCD Screen Orientation | Software-MasterCtrl adjustable |
| LCD Rated Voltage | 5 VDC |
| LCD Rated Current | 0.3 A |
| LCD Safety Current | 0.5 A |
| LCD Power Consumption | 1.5 W |
