Description
Full-Modular 80 Plus Gold SFX Power Supply

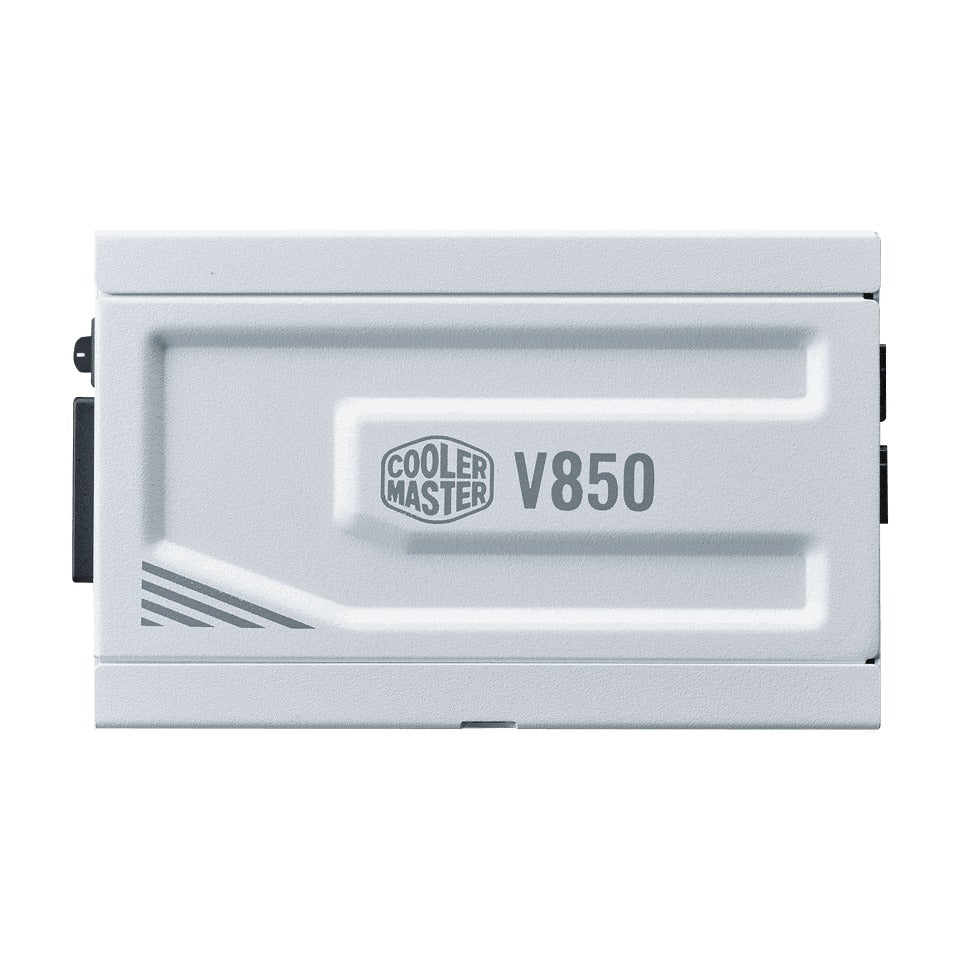

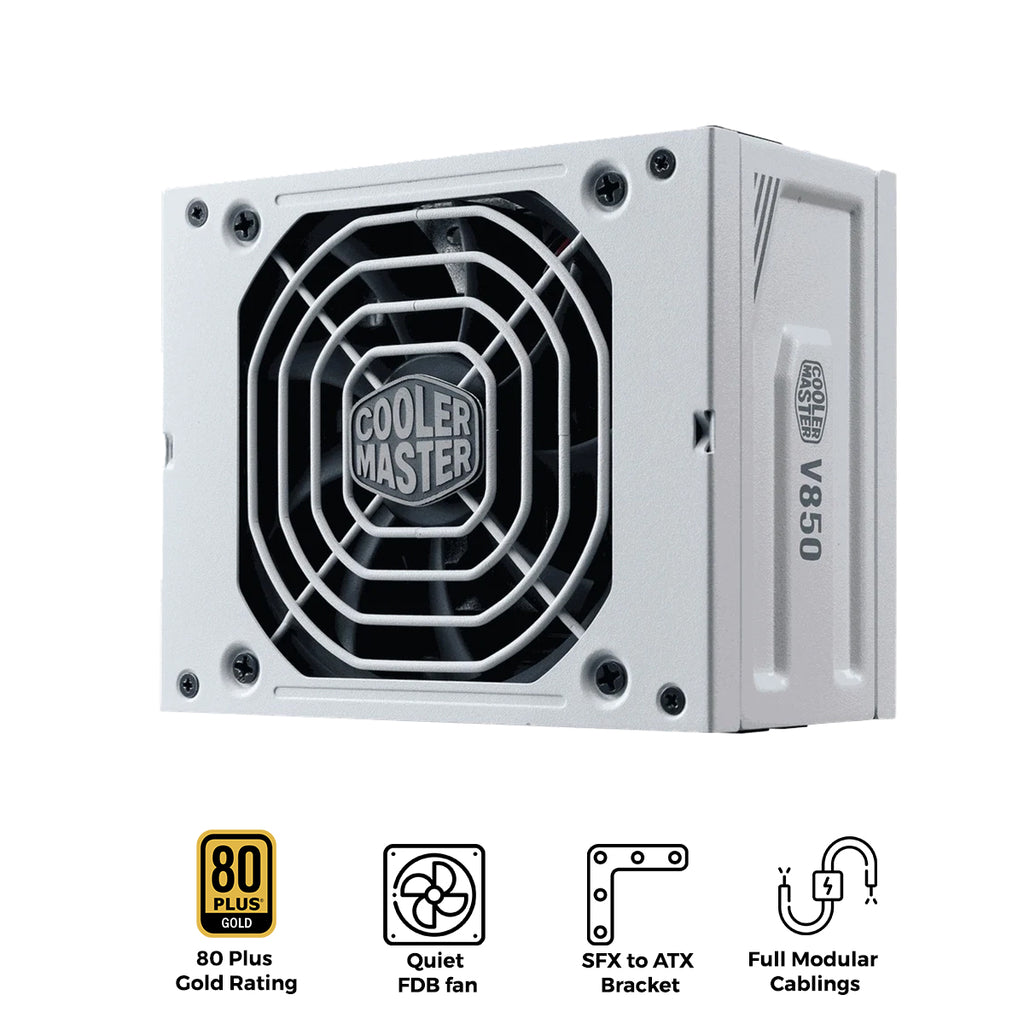

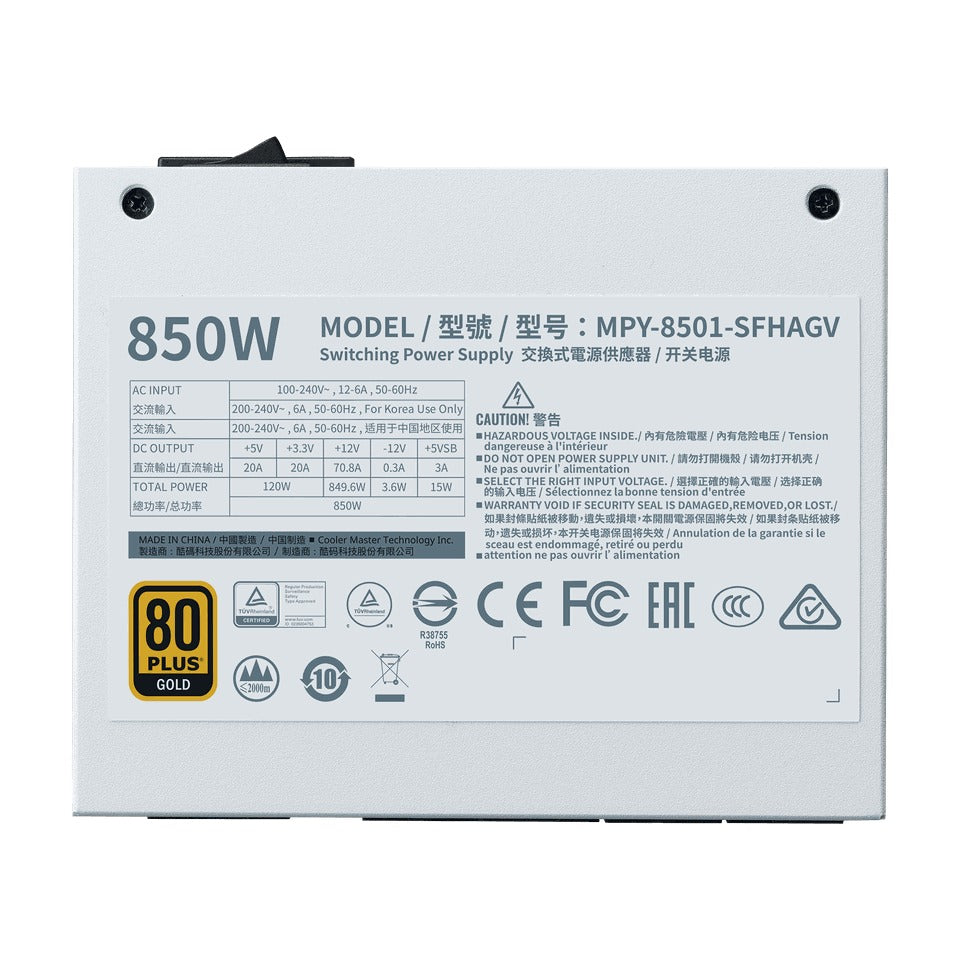

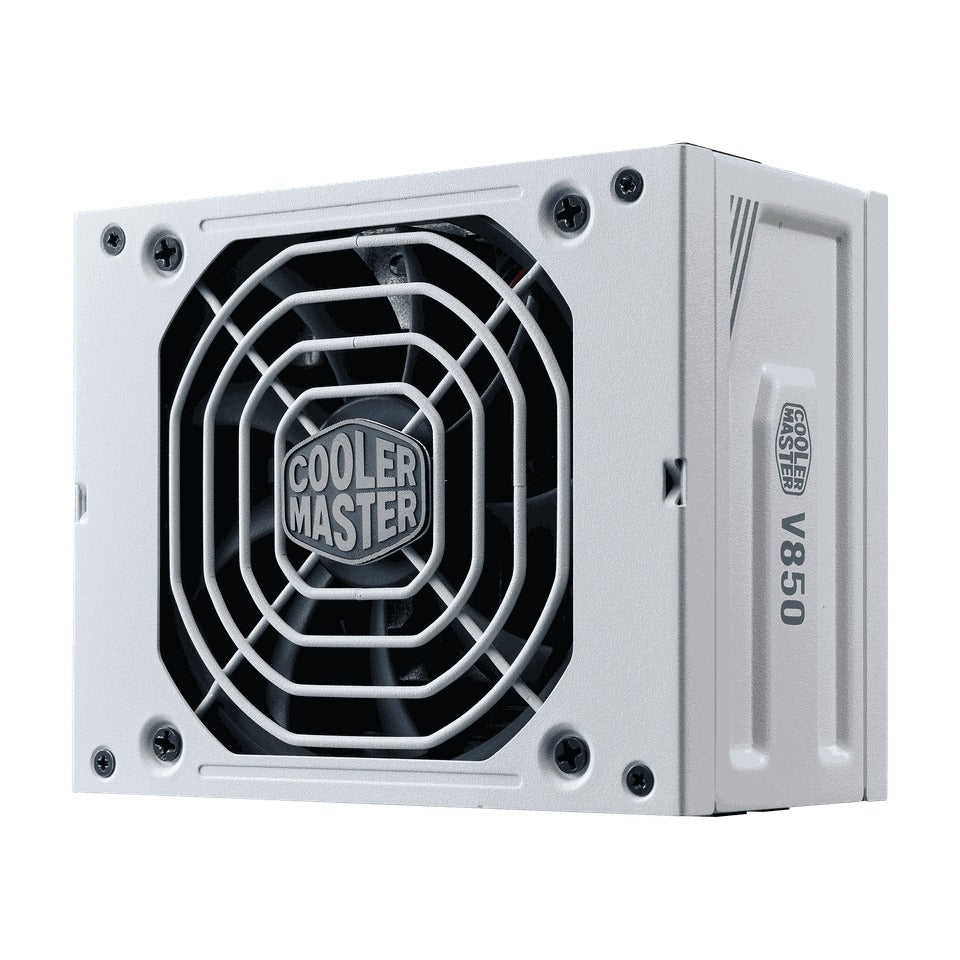

V850 SFX Gold - White Edition
• SFX Form Factor
• SFX-to-ATX Bracket
• 80 PLUS Gold Certified
• Quiet FDB Fan

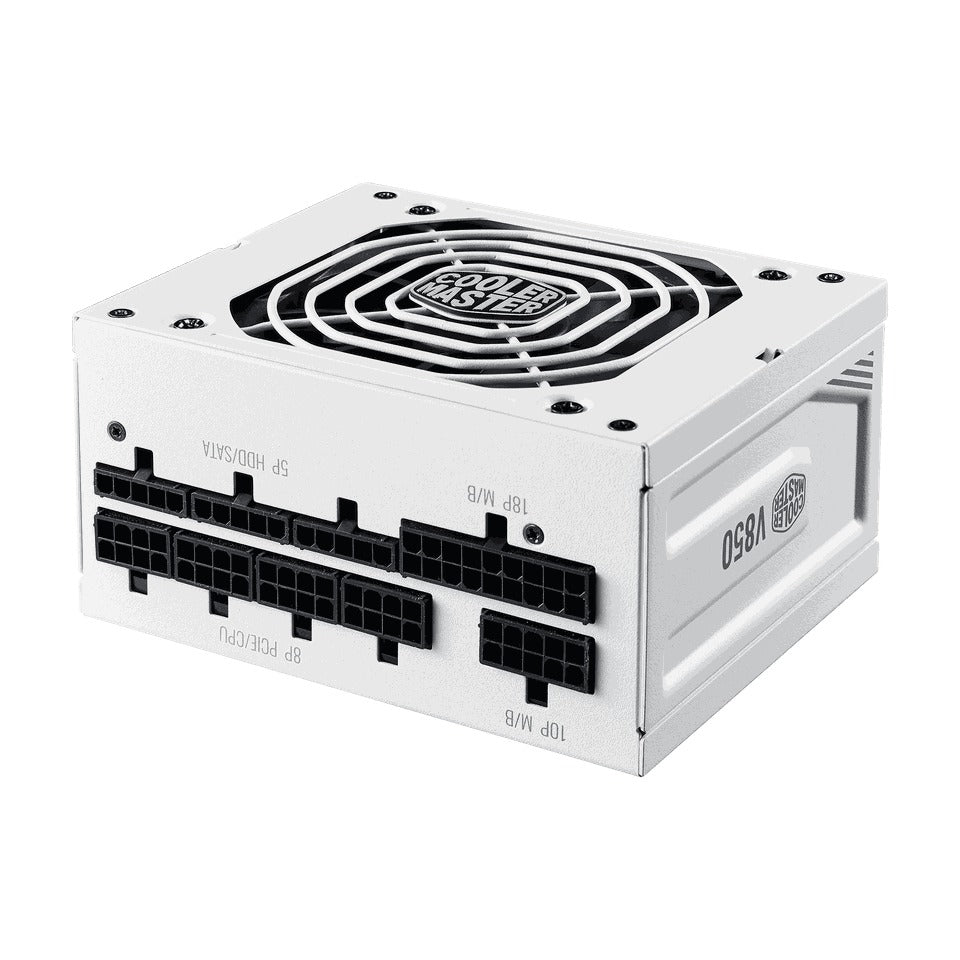

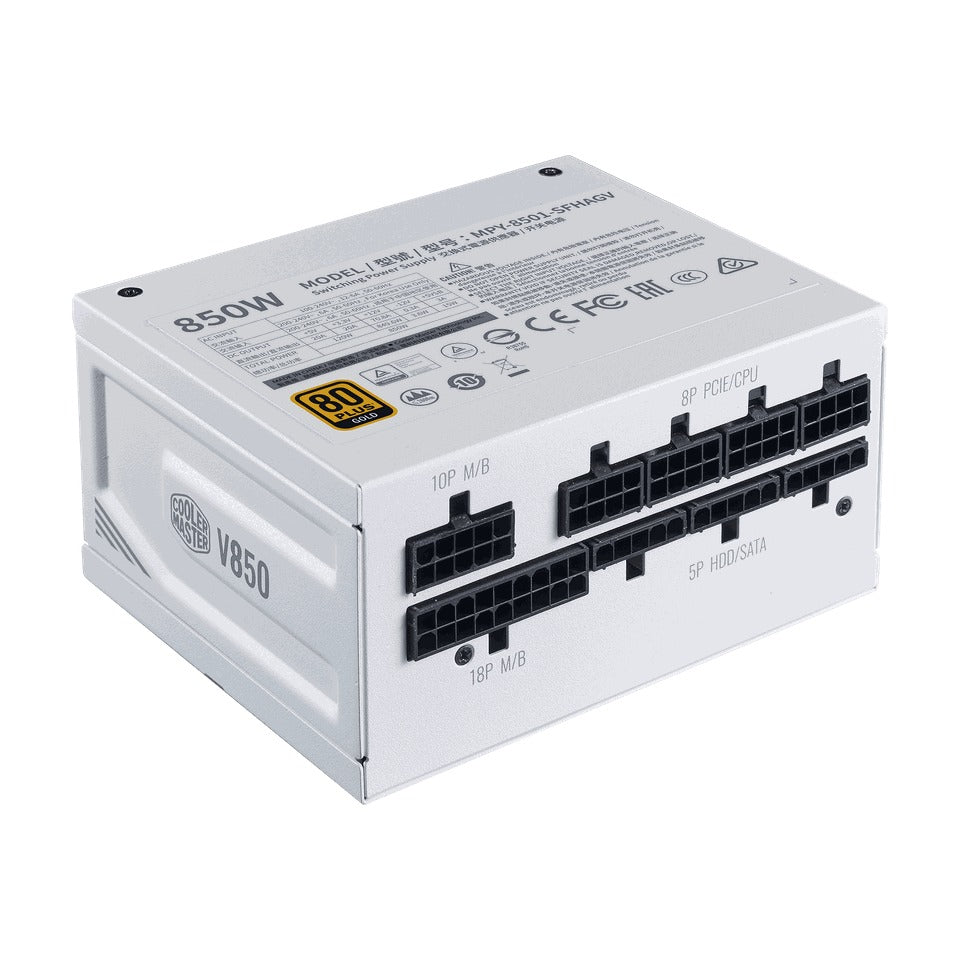

• Full-Modular Cabling
| Specification | Detail |
|---|---|
| Series | V SFX Series |
| Category | Above 750W |
| Form Factor / ATX Version | SFX 12V Ver. 3.42 |
| Modular | Fully Modular |
| 80 PLUS Rating | 80 PLUS Gold (ETA Gold / LAMBDA Standard+) |
| Efficiency | ≥90% @ Typical Load |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
| Fan Specifications | 92mm FDB Bearing |
| Input Voltage / Current | 100-240V / 10-5A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Operating Temperature | 0-50°C |
| MTBF / Hold Up Time | >100,000 Hours / 16ms |
| Power Good Signal | 100 - 500 ms |
| Connectors | ATX 24 Pin x1, EPS 4+4 Pin x1, EPS 8 Pin x1, SATA x8, PCI-e 6+2 Pin x4, Peripheral 4 Pin x4 |
| Protections | OVP, OPP, SCP, UVP, OTP, OCP, Surge and Inrush Protection |
| Regulatory | CCC, CE, RCM, EAC, cTUVus, FCC, BSMI, CB, TUV, KCC, UKCA |
| ErP 2014 Lot 3 | Yes |
