Description
Specifications:
| CPU | AMD Socket AM5, supports Ryzen™ 9000/8000/7000 Series Processors |
| Chipset | AMD B850 |
| Memory | DDR5 4400–8200(O.C) MT/s 4 x DDR5 DIMMs, up to 256 GB Dual channel, non-ECC un-buffered DIMMs Supports AMD EXPO™ and XMP Refer to GIGABYTE site for compatibility |
| Onboard Graphics | Integrated AMD Radeon™ Graphics 1 x HDMI (4096x2160@60Hz), HDMI 2.1, HDCP 2.3, HDR 2 x DisplayPort (3840x2160@144Hz), DP 1.4 Triple-display supported (CPU dependent) |
| Audio | Realtek® Audio CODEC, High Definition Audio Supports 2/4/5.1/7.1-channel (via software settings) |
| LAN | Realtek® 2.5GbE LAN (2.5/1 Gbps/100 Mbps) |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz) Bluetooth 5.3 Supports 11ax 160MHz |
| Expansion Slots | 1 x PCIe x16 (CPU) - PCIe 5.0 x16 (Ryzen 9000/7000) - PCIe 4.0 x8/x4 (Ryzen 8000) 1 x PCIe x16 (Chipset) - PCIe 3.0 x4 |
| Storage Interface | 1 x M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 (depends on CPU) 1 x M.2 (M2B_CPU): PCIe 4.0 x4/x2 4 x SATA 6Gb/s NVMe RAID 0/1/5/10 (RAID 5: Ryzen 9000 only) SATA RAID 0/1/10 |
| USB |
Back Panel: - 1 x USB-C® (USB 3.2 Gen 2) - 1 x USB 3.2 Gen 2 Type-A - 2 x USB 3.2 Gen 1 - 4 x USB 2.0/1.1 Internal: - 1 x USB-C® header (Gen 2) - 2 x USB 3.2 Gen 1 - 4 x USB 2.0/1.1 |
| Internal I/O | Power: 24-pin ATX, 8-pin ATX 12V Cooling: 4 fan headers incl. water pump RGB: 3x ARGB Gen2, 1x RGB header Storage: 2 x M.2, 4 x SATA Front Panel: Audio, USB-C, USB 3.2, USB 2.0 TPM, Reset button/jumper, Clear CMOS jumper |

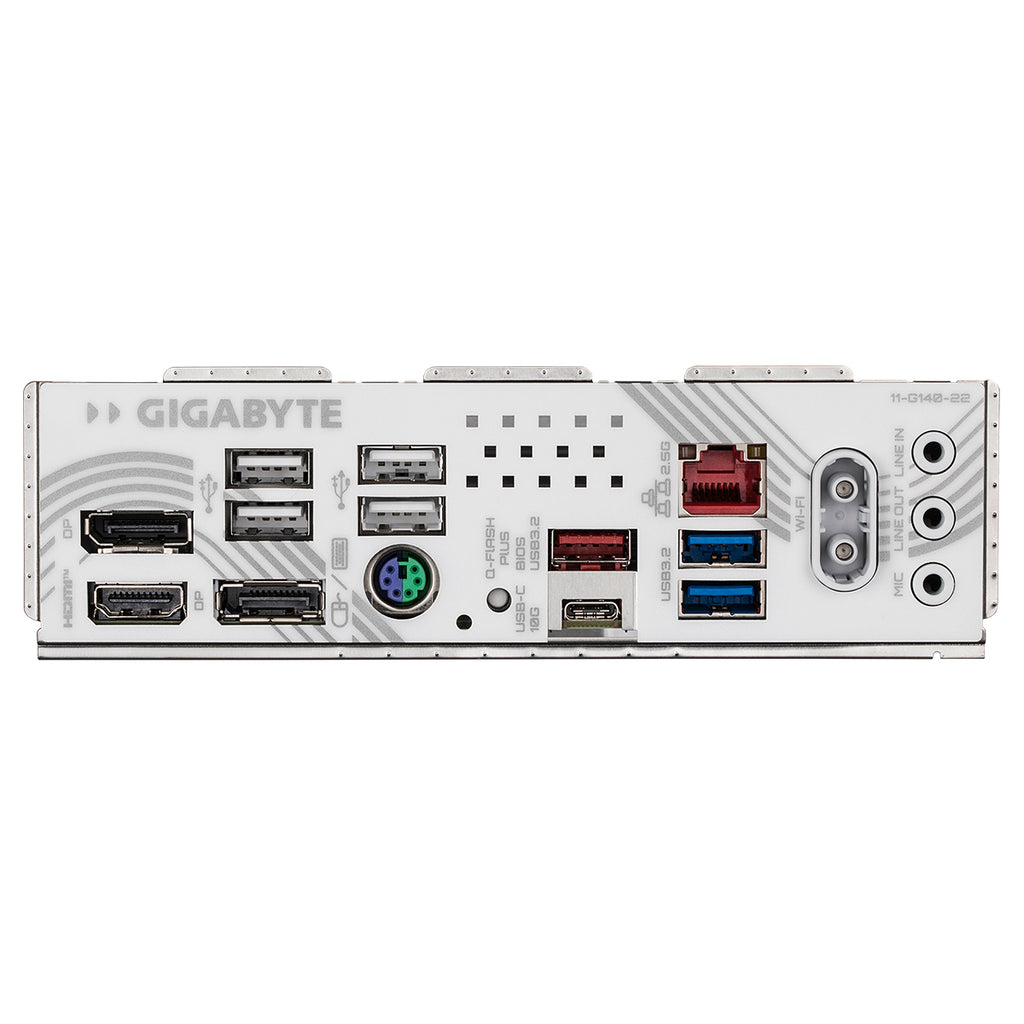

| Back Panel | 1 x HDMI, 2 x DisplayPort 1 x Q-Flash Plus, 1 x PS/2 1 x USB-C (Gen 2), 1 x USB 3.2 Gen 2 (red) 2 x USB 3.2 Gen 1, 4 x USB 2.0 1 x RJ-45, 2 x Wi-Fi antennas, 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Monitoring | Voltage, Temp, Fan speed, Water flow, Fan fail warning, Fan control * Depends on installed fan/pump |
| BIOS | 256 Mbit AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (varies by model) Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth manager |
| Operating System | Windows 11/10 64-bit |
| Form Factor | Micro ATX (24.4 cm x 24.4 cm) |
