Description

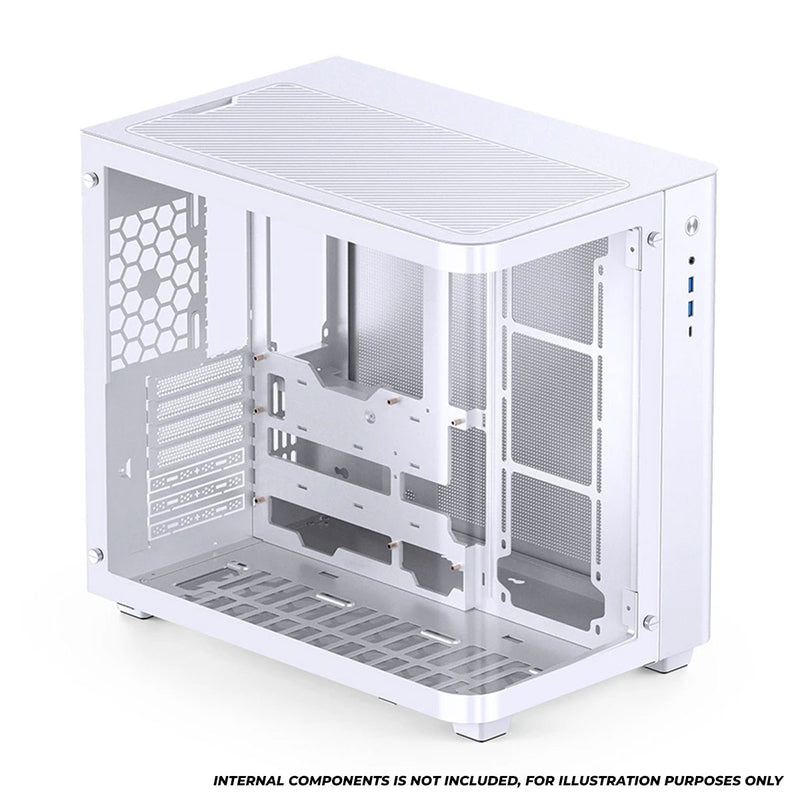

The Jonsbo TK-3 ATX Separated Cabinet Computer Case combines a sleek design with efficient cooling for ATX builds. Key features include:
- Form Factor: Compatible with ATX motherboards.

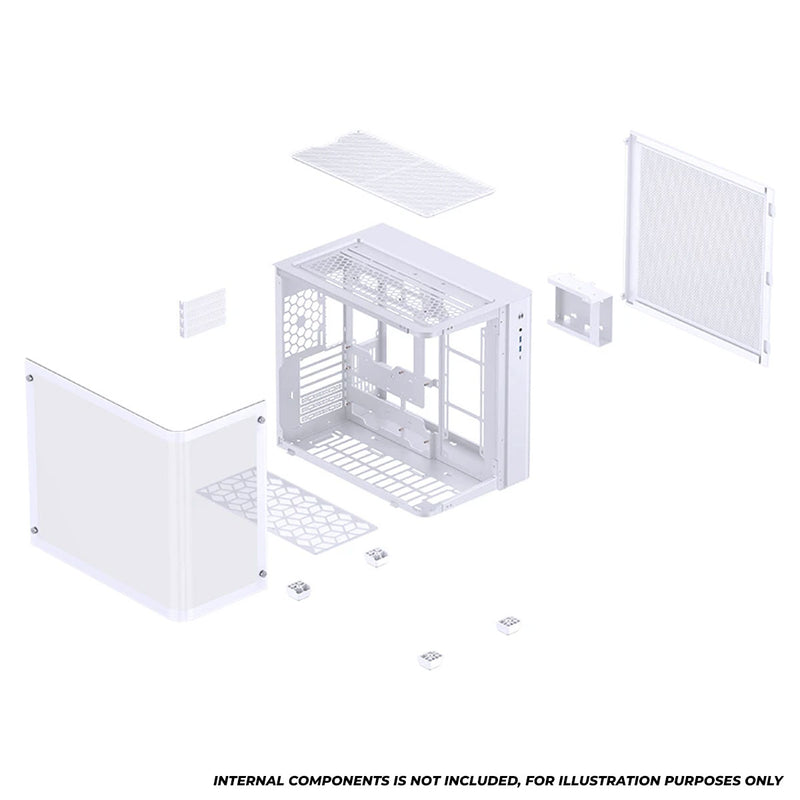

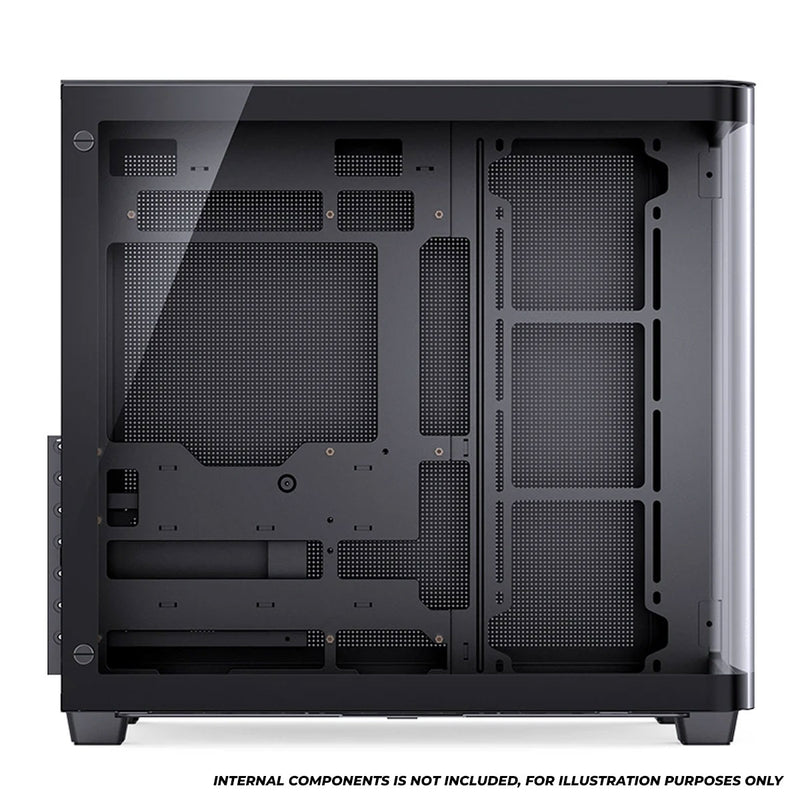

- Design: Separated compartment layout for enhanced airflow and tidy cable management.
- Material: High-quality aluminum construction, available in black and white finishes.

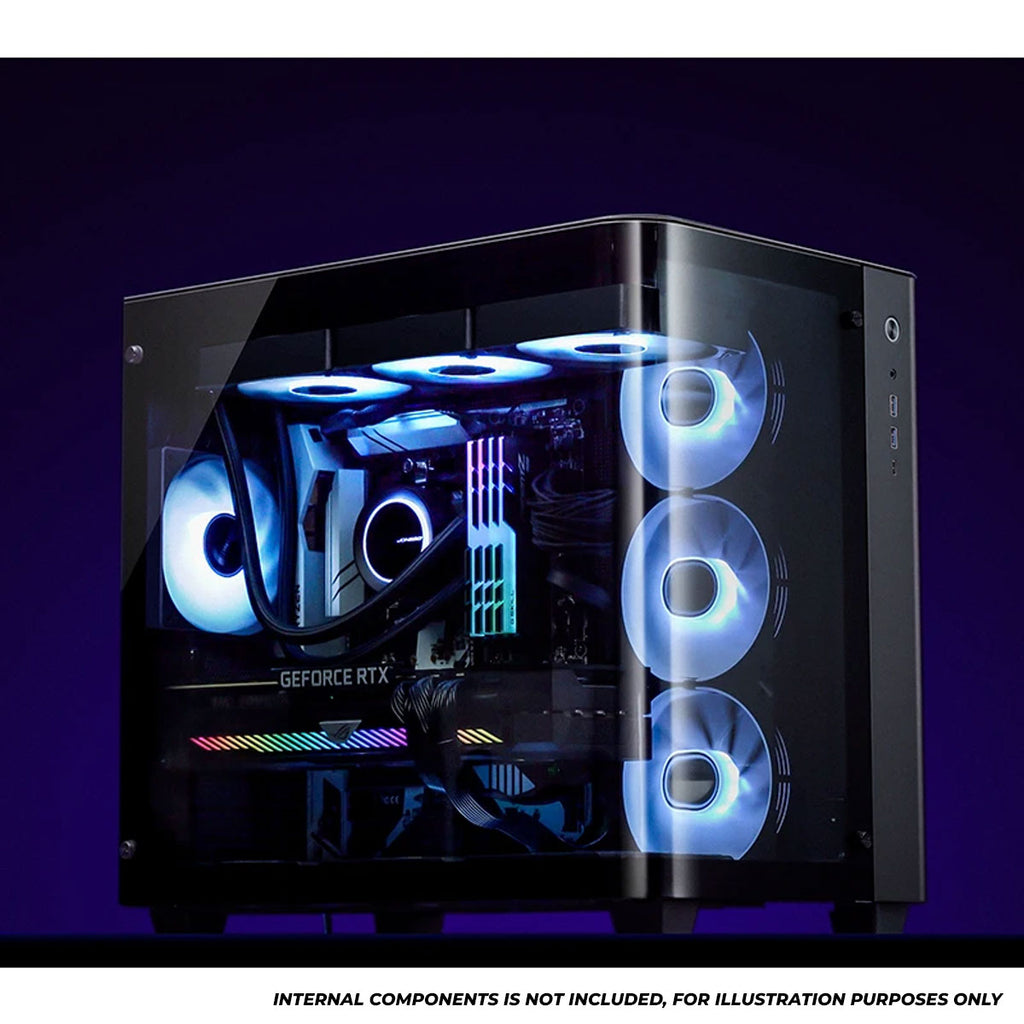

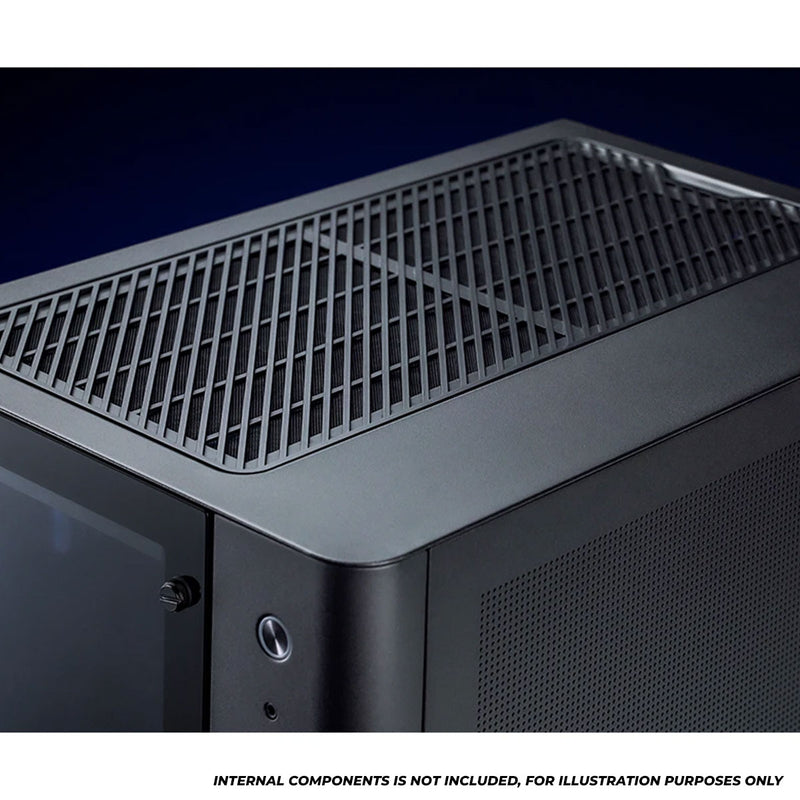

- Cooling: Supports multiple fan configurations and liquid cooling for optimal temperature control.
- Expansion: Space for a full-sized GPU, multiple storage drives, and expansion cards.
SPECIFICATION
- Model：TK-3
- Color: Black/White
- Dimension：288mm (W) * 438mm (D) * 415mm (H)
- Material：0.7mm steel
- Glass：4mm tempered glass (2H hardness explosion-proof protective film is applied on the glass surface, no need to tear it off when using)
- Motherboard：ITX / M-ATX / ATX
- Drive Bay：3.5" HDD*2/2.5" SSD*1 or 2.5" SSD*2/3.5" HDD*1
- Cooling Systerm：Top:120mm*3/140*2(optional); Bottom:120mm*3(optional); Side 120mm*3(optional); Rear 120mm*1(optional)
- Water Cooling: Top：360mm*1 or 280mm*1(optional); Bottom: 360mm*1(optional)
- Power Supply: ATX≤220mm
- CPU Cooler：165mm
- Video Card: ≤420mm
- Front IO Port: USB3.2 Gen2 Type-C*1 / USB3.0*2 / AUDIO*1+MIC*1(2 in 1）

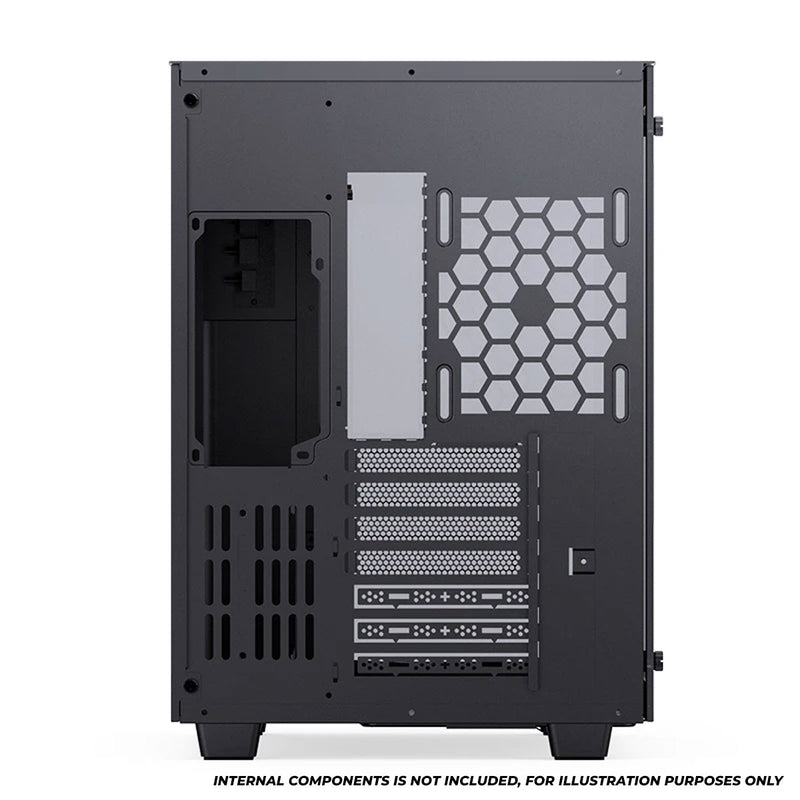

- Expansion Slot：7
