Description

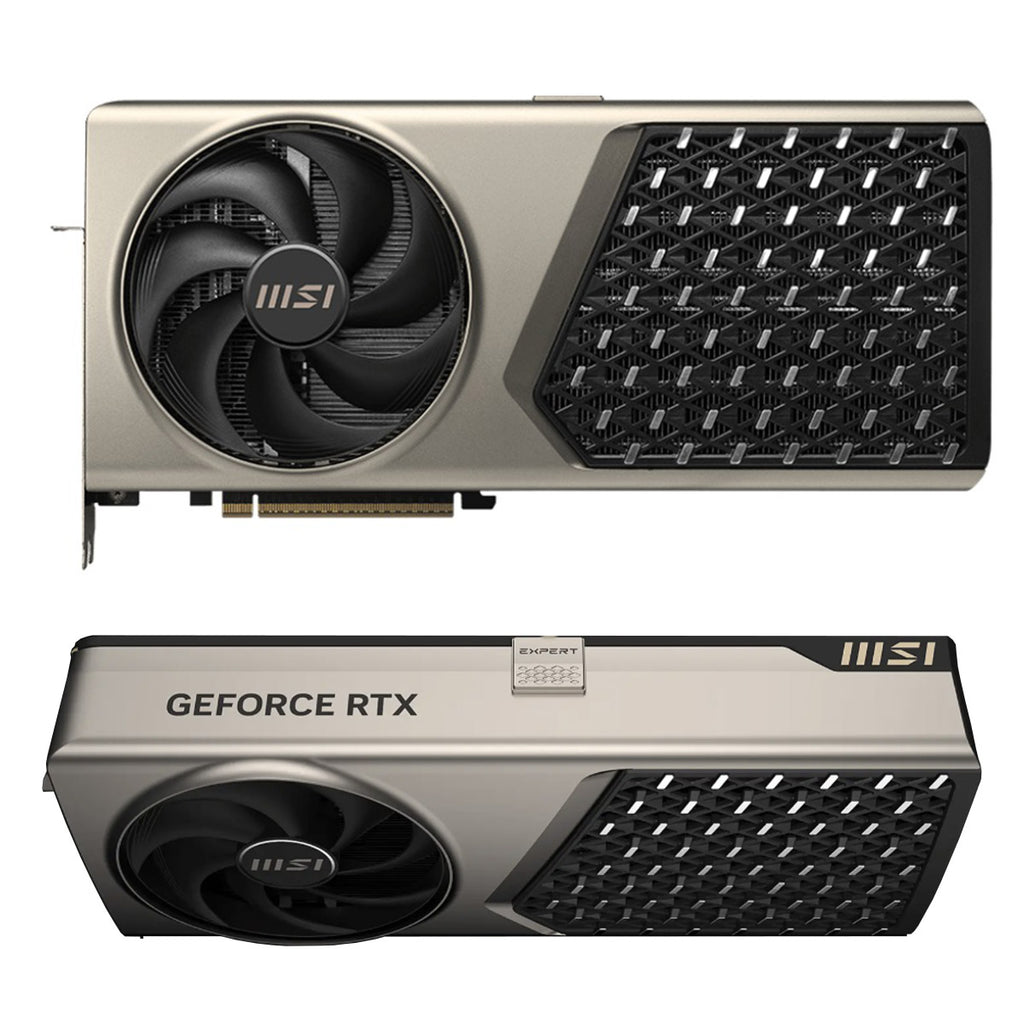

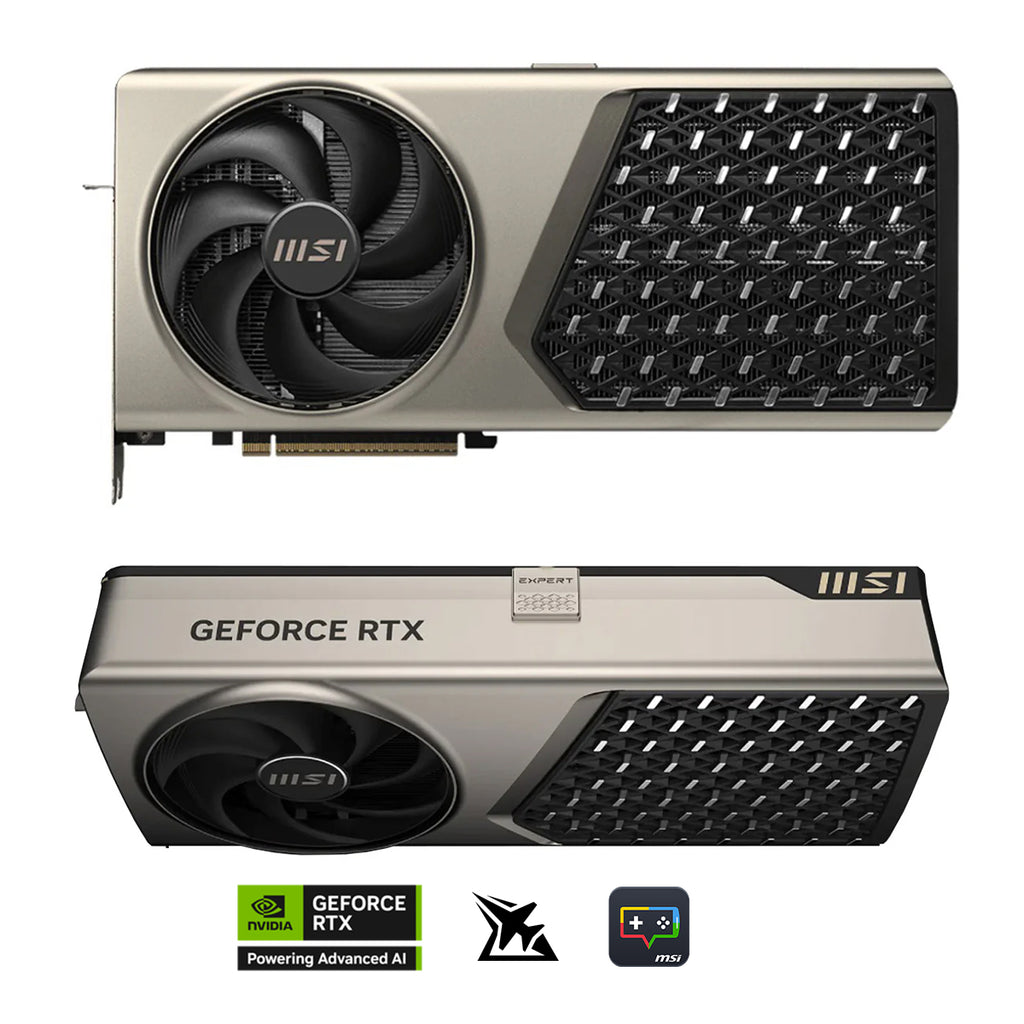

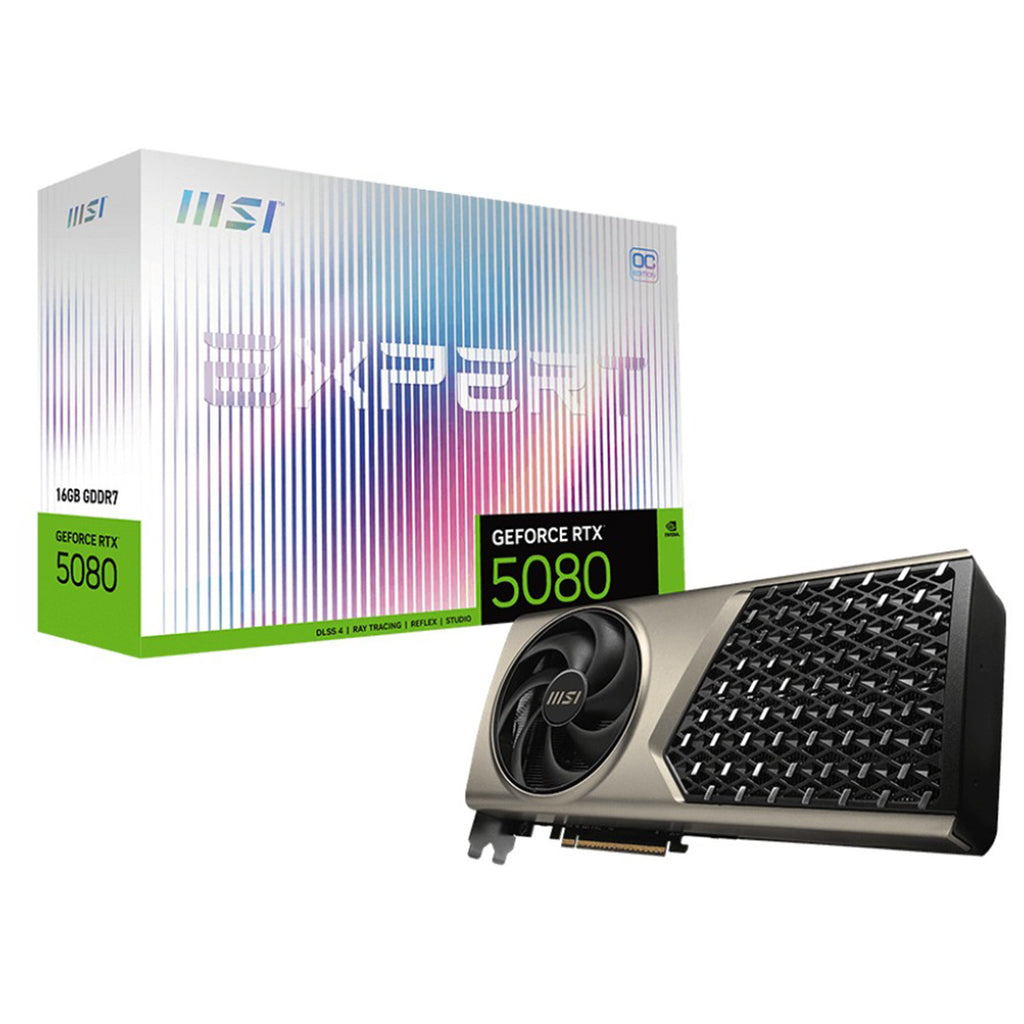

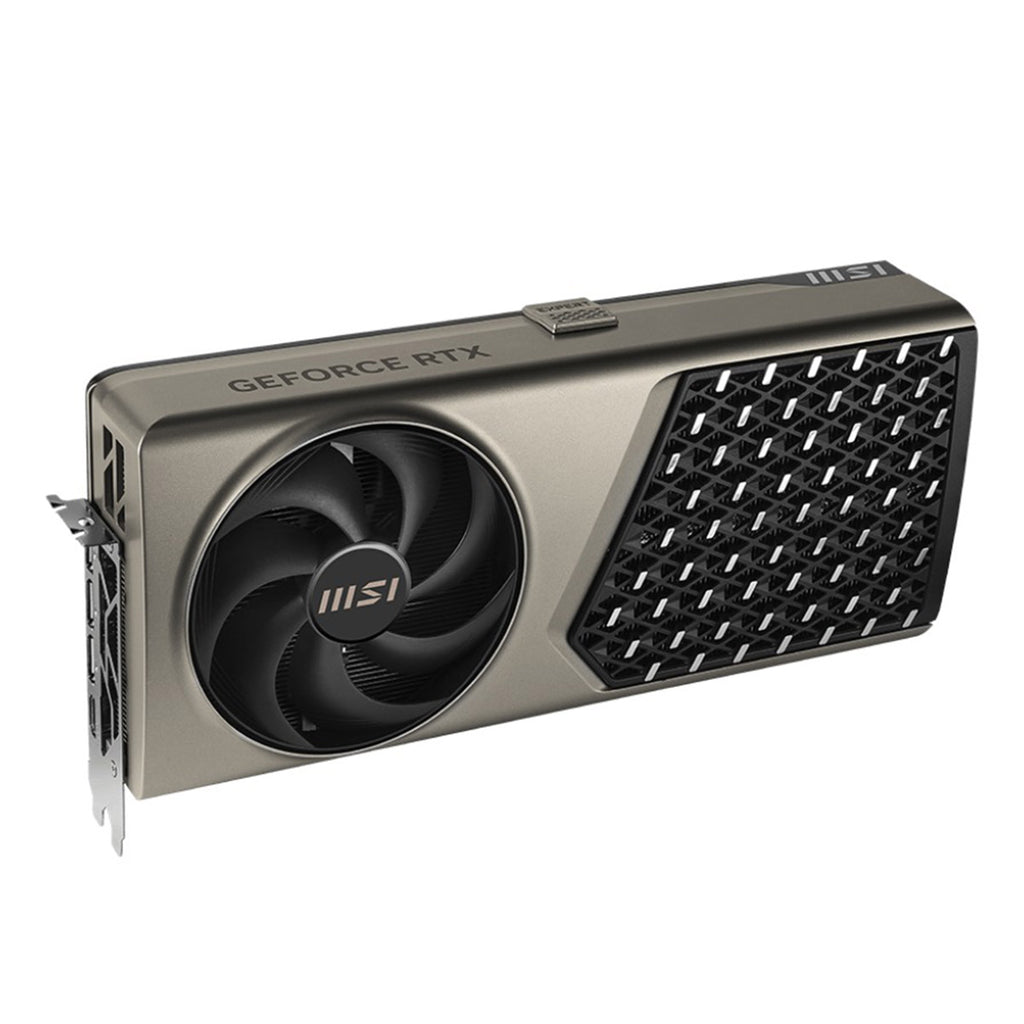

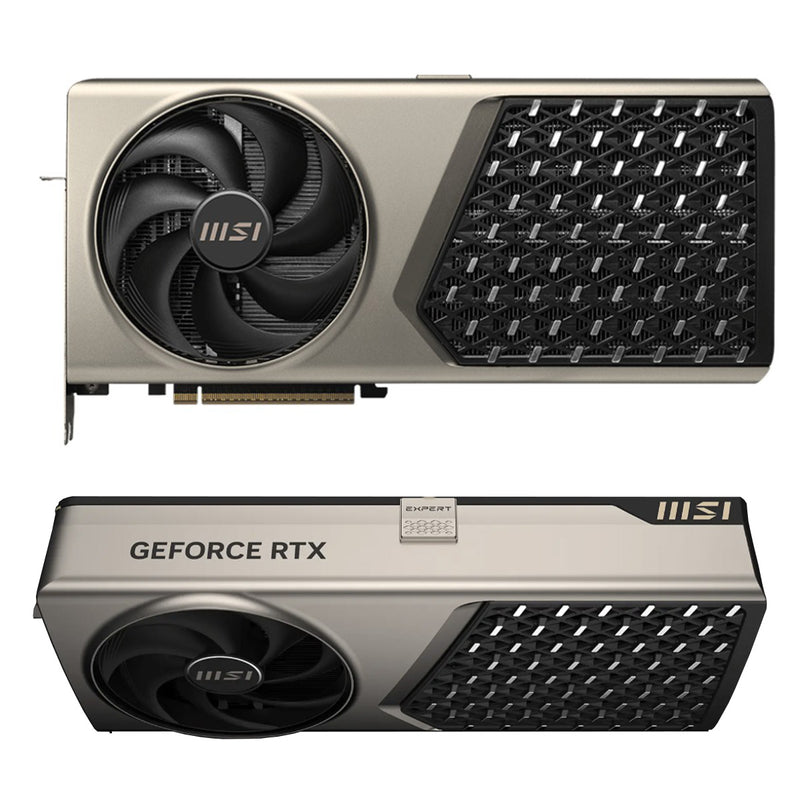

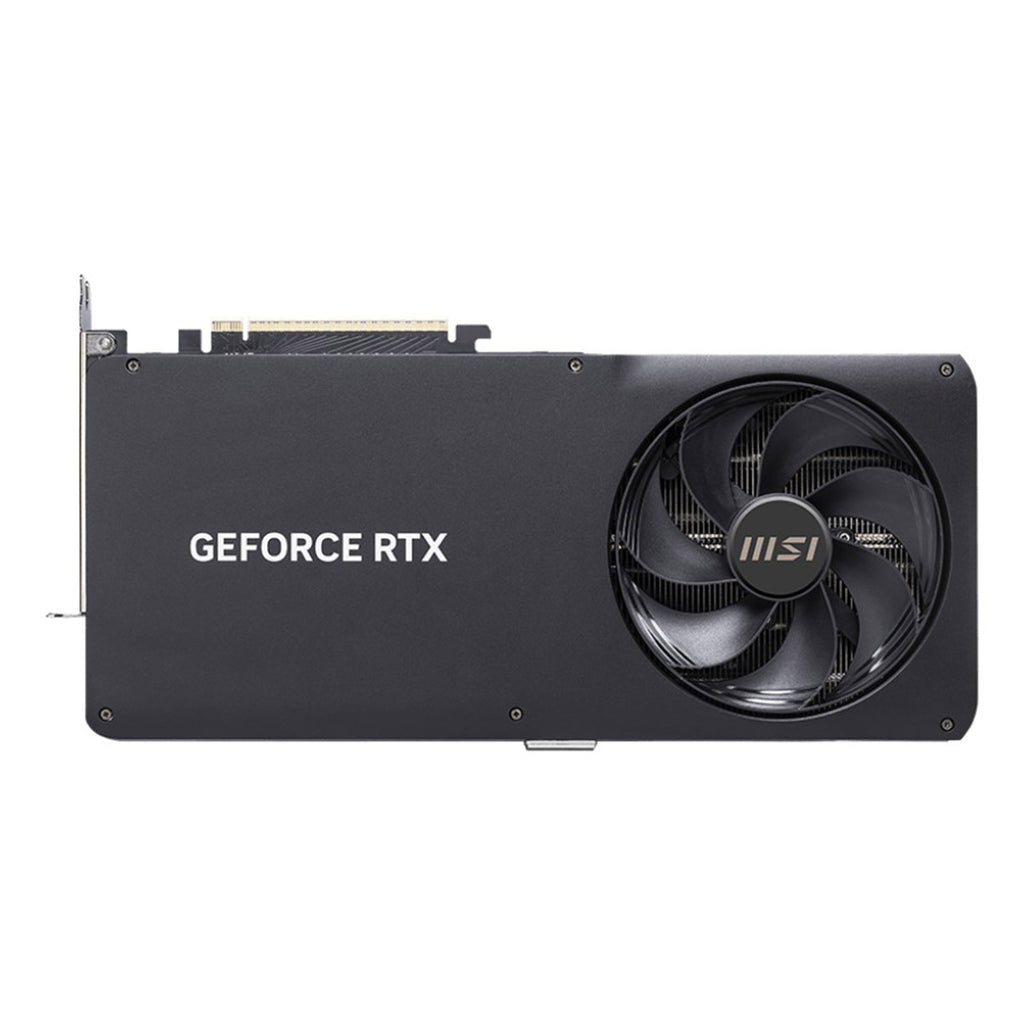

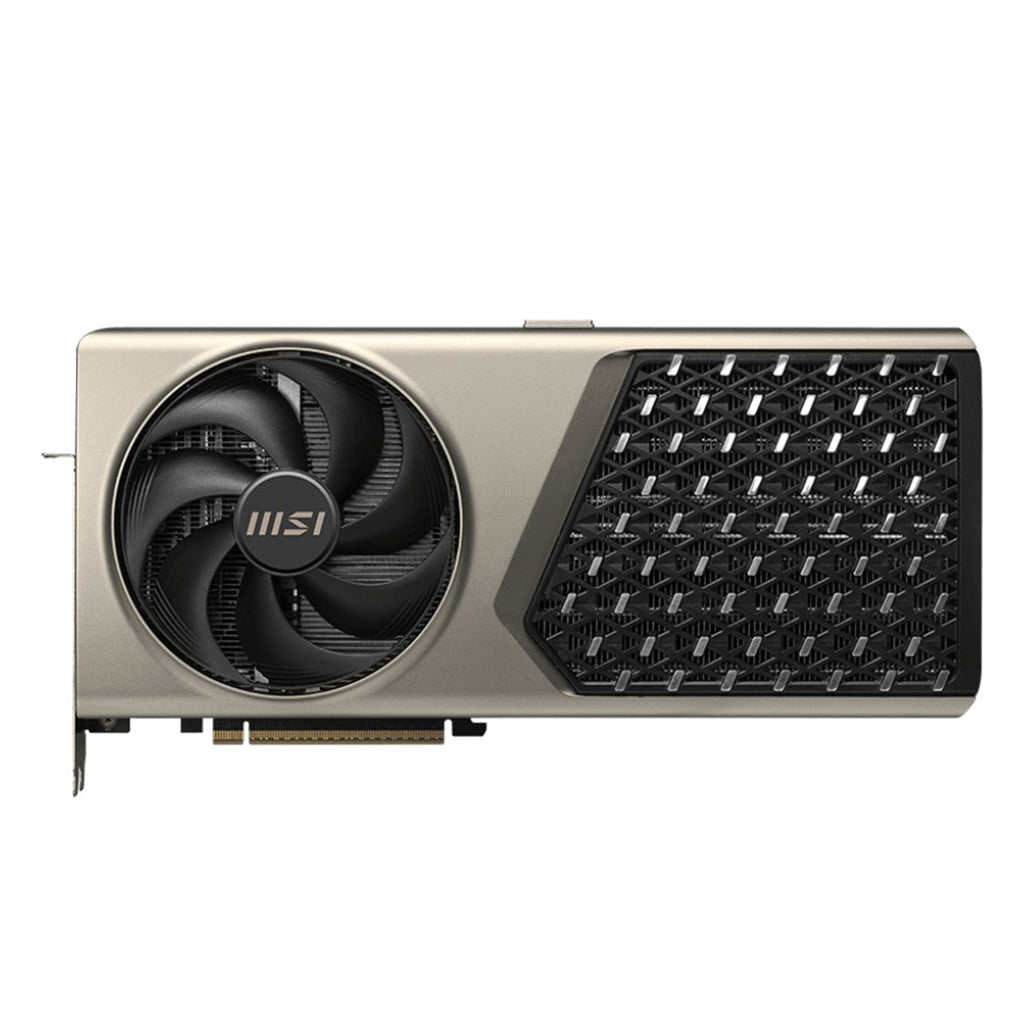

GeForce RTX™ 5080 16G EXPERT OC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
-
Core Clocks:
Extreme Performance: 2730 MHz (MSI Center)
Boost: 2715 MHz
- Flow Frozr 2 : Designed for silence and performance, MSI’s FLOW FROZR 2 delivers exceptional cooling to keep your graphics card performing at its best.
- Push Pull Airflow : Cooling efficiency is improved with two fans working collaboratively to reduce heat buildup.
- Aluminum Die-Casting : Overall structural integrity is enhanced with metal material while the flow-through ventilation reduces trapped heat.
- Zero Frozr : The fans completely stop when temperatures are relatively low, eliminating all noise.
- STORMFORCE FAN : Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Advanced Vapor Chamber : Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation.
- Optimzed Heat Distribution - Core Pipe : Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling.
- Optimized Fin Design : Precisely engineered fins maximize heat dissipation, ensuring consistent cooling efficiency and sustained peak performance.
- MSI Center : The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner : Take full control with the most recognized and widely used graphics card overclocking software in the world.
Specification:
| Marketing Name | GeForce RTX™ 5080 16G EXPERT OC |
| Model Name | G5080-16EC |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5080 |
| Interface | PCI Express® Gen 5 x16 |
| Core Clocks | Extreme Performance: 2730 MHz (MSI Center) Boost: 2715 MHz |
| CUDA® CORES | 10752 Units |
| Memory Speed | 30 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |

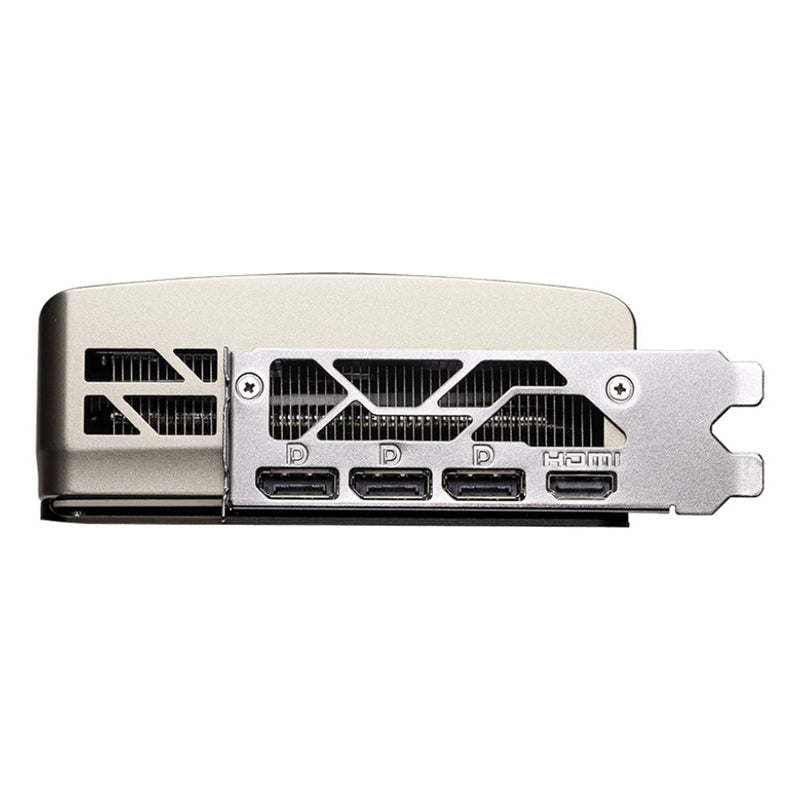

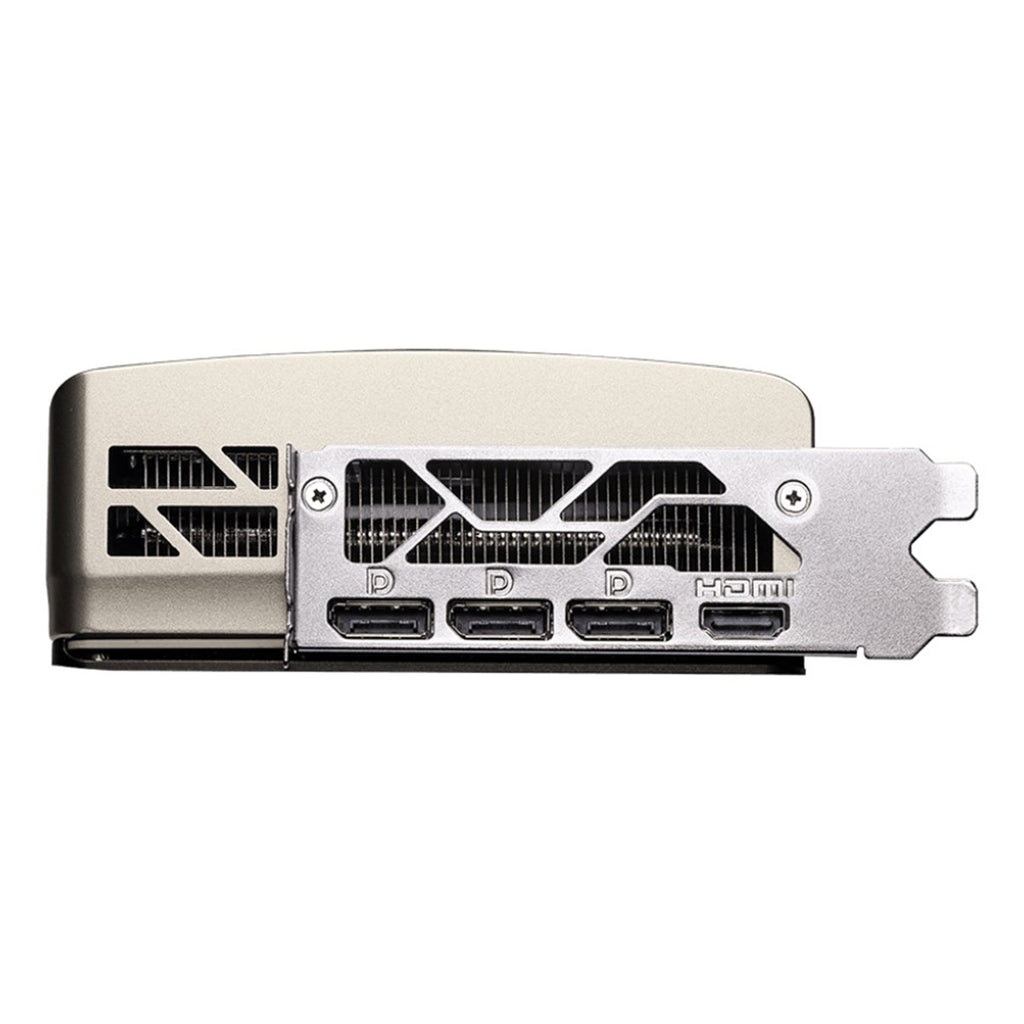

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (Supports 4K@480Hz HDR, 8K@120Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1b) |
| HDCP Support | Y |
| Power consumption | 360W |

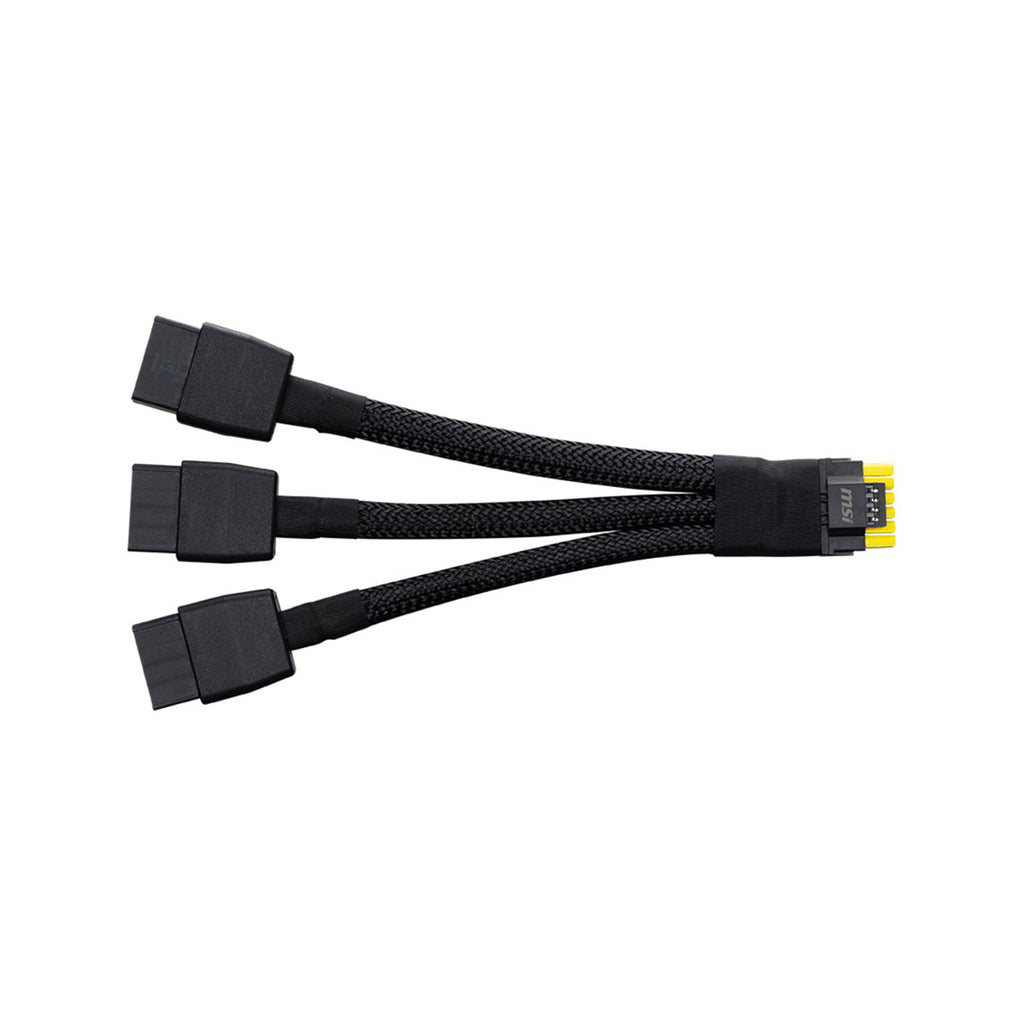

| Power connectors | 16-pin x1 |
| Recommended PSU | 850 W |
| Card Dimension (mm) | 319 *150*60 mm |
| Weight (Card / Package) | 1898g / 2760g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
