Description

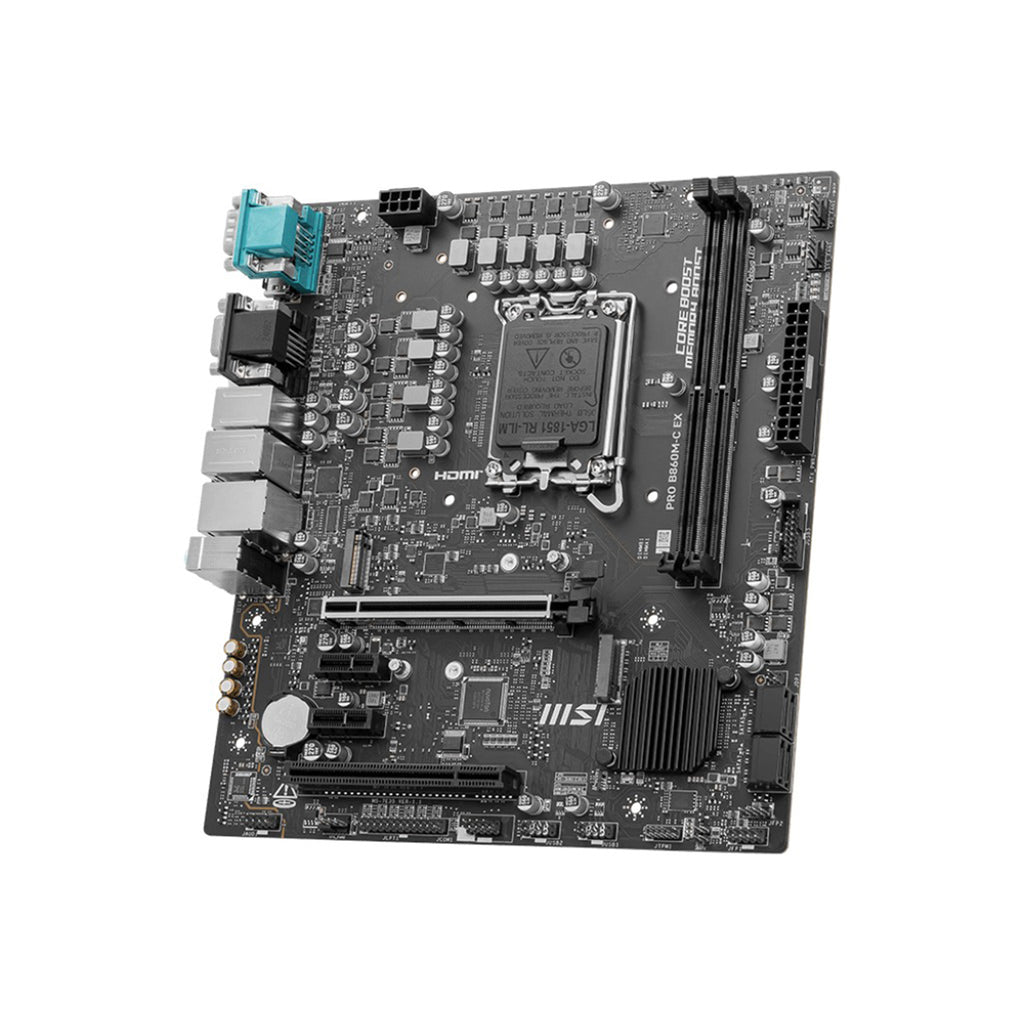

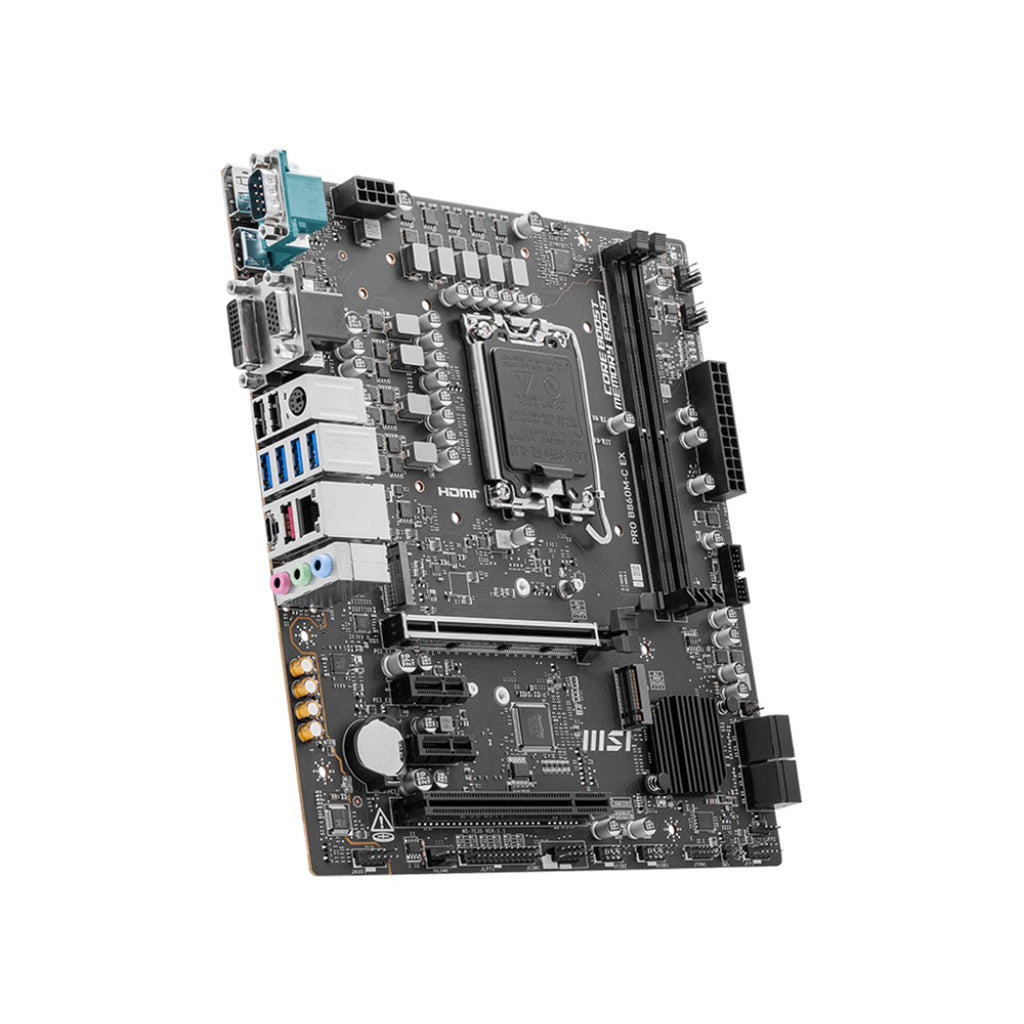

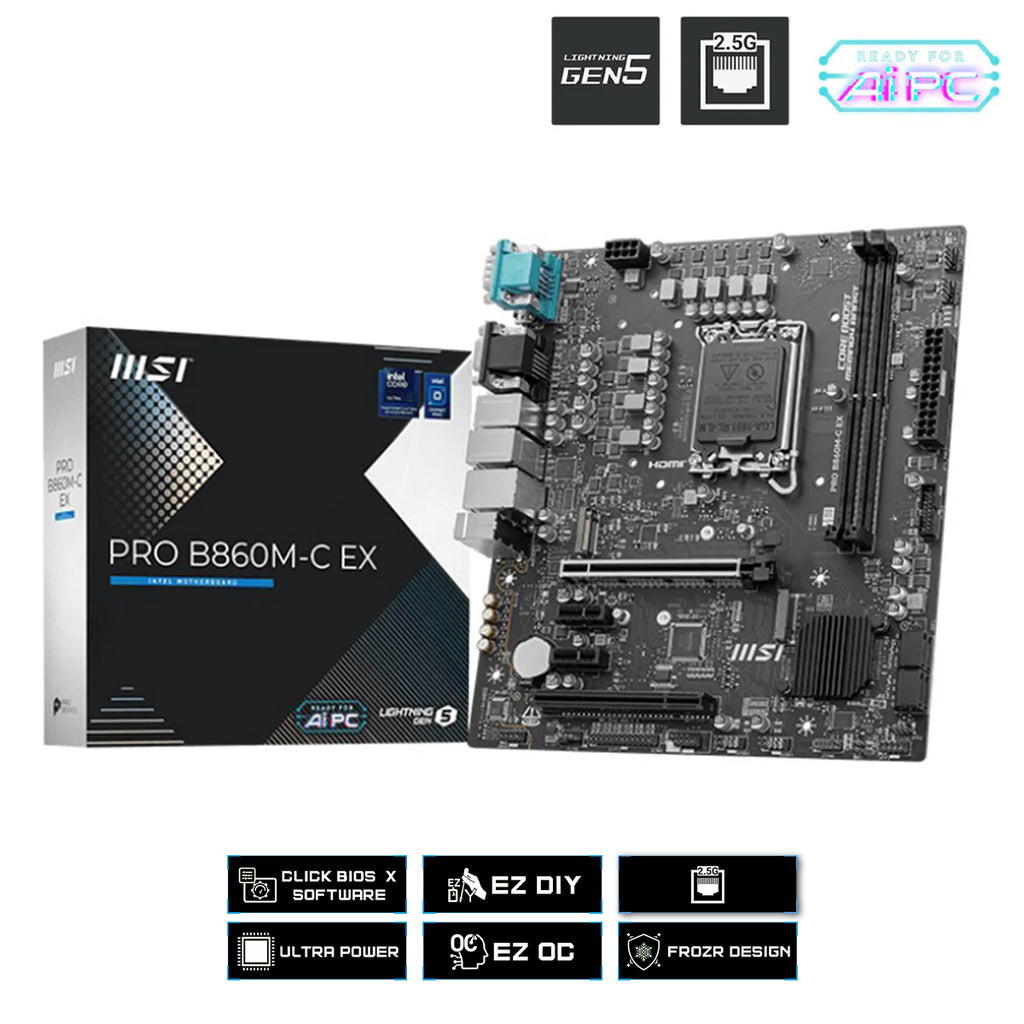

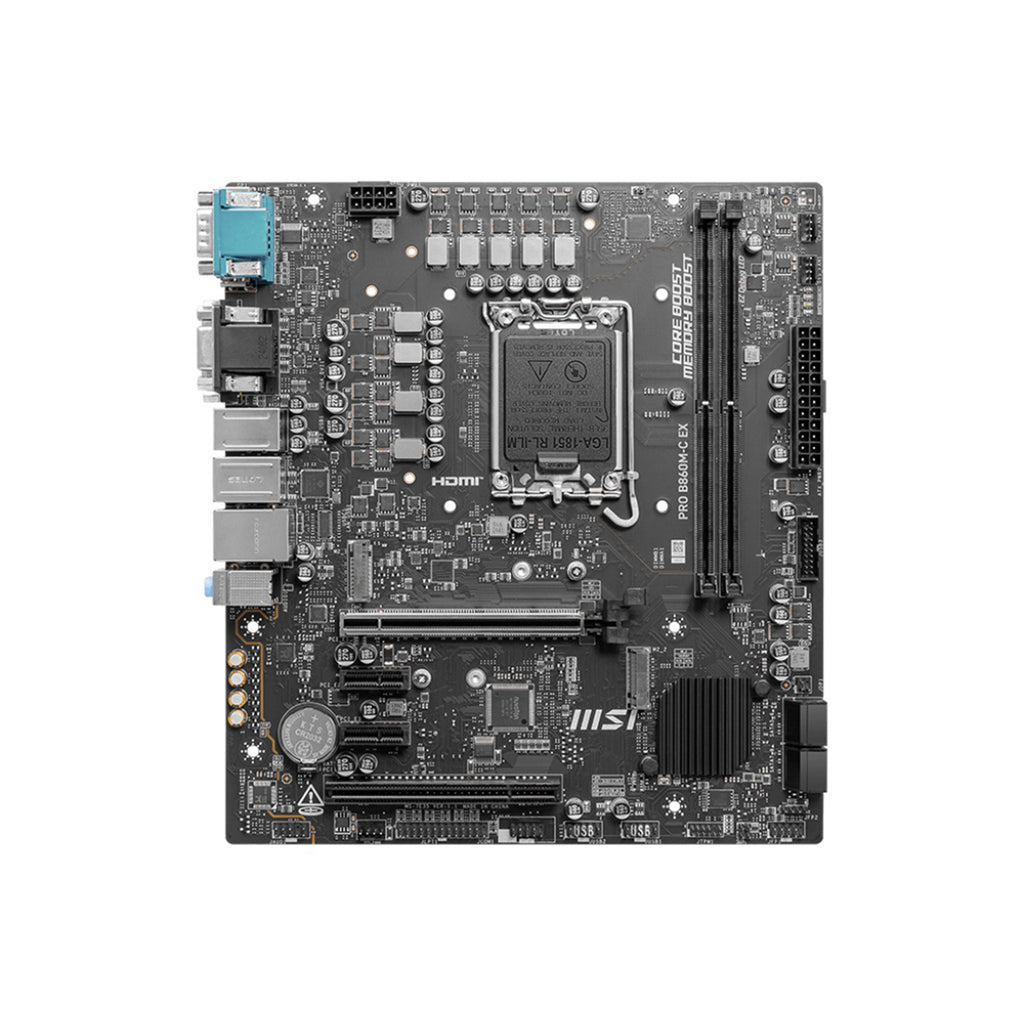

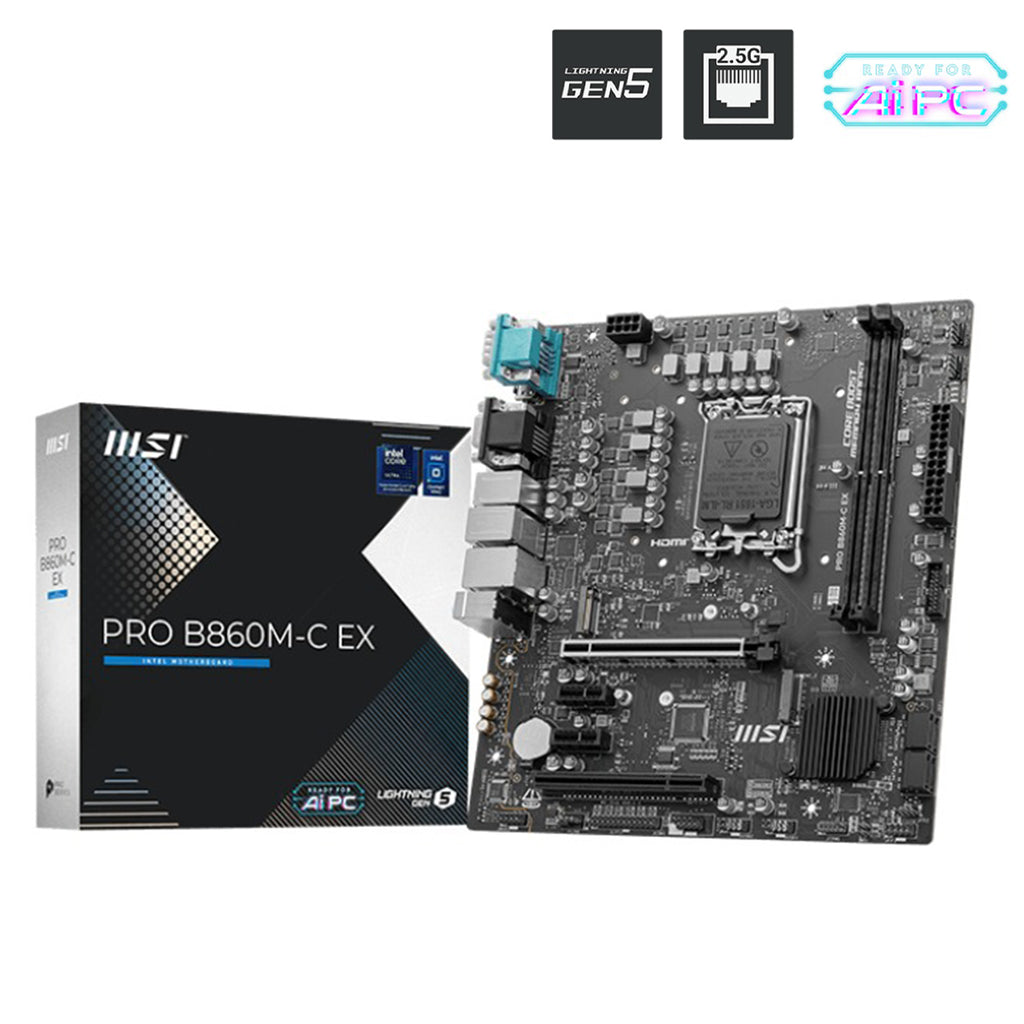

PRO B860M-C EX is engineered with many exclusive features of MSI, EZ PCIe Clip II, 2.5G LAN, PCIe 5.0 M.2, Type-C display, ready for the Intel® Core™ Ultra processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Specifications:
| Chipset | INTEL B860 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 2x DDR5 UDIMM, Max 128GB, Supports CUDIMM & XMP 3.0 |
| Memory Support | Up to 9066+ MT/s (OC) / 6400 MT/s (JEDEC) |
| Onboard Graphics | 1x HDMI 2.1, 1x DisplayPort 1.4, 1x USB-C (DP Alt Mode), 1x DVI-D, 1x VGA |
| Expansion Slots | 1x PCIe 5.0 x16, 2x PCIe 4.0 x1, 1x PCI slot |
| Storage | 1x M.2 Gen5 x4, 1x M.2 Gen4 x4, 4x SATA 6G (Supports RAID 0/1/5/10) |
| USB (Rear) | 1x USB 10Gbps Type-C, 1x USB 10Gbps Type-A, 4x USB 5Gbps Type-A, 2x USB 2.0 |
| LAN | Realtek® 8125 2.5Gbps LAN |
| Audio | Realtek® ALC897 Codec 7.1-Channel HD Audio |
| Internal IO | Printer Port (LPT), COM Port, TPM header, 2x System Fan, 1x CPU Fan |
| Form Factor | mATX (243.84mm x 220mm) |
| Operating System | Windows® 11 64-bit |
