Description

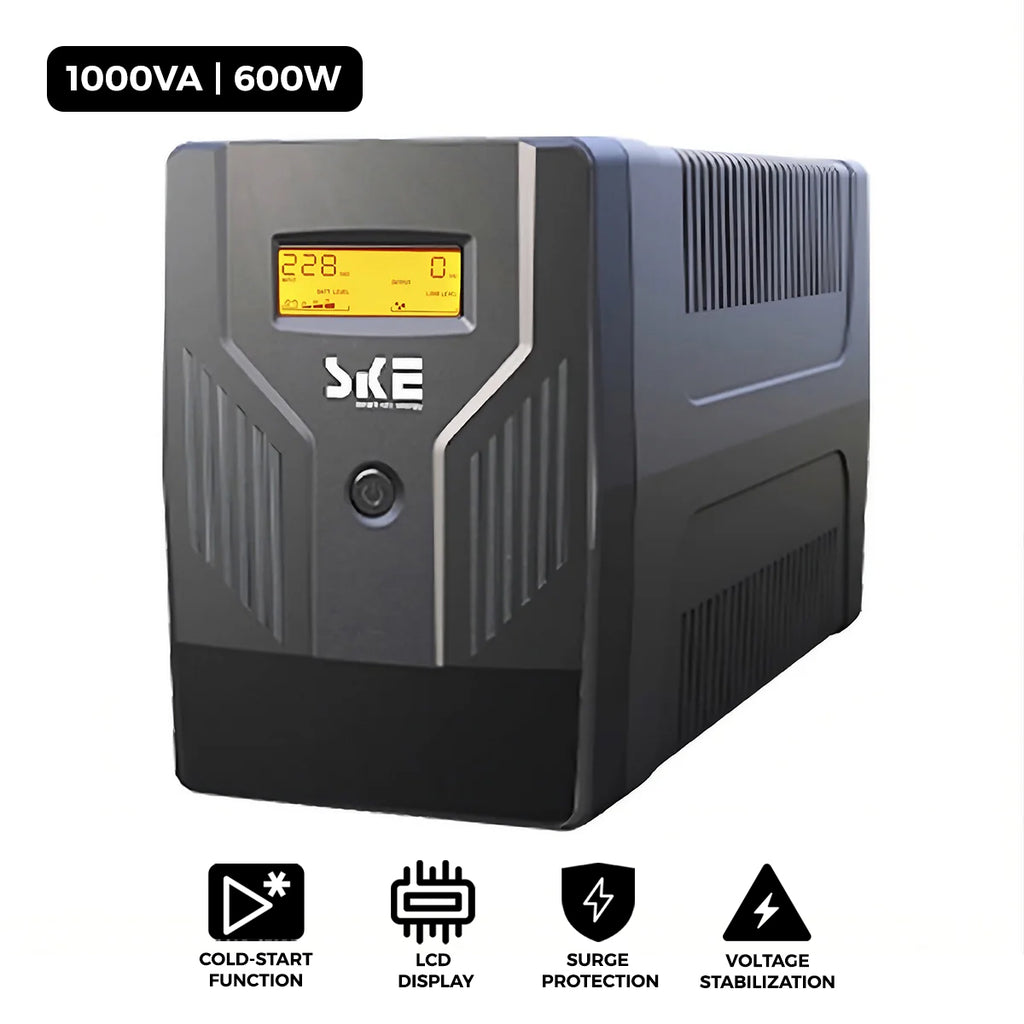

The GP 1000VA battery backup UPS offers advanced, precise detection and protection functions under digital control. It includes multi-stage automatic voltage regulation (AVR) to handle power irregularities like outages, high/low voltage, surges, and spikes, guaranteeing uninterrupted device operation in the presence of substantial mains voltage fluctuations. The LCD screen shows input/output voltage, load, and battery percentage, elevating the product experience.
Features:
- Automatic Voltage Regulation (AVR)
- Simulated Sine Wave Output
- Automatic Transfer Switch
- Cold Start Function
- Large-Screen LCD Display
| Specifications | GP1000 |
|---|---|
| Capacity | 1000VA/600W |
| Input Voltage | 220Vac / 230Vac |
| Voltage Range | 140-290 Vac / 140-300 Vac |
| Frequency Range | >40 Hz (auto adjust) |
| Output Voltage (Battery Mode) | 220Vac / 230Vac ±10% |
| Frequency Range (Battery Mode) | 50 Hz ±1Hz; 60 Hz ±1Hz (auto adjust) |
| Transfer Time | 4-8ms; 13ms (max) |
| Waveform (AC Mode) | Sine Wave |
| Waveform (Battery Mode) | Simulated Sine Wave |
| USB Charger | 5V/2.0A MAX |
| Battery Voltage | 24V |
| Battery Model & QTY. | 7AH*2 |
| Maximum Charging Current | 1A |
| Size (D x W x H) | 333 x 130 x 185 mm |
| Temperature Range | 0 ~ 90% RH @ 0-40°C (Non-condensing) |
| Noise | <40 dB @1m |
| Communication Port | For Choice (USB & RJ45) |
Specification
