ZOTAC GAMING GeForce RTX 5080 SOLID CORE OC
ZT-B50800J2-10P
The ZOTAC GAMING GeForce RTX™ 5080 SOLID CORE OC is a high-performance graphics card that excels in both gaming and content creation with a 2.5 slot design. Featuring NVIDIA‘s cutting-edge Blackwell architecture and DLSS4, and structural enhancements like an all-metal mid-frame, the SOLID CORE OC is the perfect blend of high performance and build flexibility.
Feature Highlights:
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- IceStorm 3.0 Advanced Cooling
- Vapor Chamber
- BladeLink Fans
- Reinforced Metal Mid-Frame
- FREEZE Fan Stop, Active Fan Control
- SPECTRA RGB Lighting

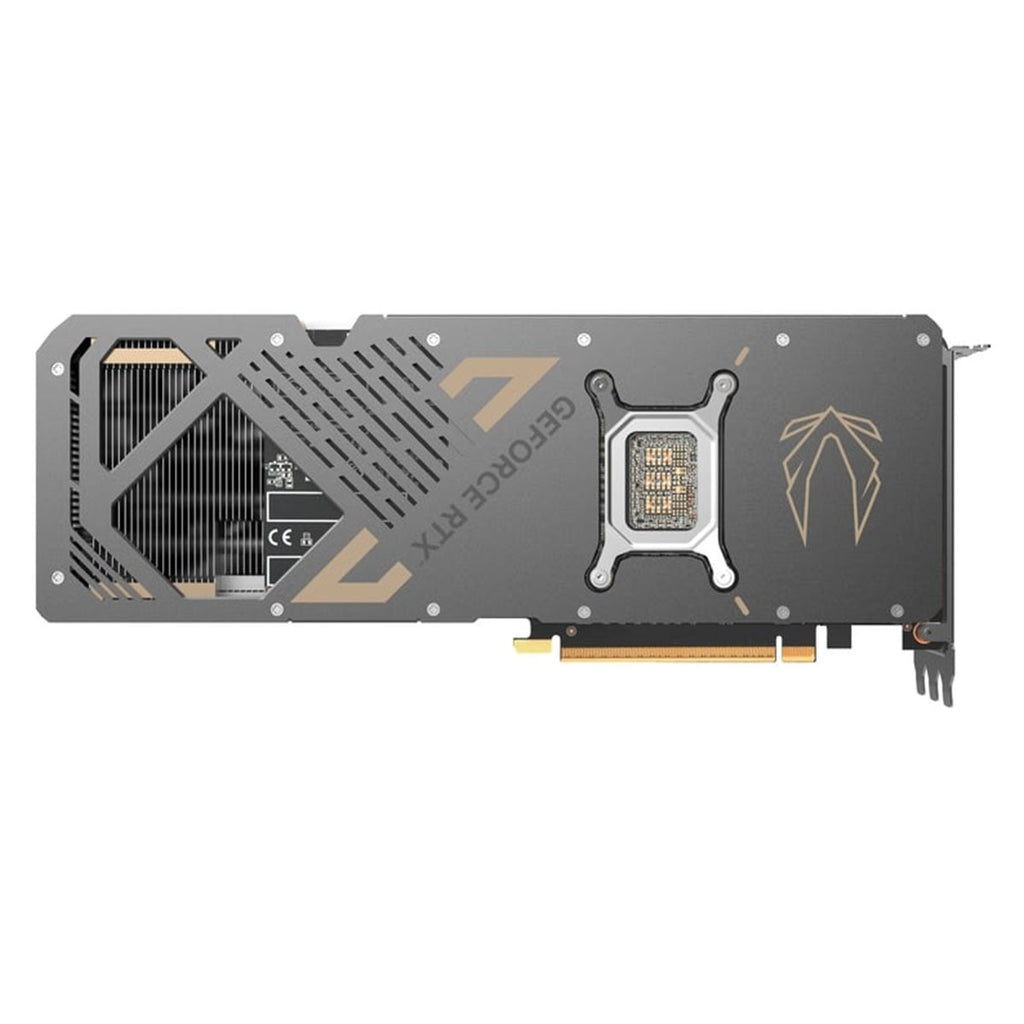

- Metal Backplate
- Bundled with GPU Support Bracket
- 12V-2x6 Safety Light
SPECIFICATION
| GPU | NVIDIA GeForce RTX 5080 GPU |
| CUDA cores | 10752 |
| Video Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |
| Engine Clock | 2640 MHz |
| Memory Clock | 30 Gbps |
| PCI Express | PCI Express 5.0 x16 |

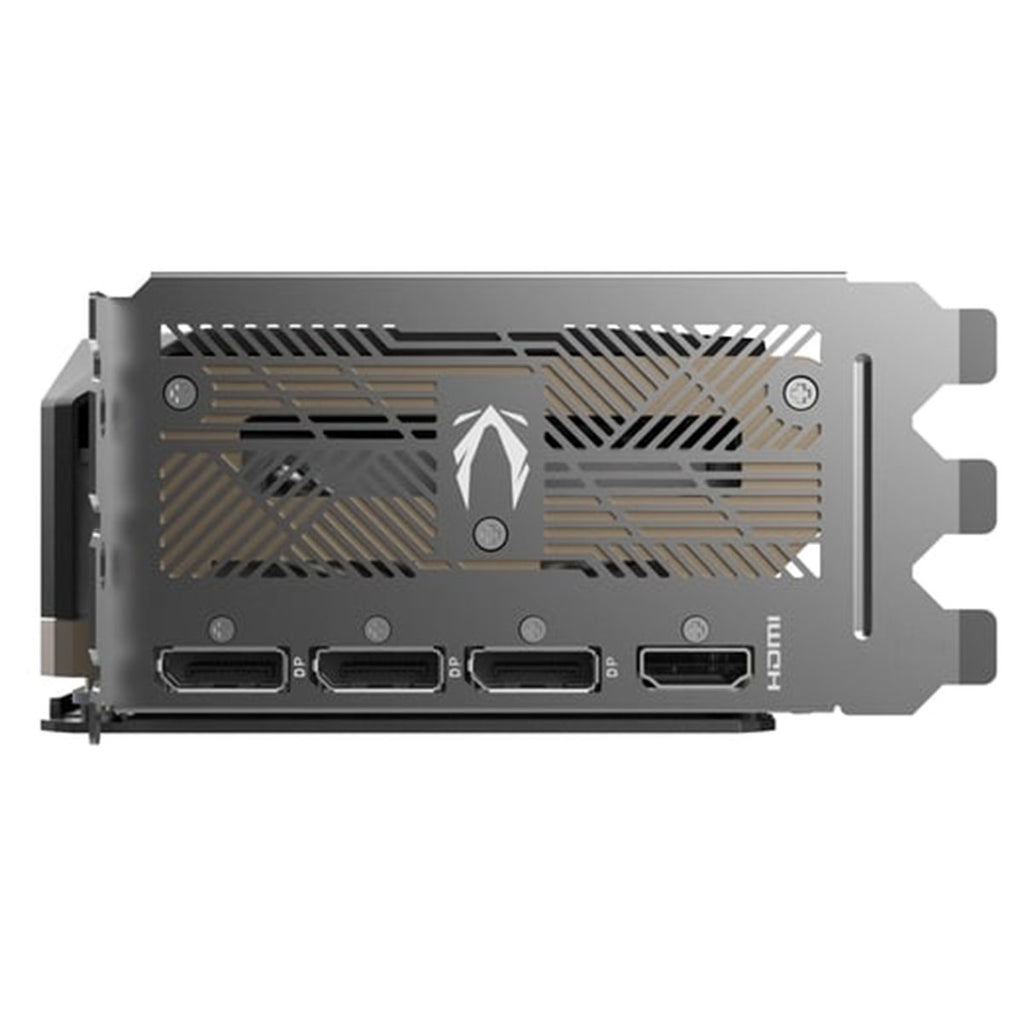

| Display Outputs | 3 x DisplayPort 2.1b with UHBR20 |
| (up to 4K 480Hz or 8K 165Hz with DSC) | |
| 1 x HDMI Connector | |
| (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) | |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 850W |
| Power Consumption | 360W *High power consumption, please carefully read your PSU manual before installation. |
| Power Input | 1 x 12v-2x6 power input |
| DirectX | Microsoft DirectX 12 Ultimate |
| OpenGL | 4.6 |
| Cooling | IceStorm 3.0 |
| Slot Size | 2.5 |
| SLI | No |
| Supported OS | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
| Card Length | 303.5mm x 115.8mm x 55.7mm / 11.9" x 4.6" x 2.2" |
| Accessories | User Manual |
| 3 x 8-pin-to-16-pin cable | |
| GPU Support Stand |
