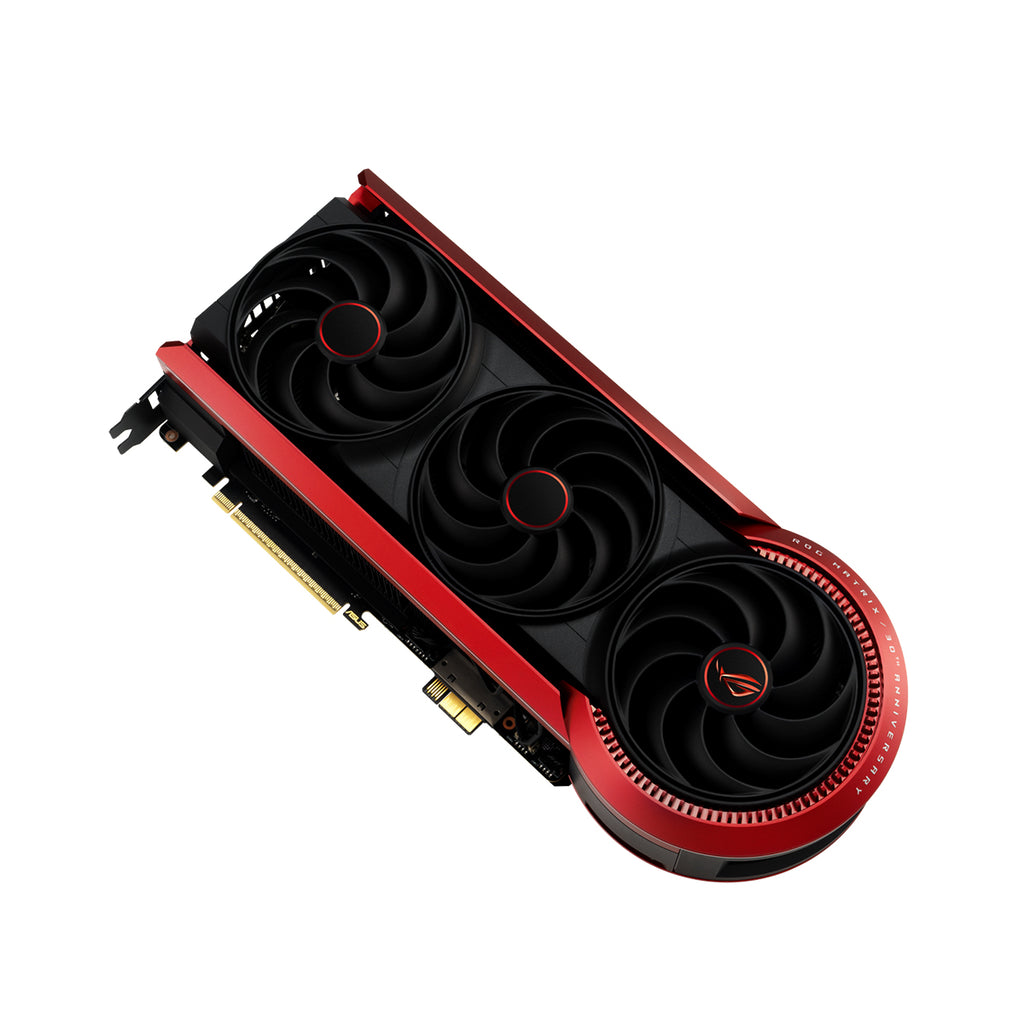

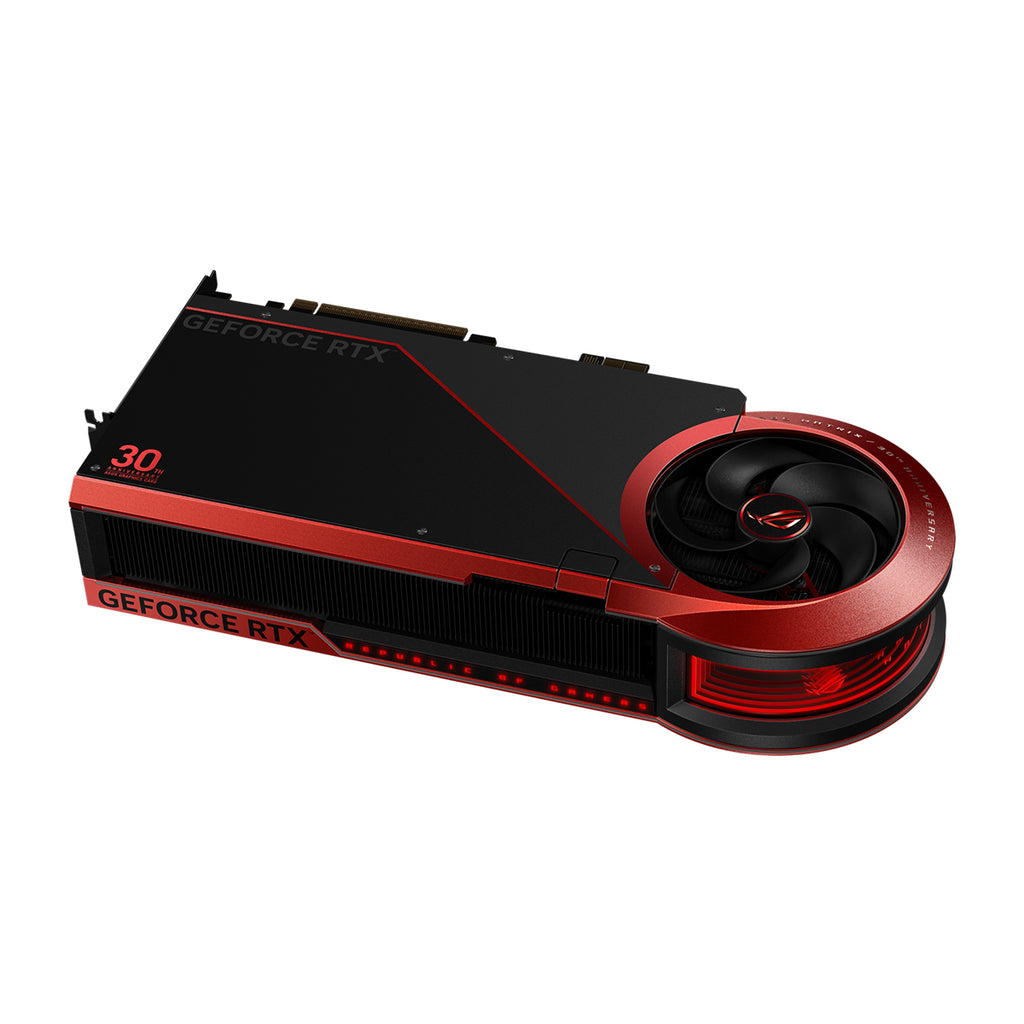

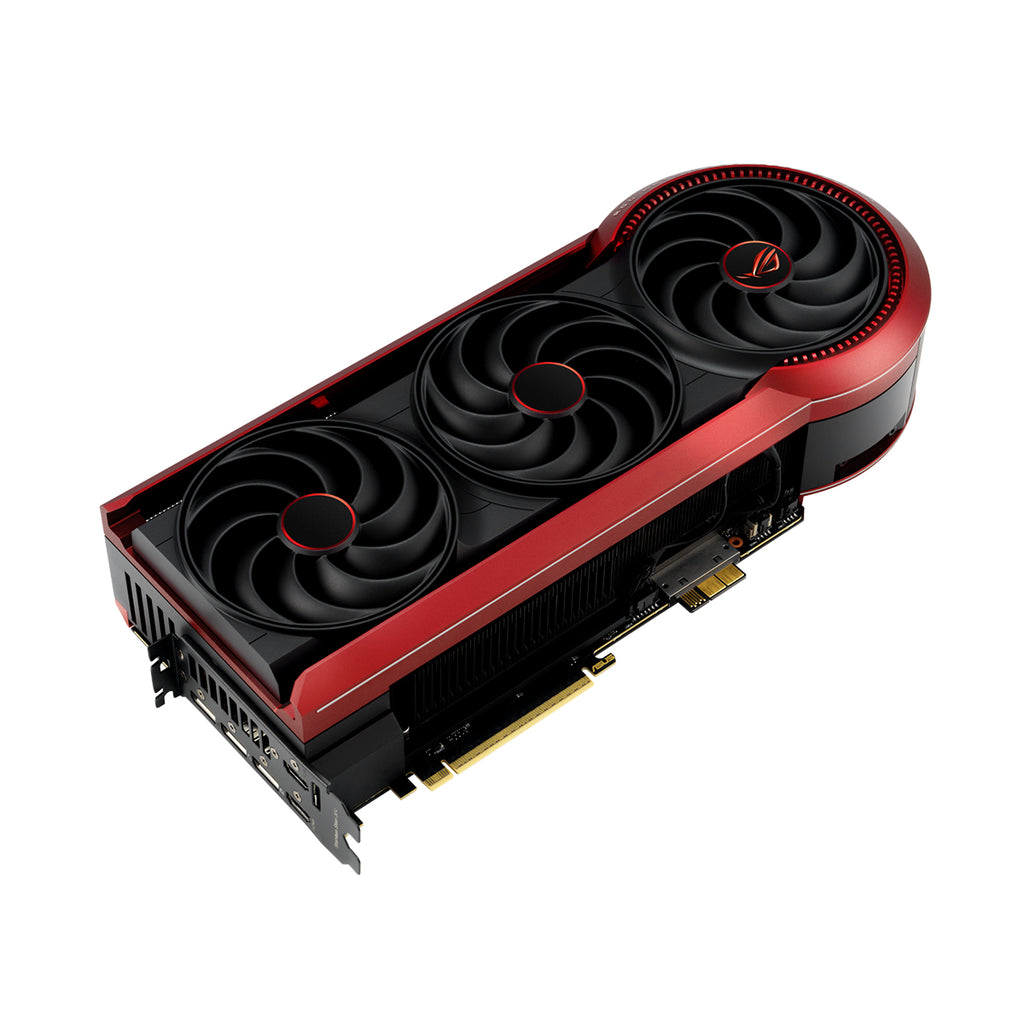

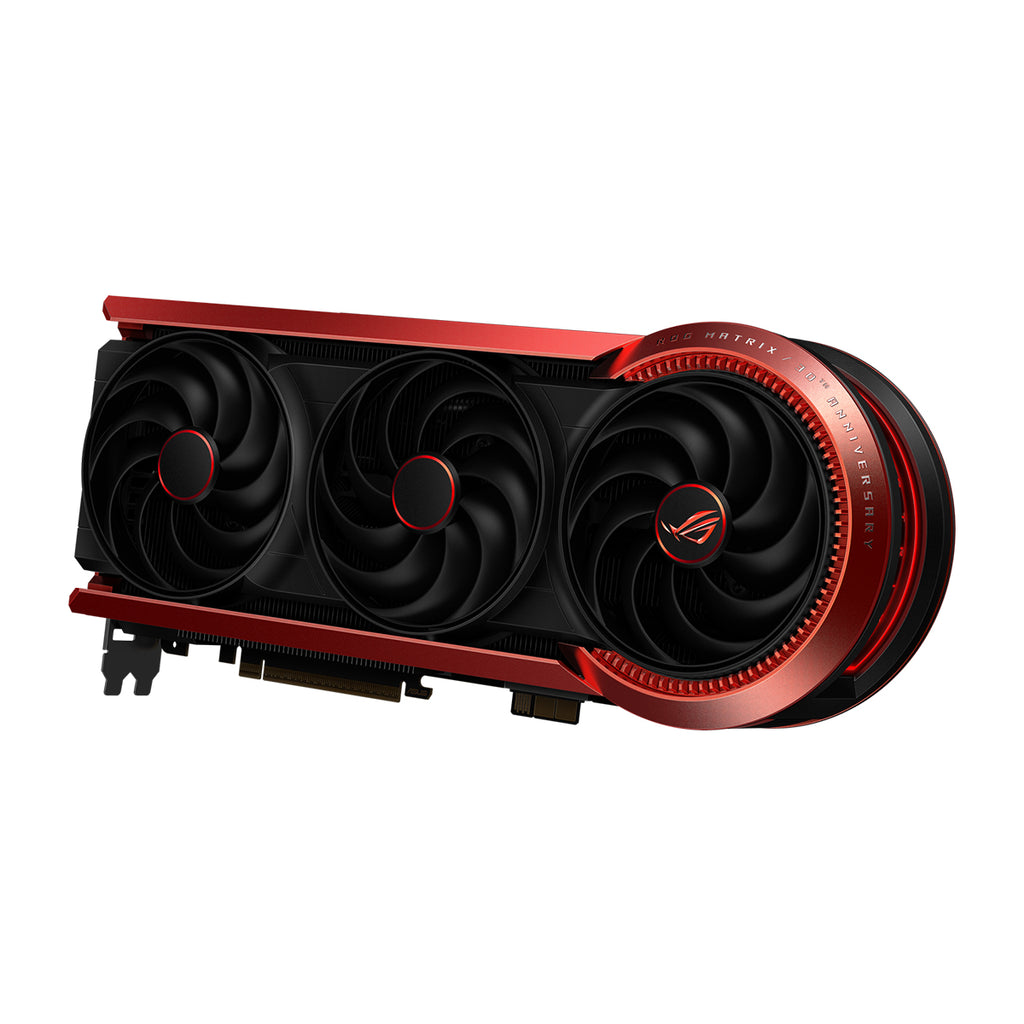

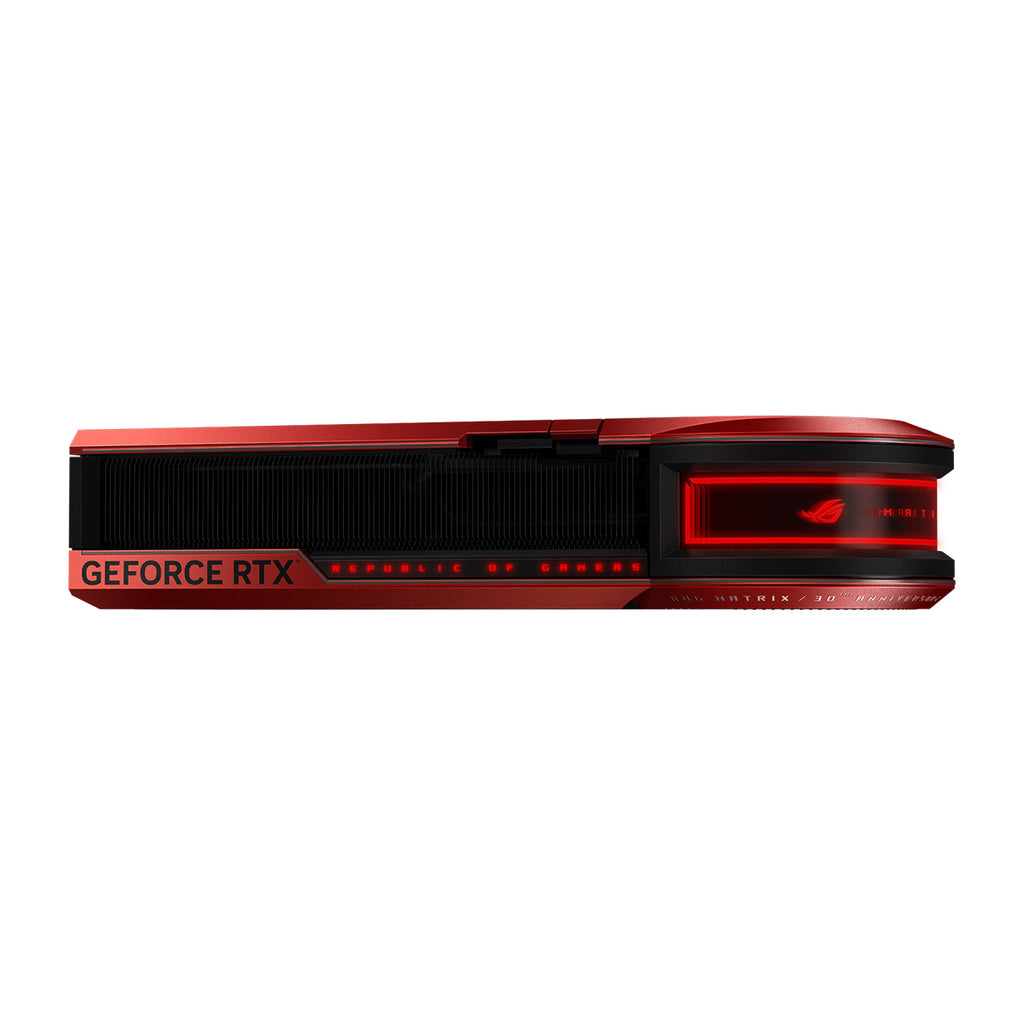

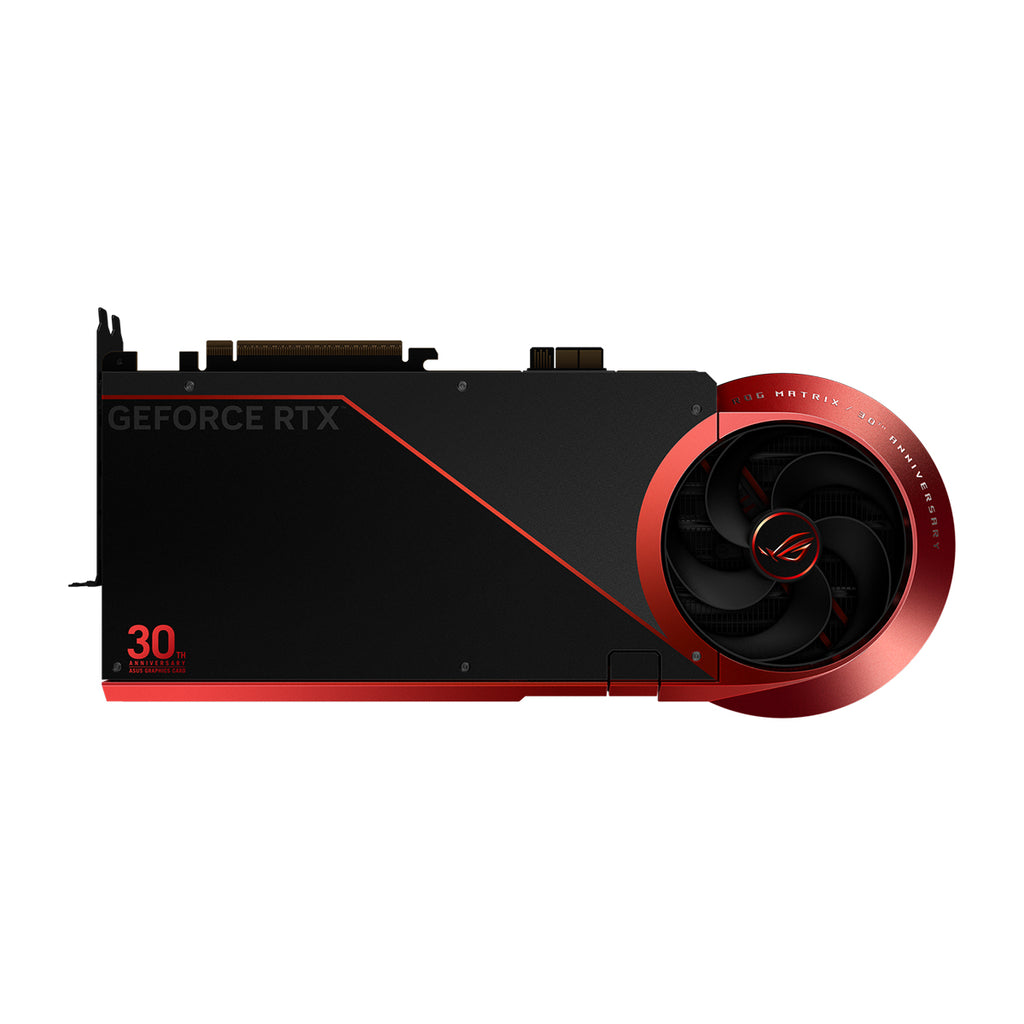

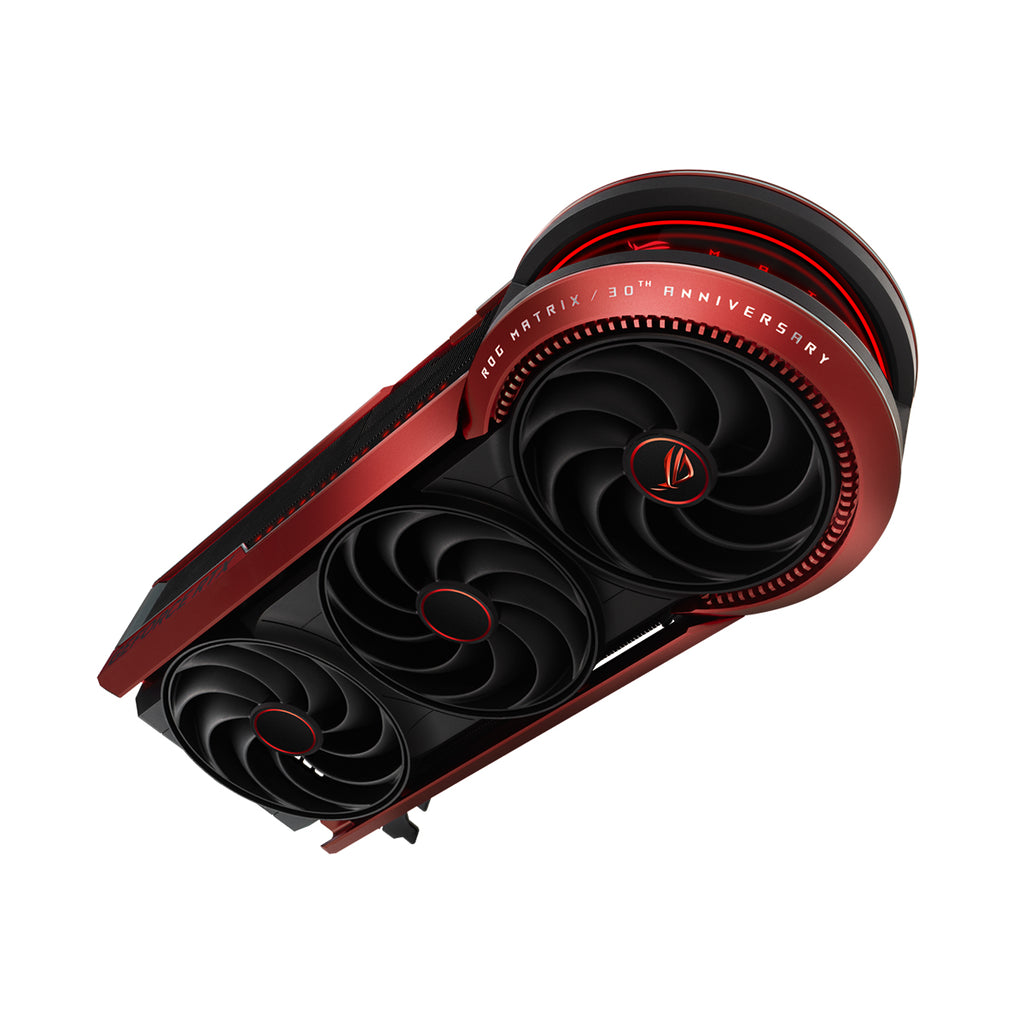

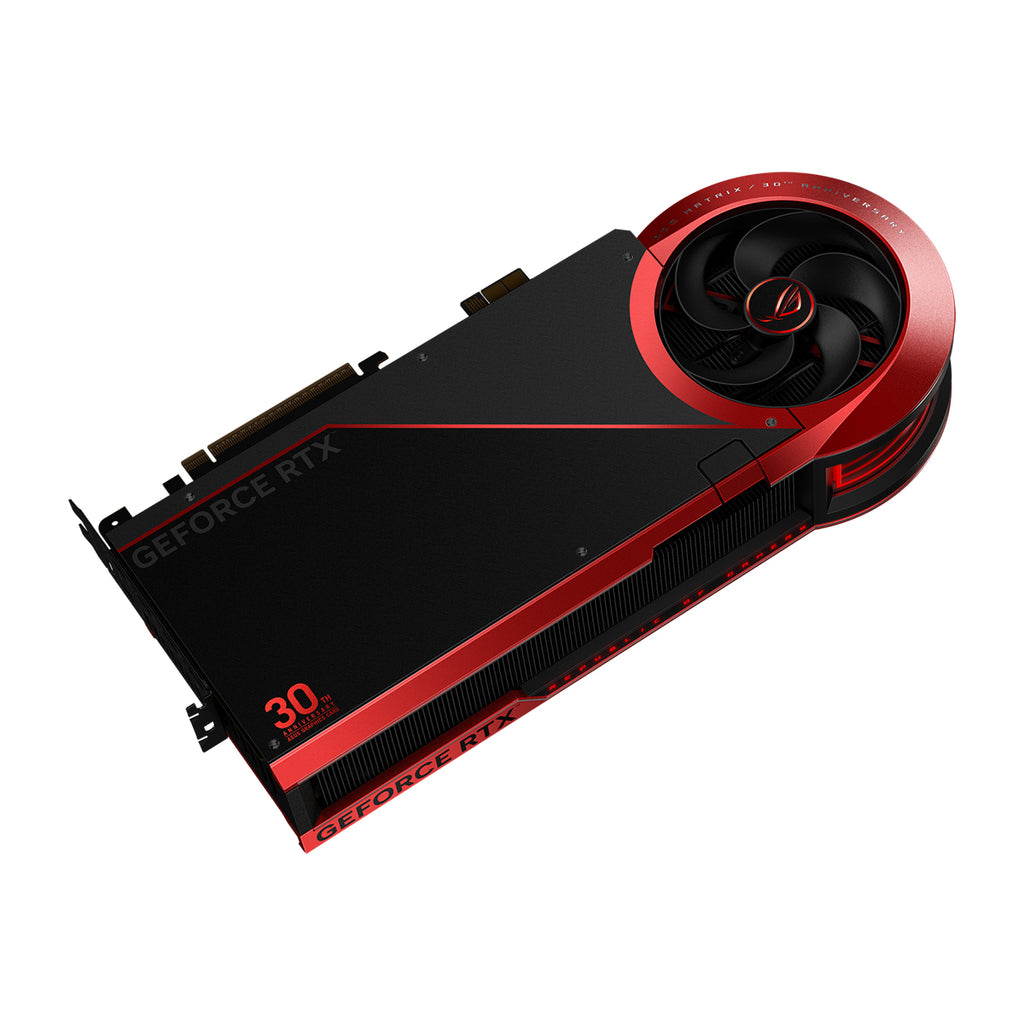

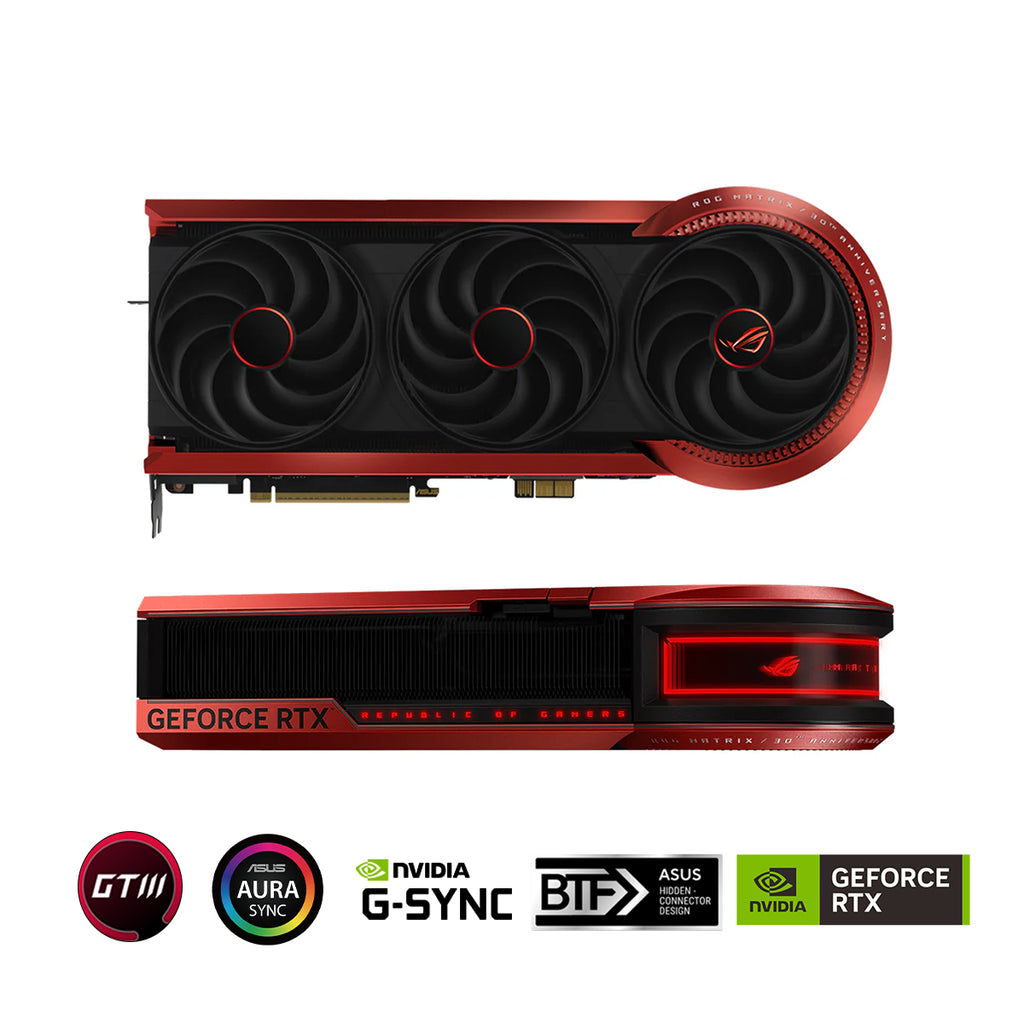

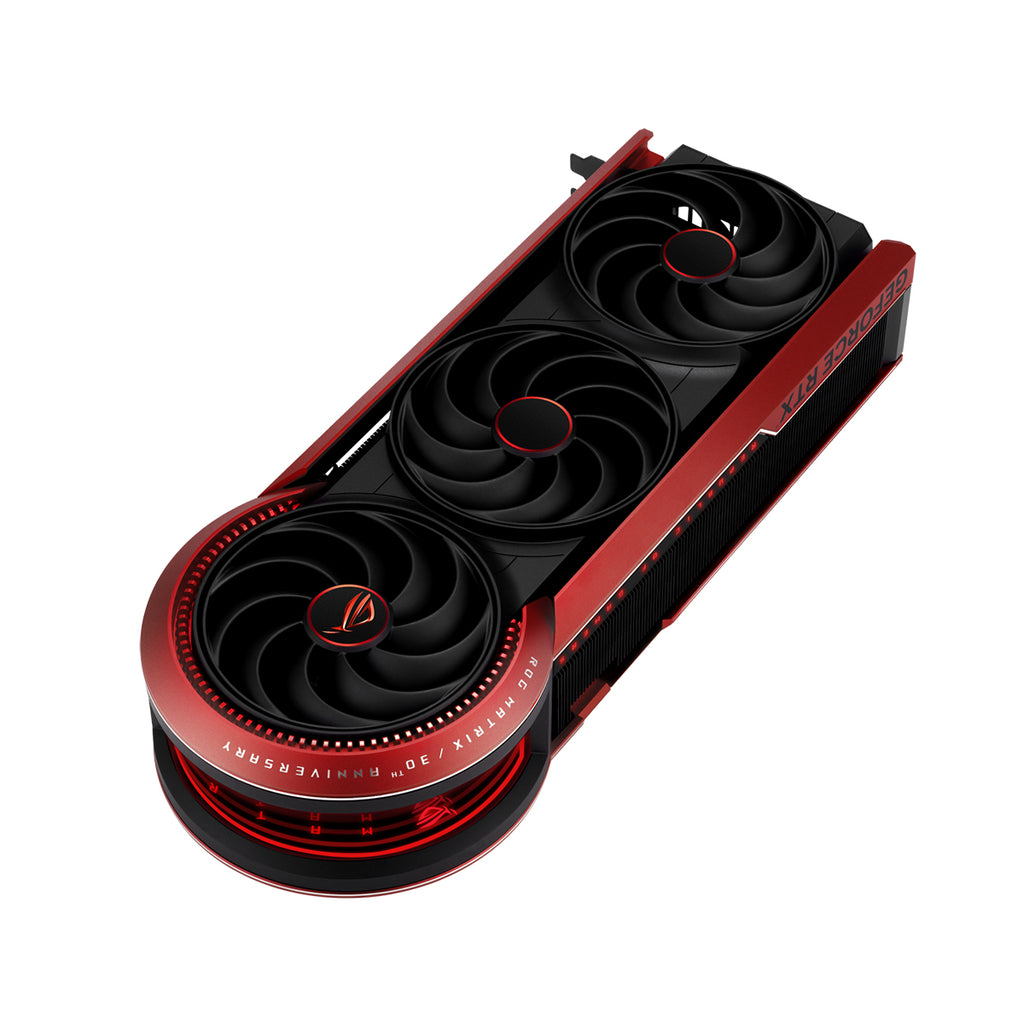

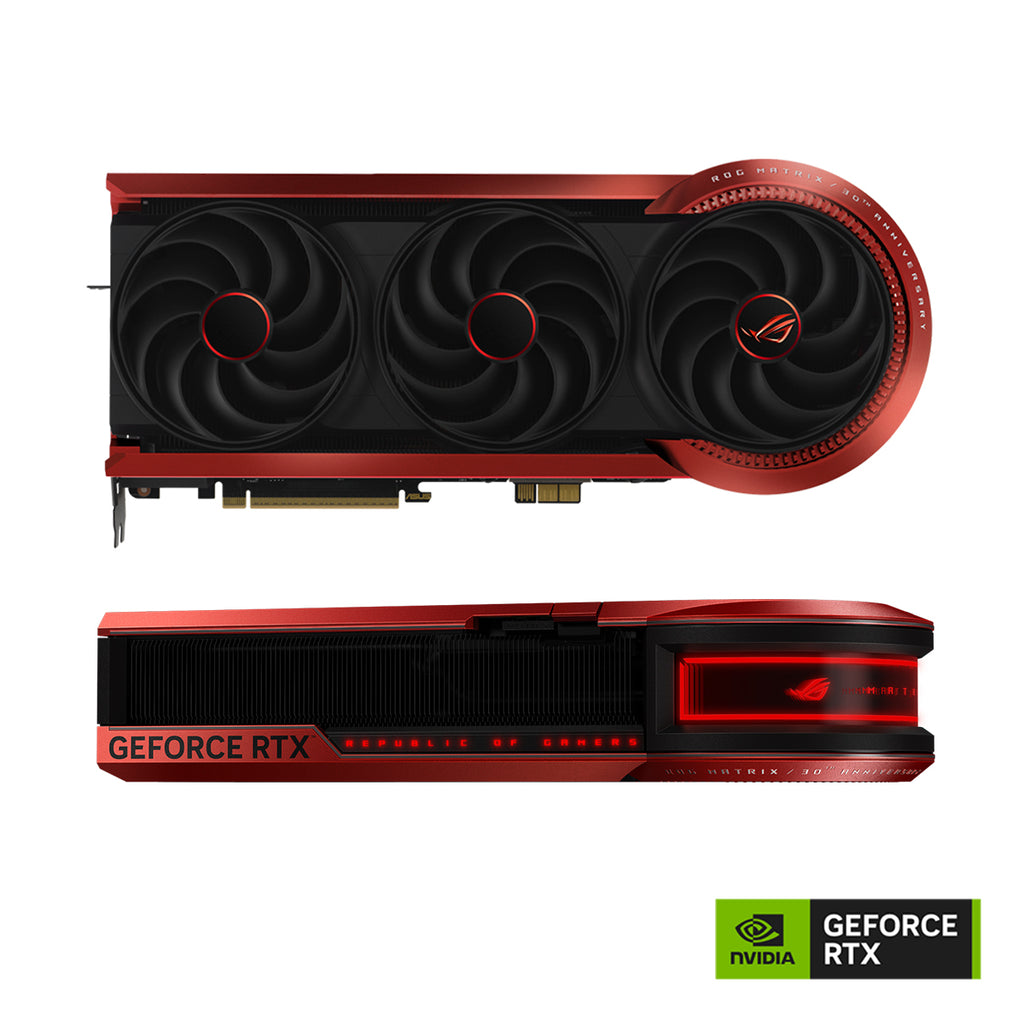

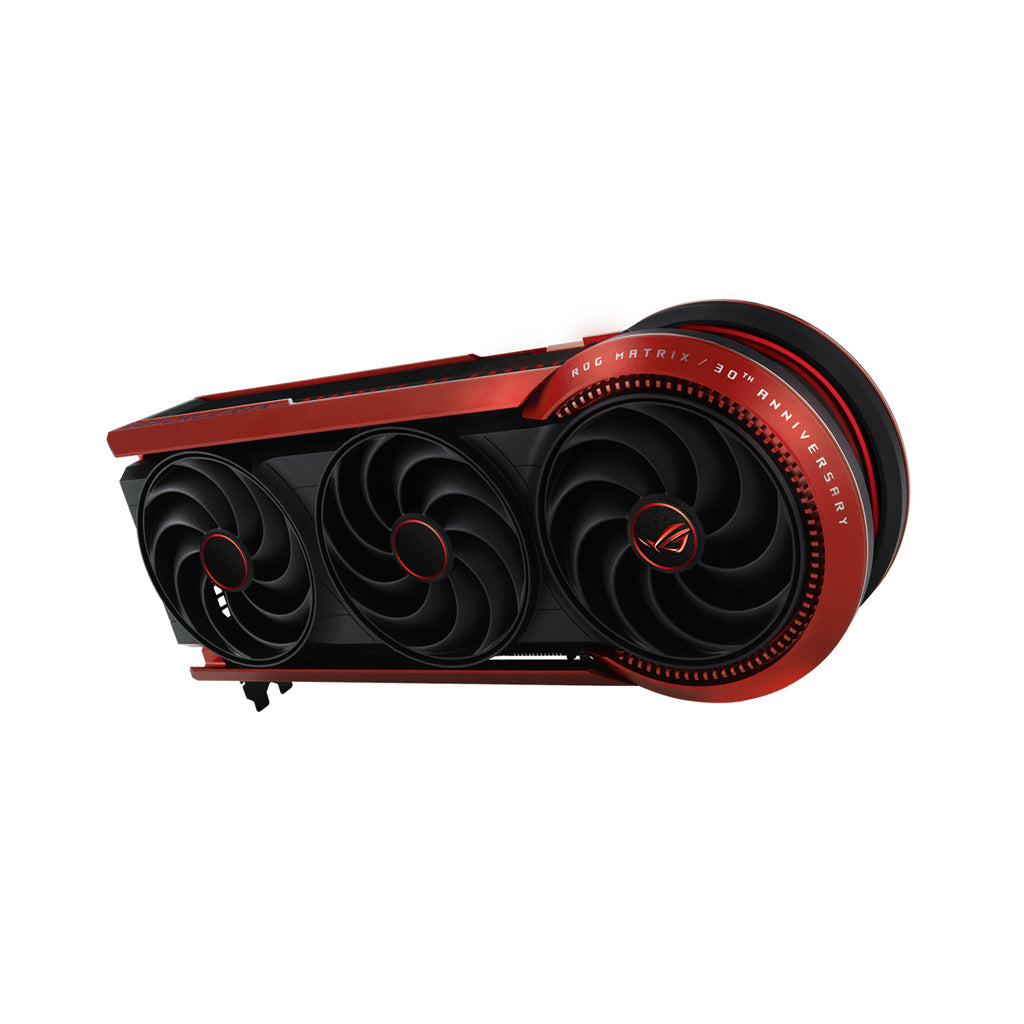

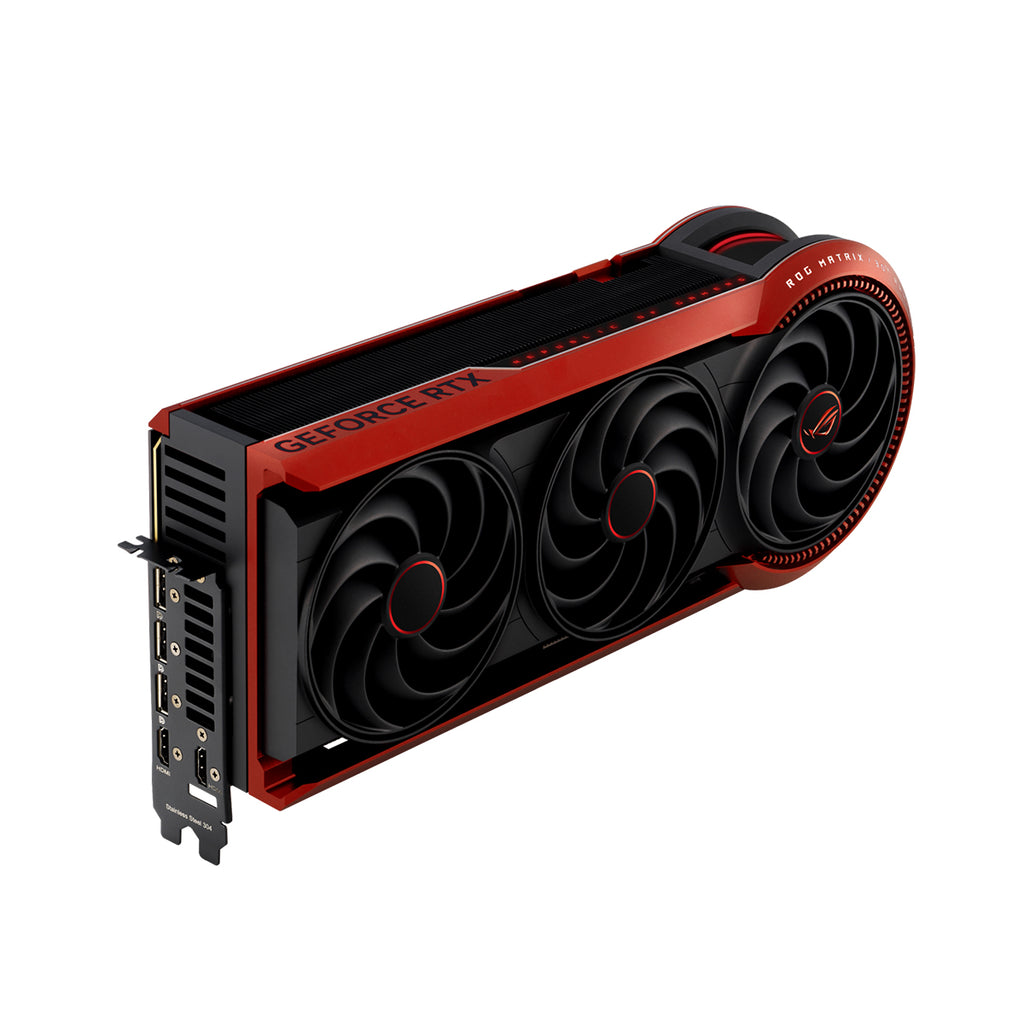

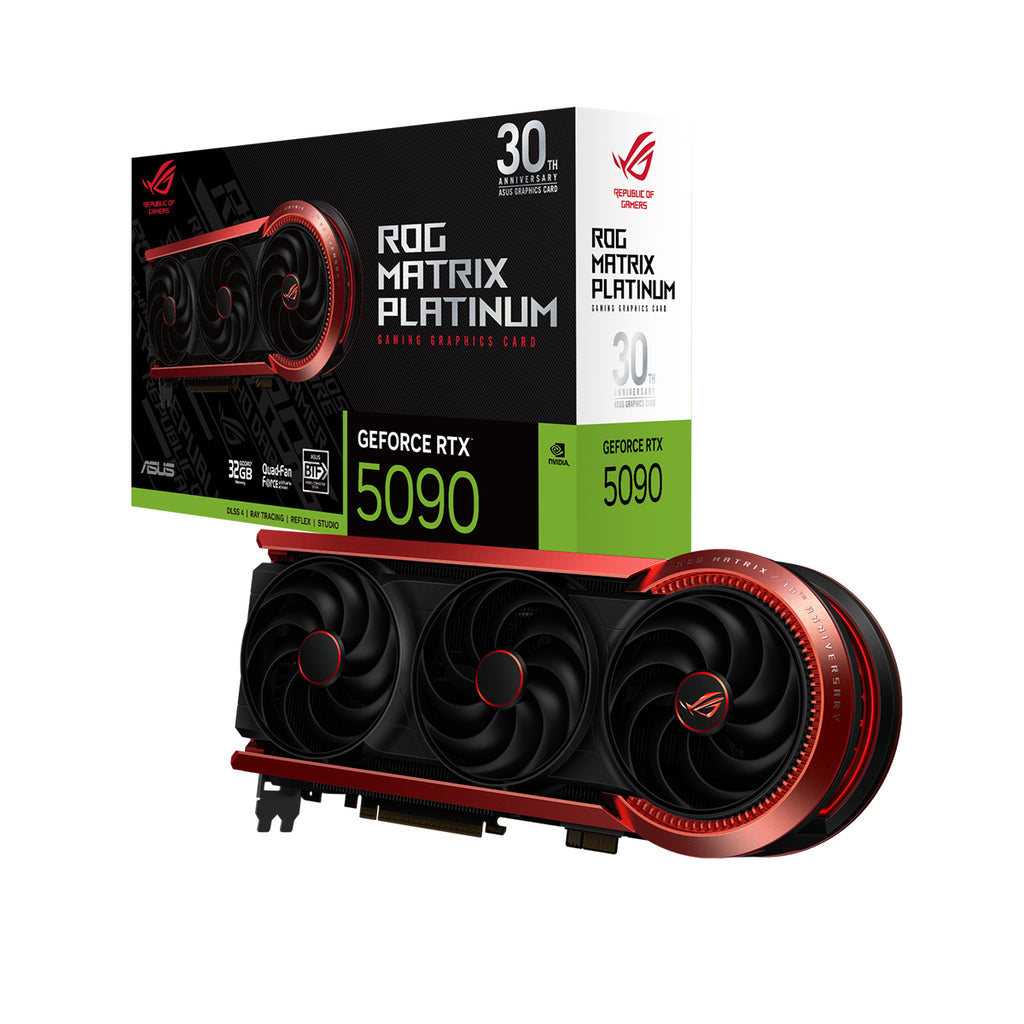

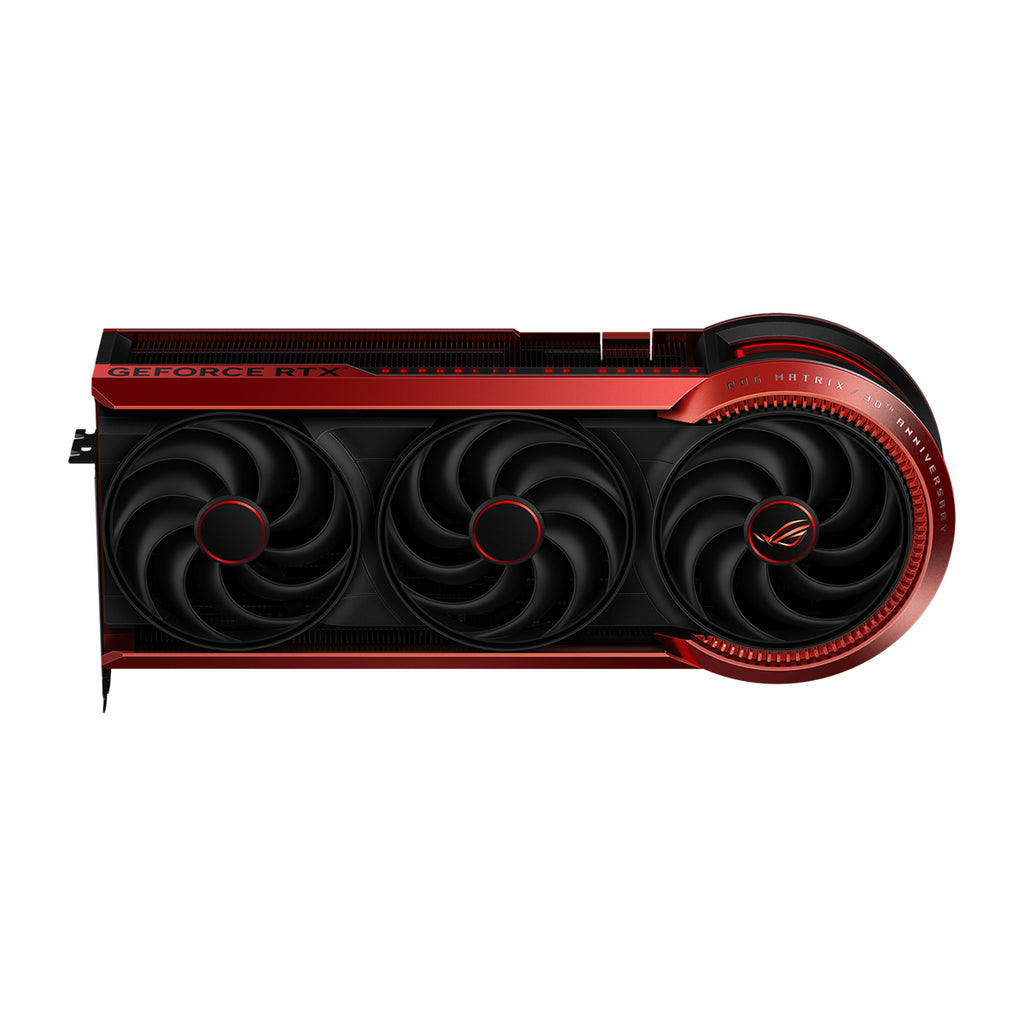

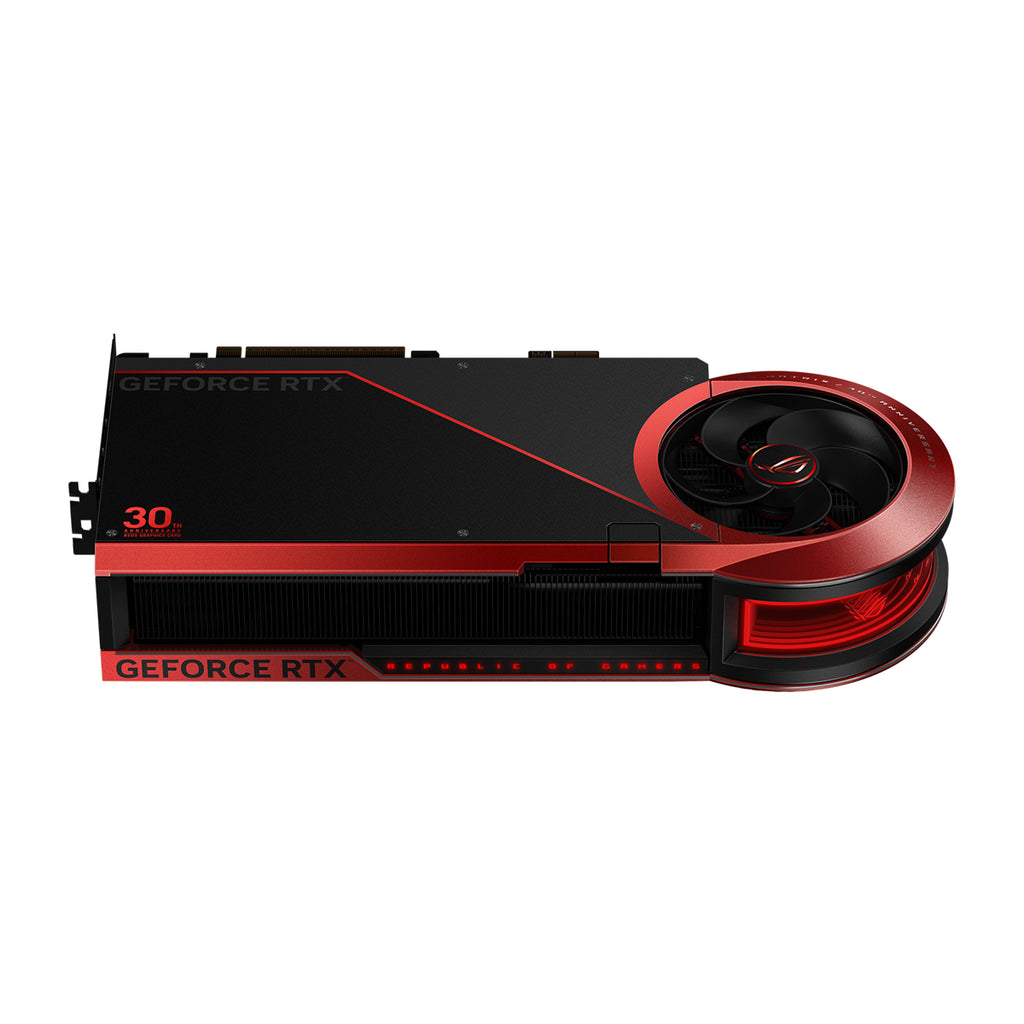

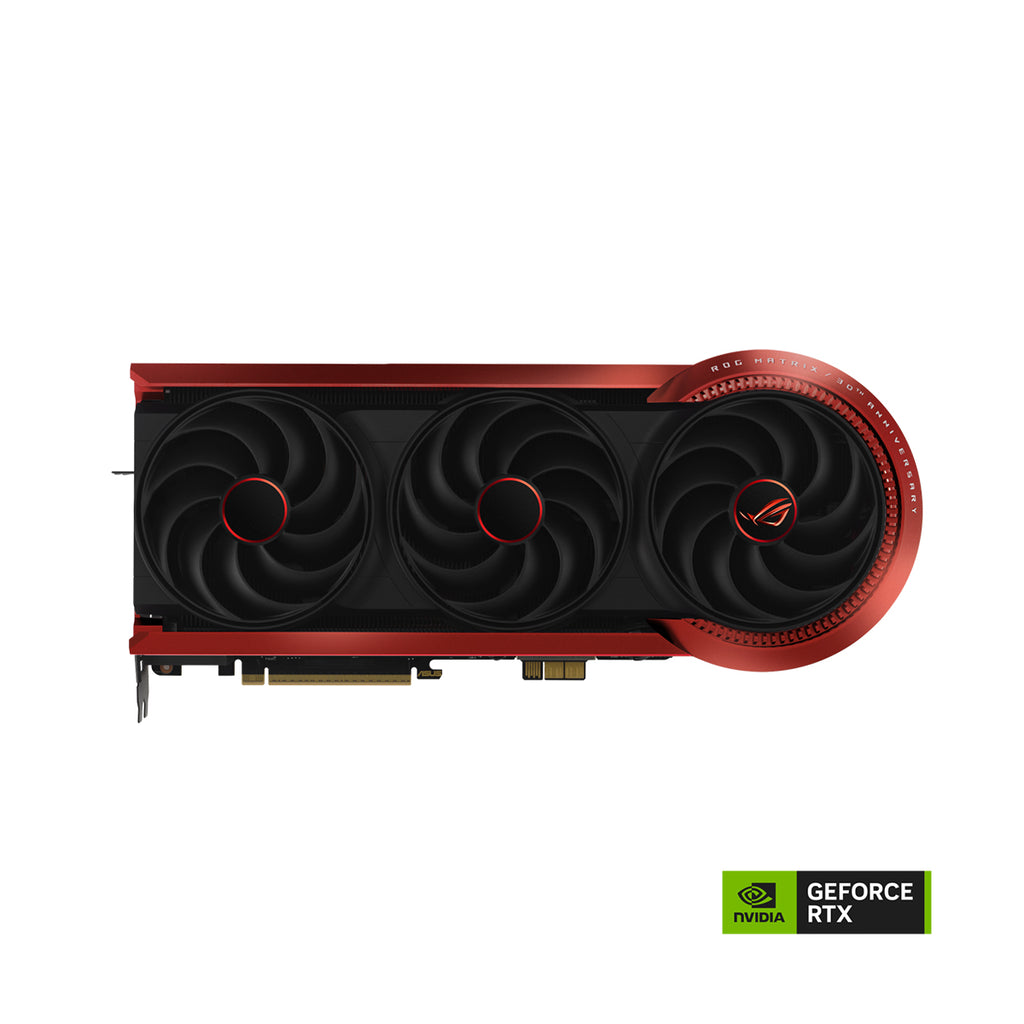

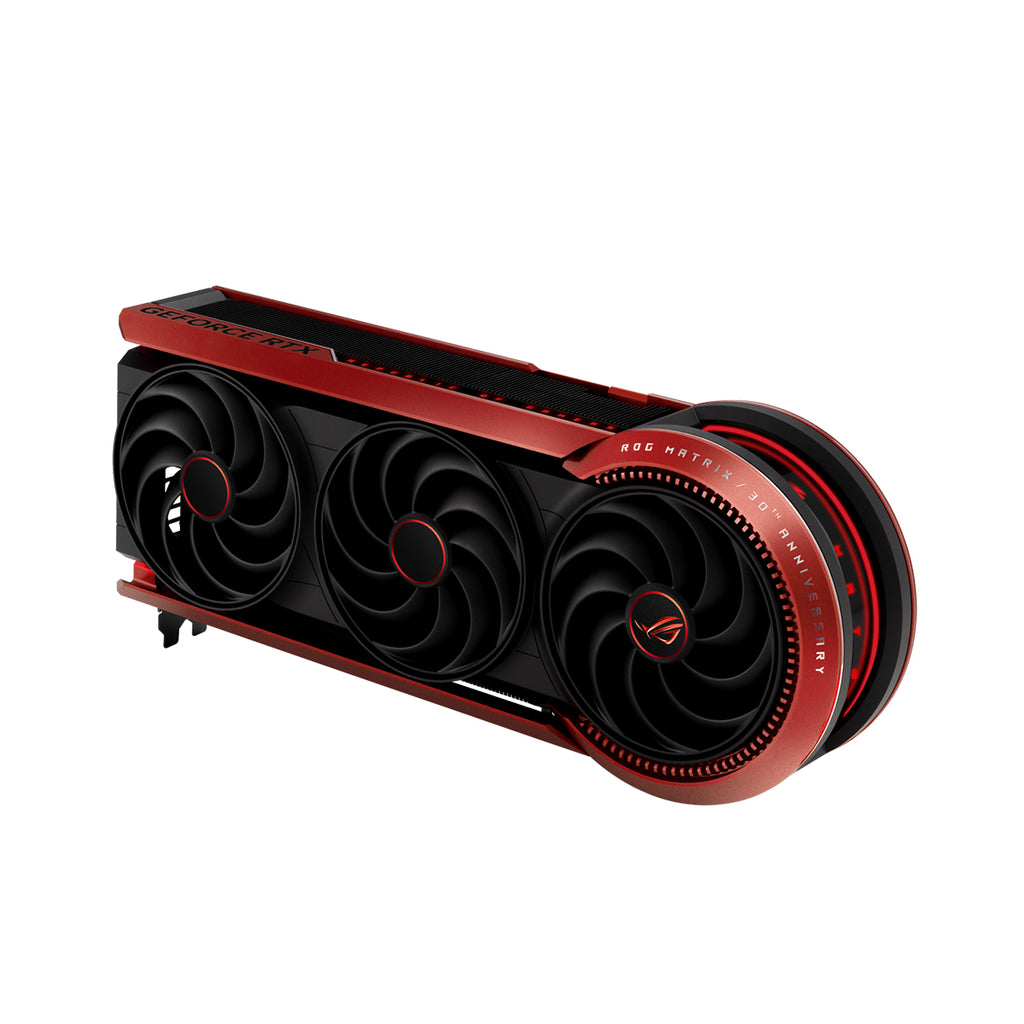

ASUS ROG Matrix Platinum GeForce RTX 5090 32GB GDDR7 Graphics Card - 30th Anniversary Edition
Description
Copper Vapor Chamber and HeatpipesA mirror-finish vapor chamber with heatpipes plus select heatsink fins made of pure copper boosts heat dissipation efficiency. This innovative combo maximizes contact surface and helps to lower GPU temperatures by over 5%. |
|
Liquid Metal GPU CoolingLiquid metal on the GPU die enables incredible thermal efficiency to achieve breakthrough performance. Employing an exclusive production method, this graphics card securely contains the liquid metal within the die area for safe and reliable operation. |
Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Specification:
| Category | Details |
|---|---|
| Model | ROG Matrix Platinum GeForce RTX™ 5090 - ASUS Graphics Cards 30th Anniversary Edition |
| Graphic Engine | NVIDIA® GeForce RTX™ 5090 |
| AI Performance | 3352 TOPs |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 32GB GDDR7 |
| Engine Clock | OC mode: 2760 MHzDefault mode: 2730 MHz (Boost clock) |
| CUDA Core | 21760 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

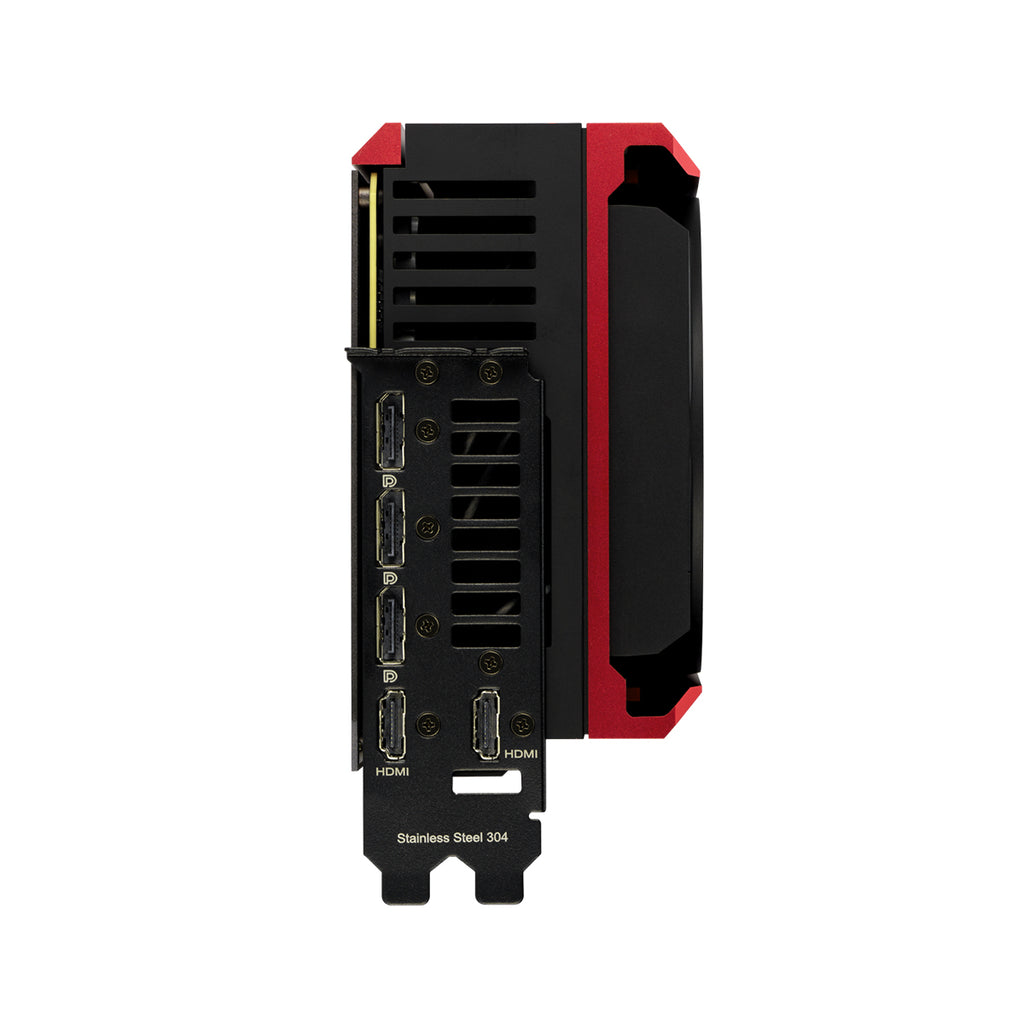

| Interface | Yes x 2 (Native HDMI 2.1b)Yes x 3 (Native DisplayPort 2.1b)HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Speedsetup Manual1 x ROG Graphics Card Holder1 x ROG Velcro Hook & Loop1 x ROG Magnet1 x ROG PCB Ruler1 x Thank You Card1 x Adapter Cable (1 to 4)1 x BTF Adapter1 x ASUS Graphics Cards 30th Anniversary Edition Playing Cards |
| Software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 370.3 x 150.5 x 77.3 mm14.58 x 5.92 x 3.04 inches |
| Recommended PSU | 1200W+ |
| Power Connectors | 1 x 16-pin, Graphics card high-power (GC-HPWR) gold finger |
| Slot | 3.9 slot |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.* Maximum Display Support is specifically applied to simultaneous display situation. |
