Description

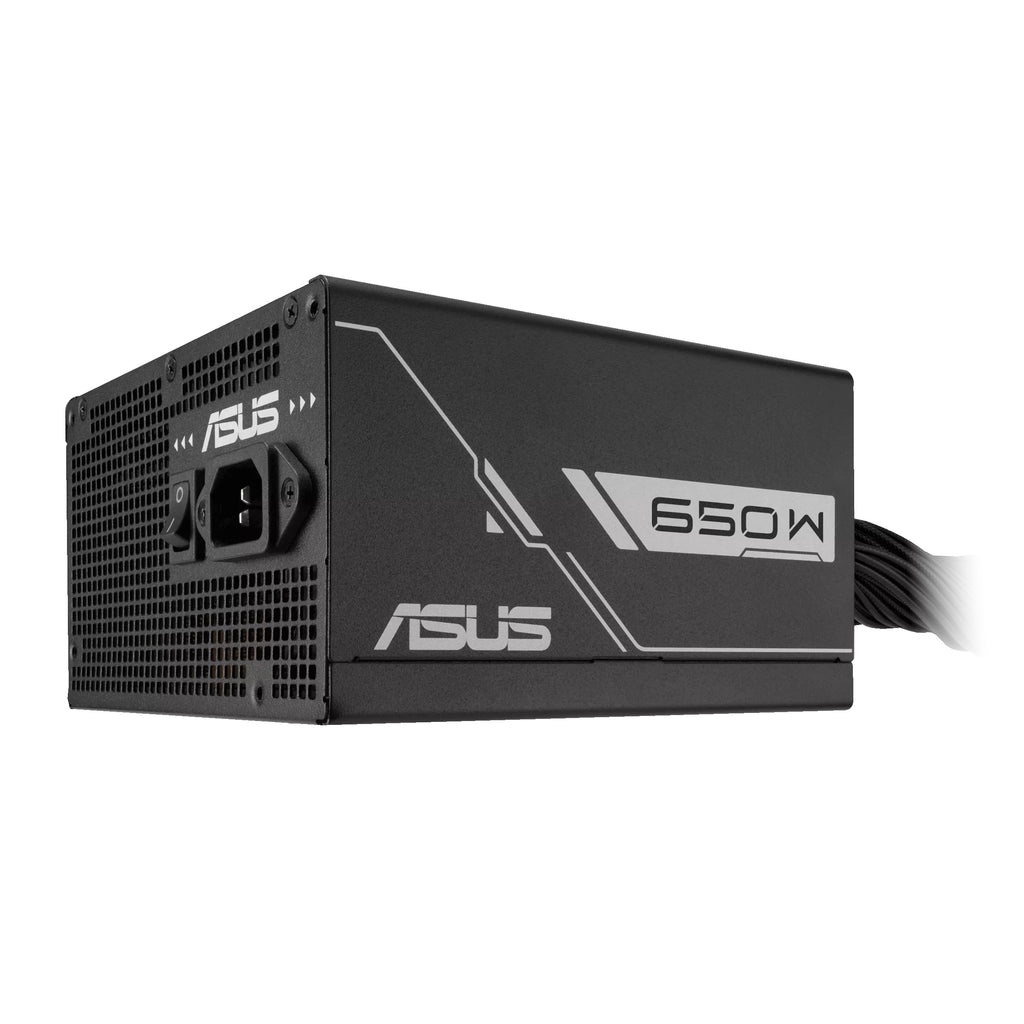

ASUS Prime 650W Bronze PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
- An 80 Plus Bronze Certification is the result of low-ESR electrolytic capacitors and other premium components.
- Etched cables can be bent easily during installation.
Specification:
| Model | PRIME-650B-BLACK |
|
Intel Specification
|
ATX12V |
| PFC Type |
Active PFC
|
| ATX 3.0 | No |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Bronze |
| MTBF | >120,000 hrs @ 25°C |
|
Protection Features
|
OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 20A 20A 54A 0.3A 2.5A |
| Combined Load | 110W 110W 648W 3.6W 12.5W |
| Total Output | 650W |
| Cable Connectors |
MB 24/20-pin x 1 CPU 4+4-pin x 1 PCI-E 8-pin x 2 SATA x 5 PERIPHERAL x 3 |
| Package Contents |
Power Cord x 1 CPU cable x 1 (800mm) PCI-E 1-to-2 x 1 (600mm) SATA 1-to-2 cable x 1 (400+120mm) SATA 1-to-3 cable x 1 (400+120+120mm) Peripheral 1-to-3 cable x 1 (400+120+120mm) User Manual x 1 |
| Weight |
Single PSU : 2.2KG Product Weight (with packing) : 3.067KG |
| 0dB Technology | No |
| 0dB Fan Button | No, this product is without 0dB technology. |
