Description
TUF Gaming BE3600 Dual Band WiFi 7 Gaming Router, Equipped with Powerful SoC, Boasting Ultra-high Computational Speed, 3-step Port Forwarding, AiMesh for Mesh WiFi, and AiProtection Pro for Network Security.
- Ultrafast WiFi 7 – Next-generation WiFi 7 router boosts speeds up to 3600 Mbps.
- 4K-QAM Modulation – All-new 4096-QAM offers a 1.2 times increase in transmission speed compared to the previous generation.
- High Computational Power CPU – Equipped with the all-new quad-core powerhouse CPU, boasting a DMIPS computational capability of 20K, effortlessly handling both software and hardware-related tasks.
- ASUS AiMesh Support – Support AiMesh to create a whole-home mesh network .
- Tested Durability and Stable Operation – TUF Gaming BE3600 is built to be durable and undergoes verified testing to ensure reliable, stable operation.
Specifications:
| Model | TUF Gaming BE3600 (TUF-BE3600) |
| Network Standards | IPv6, IPv4, WiFi 7 (802.11be), WiFi 6 (802.11ax), WiFi 5 (802.11ac), WiFi 4 (802.11n), IEEE 802.11g/b/a |
| Product Segment | BE3600 ultimate BE performance: 688 + 2882 Mbps |
| WiFi Data Rate | 5GHz: up to 2882 Mbps 2.4GHz: up to 688 Mbps WiFi 6 (5GHz): up to 2402 Mbps |
| Antenna | External antenna x 4 |
| Transmit / Receive | 5GHz 2x2, 2.4GHz 2x2 |
| Processor | 2.0 GHz quad-core |
| Memory | 256 MB Flash, 1 GB RAM |
| Boosts Speed | OFDMA, Beamforming (standard-based and universal), 4096-QAM, 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4GHz / 5GHz |
| Operating Mode | Wireless router, Access point, Media bridge |

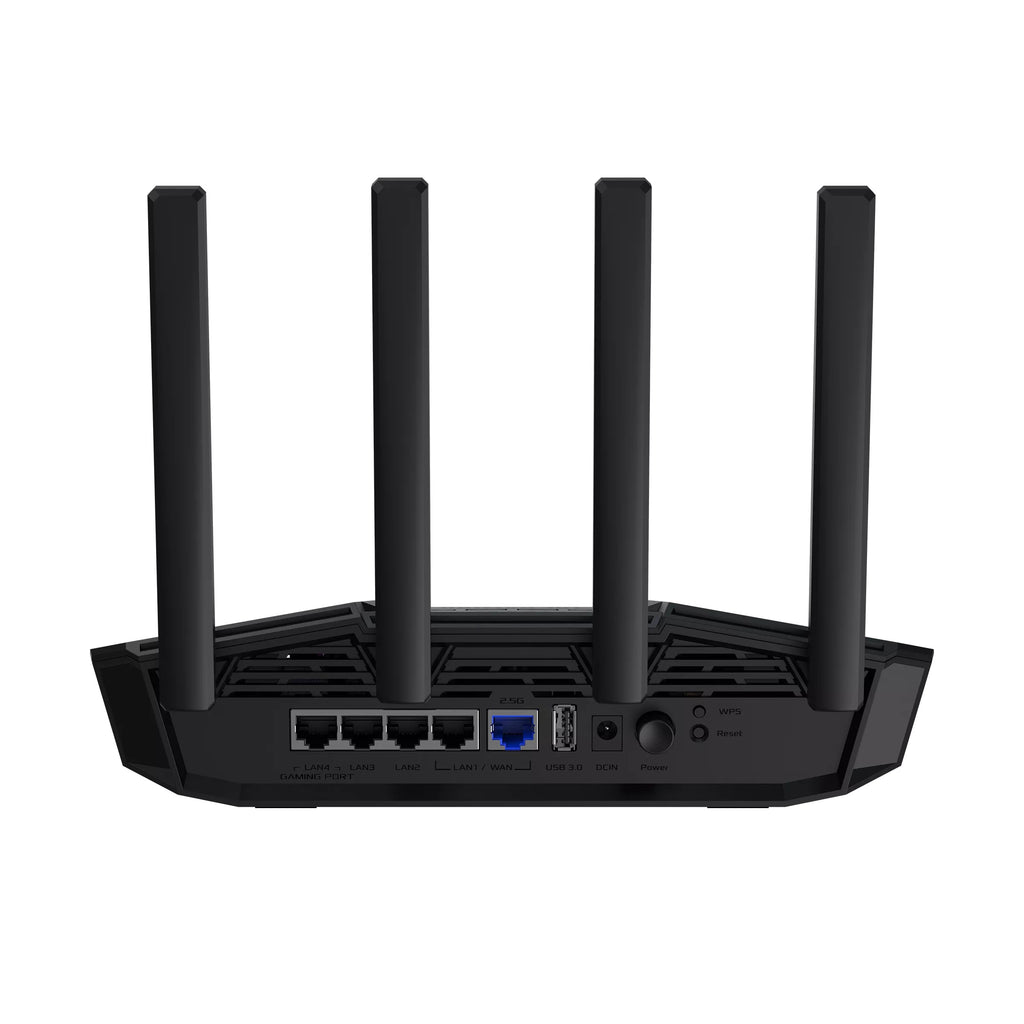

| I/O Ports | 1x RJ45 2.5Gbps WAN, 4x RJ45 1Gbps LAN, 1x USB 3.2 Gen 1 |
| Buttons | WPS, Reset, Power |
| LED Indicators | Power, WAN, LAN, 2.4GHz WiFi, 5GHz WiFi |
| Power Supply | AC 100~240V (50~60Hz), DC 12V/2A |
| Package Contents | Router, RJ-45 cable, Power adapter, Quick Start Guide, Warranty card |
| Product Weight | 561g |
| Dimensions (L x W x H) | 274 x 168 x 205 mm |
| AiMesh | AiMesh Node, Primary AiMesh Router |
| Game Features | Mobile Game Mode, Game Boost / Acceleration |
| Parental Control | Safe Browsing, Custom Internet Schedule, Block access to unwanted websites/apps |
| Guest Network | Time-limited access, Max rules: 2.4GHz x3, 5GHz x3 |
| Security | DNS-over-TLS, Firewall, SSH, Let's Encrypt, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, AiProtection (Infected Device Prevention, Two-Way IPS, Malicious Site Blocking, Security Assessment) |
| VPN | Client & Server for: WireGuard, PPTP, OpenVPN, IPSec, L2TP, VPN Fusion |
| Traffic Control | Website History, Wireless/Wired/Real-time Traffic Monitor, Traditional & Adaptive QoS (Rules: 32 each), Bandwidth Monitor, Traffic Periods: Daily, Weekly, Monthly |
| WAN | DDNS, DMZ, Port Triggering (32), Port Forwarding (64), 3G/4G LTE Dongle, NAT Passthrough, Internet Types: PPPoE, PPTP, L2TP, Automatic IP, Static IP |
| LAN | Manual IP (64), Wake on LAN, IPTV, IGMP Snooping, DHCP Server |
| Wireless Features | RADIUS Client, Explicit & Universal Beamforming, Airtime Fairness, Scheduler, MAC Filter (64), UTF-8 SSID |
| USB Applications | Samba, FTP, Time Machine, Media Server, AiDisk, Download Master, AiCloud, Safely Remove Disk |
| File Systems | HFS+, NTFS, vFAT, ext2/3/4 |
| Administration | Device Notification, Login Captcha, Auto Firmware Update, Configuration Backup/Restore, Diagnosis Tools, Feedback System, System Log |
