Description

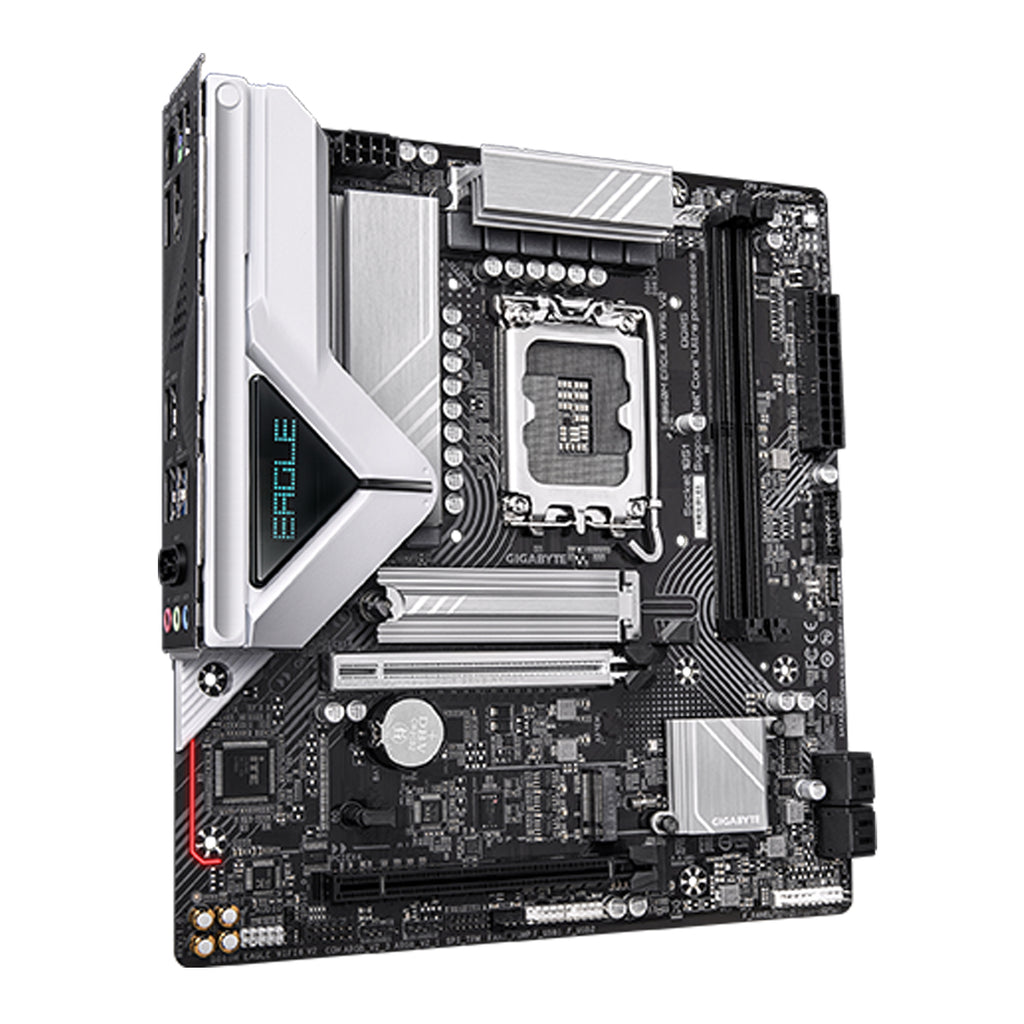

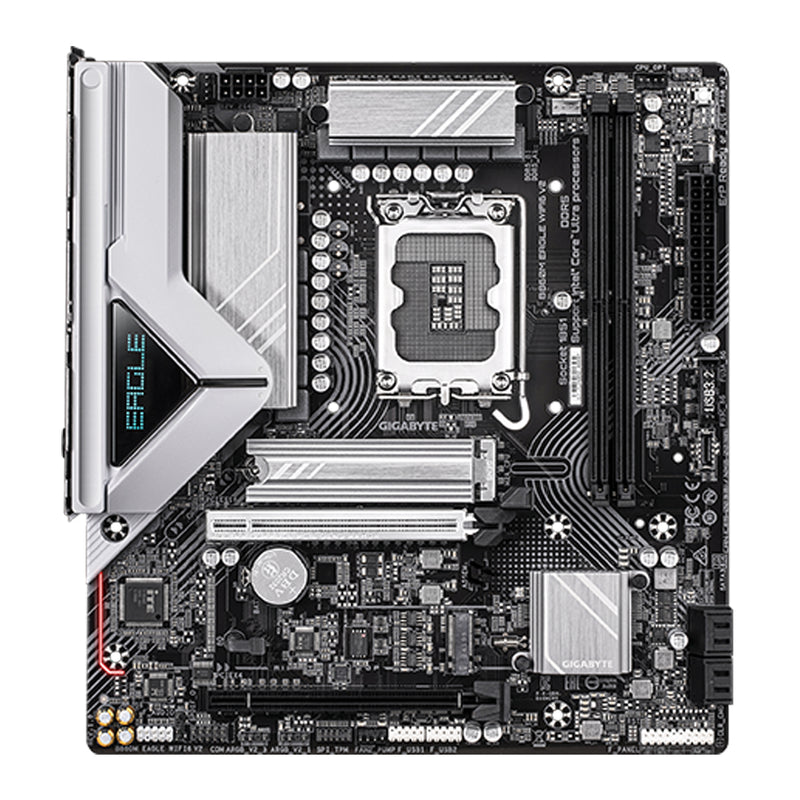

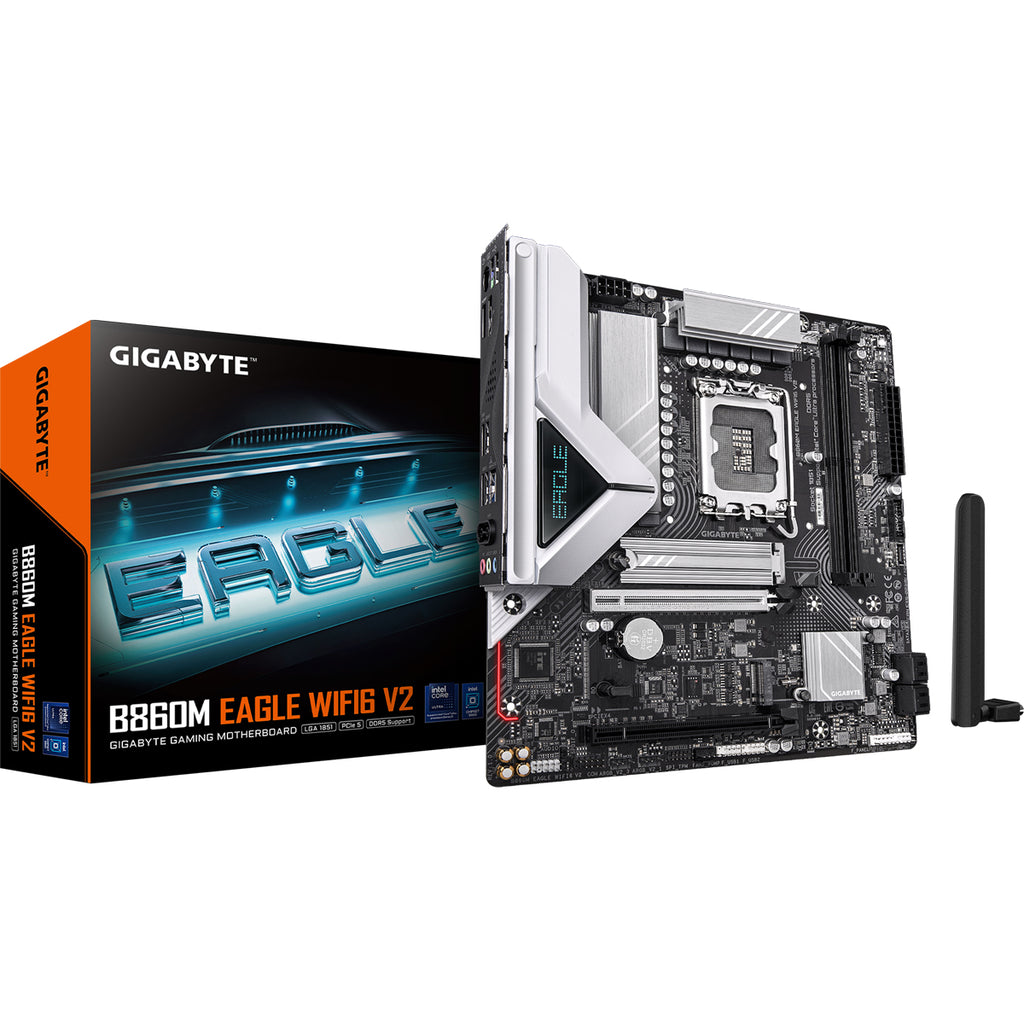

Gigabyte B860M Eagle WiFi6 V2 DDR5 Intel Gaming Motherboard
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital 6+1+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6
-
Extended Connectivity : HDMI, DisplayPort
| GIGABYTE B860M EAGLE WIFI6 V2 Specifications | |
|---|---|
| CPU Support | LGA1851 socket, Intel® Core™ Ultra Processors (check GIGABYTE CPU support list) |
| Chipset | Intel® B860 Express |
| Memory | 2 x DDR5 DIMM slots, up to 128 GB, Dual Channel, ECC/Non-ECC, Supports 5600–9066 MT/s (OC), Supports XMP |
| Onboard Graphics | 1 x HDMI (max 4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 1 x DisplayPort (max 3840x2160@144Hz, DP 2.1) |
| Audio | Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE, 2.4/5 GHz, Bluetooth 5.3 |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 Chipset: 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | CPU: 1 x M.2 Socket 3 (PCIe 5.0 x4/x2, 2280) Chipset: 1 x M.2 Socket 3 (PCIe 4.0 x4/x2, 2280), 4 x SATA 6Gb/s RAID 0/1/5/10 support |

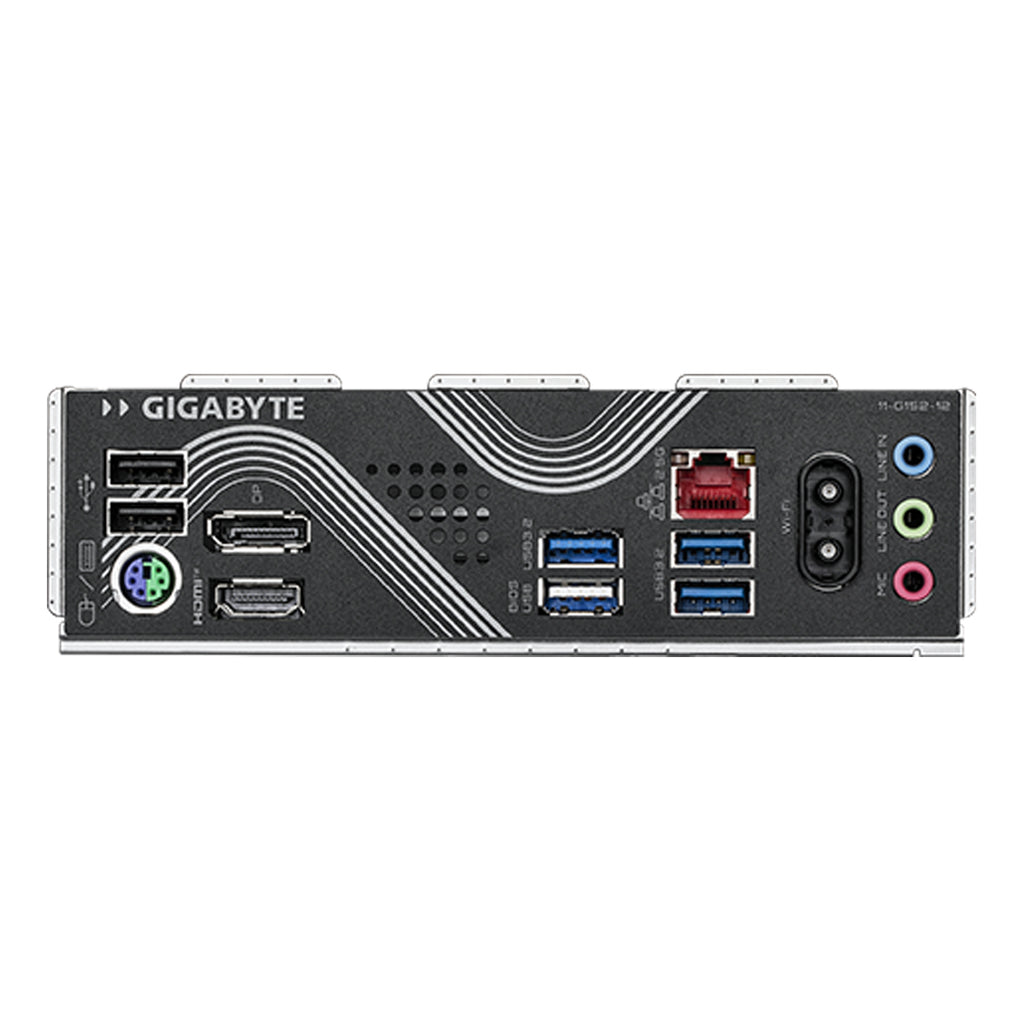

| USB | Rear: 3 x USB 3.2 Gen 1, 3 x USB 2.0/1.1, 1 x HDMI, 1 x DisplayPort, 1 x PS/2, 2 x antenna connectors, 1 x RJ-45, 3 x Audio jacks Internal: 1 x USB Type-C (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 4 x USB 2.0 via hub |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin 12V, CPU fan header, CPU fan/water pump header, system fan header, system fan/water pump header, 3 x Addressable RGB Gen2 headers, 2 x M.2 connectors, 4 x SATA 6Gb/s, front panel header, front audio header, S/PDIF Out header, TPM header, serial port header, Q-Flash Plus button, Clear CMOS jumper, Reset jumper |
| BIOS | 256 Mbit Flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center support, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton Internet Security OEM, LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX; 24.4 cm x 22.5 cm |
