Description

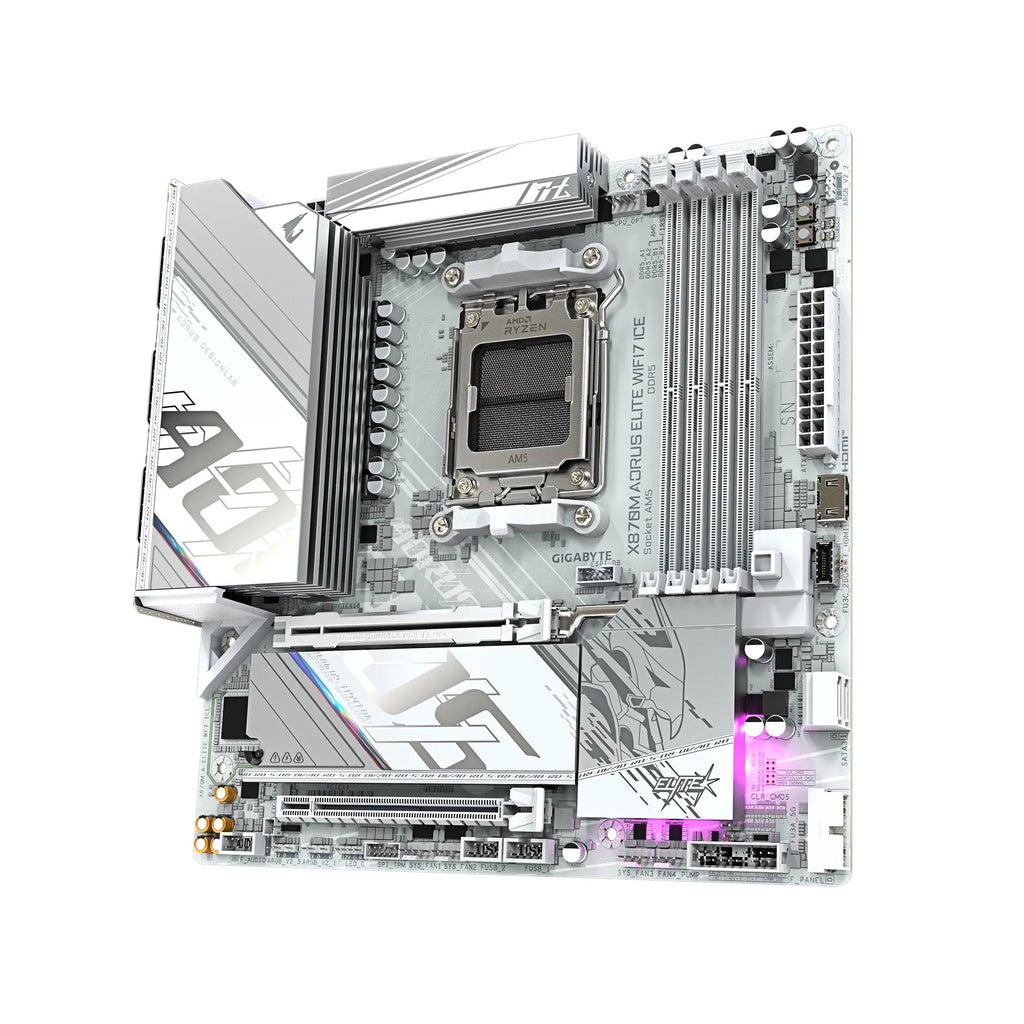

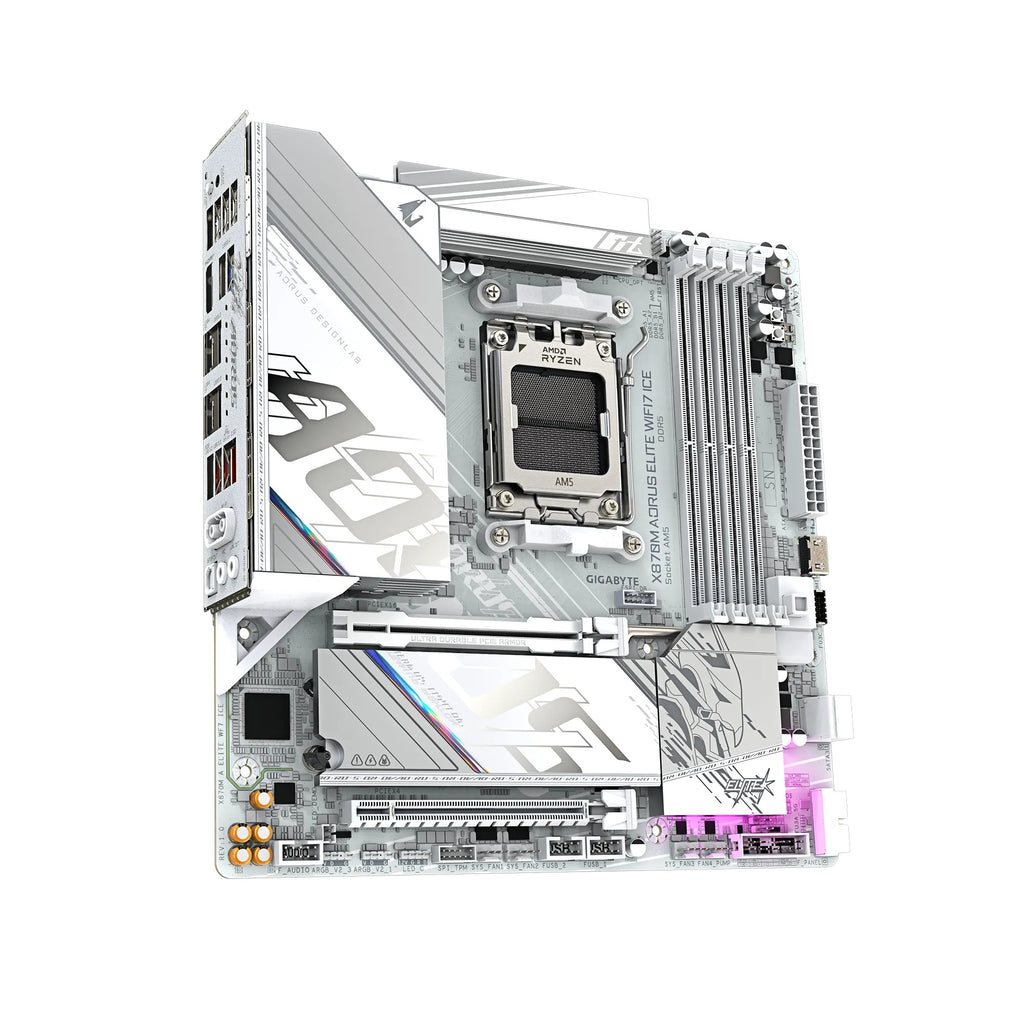

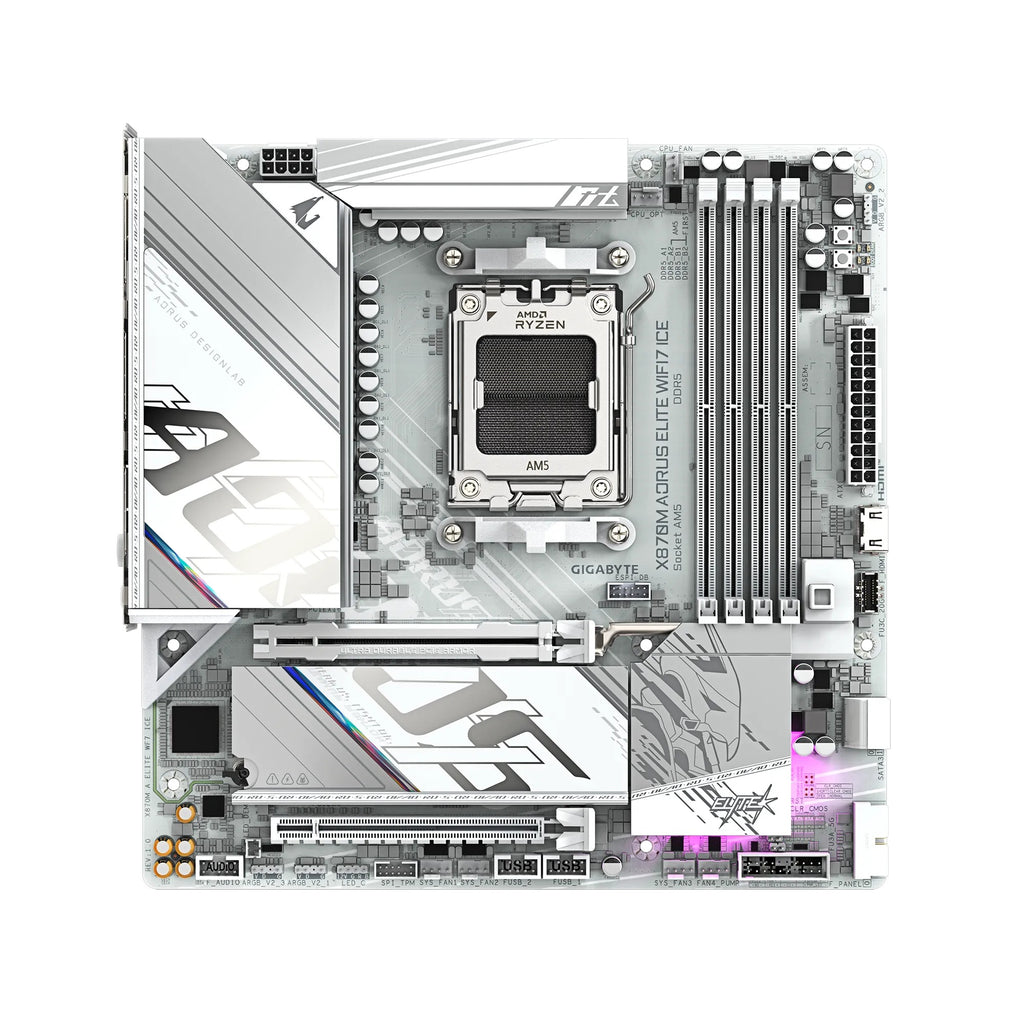

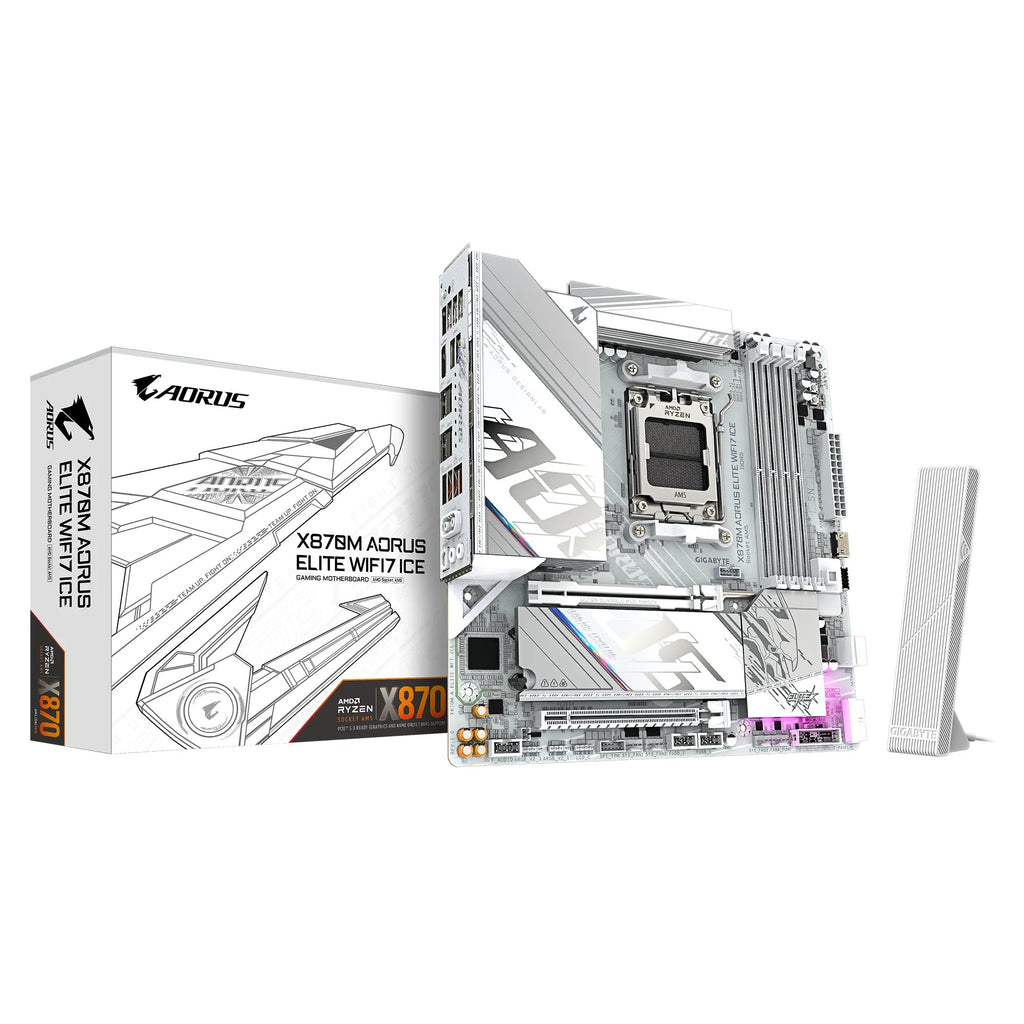

Gigabyte X870M Aorus Elite WiFi7 Ice DDR5 AMD Gaming Motherboard
Key Features
- X3D Turbo Mode：Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation
- D5 Bionic Corsa for Infinite Memory Performance
- EZ-Latch：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI：Multi-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW
- Ultra-Fast Storage：2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal：VRM Thermal Armor Advanced& M.2 Thermal Guard Ext.
- Fast Networking：2.5GbE LAN & Wi-Fi 7
- Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
- PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
| CPU | AMD Socket AM5, support for: - AMD Ryzen™ 9000 Series Processors - AMD Ryzen™ 8000 Series Processors - AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X870 |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXPO™ and XMP memory modules (See "Memory Support List" on GIGABYTE’s website for compatibility.) |
| Onboard Graphics | Integrated AMD Radeon™ Graphics + ASMedia USB4® Controller: - 2 x USB4® Type-C® ports, up to 3840x2160@240Hz * DisplayPort 1.4 and HDR supported Integrated AMD Radeon™ Graphics: - 1 x HDMI port, up to 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR) - 1 x front HDMI port, up to 1920x1080@30 Hz (HDMI 1.4) * Graphics specs vary by CPU. |
| Audio | Realtek® ALC1220 CODEC (line-out supports DSD audio) High Definition Audio, 2/4/5.1/7.1-channel * Jack functions configurable in software Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless Communication | Realtek® Wi-Fi 7 RTL8922AE - 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz) - Bluetooth 5.4 - Supports 11be 160MHz * Requires Windows 11 SV3. No Windows 10 driver. ** 6GHz availability depends on country. |
| Expansion Slots | CPU: - 1 x PCIe x16 (PCIEX16) ▸ Ryzen™ 9000/7000: PCIe 5.0 x16 ▸ Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 ▸ Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 * Supports GPU or NVMe SSD only Chipset: - 1 x PCIe x16 (PCIEX4), PCIe 4.0 x4 |
| Storage Interface | CPU: - 1 x M.2 (M2A_CPU) (25110/22110/2580/2280) ▸ Ryzen™ 9000/7000: PCIe 5.0 x4/x2 ▸ Ryzen™ 8000 Phoenix 1/2: PCIe 4.0 x4/x2 Chipset: - 1 x M.2 (M2C_SB) (22110/2280 PCIe 4.0 x2) - 2 x SATA 6Gb/s RAID Support: - NVMe SSDs: RAID 0/1/5/10 (RAID 5 only on Ryzen™ 9000) - SATA: RAID 0/1 |
| USB | CPU + ASMedia: - 2 x USB4® Type-C® (rear) CPU: - 1 x USB 3.2 Gen 2 Type-A (red, rear) CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 (rear) Chipset + USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 (rear) Chipset: - 1 x USB Type-C® (USB 3.2 Gen 2x2, internal) - 1 x USB 3.2 Gen 2 Type-A (red, rear) - 2 x USB 3.2 Gen 1 (internal) - 4 x USB 2.0/1.1 (internal) |
| Internal I/O Connectors | 1 x 24-pin ATX main power 1 x 8-pin ATX 12V 1 x CPU fan 1 x CPU fan/water pump 3 x system fan 1 x system fan/water pump 3 x addressable RGB Gen2 headers 1 x RGB LED header 2 x M.2 Socket 3 2 x SATA 6Gb/s 1 x front panel 1 x front panel audio 1 x USB Type-C® (USB 3.2 Gen 2x2) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x TPM header 1 x HDMI port 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

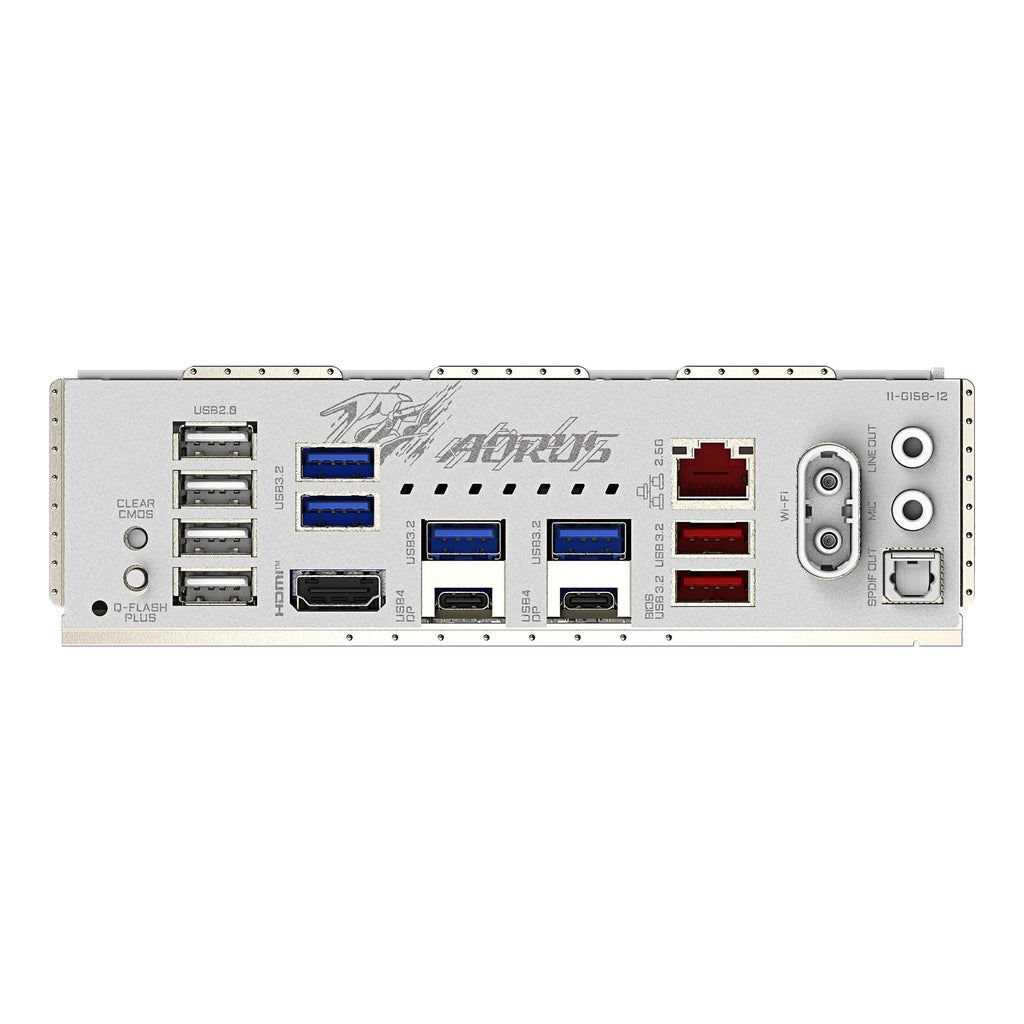

| Back Panel Connectors | 1 x Clear CMOS button 1 x Q-Flash Plus button 1 x HDMI port 4 x USB 2.0/1.1 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 Type-A (red) 2 x USB4® Type-C® (DisplayPort) 1 x RJ-45 2 x antenna connectors 2 x audio jacks 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage/Temperature/Fan speed detection Water cooling flow detection Fan fail warning Fan speed control* * Fan support may vary by model |
| BIOS | 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * App availability varies per model Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Windows 11 64-bit |
| Form Factor | Micro ATX; 24.4 cm x 24.4 cm |
