Description

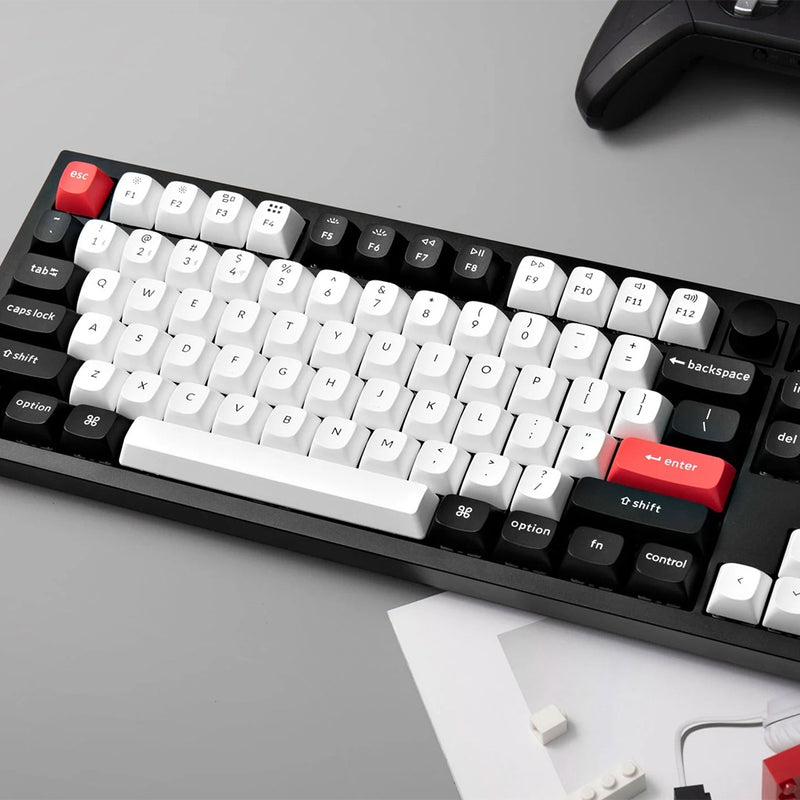

Keychron Q3 HE
Introducing the Q3 HE, a wireless QMK custom keyboard with an 80% TKL layout equipped with Hall Effect Gateron 2.0 magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements to the gaming experience tailored to your individual preferences.
Specification:
Width
137 mm
Length
365 mm
Front Height
22.6 mm (without keycaps)
Back Height
35.8 mm (without keycaps)
Feet Height
2.4 mm
Angle
5.2°
Weight
1775 g ± 10 g (Fully Assembled version)
Body Material
Aluminum
Plate Material
Aluminum
Polling Rate
1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth)
N-Key Rollover (NKRO)
Yes for both wireless and wired modes
Rapid Trigger
Yes
Adjustable Actuation Points
0.2 - 3.8 mm
Dynamic Keystrokes
4-in-1 action keys
Sensitivity
0.1 mm
N-Key Rollover (NKRO)
Yes for both wireless and wired modes
Keycap
OSA Double-shot keycaps, not shine-through
MCU
ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
Backlight
22 types of RGB backlight options plus South-facing RGB LED
Switch
Gateron double-rail magnetic switch
Hot-swappable Support
Yes, compatible with Gateron double-rail magnetic switch only.
Stabilizer
Screw-in PCB stabilizer
Cable
Type-C cable (1.8 m) + Type-A to Type-C adapter
Connectivity
2.4 GHz / Bluetooth / Type-C wired
Bluetooth Version
5.2
Bluetooth Device Name
Keychron Q3 HE
Battery
4000 mAh Rechargeable li-polymer battery
Operating Environment
-10 to 50℃
Wireless Working Time (Backlit off)
Up to 100 hours
