Description

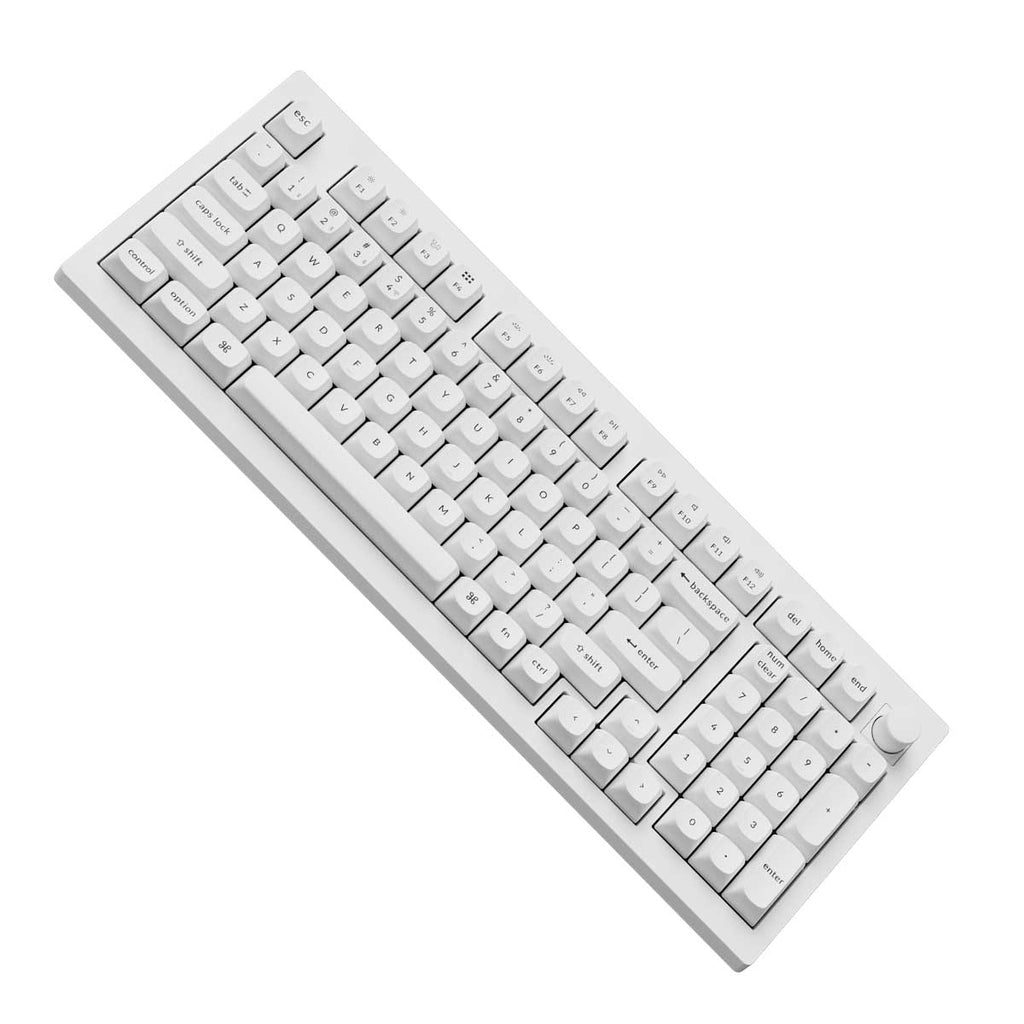

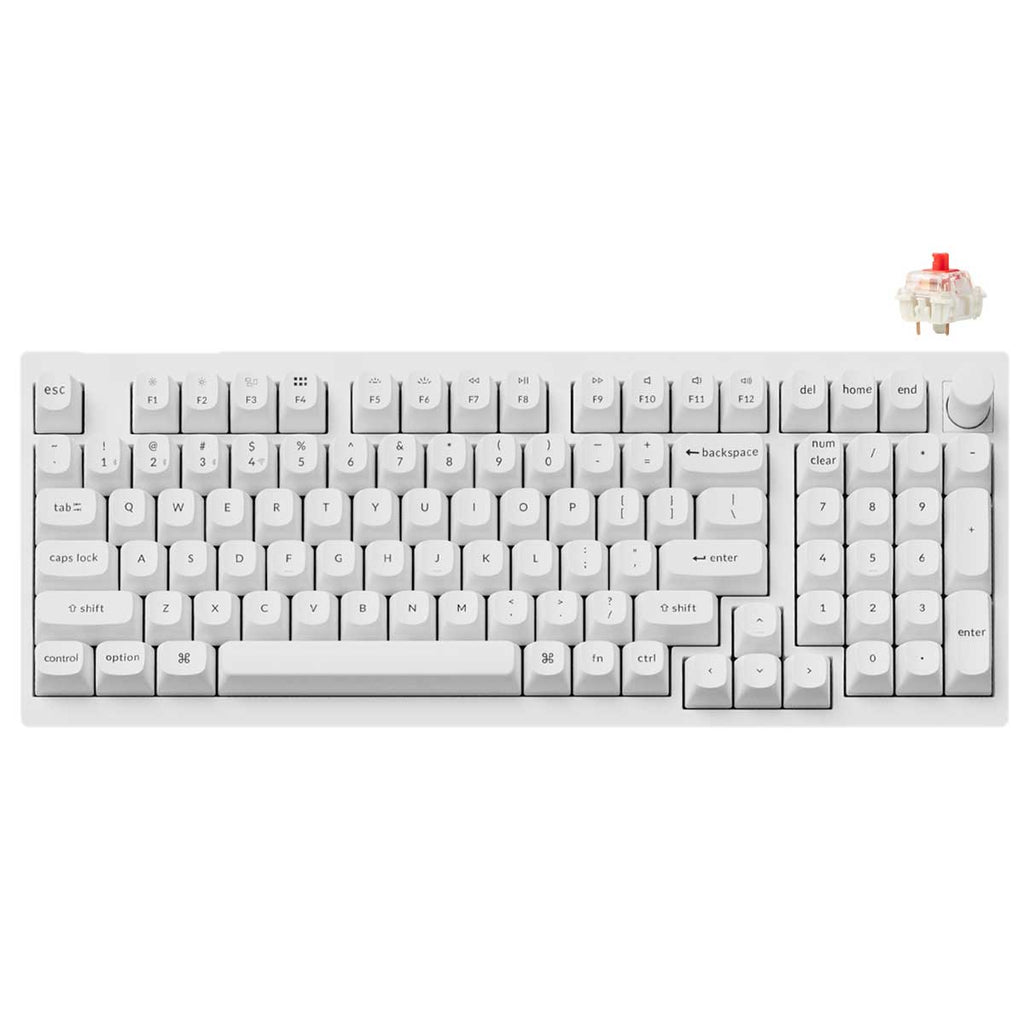

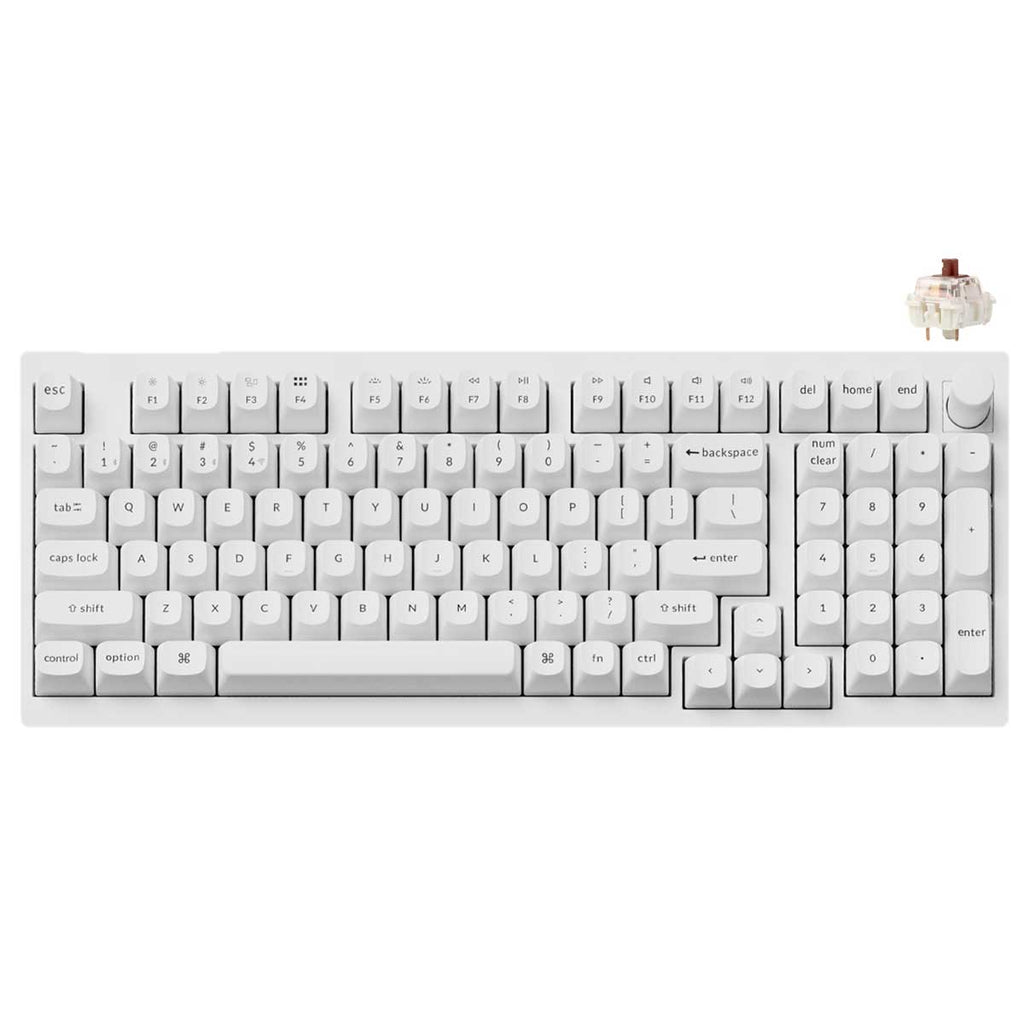

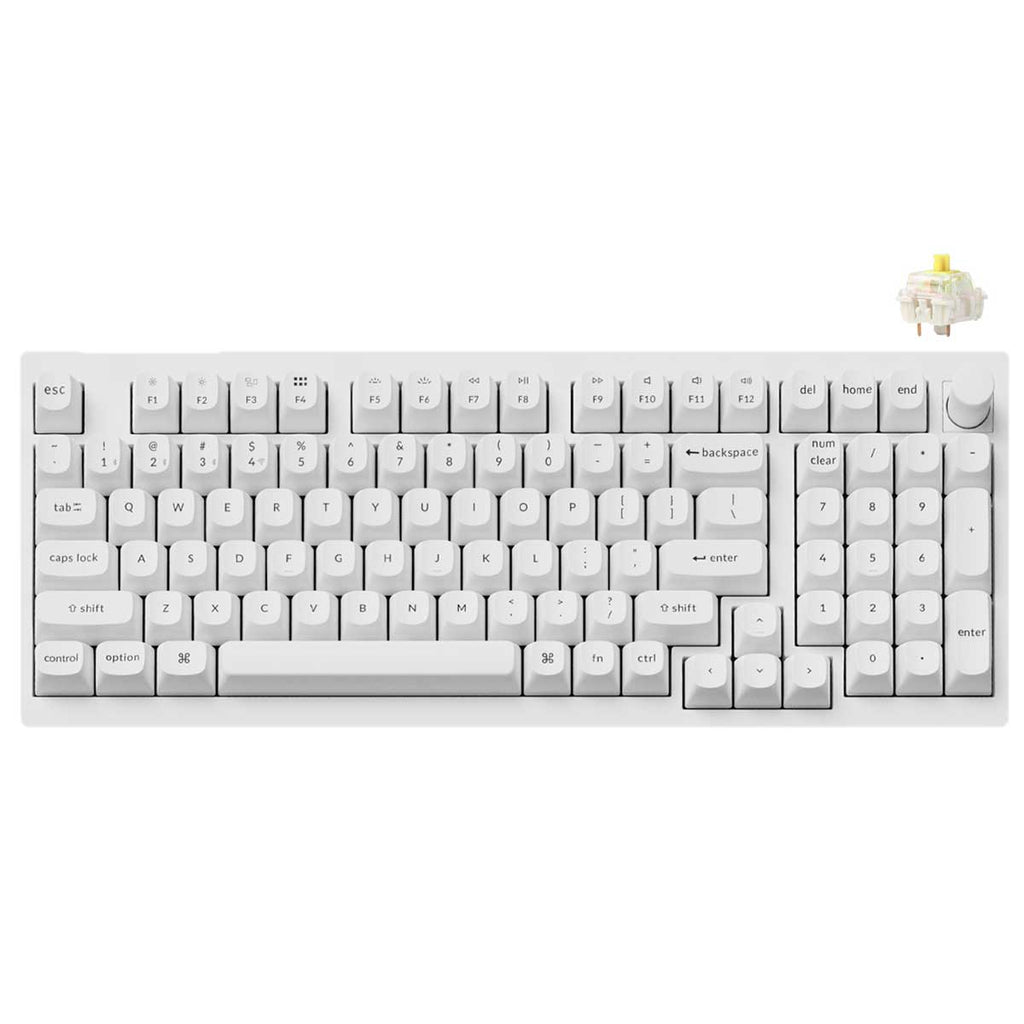

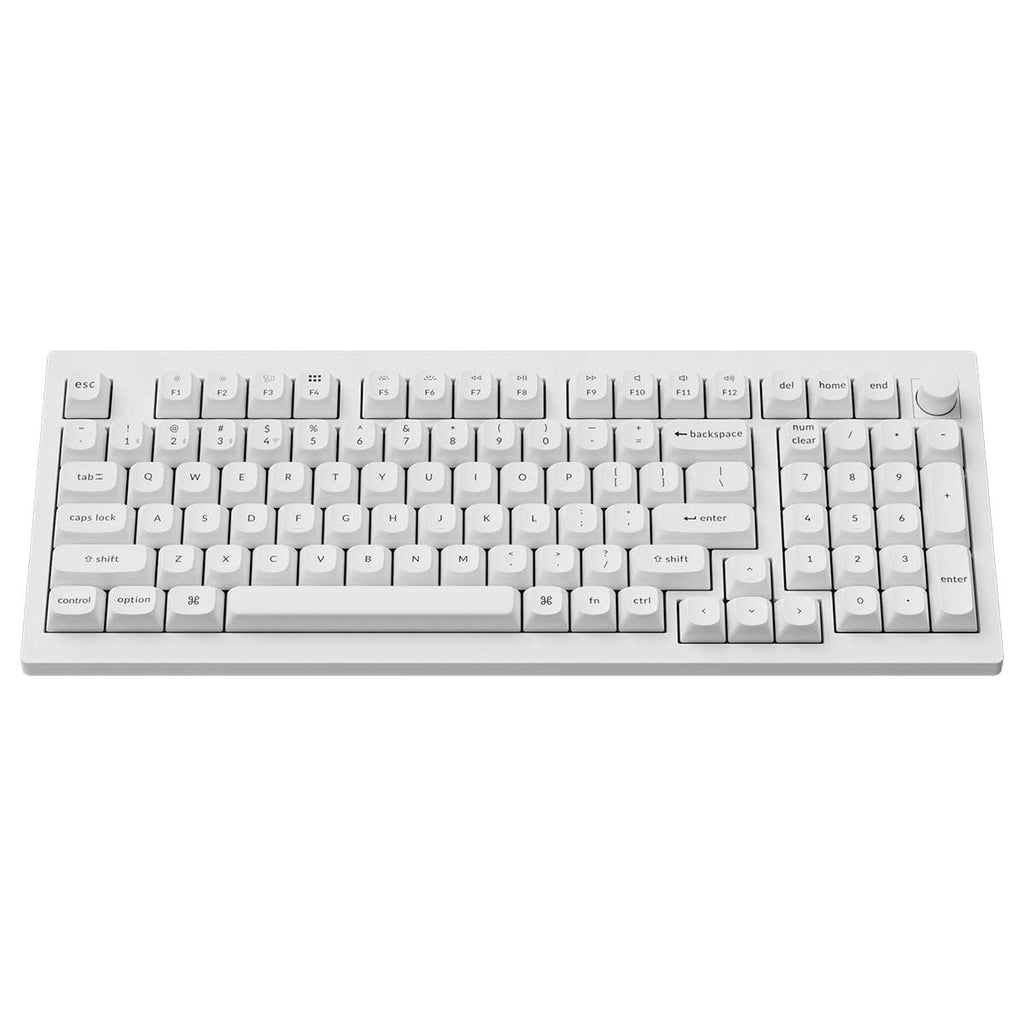

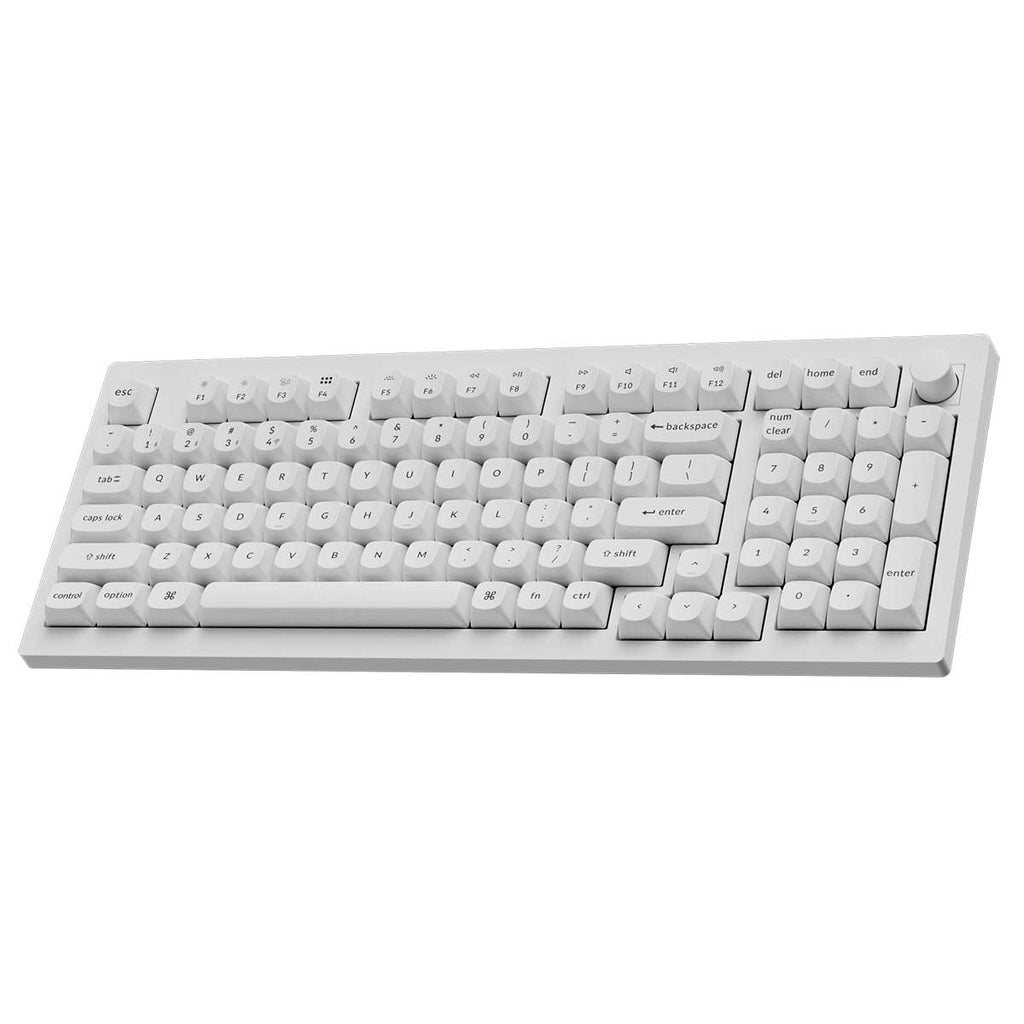

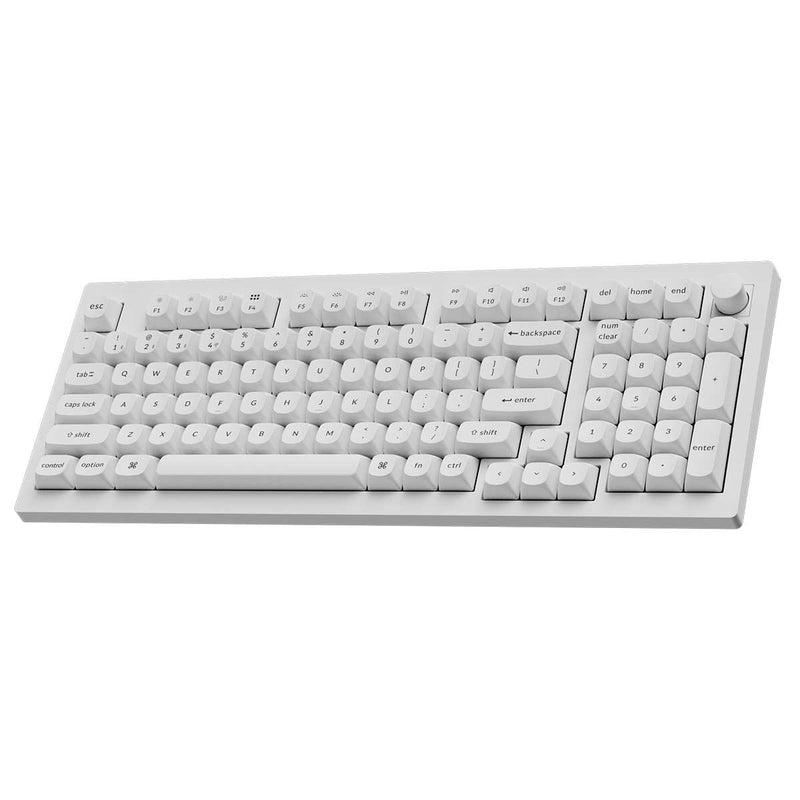

Elevate your typing experience with this versatile mechanical keyboard, featuring a sleek design and customizable RGB backlighting. The hot-swappable switches allow for easy customization, letting you choose between Gateron Jupiter Brown, Banana, or Red switches to suit your preferences. With a 96% layout, it strikes the perfect balance between compactness and functionality, making it ideal for both gaming and productivity. Wireless connectivity ensures freedom of movement, while the integrated knob offers convenient control for volume and media. Enjoy a blend of style, performance, and versatility in one powerful device.

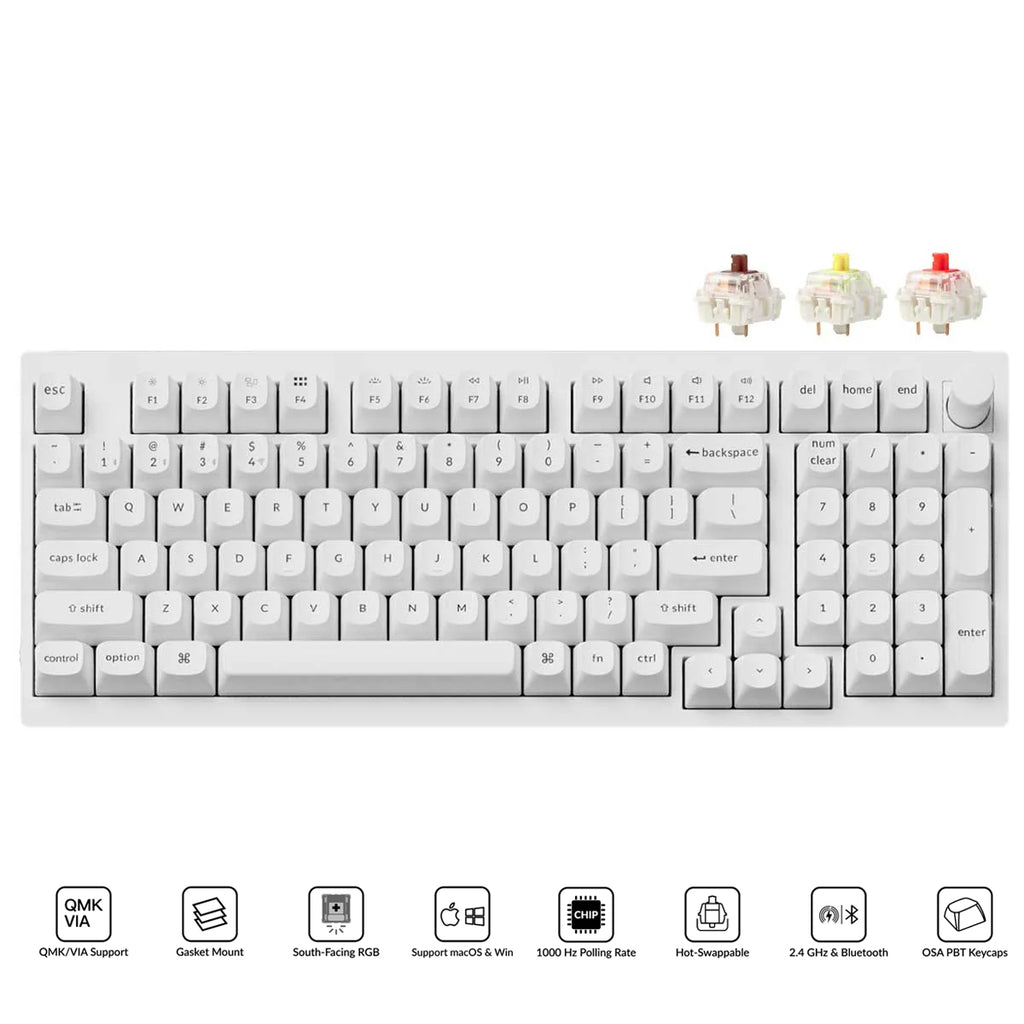

Features:
- QMK/VIA Support
- Gasket Mount
- South-Facing RGB
- Support macOS & Win
- 1000Hz Polling Rate
- Hot-Swappable
- 2.4 GHz & Bluetooth
- OSA PBT Keycaps
| Width | 148.7 mm |
|---|---|
| Length | 391.5 mm |
| Front Height | 21.7 mm (without keycaps) |
| Back Height | 29.6 mm (without keycaps) |
| Feet Height | 2 mm |
| Angle | 3.5° / 8° / 10° |
| Weight | 925 ± 10g (Fully Assembled Version) |
| Body Material | ABS Plastic |
| Plate Material | PC |
| Polling Rate | 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode) |
| Mount Style | Gasket Mount Design |
| Bluetooth Device Name | Keychron V5 Max |
| Battery | 4000 mAh Rechargeable li-polymer battery |
|---|---|
| Wireless Working Time (Backlit off) | Up to 225 hours (Lab test result may vary by actual use) |
| Wireless Working Time (RGB) | Up to 100 hours (Lowest brightness) |
| Charging Time | Around 5 hours |
| Bluetooth Version | 5.1 |
| Compatible System | Windows/macOS/Linux |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc. |
| Keycaps (Fully Assembled Version) | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
|---|---|
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Switches | Gateron Jupiter (Fully Assembled Version) |
| Backlight | South-facing RGB LED |
| Stabilizer | Screw-in PCB stabs |
| Charging Port | USB Type-C |
| Cable | Type-C cable + Type-A to Type-C adapter |
| Operating Environment | -10℃ to 50℃ |
