Description

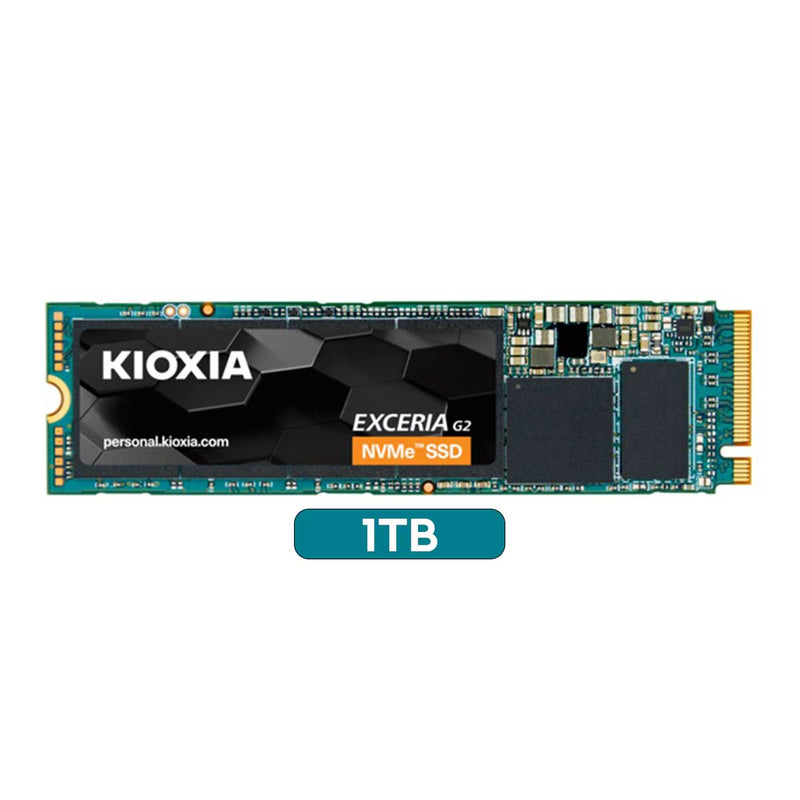

The new 2nd generation KIOXIA EXCERIA G2 SSD Series takes performance to the next level with up to 2,100 MB/s of sequential read speed*1, enabling faster boot ups, file transfers and system responsiveness. Leveraging BiCS FLASH™ 3D flash memory, this updated mainstream-class SSD series now offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.
Features
- BiCS FLASH™
- NVMe™ 1.3c Technology
- M.2 2280 Form Factor
- PCIe® Gen3 x4
- SSD Utility Management Software
|
Performance Made Affordable The KIOXIA EXCERIA SSD series redefines mainstream storage for everyday users that feel held back by SATA-based hardware. Say goodbye to hard drive lag and get a computing experience worthy of your applications. Compared to SATA SSDs, the EXCERIA G2 SSD series delivers balanced performance and value that will transform your system. |
 |
 |
Small and Compact for an Easy Upgrade Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA G2 SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade. |
|
NVMe™ Technology Why keep using an interface that was designed for hard drives? Utilizing the NVMe™ 1.3c technology, EXCERIA G2 SSD series reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance. |
 |
 |
Cutting-Edge 3D Flash Memory Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience. |
|
SSD Utility Management Software The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more! We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge. |
 |
Specification:
| Capacity | 500GB/1TB |
| Interface | PCI Express® Base Specification Revision 3.1a (PCIe®) |
| Interface Maximum Speed | 32 GT/s (PCIe® Gen3x4) |
| Interface Command | NVM Express™ Revision 1.3c command set |
| Form Factor | M.2 Type 2280-S2-M |
| Flash Memory type | BiCS FLASH™ TLC |
| Dimension (Max: LxWxH) | 80.15 x 22.15 x 2.23 mm |
| Weight | 6.8 g (typ.) |
| Performace |
| Max Sequential Read Speed*1 | 2,100 MB/s |
|
Max Random Read Speed*2 |
400,000 IOPS |
| Endurance: TBW*3 | 500GB: 200 TB 1TB: 400 TB |
| Max Sequential Write Speed*1 | 1,700 MB/s |
| Max Random Write Speed*2 | 400,000 IOPS |
| MTTF | 1.5 million hours |
|
Operating environment / protection performance |
| Operating Temperature(Tc) | 0 ℃ to 85 ℃ |
| Certification | RoHS compliant*5 |
| Vibration | 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis |
| Power Consumption | PS3: 50 mW (typ.) PS4: 5 mW (typ.) |
| Storage Temperature | -40 ℃ to 85 ℃ |
| Shock Resistance | 9.806 km/s2 {1,000 G} 0.5 ms half sine wave |
| Supply Voltage | 3.3 V ±5 % |
| Power Consumption (Active) | 3.5 W (typ.) |
