Description
MAG A750GL PCIE5
- ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable
- Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
Specification:
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (full modular) |
| Fan Size | 120 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 140 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100~240 VAC |
| Power Watt | 750W |
| Power Excursion | 1500W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range | 47-63Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.0 (16 pin) | 1 (450W) |
| PCI-E (6+2 pin) | 3 |
| SATA (15 pin) | 8 |
| MOLEX (4 pin) | 4 |
| FDD (4 pin) | 1 |
Customer Reviews
Great products and deserves 5 star rating

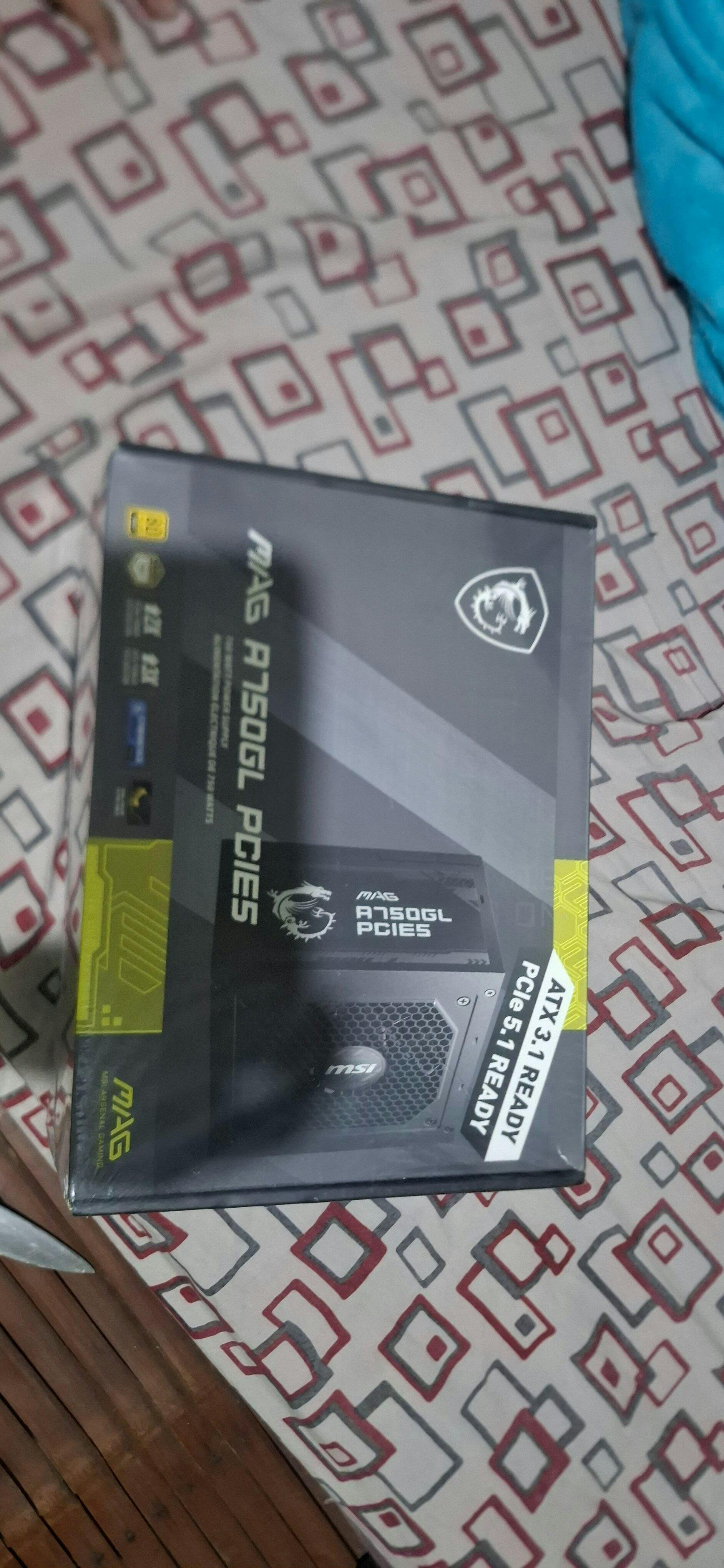

I haven’t tried the PSU yet since I buy my parts one by one. Delivery was quick and smooth. The box was perfect and not a single dent which is a plus! Overall package and the item is solid and no signs of damage. Just waiting to complete my pc build to see if the PSU actually works.
Hindi ko pa nagagamit kasi pa isa-isa yung bili ko.
Pero mabilis naman na deliver, 1 day lang at makapal yung bubble wrap. wala din naman missing item(s).
pero sana wala problem pag na kumpleto na yung pc parts
The box of the item was damaged but I was informed before the item was sent out by DB staff on Viber of the issue. I asked them to proceed with the delivery anyway since it looked like the damage was just on the box and they reassured me that if the item did not work I could have it replaced. Upon receipt of the item there were instructions attached on what to do to be eligible for a replacement or refund. After opening and testing I confirmed there was no damage to the unit and the item is currently working as intended. Thanks DB!
Sealed and Packaging was great.
