Description

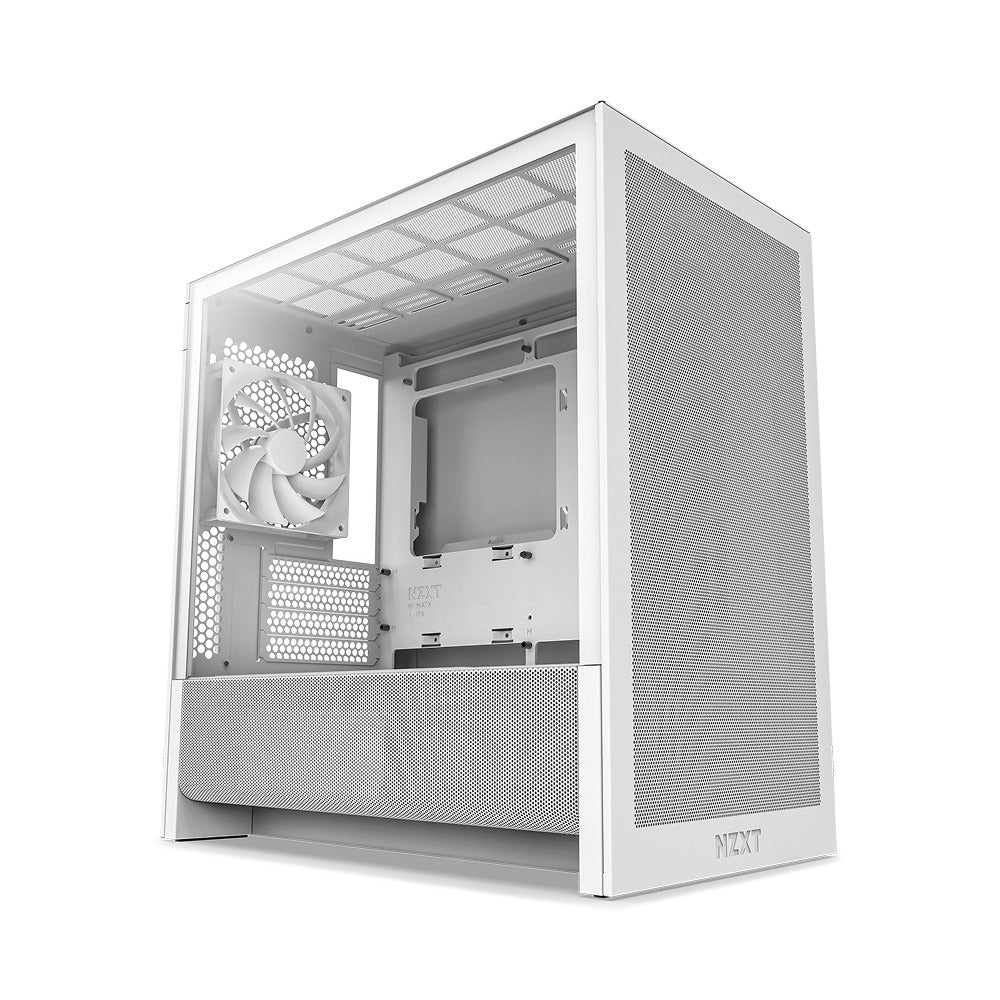

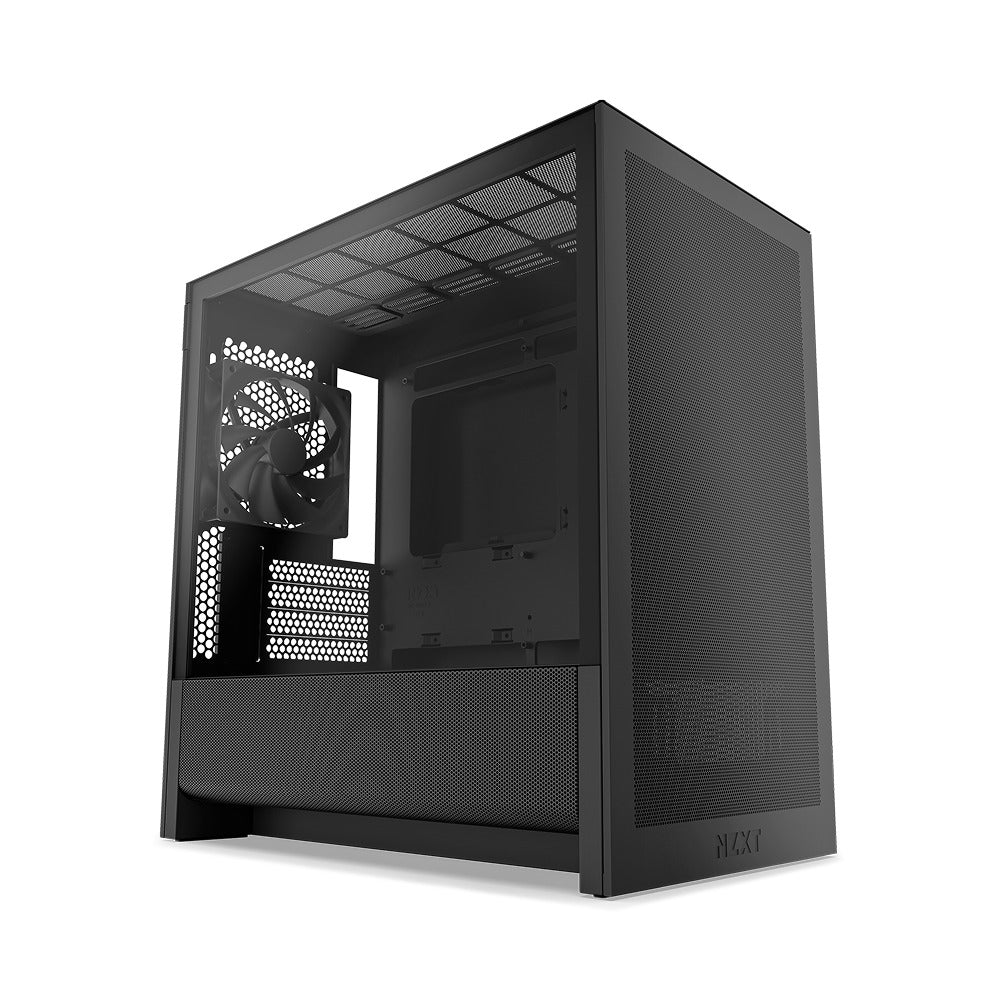

The H3 Flow micro-ATX case combines a space-efficient design with high-performance capability. Designed to support full-sized components, it features ultra-fine mesh panels and a ventilated PSU shroud to maintain consistent, optimized airflow throughout your build.

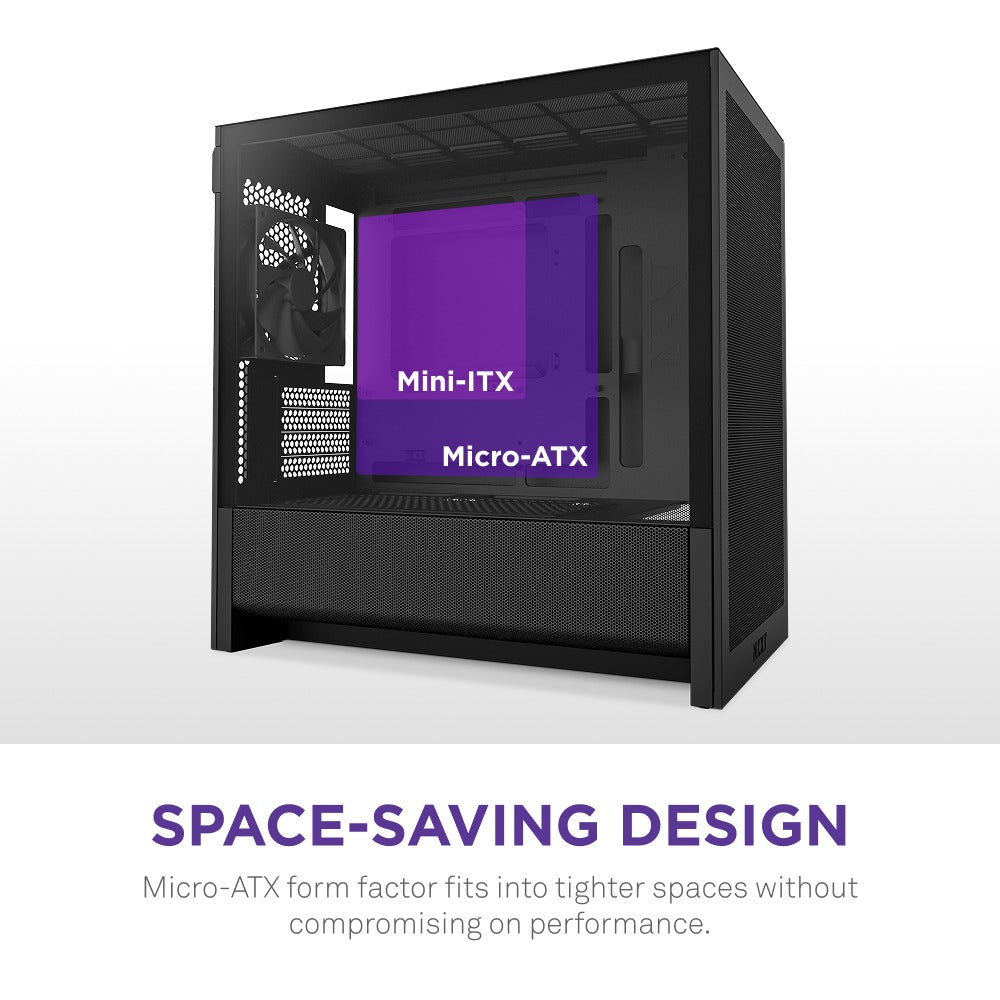

- Space-Saving Size: A space-efficient micro-ATX chassis that accommodates high-performance components without compromise.

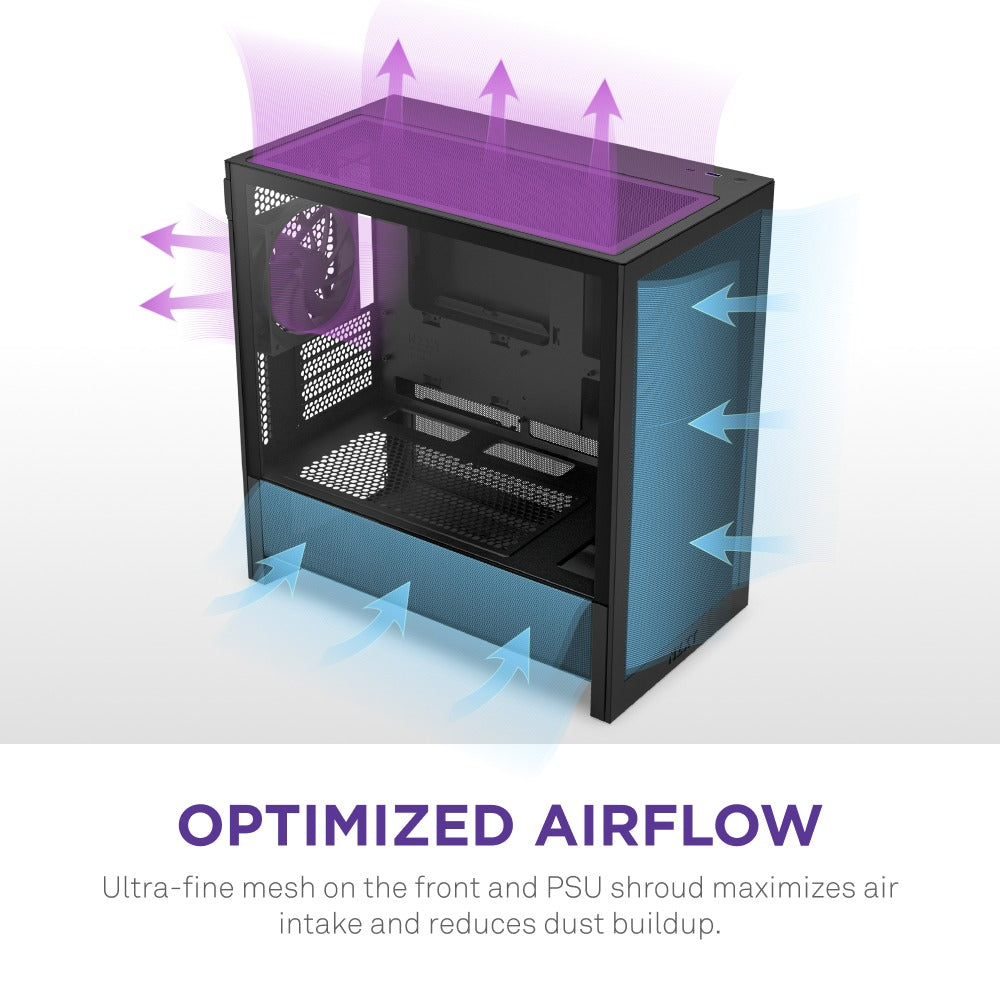

- High-Airflow Design: Ultra-fine steel mesh panels and a ventilated PSU shroud maximize airflow while effectively filtering out dust.

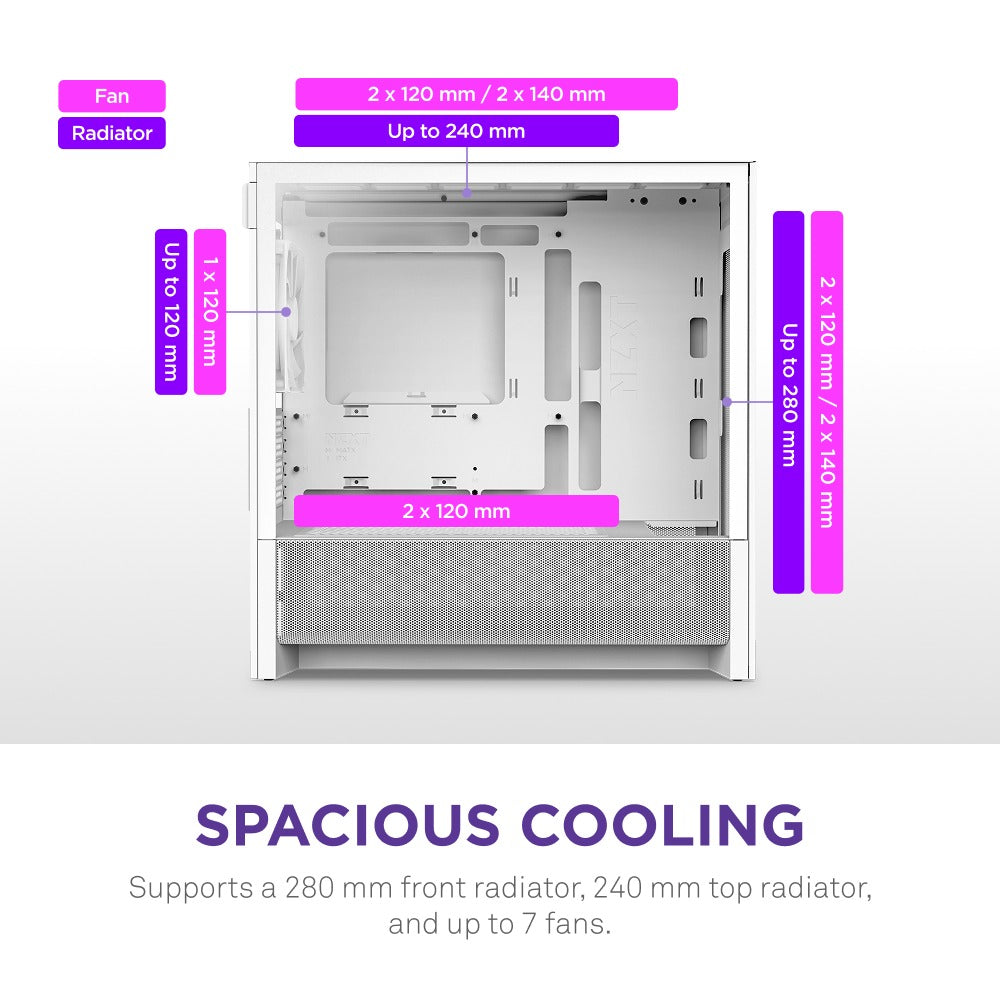

- Extensive Cooling Support: Supports up to a 280 mm radiator in the front, a 240 mm radiator on top, and up to seven fans for powerful, customizable cooling performance.
- Full-Size GPU Support: Fits graphics cards up to 377 mm (without front fans), 352 mm (with front fans), or 317 mm (with front radiator and fans installed).

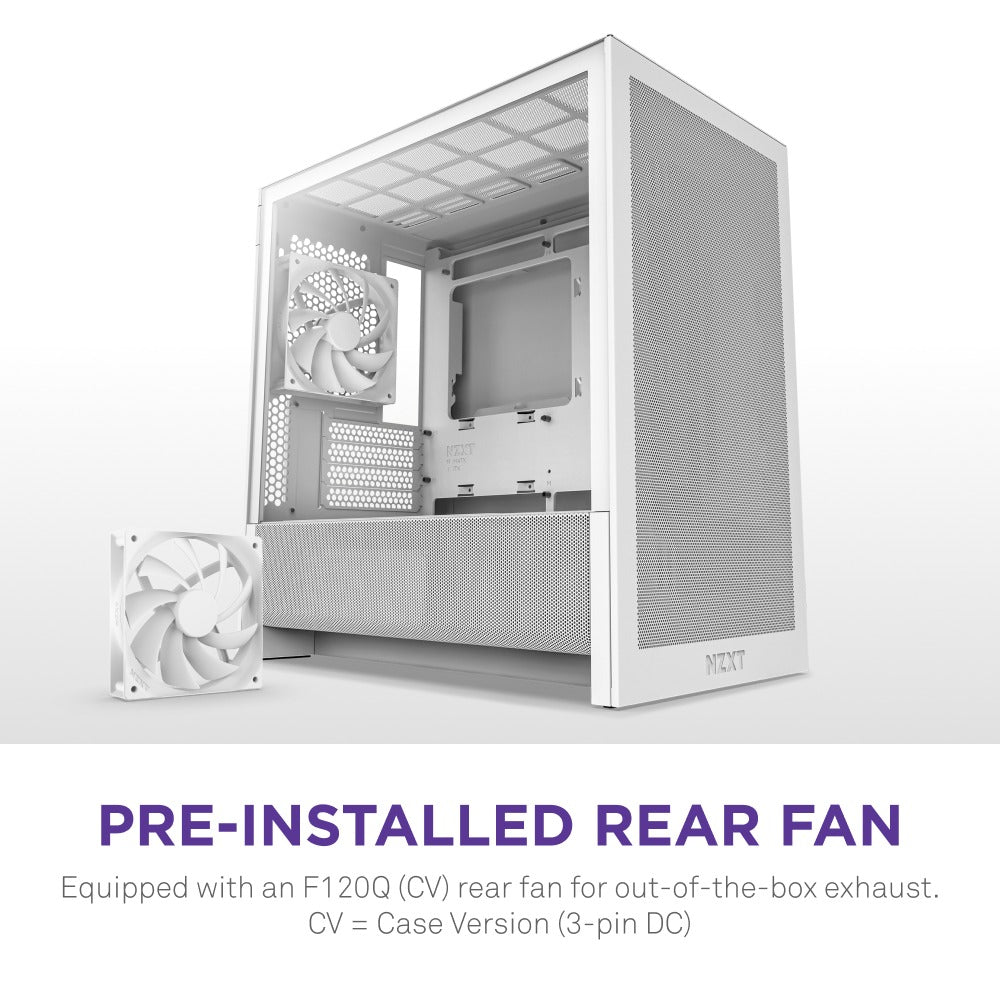

- Pre-Installed Rear Fan: Includes one F120Q (CV) fan at the rear to provide efficient exhaust airflow straight out of the box. CV = Case Version (3-pin DC)
- Simplified Cable Management: Integrated cable channels and multiple tie-down points make it easy to route and organize cables for a clean, organized build.

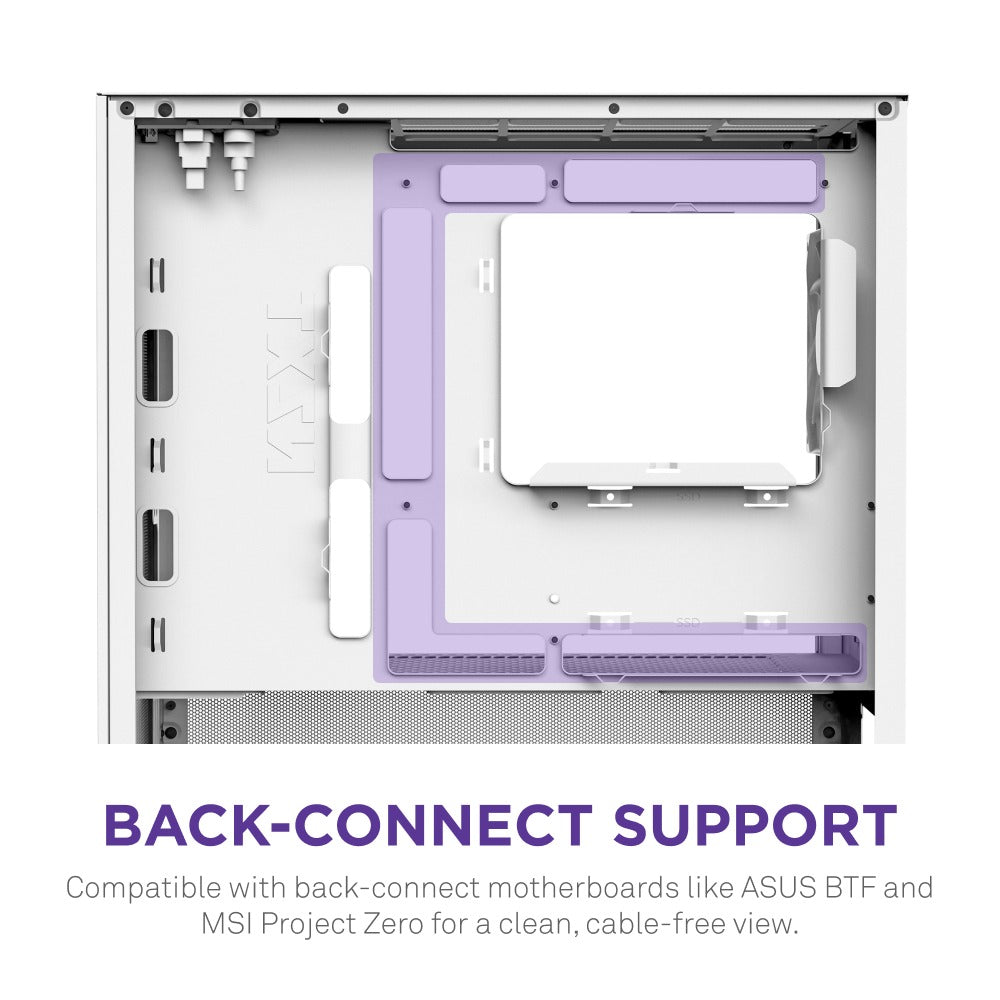

- Back-Connect Motherboard Compatible: Ready for rear-connector motherboards like ASUS BTF and MSI Project Zero, enabling a clean, cable-free aesthetic.

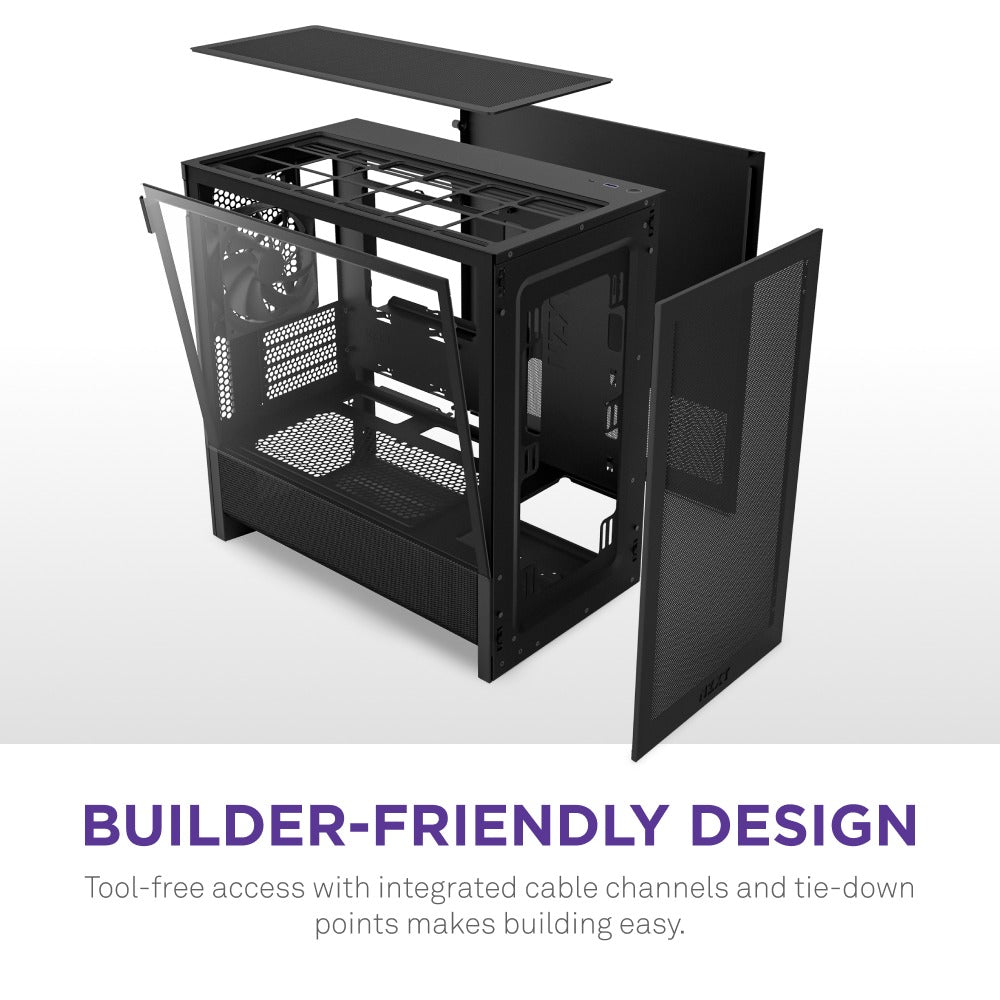

- Tool-Free Access: Removable top, front, and side panels allow for easy upgrades and cleaning—no tools required.
Specifications:

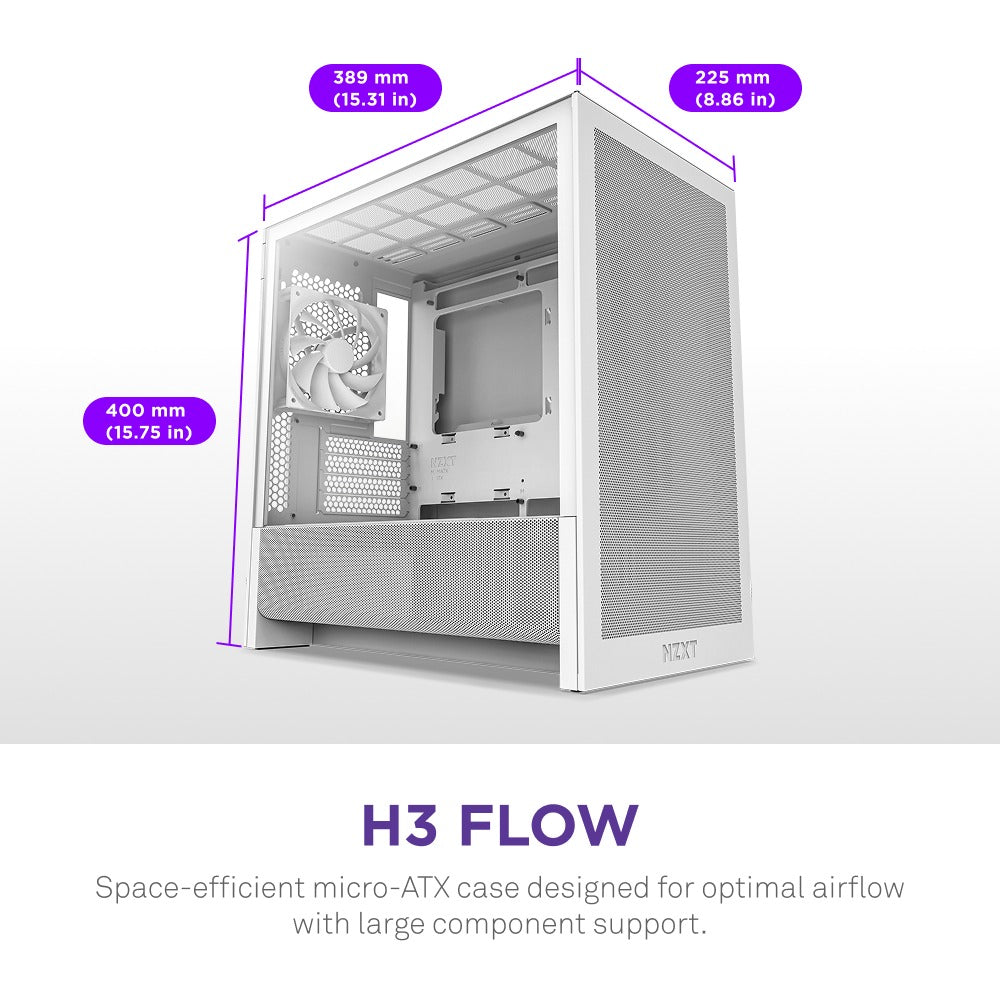

| Dimensions | Height (with feet): 400 mm (15.75 in) Width: 225 mm (8.86 in) Depth: 389 mm (15.31 in) Volume: 35.0 L Weight: 4.8 kg (10.58 lb) |

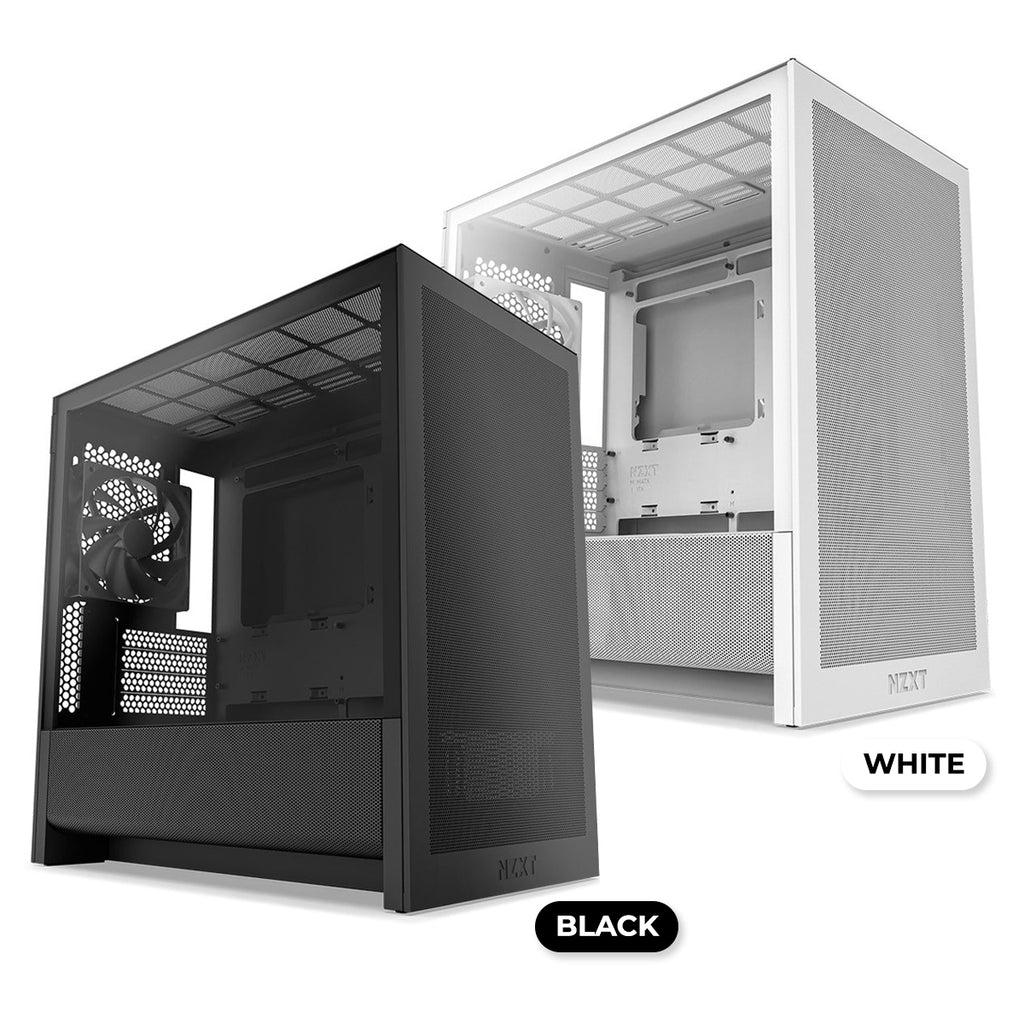

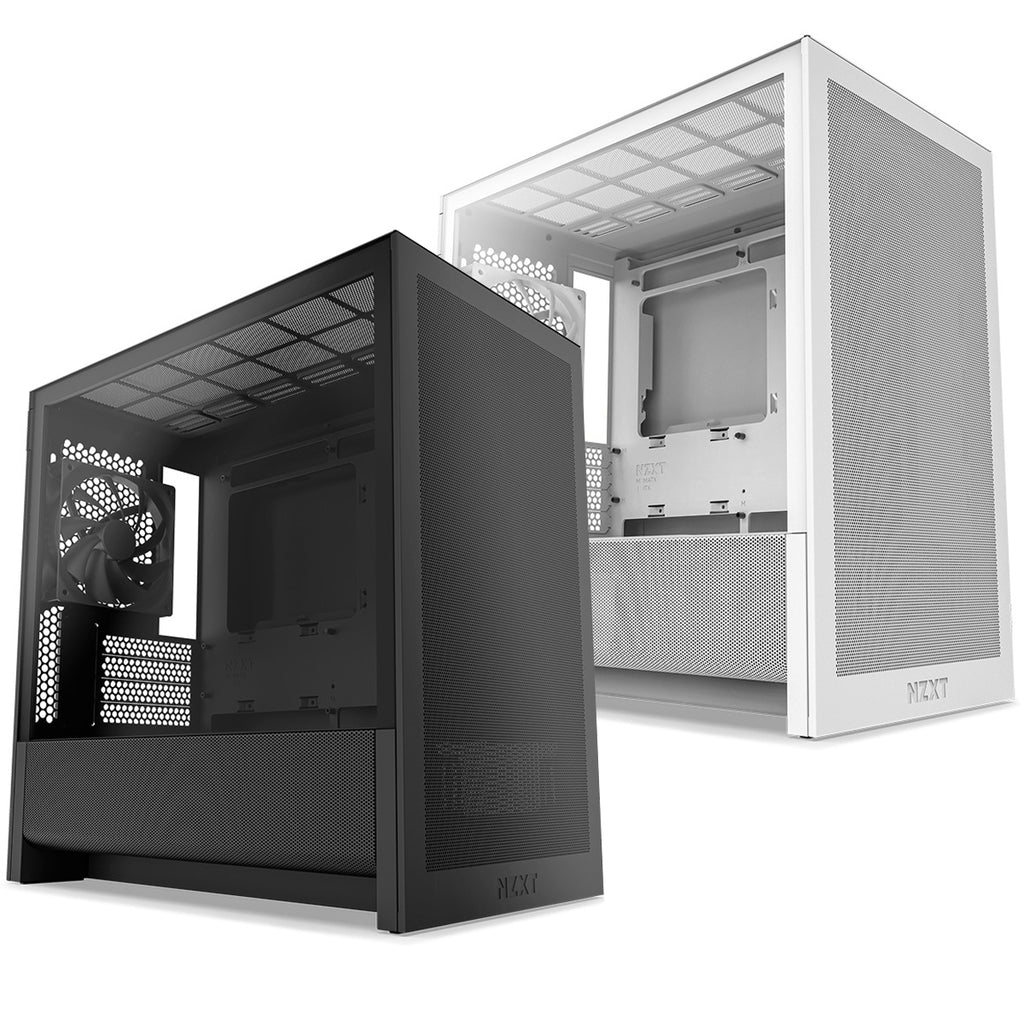

| General | Enclosure Type: Micro-ATX Case Motherboard Compatibility: Micro-ATX, Mini-ITX Supports Rear-Connecting Motherboards (BTF, Project Zero): Yes (Micro-ATX) Materials: SGCC steel, clear tempered glass (white), tinted tempered glass (black) |
| Clearance | CPU Cooler Height: 170 mm GPU Length: Up to 377 mm (without front fans), Up to 352 mm (with front fans), Up to 317 mm (with front radiator and fans) PSU Length: Up to 185 mm Cable Routing Space: Up to 31.5 mm Front Radiator + Fan Thickness: Up to 63 mm Top Radiator + Fan Thickness: Up to 70 mm |
| Front I/O Ports | USB 3.2 Type-A: 1 USB 3.2 Gen2x2 Type-C: 1 |
| Expansion Slots | Standard: 4 Vertical: 0 |
| Drive Bays | 2.5": 1+2 3.5": 1 |
| Fan Support | Front: 2 x 120 mm / 2 x 140 mm Top: 2 x 120 mm / 2 x 140 mm Bottom: 2 x 120 mm Rear: 1 x 120 mm (1 x F120Q (CV) included) |
| Radiator Support | Front: Up to 280 mm Top: Up to 240 mm |
