Description

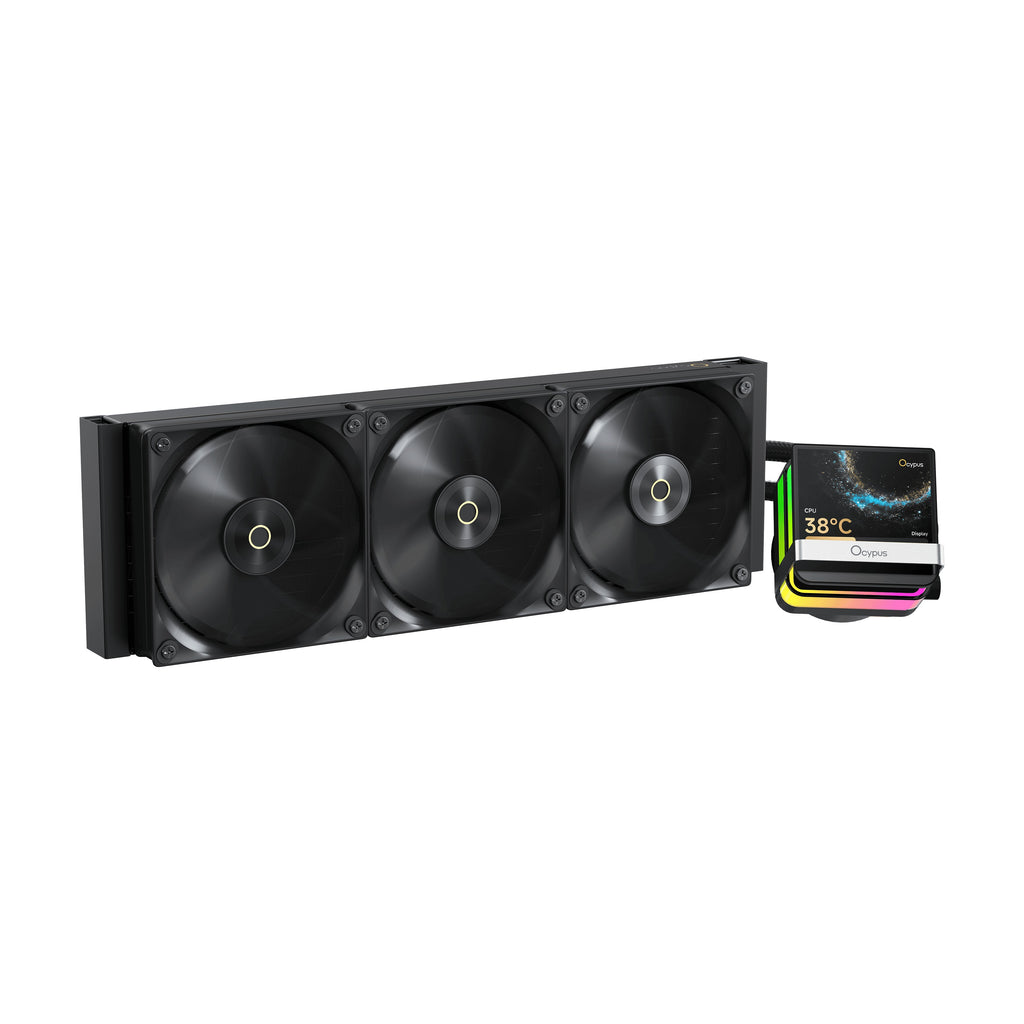

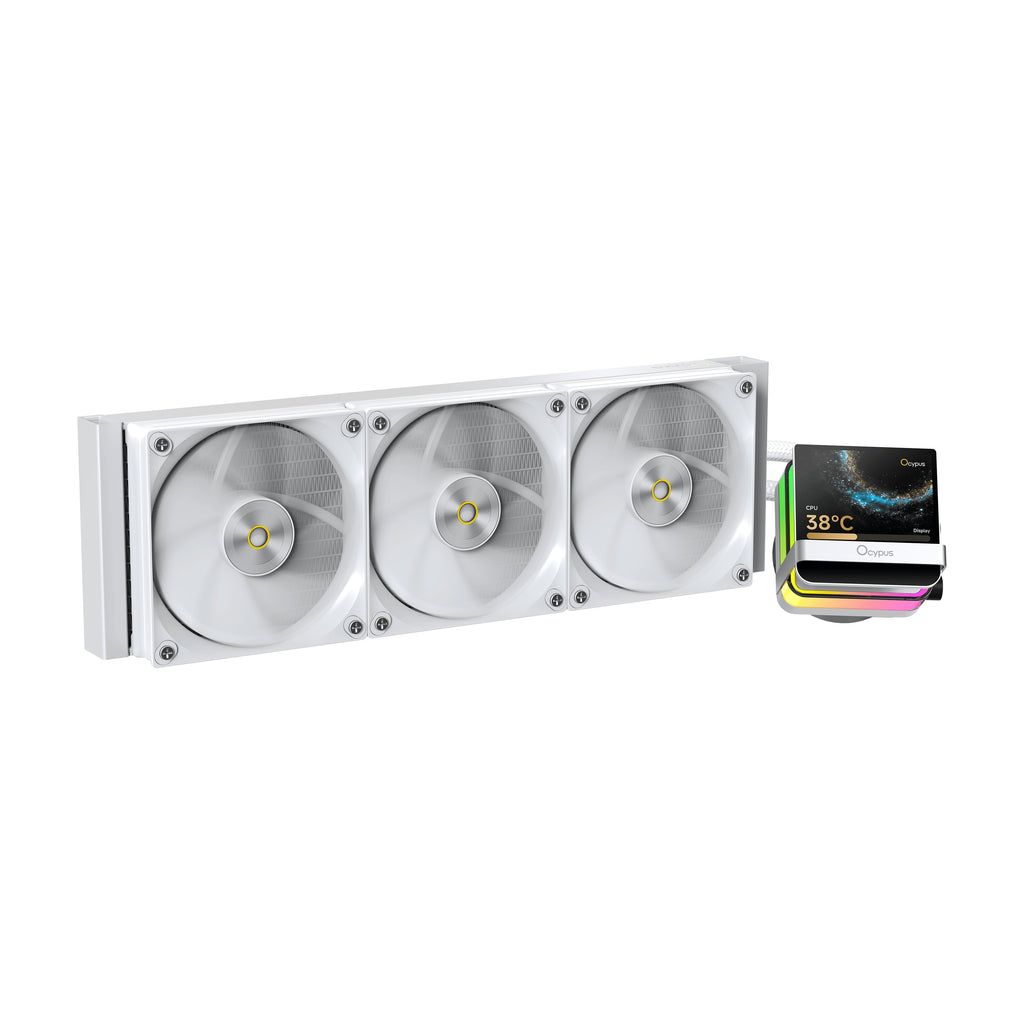

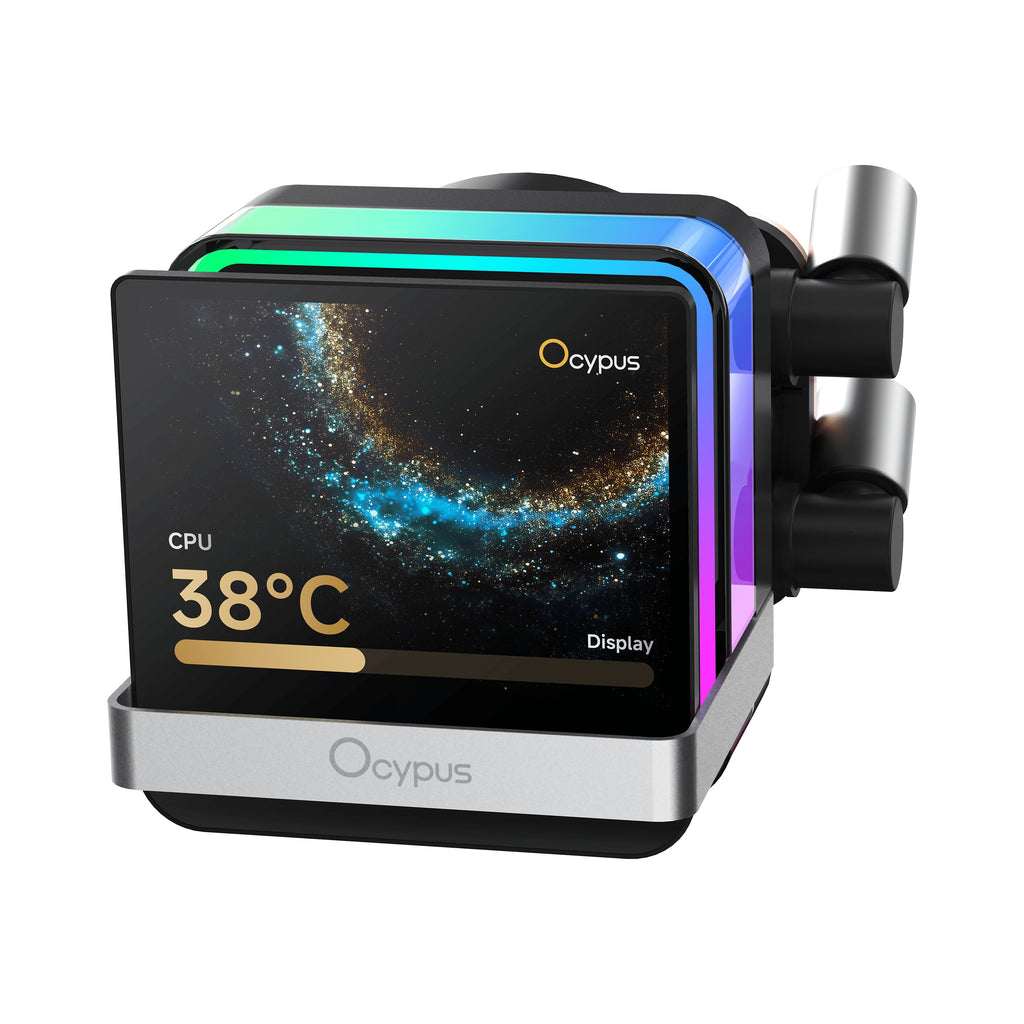

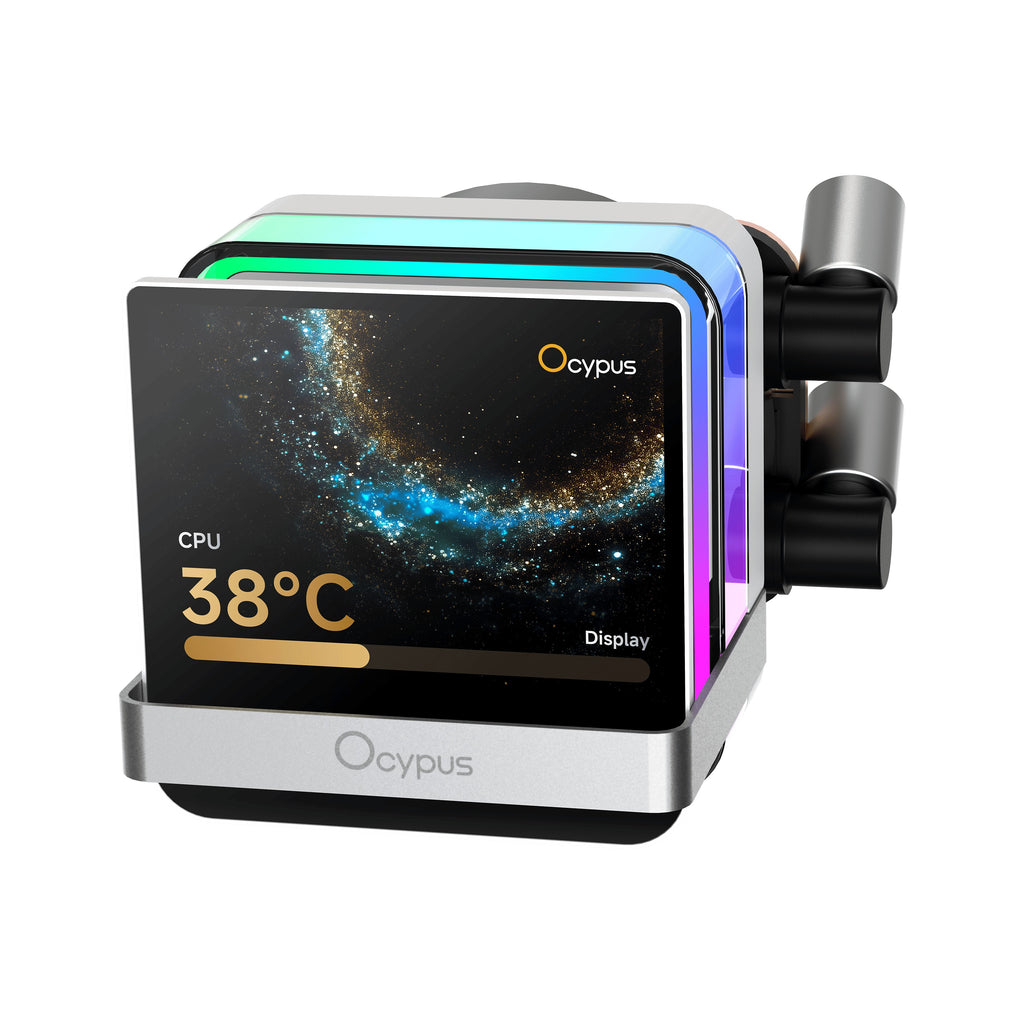

Pump features 3.5-inch square IPS screen with 640*480 resolution and ultra-narrow bezel to display real-time system info.
Support the display of various formats of contents, freely showcase video, images and GIFs.
The floating design of pump combines with a bright silver frame to add visual layer and depth.
Designed with precision magnetic mounting, effortlessly to install and rotate the pump.
Customize the RGB ring with color selection and dynamic effects, or synchronize with other ARGB devices.

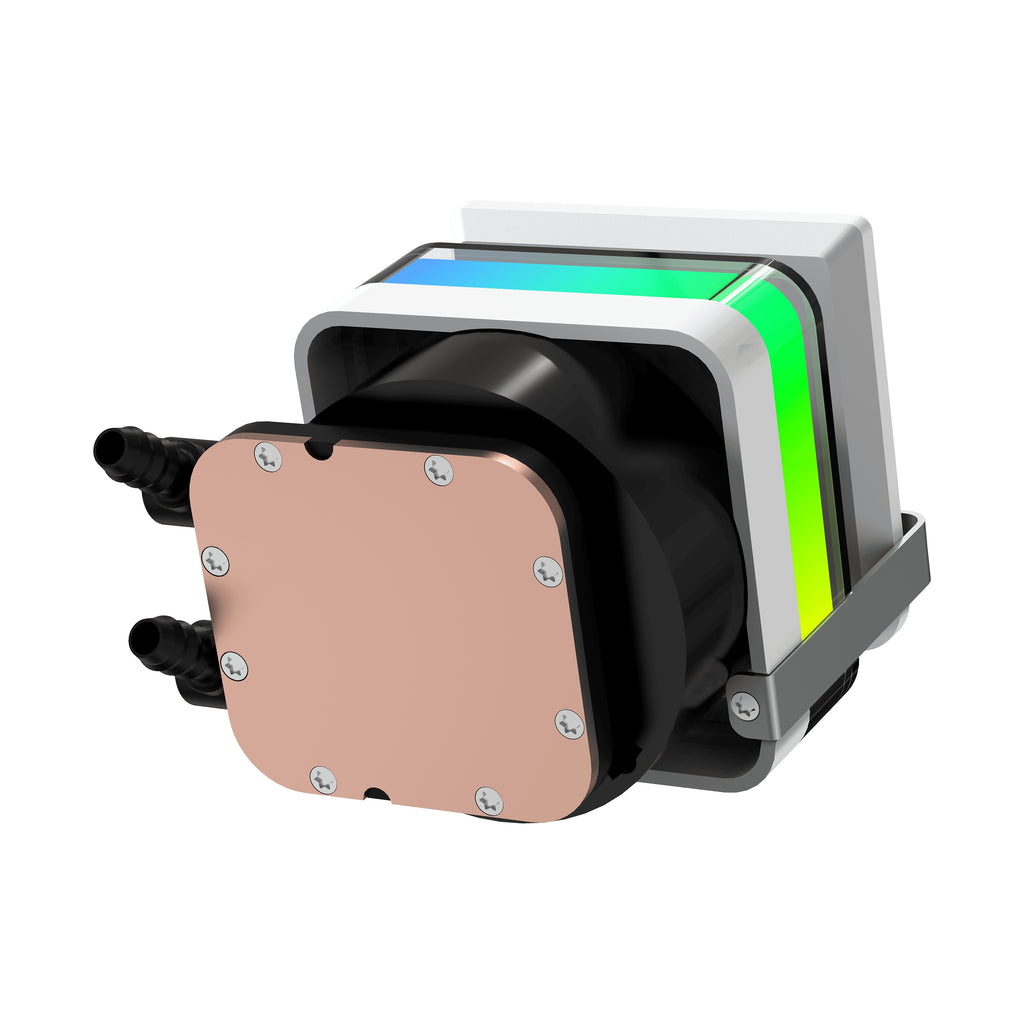

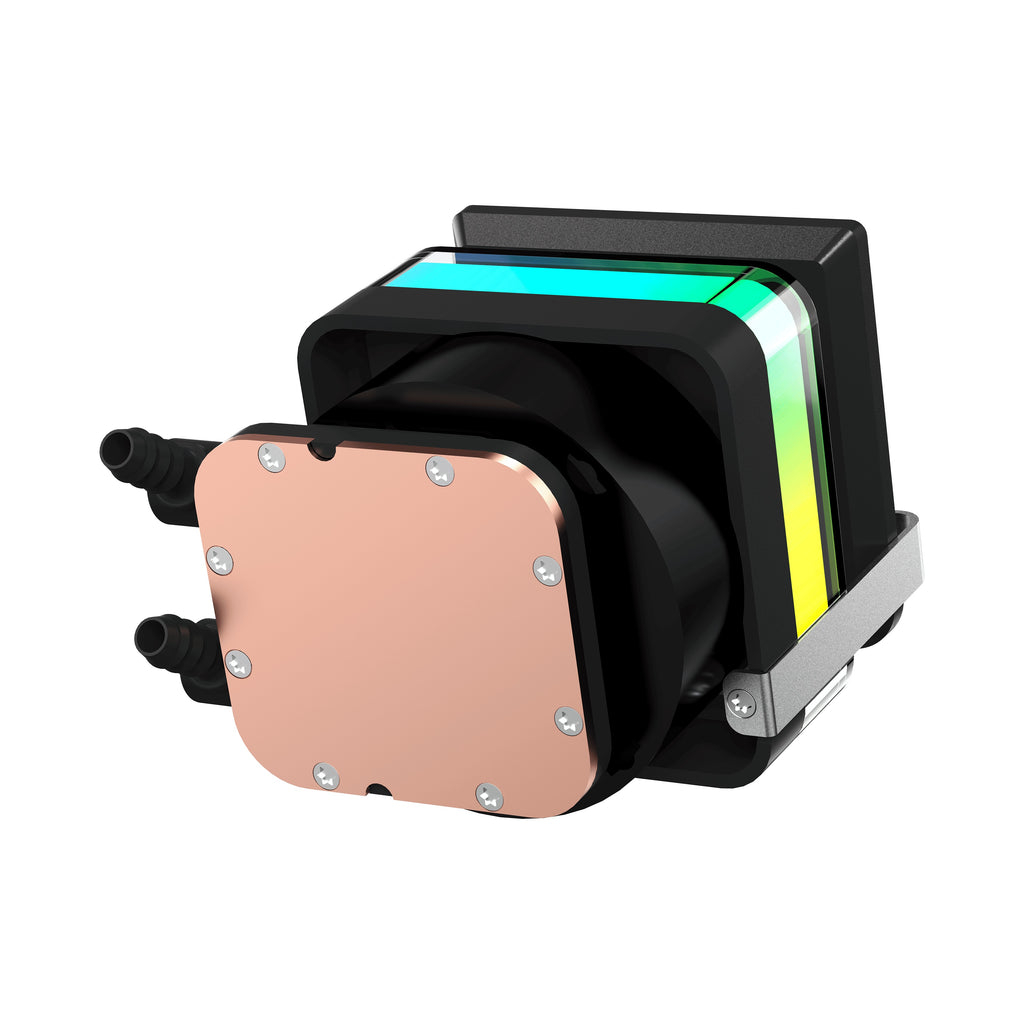

Pump is engineered with ceramic architecture and 0.1mm microchannel with the 3700mm² ultra-large copper base to ensure consistently high-efficient heat dissipation.

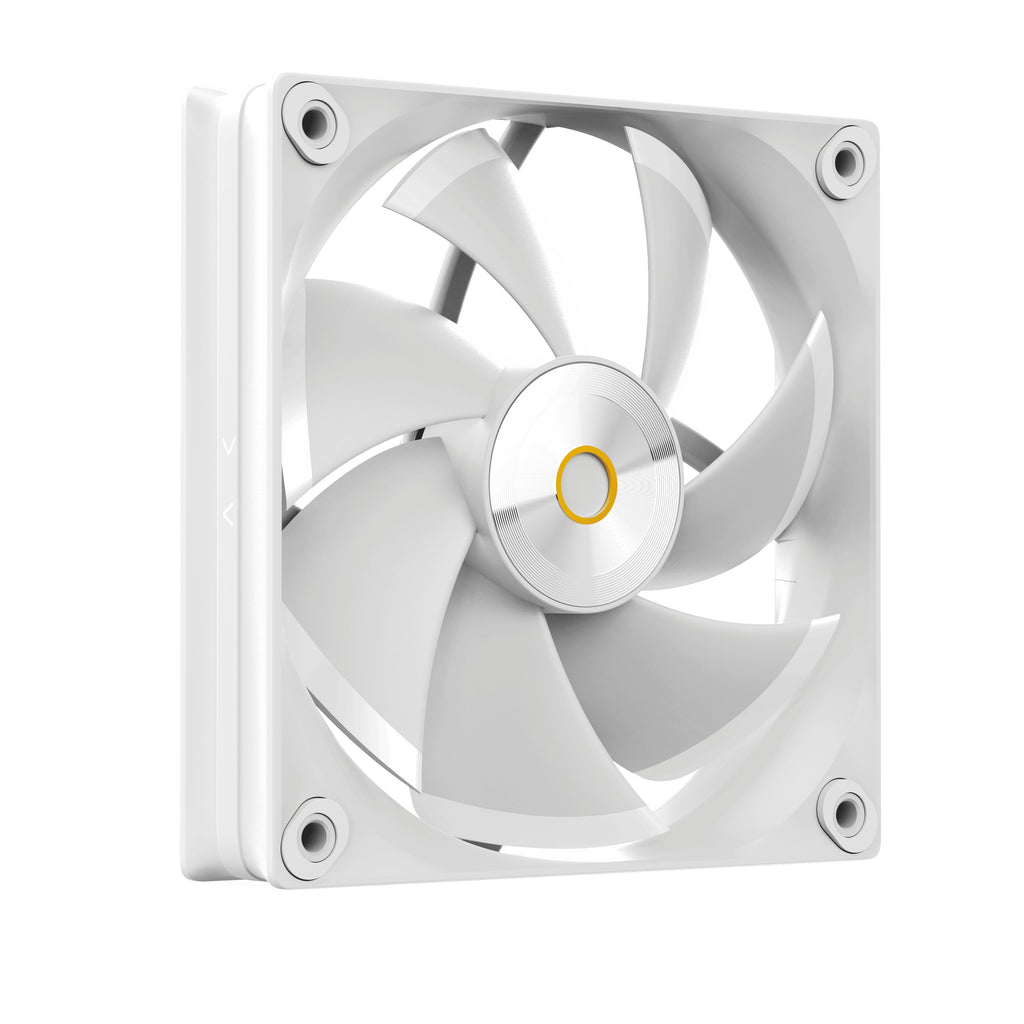

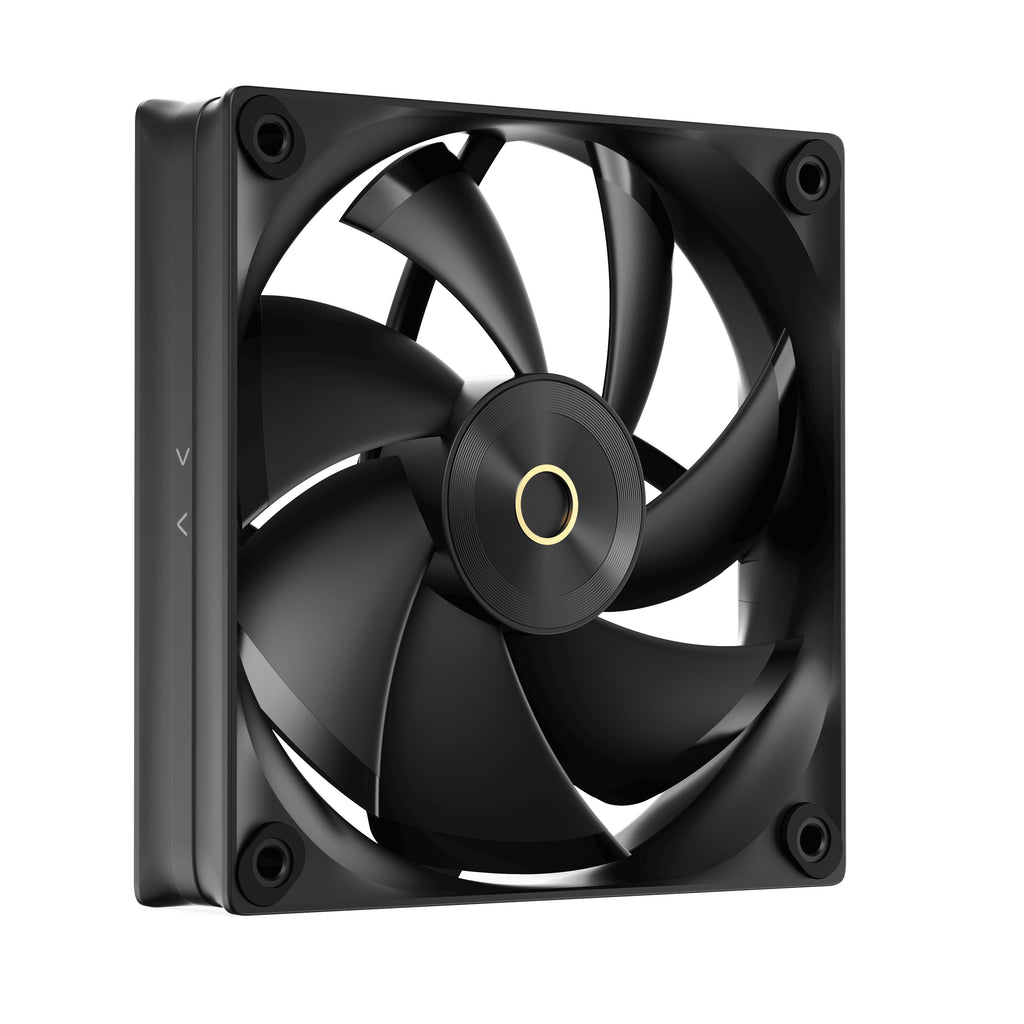

Include high-performance PWM fans with fluid dynamic bearings for optimal and stable cooling.

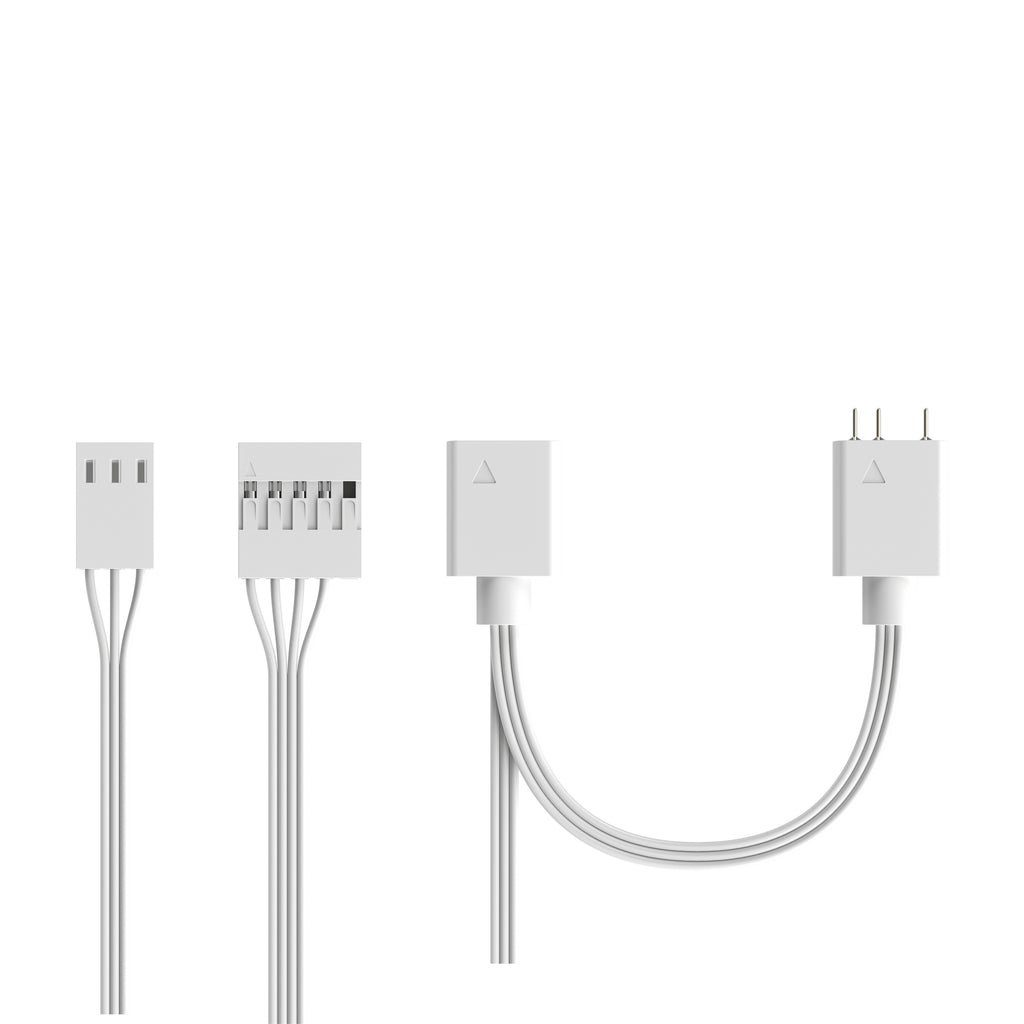

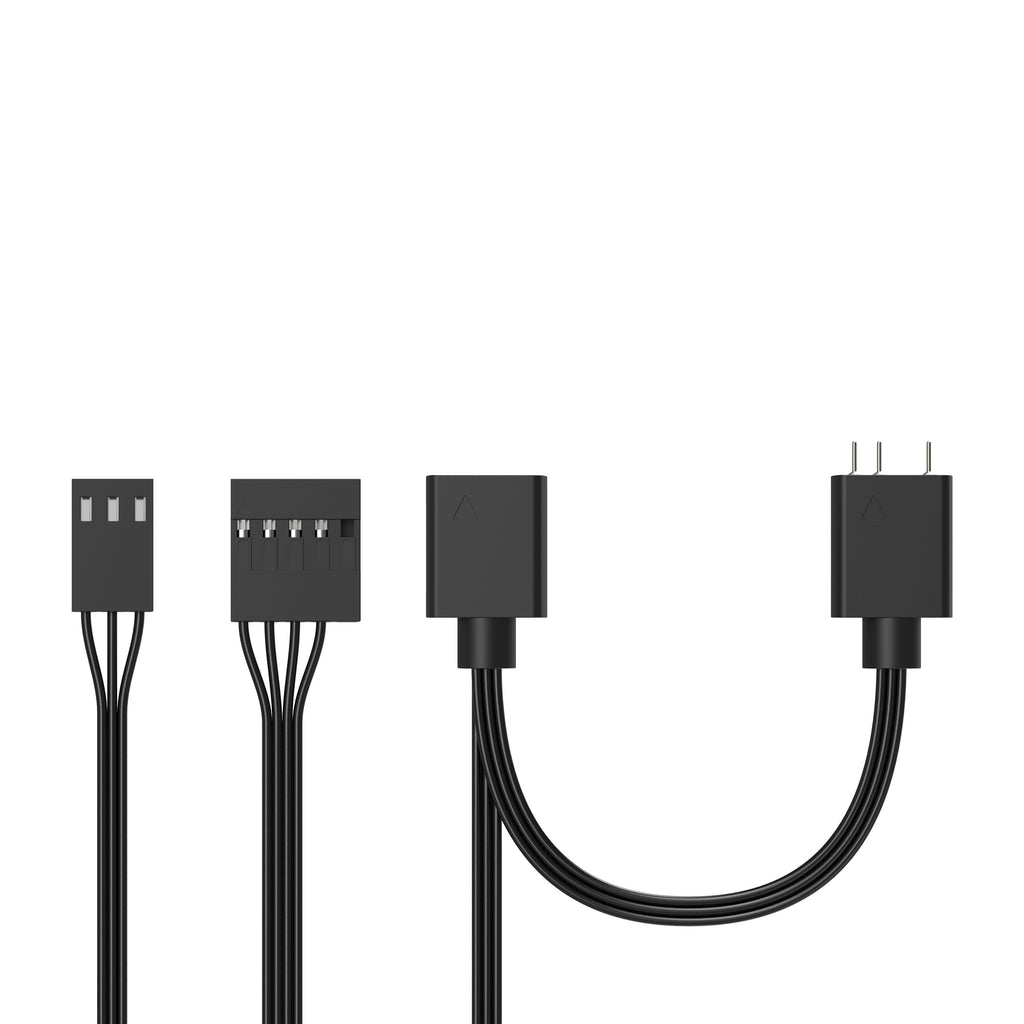

Equipped with fan speed reduction cable to reduce the fan speed from 500-2400±10% RPM to 500-2000±10% RPM for quieter operation.
Specification:
| Basic | |
|---|---|
| TDP | 310W |
| CPU Socket | Intel LGA: 115X/1200/1700/1851 AMD: AM4/AM5 |
| Tube | 400*IDΦ7*ODΦ12.5mm |
| Fan Quantity | 3 |
| Net Weight | 1680g |

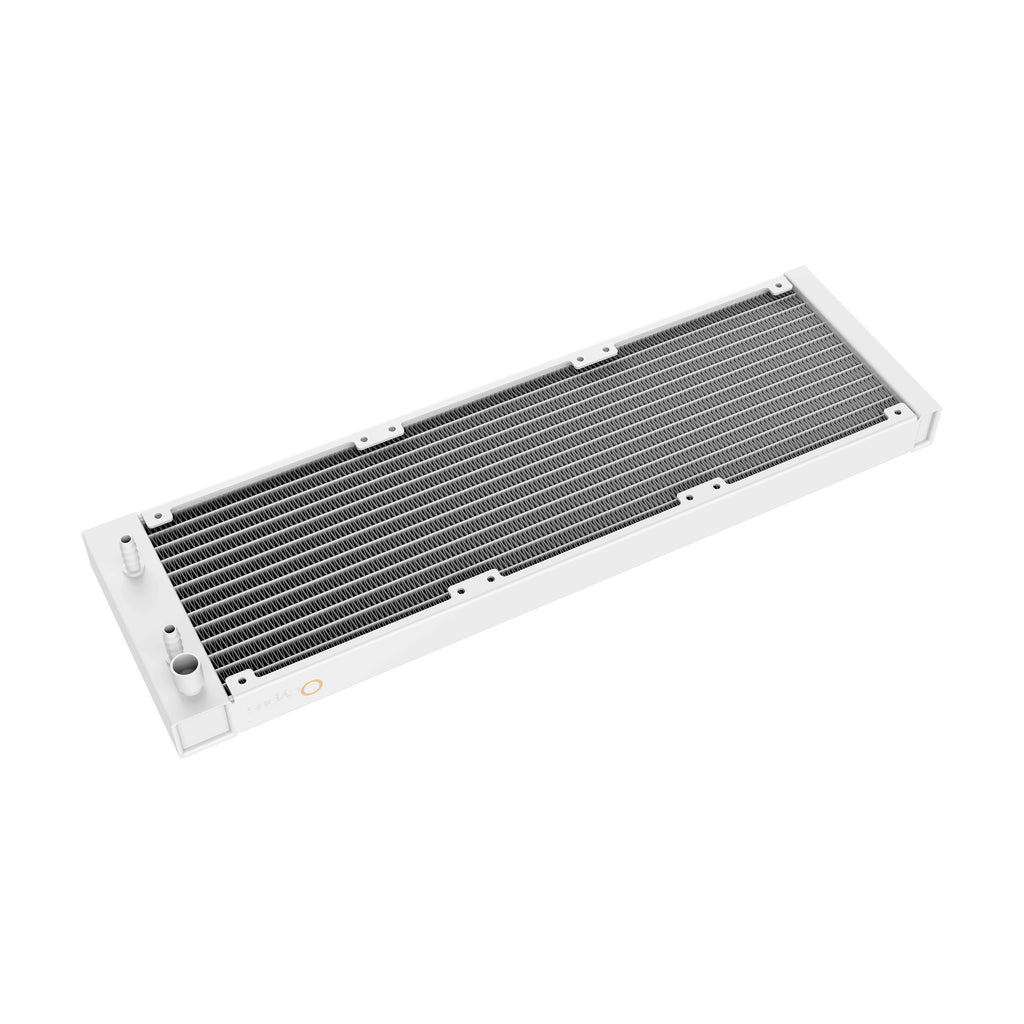

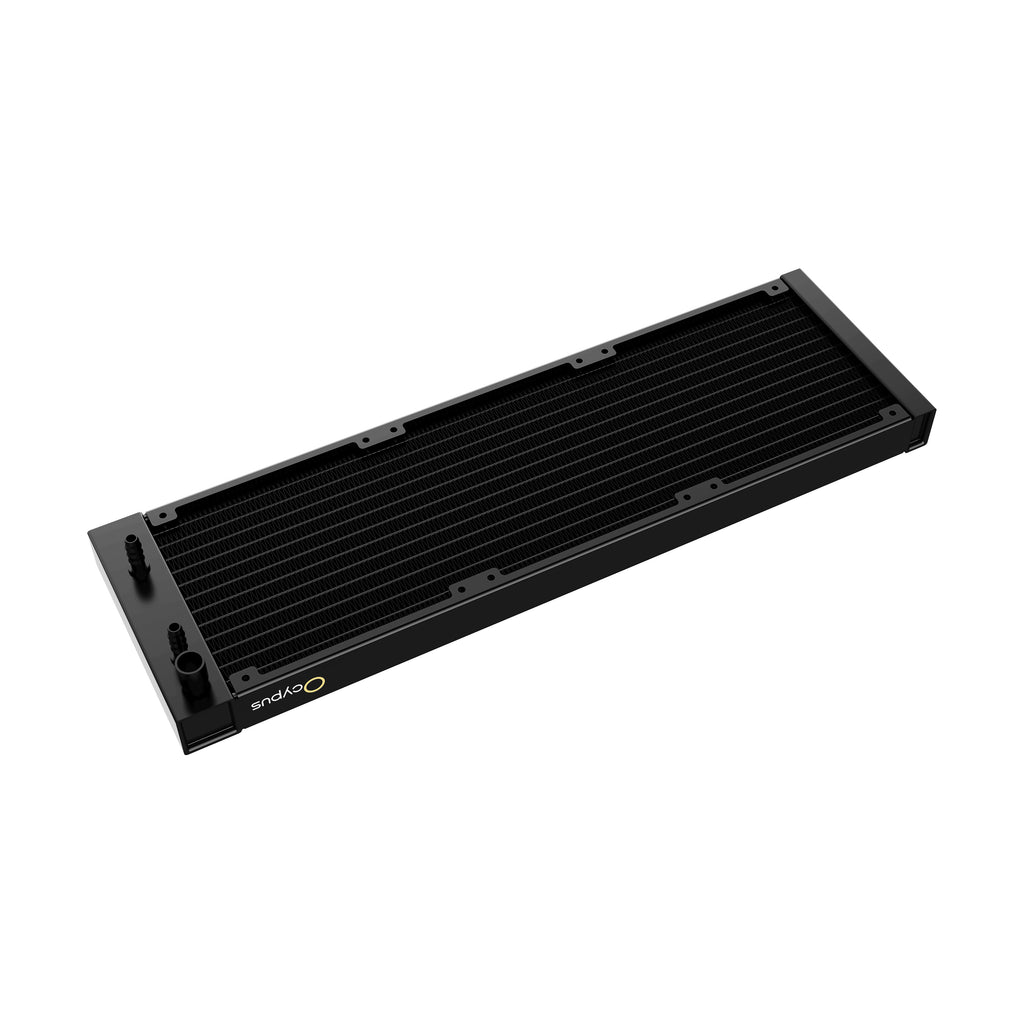

| Radiator | |
| Dimension | 397*120*27mm |
| Material | Aluminium |
| Pump | |
| Dimension | 80*78*97mm |
| Speed | 3100±10%RPM |
| Noise | ≤30dB(A) |
| Connector | 3-Pin |
| Rated Voltage | 12VDC |
| Rated Current | 0.4A |
| Power Consumption | 4.8W |
| Bearing | Ceramic Bearing |
| Motor | Three-phase Six-pole Motor |
| MTBF | 100,000 Hours |
| Fan | |
| Dimension | 120*120*25mm (L×W×H) |
| Bearing Type | Fluid Dynamic Bearing |
| Speed | 500~2400±10%RPM 500~2000±10%RPM (with speed-control cable) |
| Air Flow | 90CFM 77CFM (with speed-control cable) |
| Air Pressure | 5.8mmH2O 4.65mmH2O (with speed-control cable) |
| Noise | ≤36dB(A) ≤29dB(A) (with speed-control cable) |
| Rated Voltage | 12VDC |
| Rated Current | 0.26A |
| Power Consumption | 3.12W |
| Connector | 4-Pin PWM |
| Pump Display | |
| Size | 3.5 inch |
| Type | IPS |
| Resolution | 640*480px |
| Pump LED | |
| Type | ARGB |
| Connector | 3-Pin |
| Rated Voltage | 5VDC |
| Rated Current | 0.6A |
| Power Consumption | 3W |
