Description
160mm height - The overall height of the cpu cooler is 160mm, making it compatible with mainstream ATX cases. The cooling tower features a pure black coating spray style and a digital display panel design with a magnetic top cover, combining the high cooling performance of the radiator with innovative technology.
Radiator Specifications - Model: Peerless Spirit 120 Digital EVO,Overall Dimensions: 125x135x160mm,Fan Dimensions: 120x120x25mm,Fan Speed: 2150RPM+10%,Air Pressure: 2.87mm H2O, Air Volume: 69CFM, Operating Noise: ≤27DB(A), Fan Power Supply Interface: 4PIN PWM,Lighting Interface: 5V 3pin ARGB. The dual fans paired with the radiator feature long-lasting characteristics, ensuring effective heat dissipation over an extended period

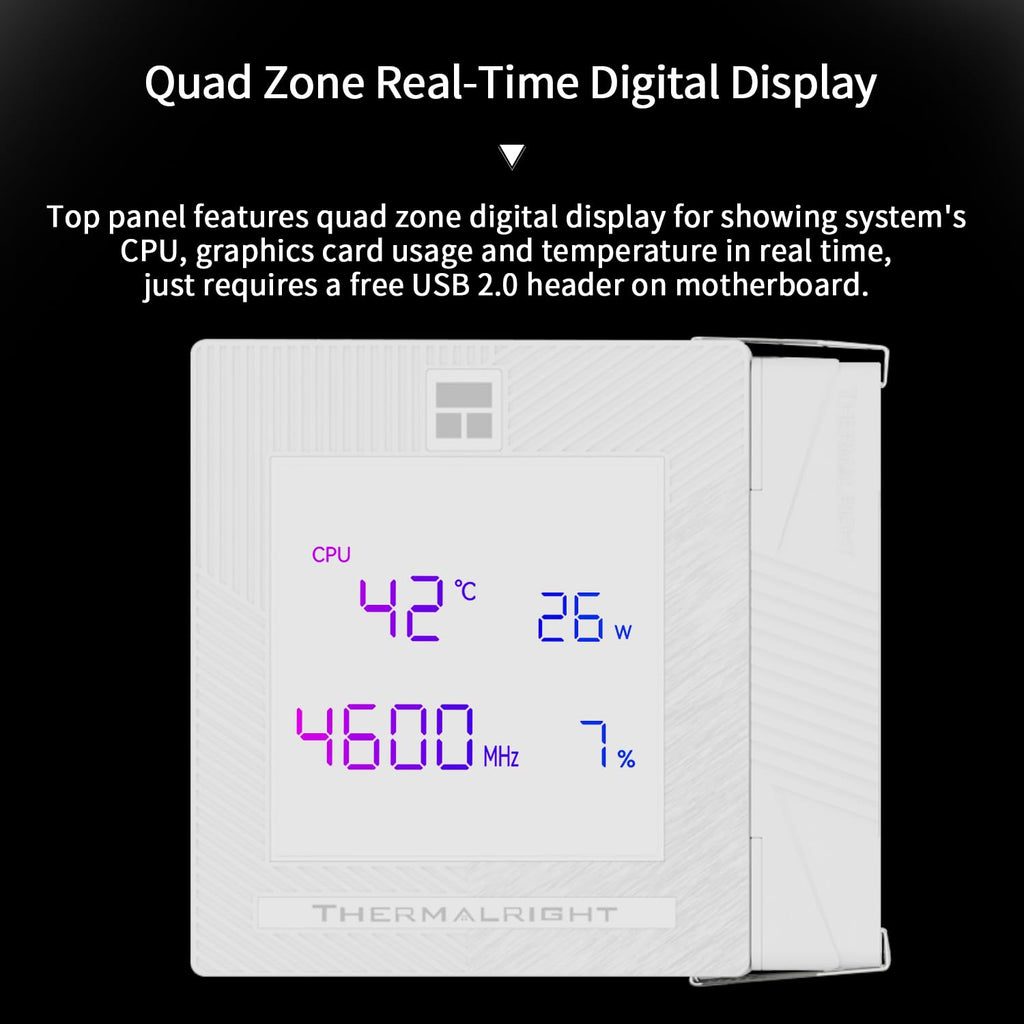

ARGB Magnetic Display Panel - The magnetic top cover ARGB display panel, paired with the radiator, can monitor the temperature and utilization rate information of the CPU and graphics card. Combined with the TRCC control software, it enables monitoring of computer data
Dual-tower dual-fan cooling - The dual-tower dual-fan cooler can easily dissipate CPU heat at a speed of 2150RPM. The fans are surrounded by thin ARGB lines, enhancing the overall aesthetic appeal. It features PWM intelligent temperature control, eliminating the need for manual adjustment of fixed speeds.

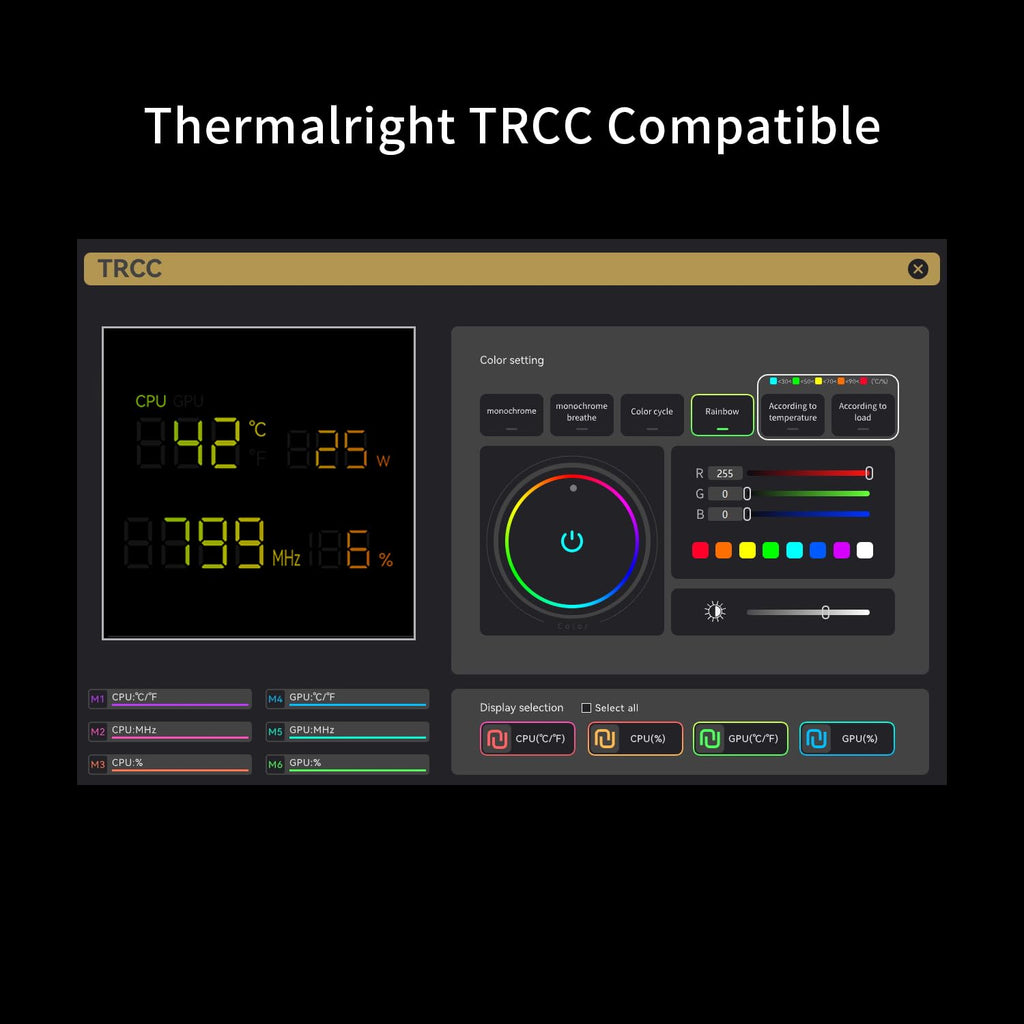

TRCC software - The TRCC control center can freely monitor the temperature and occupancy parameters of the CPU and GPU, and the color of the data text can be adjusted freely. The power supply and data communication transmission of the digital display board are provided by the motherboard's 9PIN USB interface. Please ensure the integrity of the wiring before installing the software. The software can be downloaded and installed from the official website
Detail Optimization - The SS2 buckle matched with the radiator can replace parts for water-cooled and air-cooled radiators, making it easy to install and disassemble, and convenient for users to maintain and upgrade.The accompanying 3-pin and 4-pin Y-shaped adapters can connect two fans in series, with only one motherboard interface connected

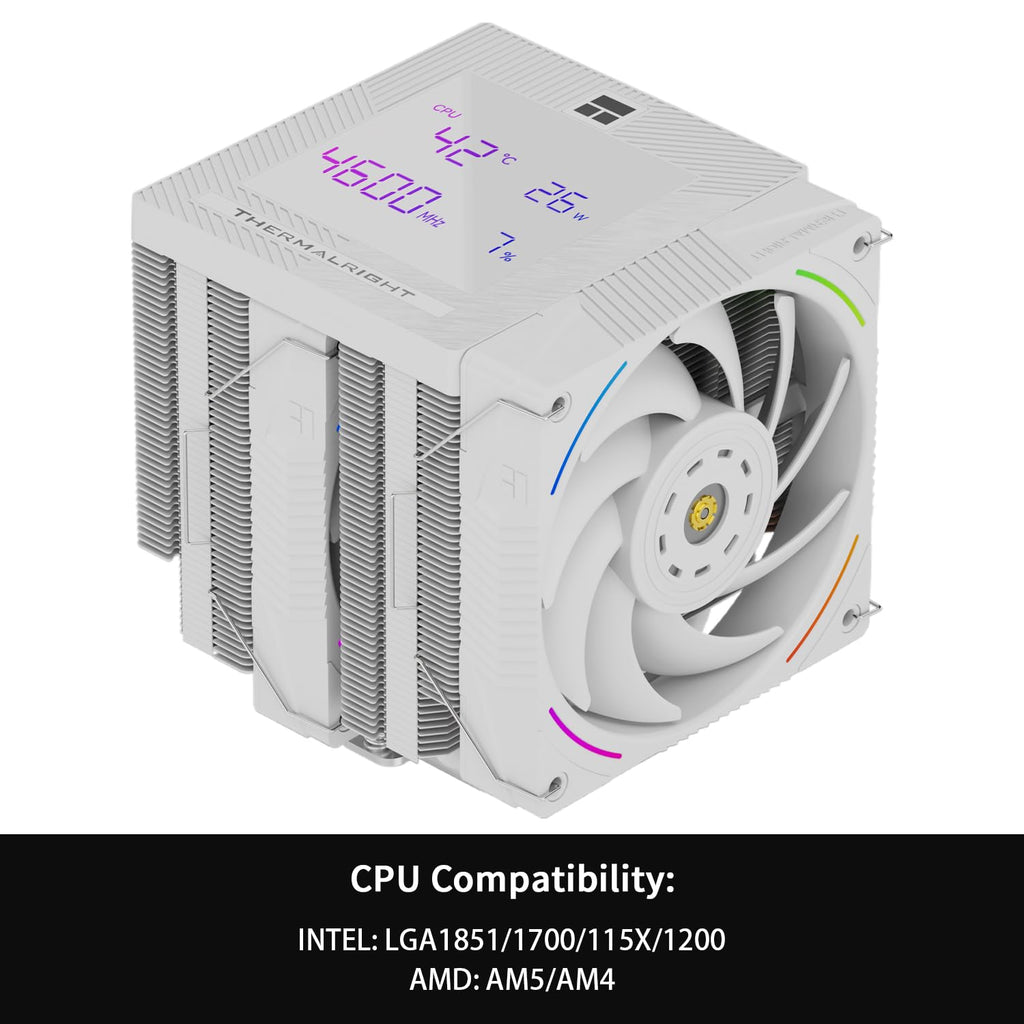

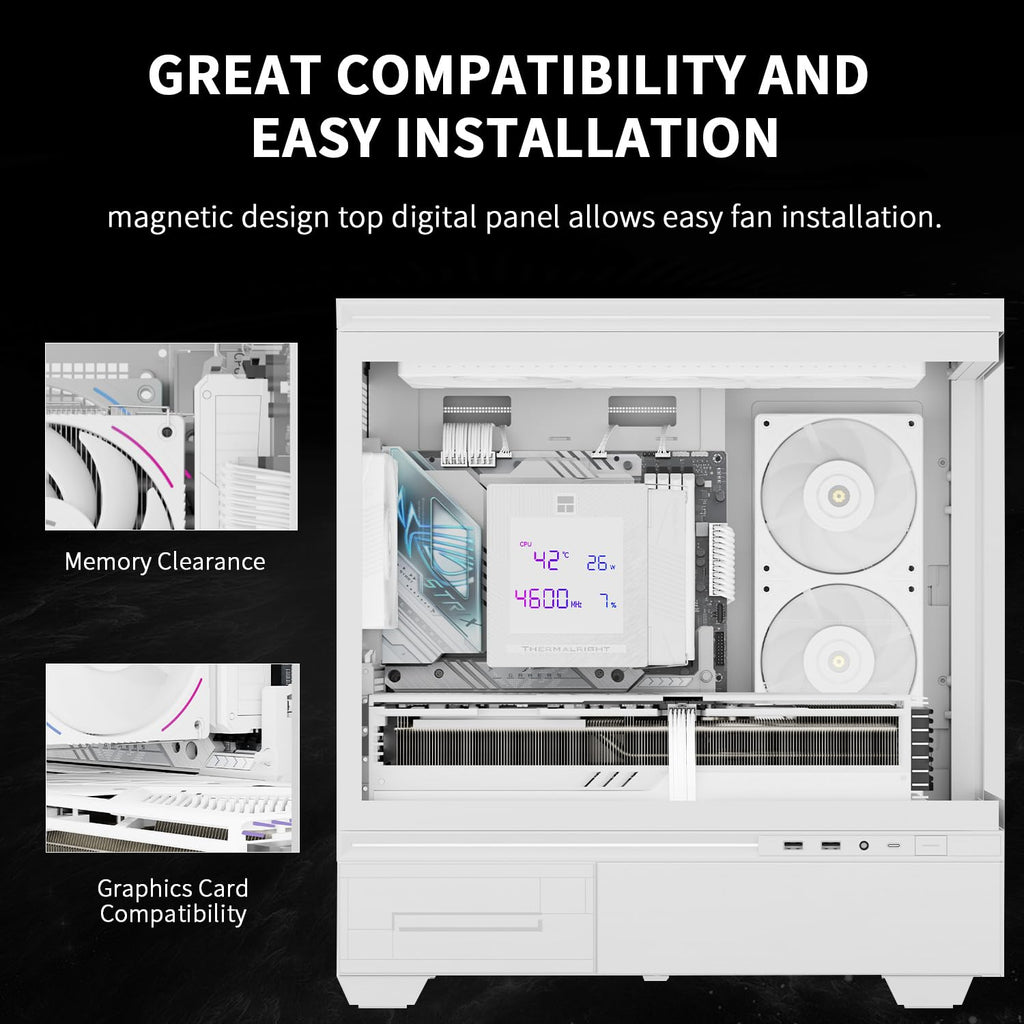

Wide compatibility - Heatsink cooler compatible platforms: AMD: AM4/AM5 and LGA1851/1700/1150/1151/1155/1156/1200, with dual platform installation clips, easy to install, can be installed according to the manual or installation video. (Note: The installation of AMD platform requires the use of the original motherboard backplane, which is not included with this product)
Specification:
| Heatsink Specifications： | |
|---|---|
| Dimension | L125 mm x W135 mm x H160 mm |

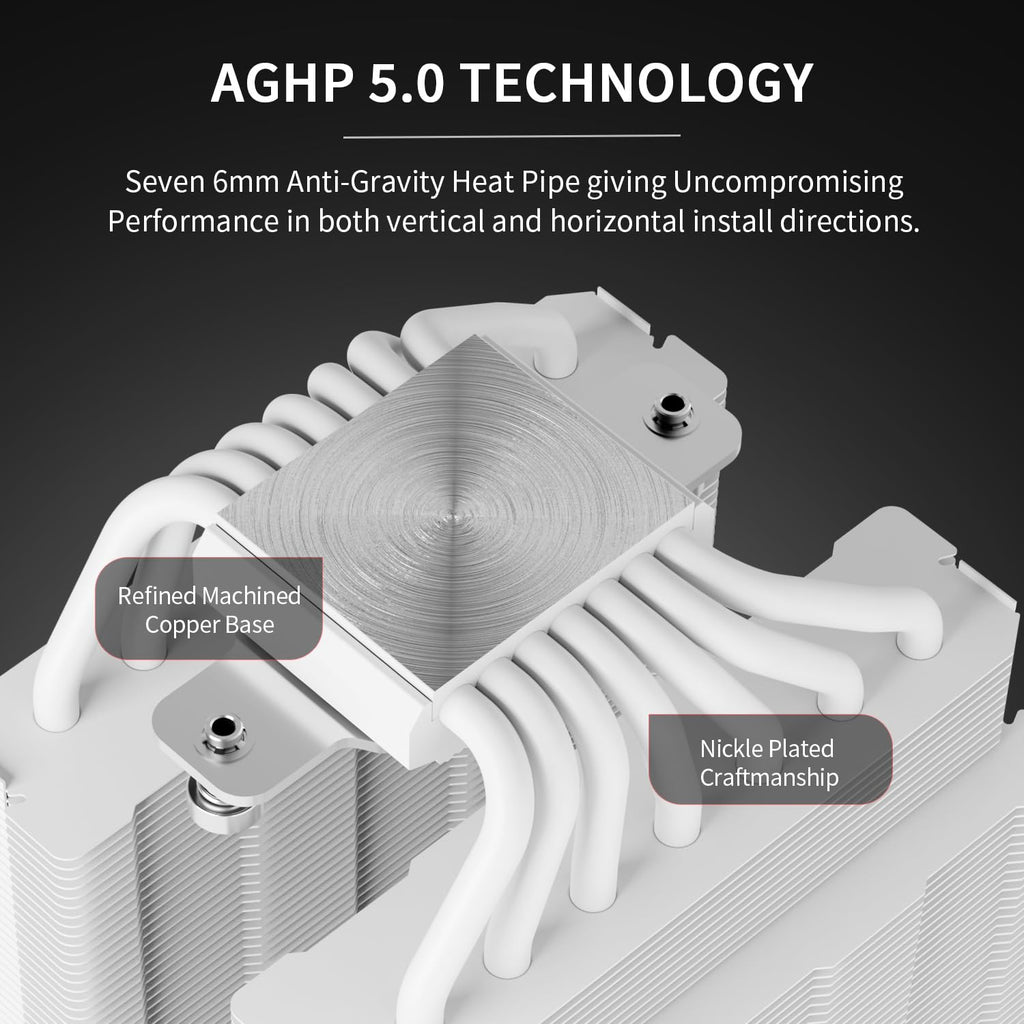

| Heat pipes | 6 mm heatpipe x 7 units |
| Copper Base | C1100 Pure copper nickel plated |
| Digital Connector | MB 9 pin/USB Port |

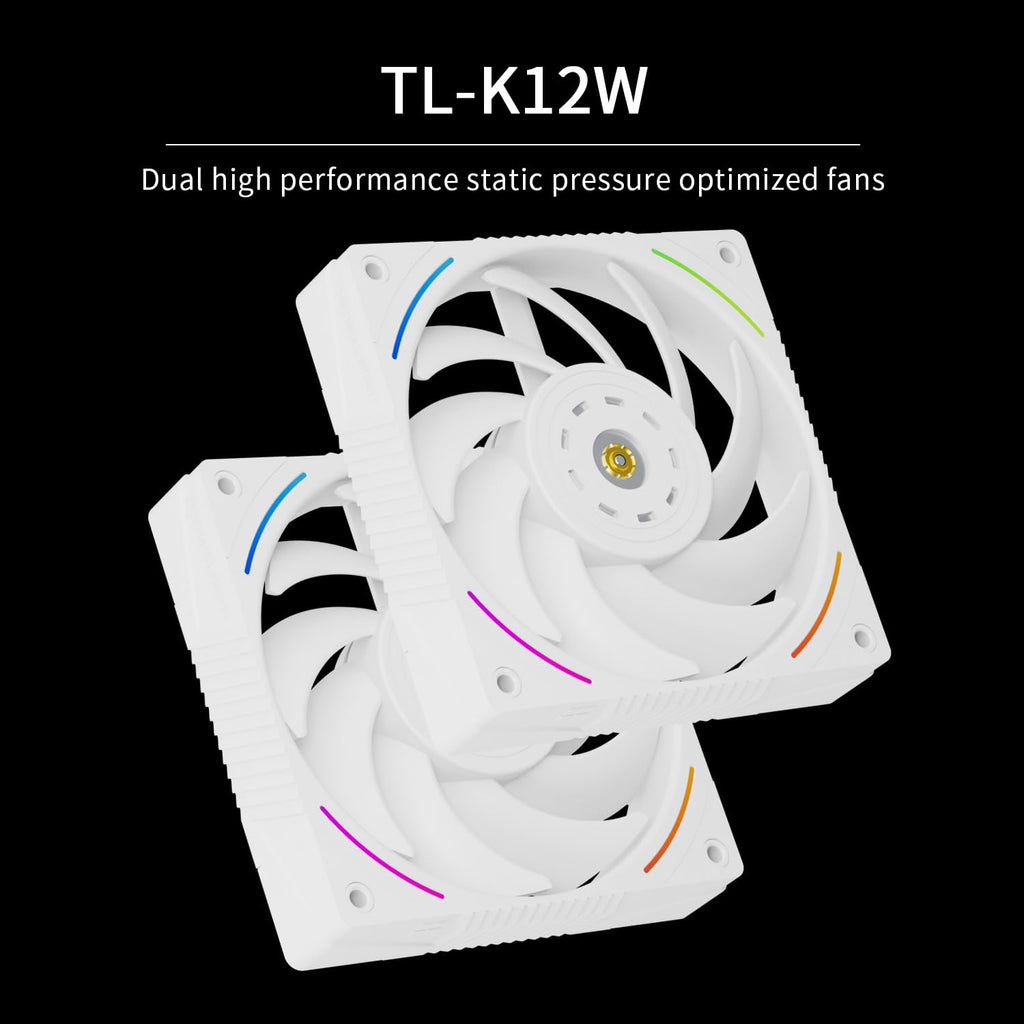

| TL-K12W FAN Spec： | |
|---|---|
| Dimension | L120 mm x W120 mm x H25 mm |
| Rated Speed | 2150 RPM±10% (MAX) |
| Noise Level | 27 dBA |
| Air Flow | 69 CFM (MAX) |
| Air Pressure | 2.87 mm H2O (MAX) |
| Ampere | 0.16 A |
| Connector | 4 Pin (PWM Fan connector) |
| ARGB Connector | 3 PIN 5V |
| Bearing Type | S-FDB V2 Bearing |
