Description
Arctic P14 PWM PST A-RGB Semi-Passive
General Specifications
Performance
| Fan Speed | 200—1900 rpm PWM Controlled (0 rpm below 5% PWM) |
|---|---|
| Airflow | 68.90 cfm | 117.06 m³/h |
| Static Pressure | 2 mmH2O |
| Noise Level | 0.3 Sone |
Fan
| Fan Frame | Standard |
|---|---|
| Control Type | PWM PST |
| Connector | 4-Pin Connector + 4-Pin Socket |
| Fan Bearing | Fluid Dynamic Bearing |
| Operating Ambient Temperature | 0—40 °C |
| Warranty | 6 Years |
Electric Characteristics
| Typical Voltage | 12 V DC |
|---|---|
| Starting Voltage | 5 V |
| Current | Voltage | 0.17 A | 12 V DC |
| Cable Length | 400 mm |
RGB Specifications
| LEDs | 12 A-RGB LEDs |
|---|---|
| Connector | 3-Pin 5 V-DI-GND Connector |
| Current / Voltage | 0.4 A/5 V |
| Cable | 400 mm Cable with 80 mm Sharing Cable, Black |

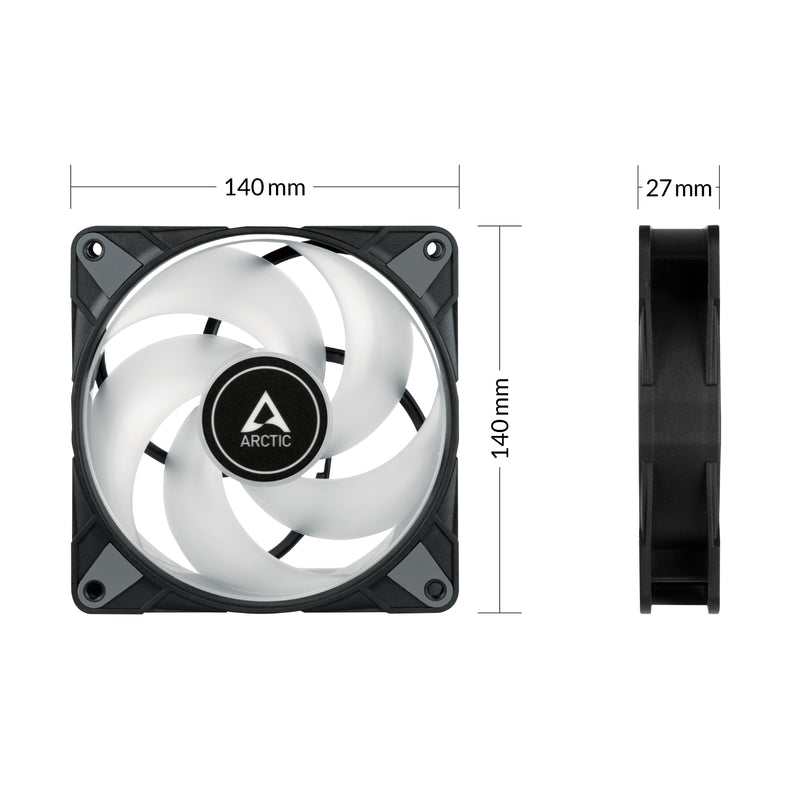

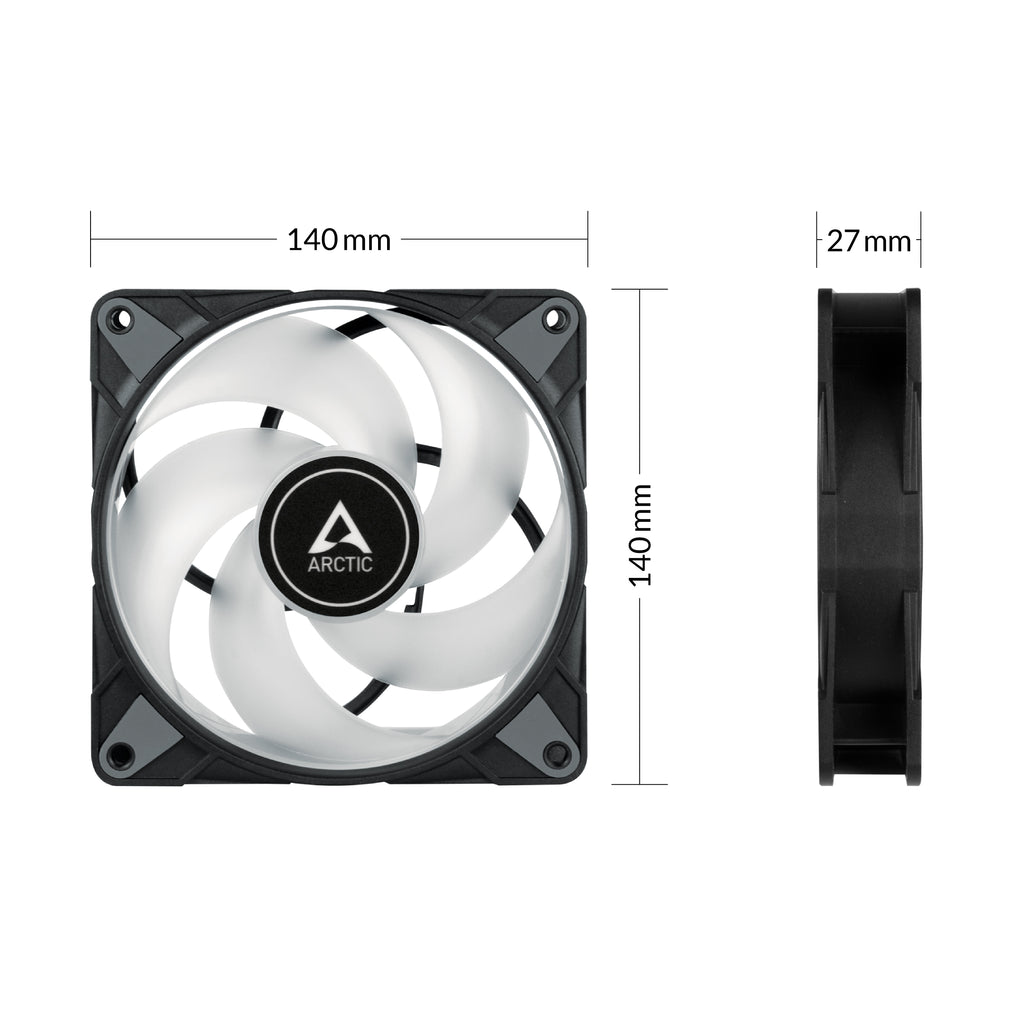

Size & Weight
| Length | 140 mm |
|---|---|
| Width | 140 mm |
| Height | 27 mm |
| Weight | 225 g |
