Description

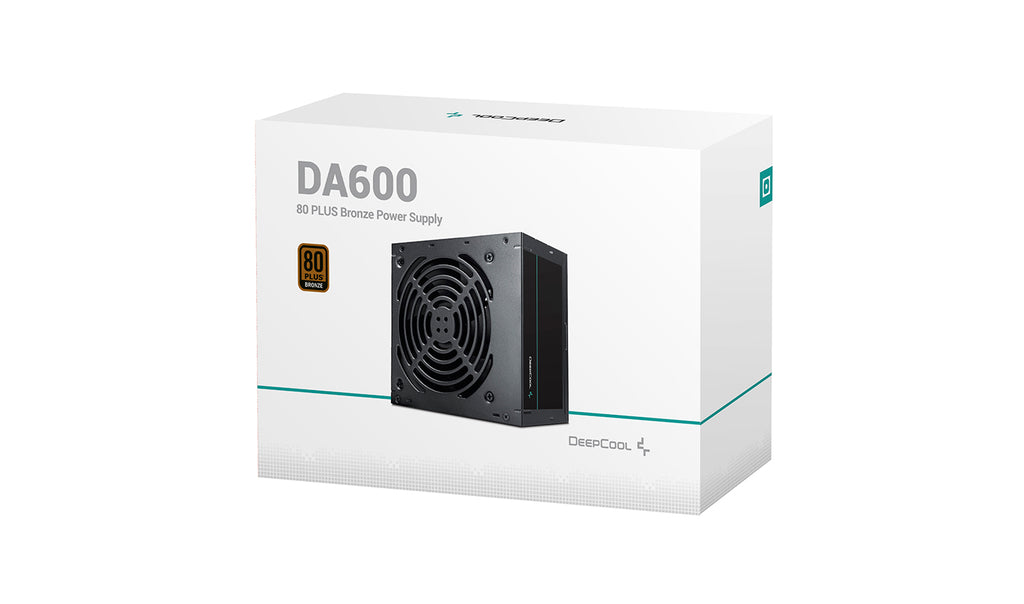

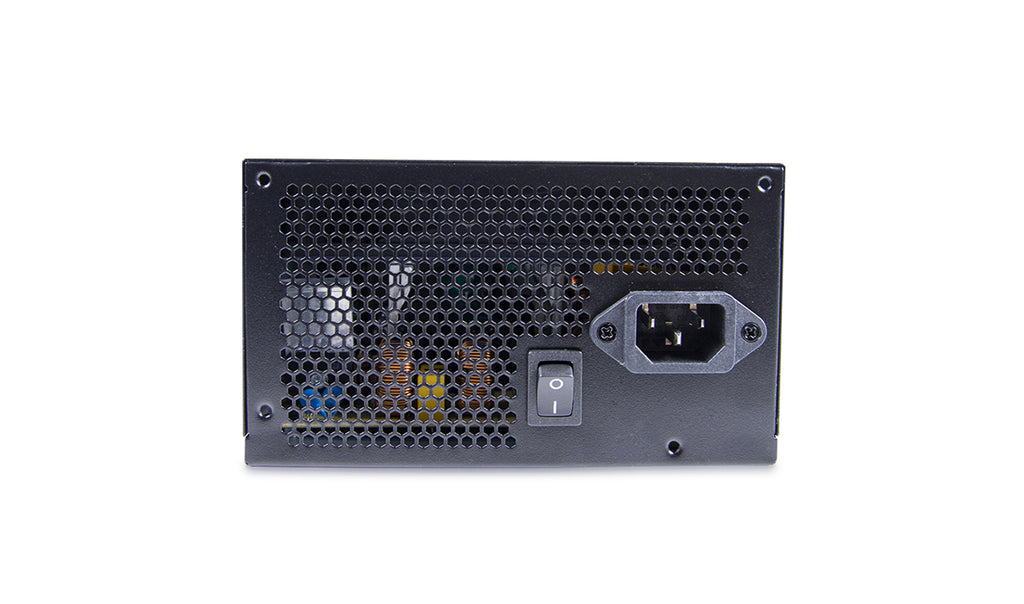

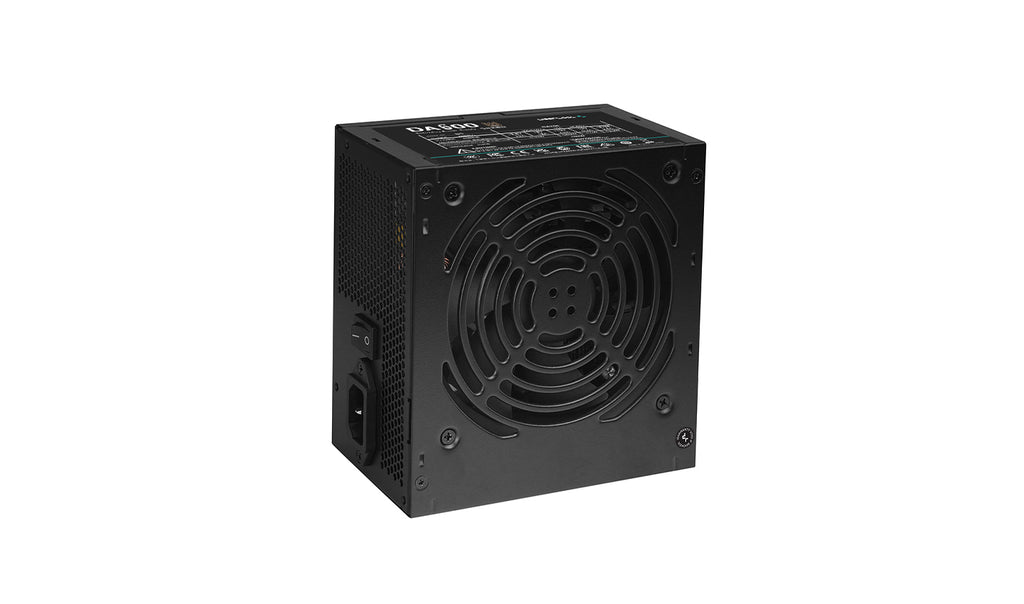

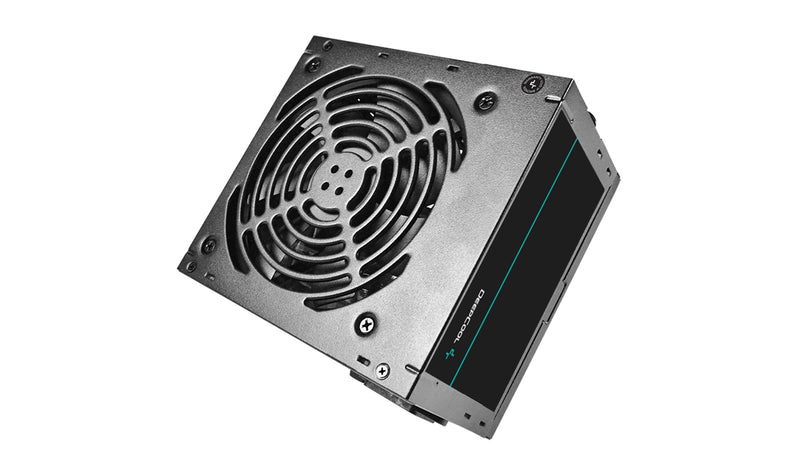

DA600
DA600 is certified with 80 plus bronze with up to 85% electrical efficiency enabling lower heat generation and lower operation cost. Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage.
DA600 is certified with 80 plus bronze with up to 85% electrical efficiency enabling lower heat generation and lower operation cost. Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage. Double layer EMI filters protect from magnetic interference and restrains noise while operating.
SPECIFICATIONS:
| Model | DA600 |
| Type | ATX 12V V2.4 |
| Certifications | 80PLUS Bronze |
| Dimension | 150×140×86mm (W x L x H) |
| Output Capacity | 600W |
| Input Voltage | 100~240V |
| Input Current | 9.0A |
| Input Frequency Range | 47~63Hz |
| Fan Size | 120mm Black Fan |
| PFC | Active PFC (>0.9) |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Efficiency | 85% Under Typical Load |
| Protection | OVP / UVP / SCP / OPP |
| Operation Temperature | 0~40°C |
| Regulatory | CB/CE/FCC/CCC/RCM/EAC/UKCA/S |
| MTBF | 100,000 Hours |
