Description

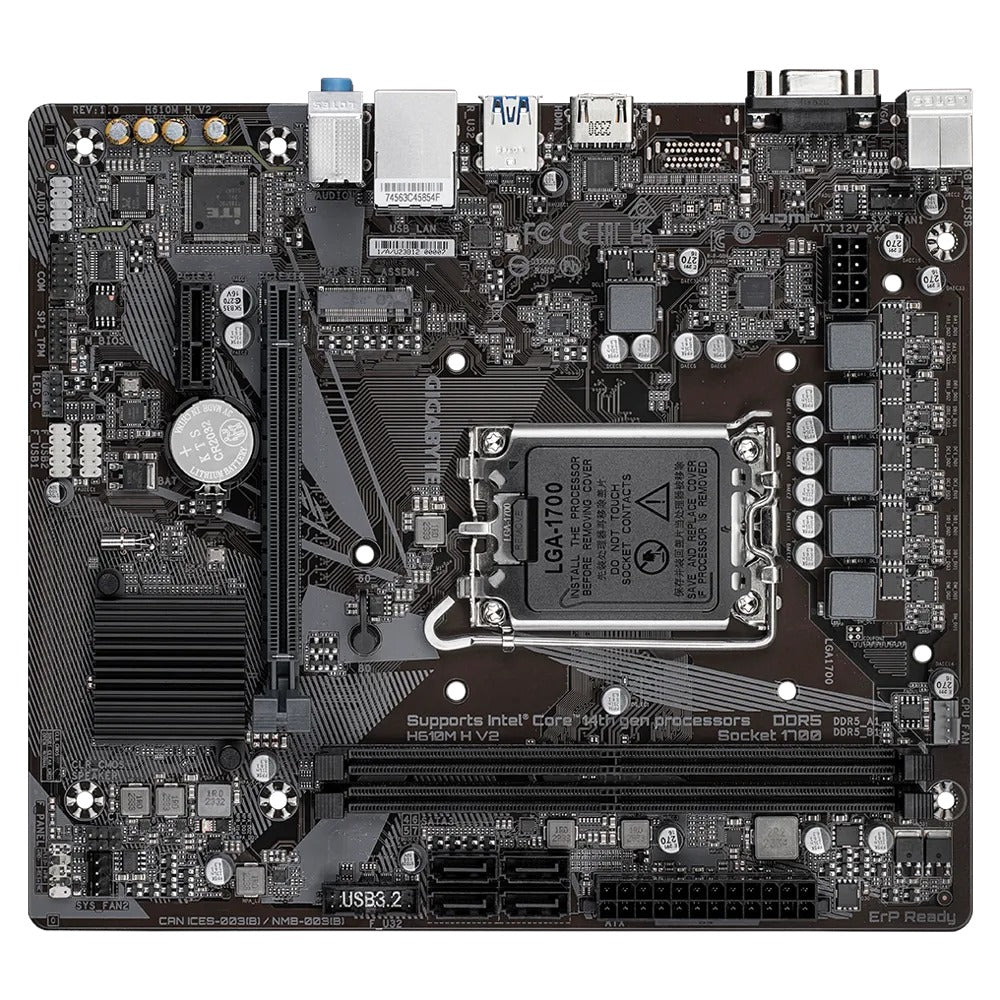

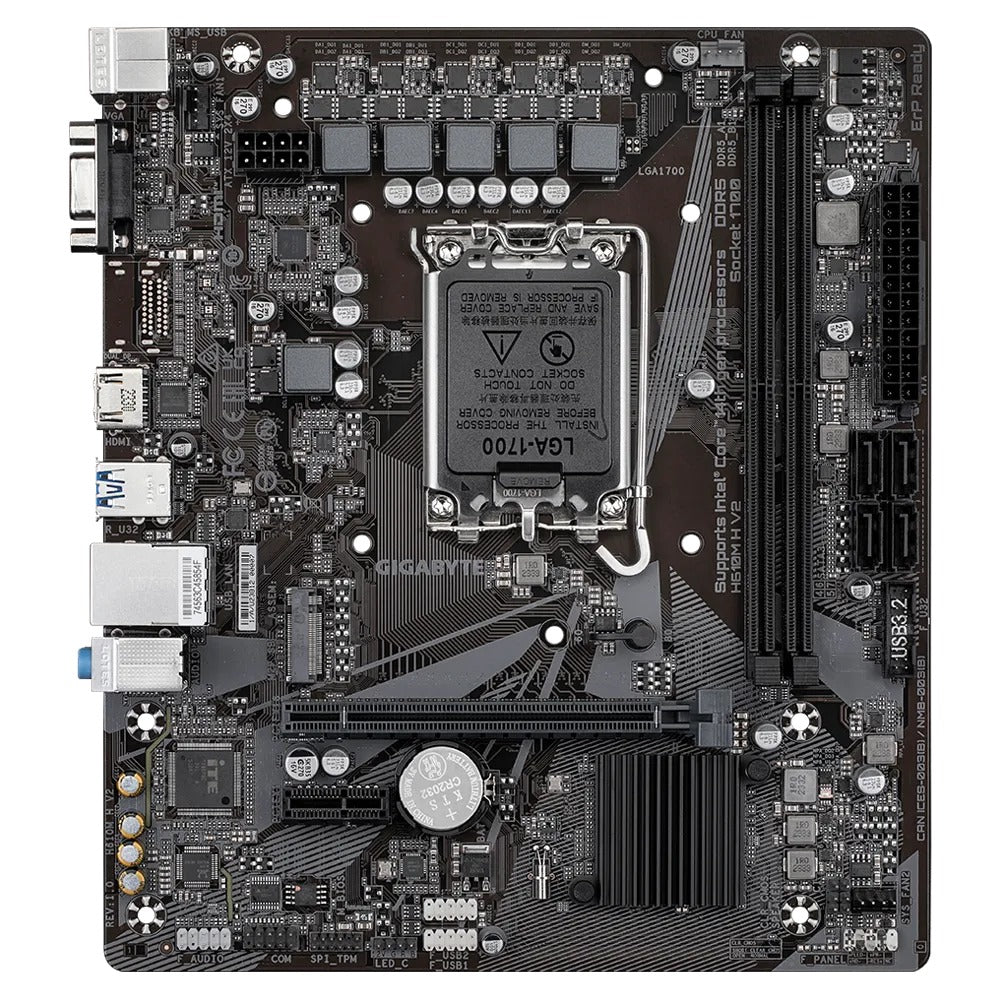

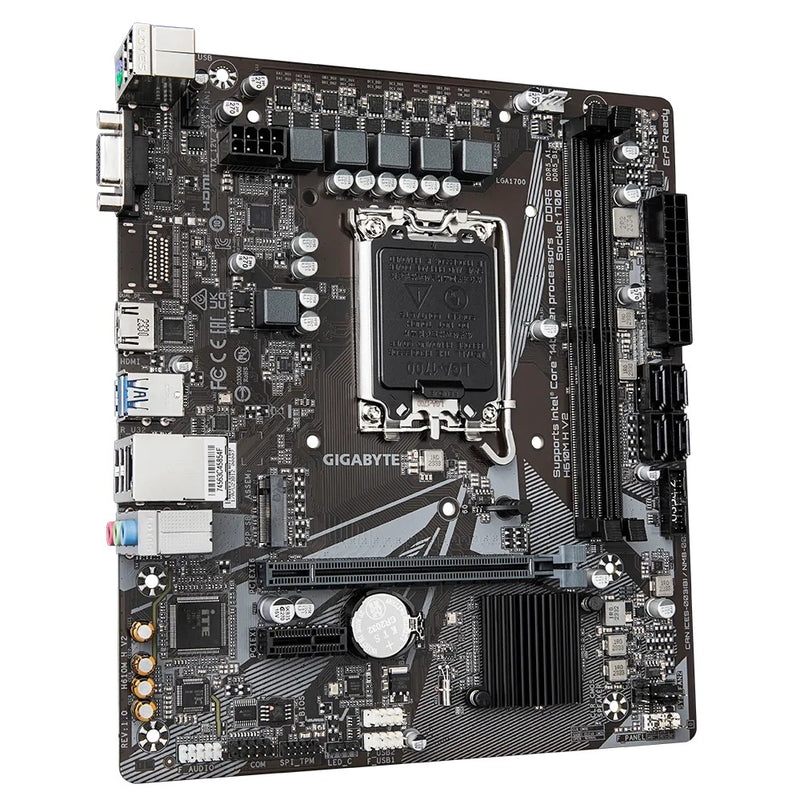

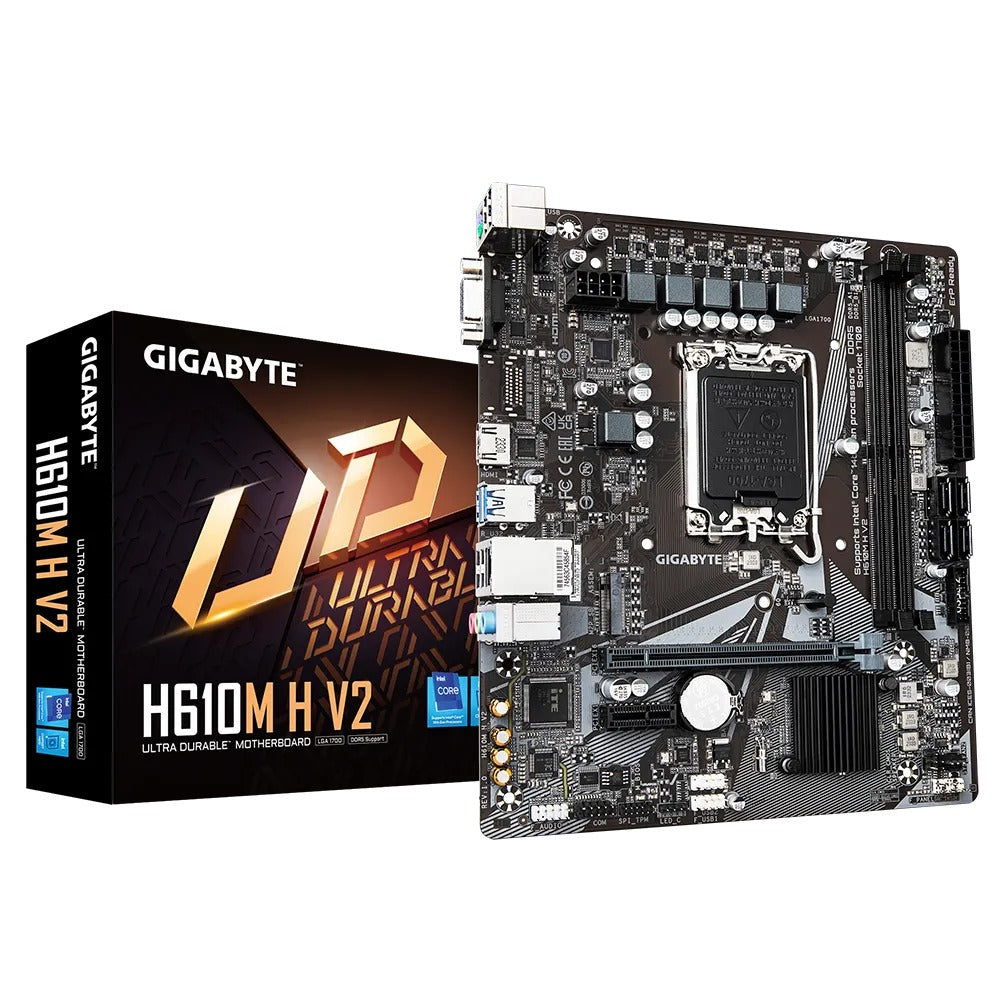

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Specifications:
| CPU Support | LGA1700 socket 14th, 13th, 12th Gen Intel Core, Pentium Gold, Celeron L3 cache varies by CPU |
| Chipset | Intel H610 Express Chipset |
| Memory | 2 x DDR5 DIMM, up to 128GB Up to DDR5-5600 (depends on CPU) Dual channel Supports ECC (non-ECC mode) and non-ECC DIMMs XMP support |
| Graphics Outputs | 1 x D-Sub (1920x1200@60Hz) 1 x HDMI (4096x2160@60Hz, HDMI 2.1) Graphics support varies by CPU |
| Audio | Realtek Audio CODEC 2/4/5.1/7.1-channel HD Audio |
| LAN | Realtek GbE LAN (1Gbps) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU) 1 x PCIe 3.0 x1 (Chipset) |
| Storage | 1 x M.2 PCIe 3.0 x4/x2 (2280/2260) 4 x SATA 6Gb/s |
| USB | Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0 Internal: 2 x USB 3.2 Gen 1 (via header), 4 x USB 2.0 (via 2 headers) |
| Internal Connectors | 24-pin ATX, 8-pin 12V 1 x CPU fan, 2 x system fan 1 x M.2, 4 x SATA 1 x RGB header, front panel, audio, speaker USB 3.2 Gen 1 header, 2 x USB 2.0 headers TPM, serial port, chassis intrusion, Clear CMOS jumper |

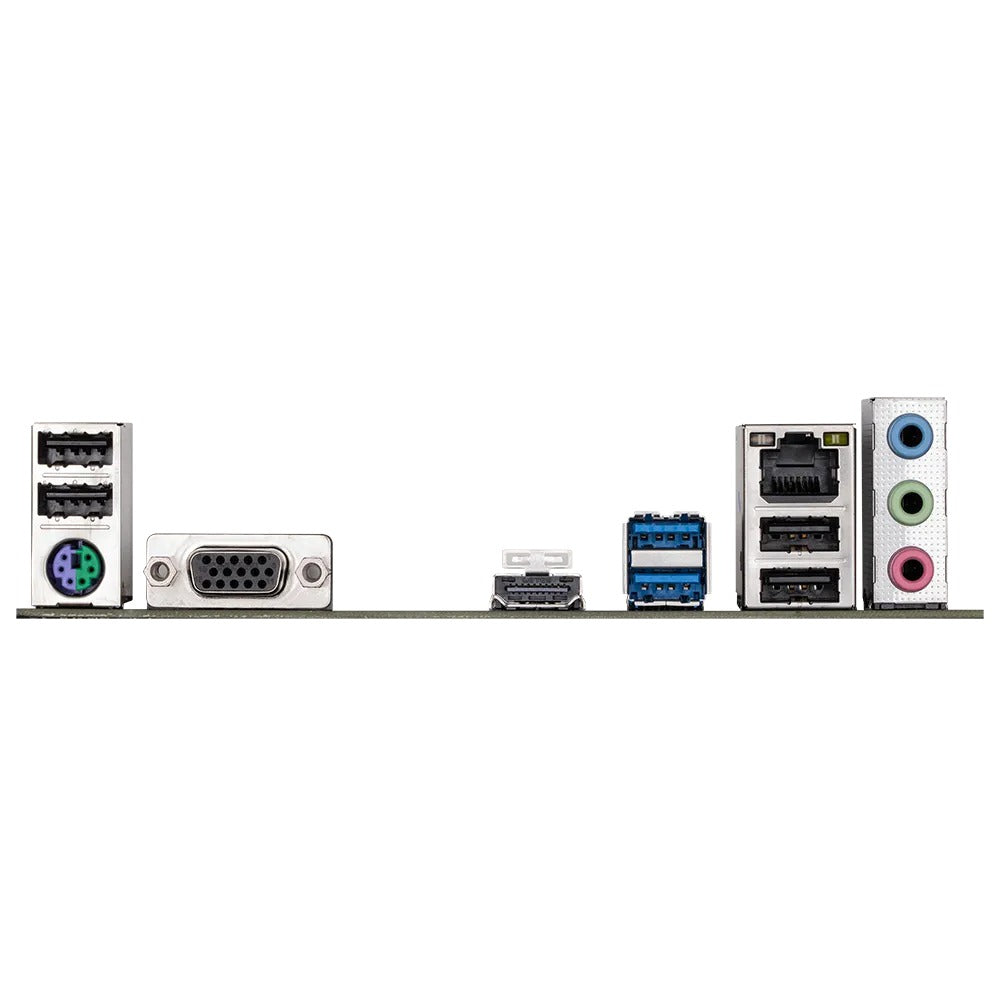

| Back Panel I/O | 1 x PS/2 keyboard/mouse 1 x D-Sub, 1 x HDMI 2 x USB 3.2 Gen 1, 4 x USB 2.0 1 x RJ-45, 3 x audio jacks |
| BIOS | 128 Mbit flash, AMI UEFI BIOS Q-Flash support |
| Unique Features | GIGABYTE APP Center @BIOS, EasyTune, Smart Backup, System Info Viewer |
| Bundled Software | Norton Internet Security (OEM) LAN bandwidth software (discontinued) |
| OS Support | Windows 11 & 10 64-bit |
| Form Factor | Micro ATX (22.3 x 19.6 cm) |
