Description

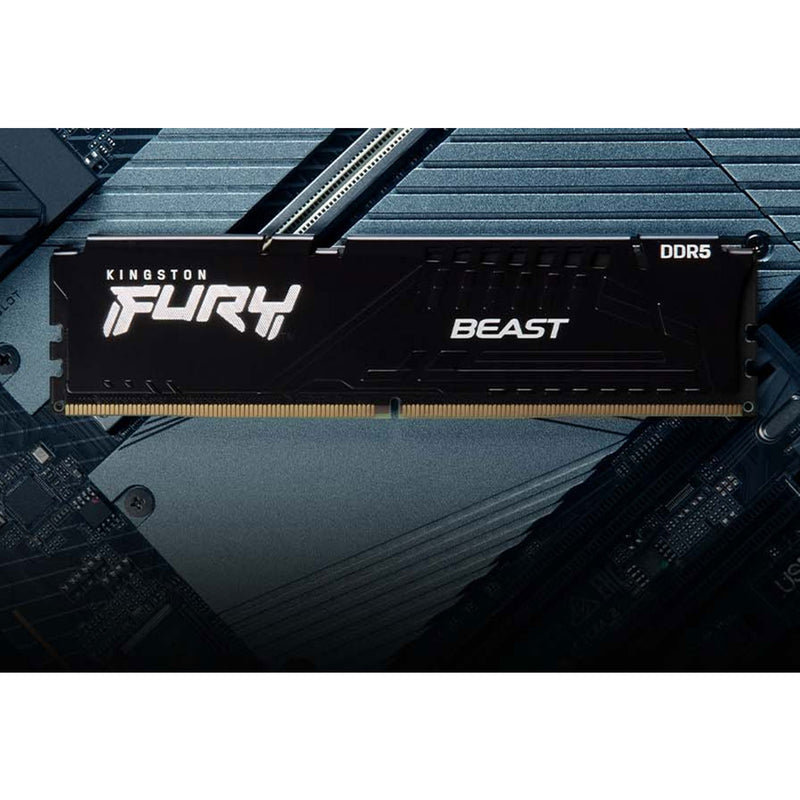

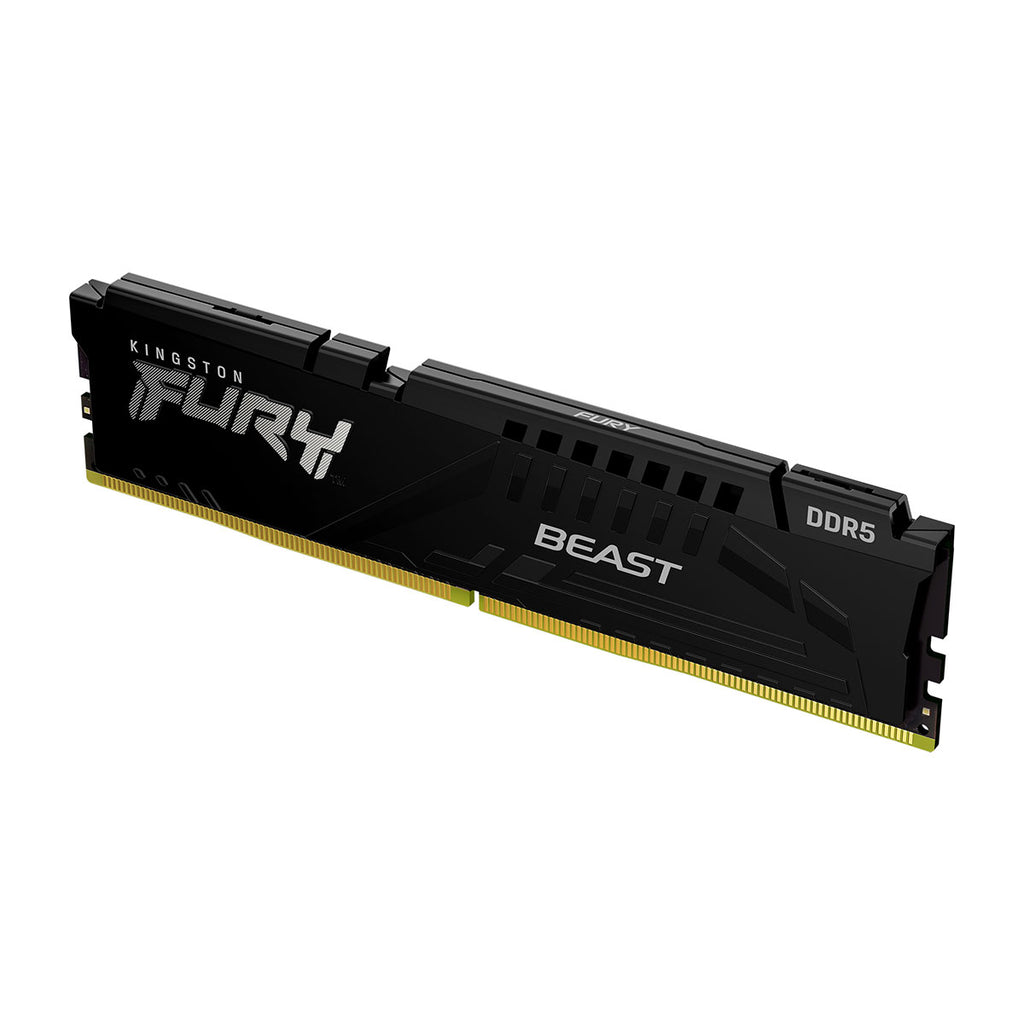

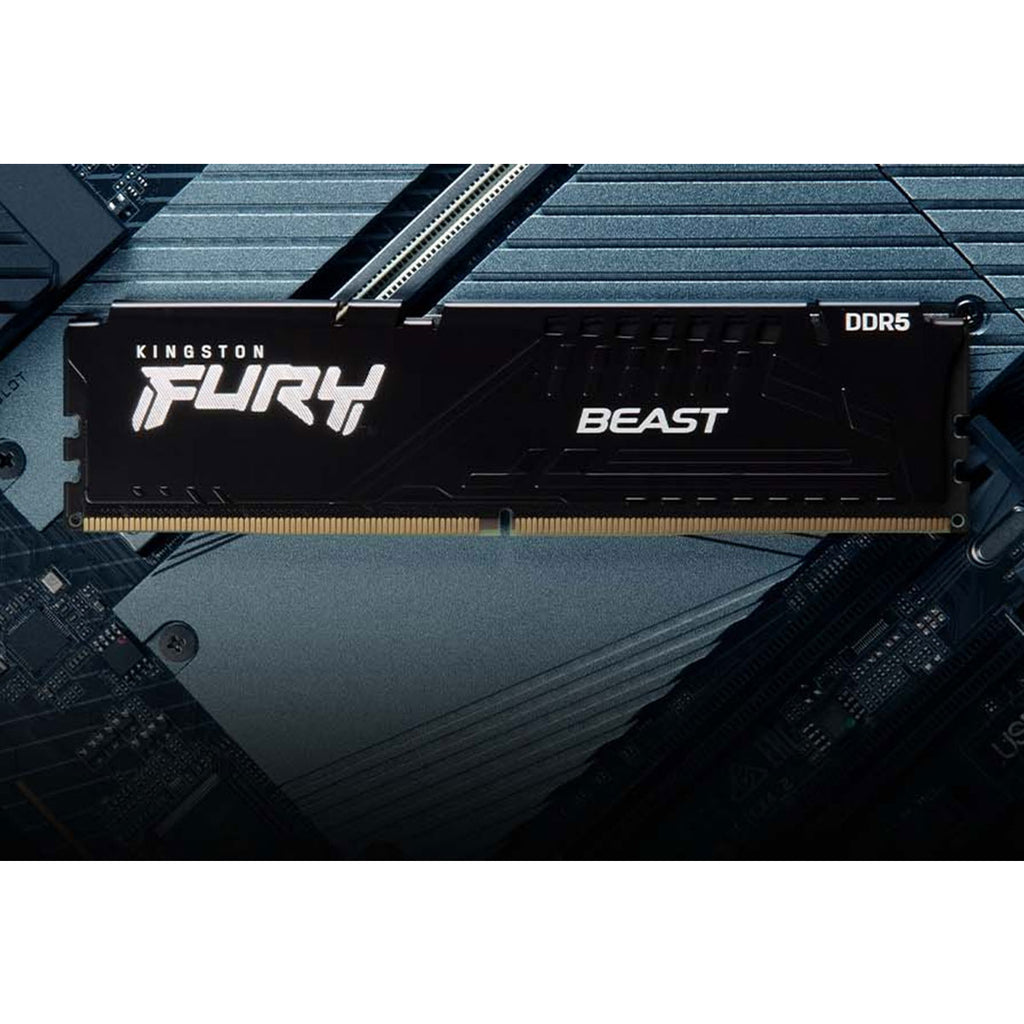

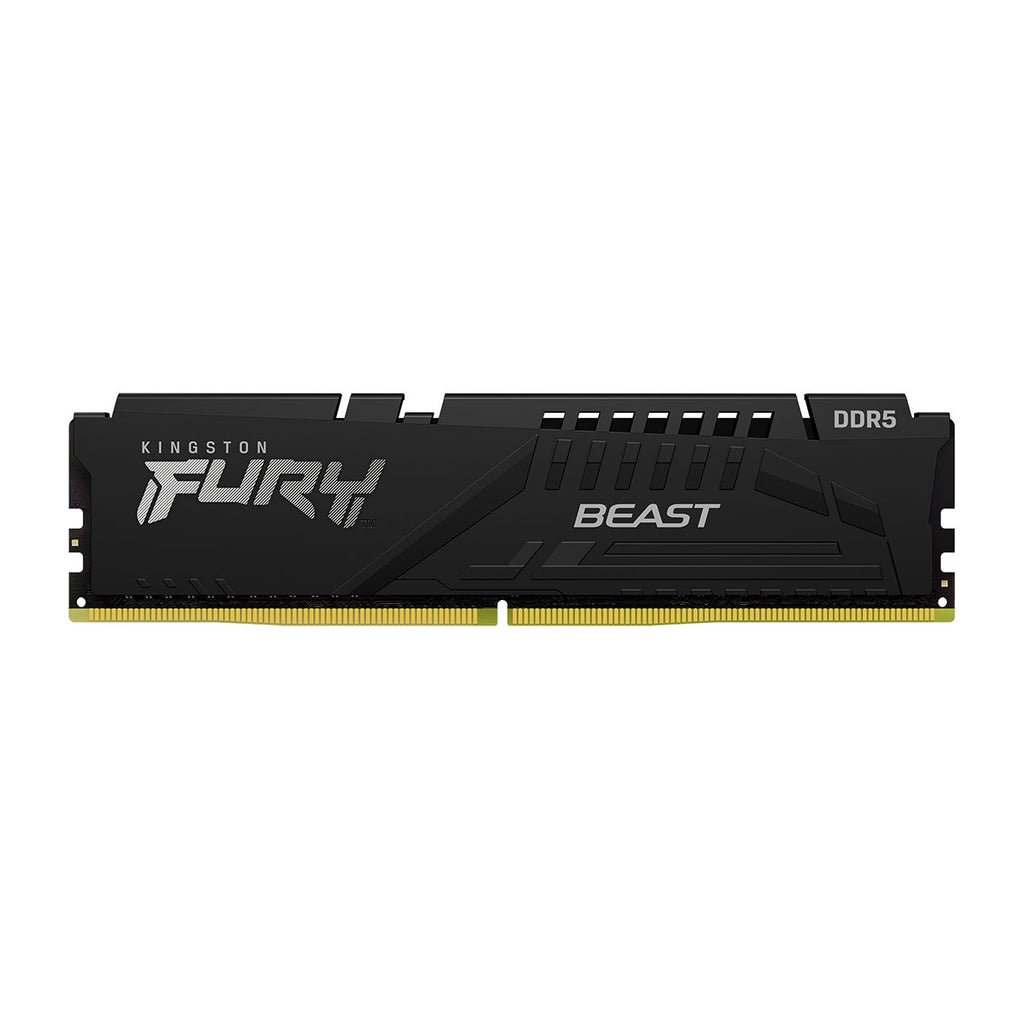

Kingston FURY KF556C40BB-32 is a 4G x 64-bit (32GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel®
XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical
FEATURE
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37” (34.9mm), w/heatsink
SPECIFICATION
| CL(IDD) | 40 cycles |
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0o C to +85o C |
| Storage Temperature | -55o C to +100o C |
