Description
- Supports Nvidia® GeForce RTXTM 50 Series graphics cards
- Dual-native 12V-2x6 Connectors
- Server-grade materials, SiC interleaved PFC MOSFET
- Tri-certified Titanium certification (80 PLUS / Cybenetics / PPLP)
- PCIe 5.1 and ATX 3.1 Ready
- Dual-color 12V-2x6 cables
- 100% all Japanese 105oC capacitor
- Full digital design with control MCU
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Specifications:
| Efficiency Rating | 80 PLUS Titanium (up to 94%) |
| Modular | Yes (Fully Modular) |

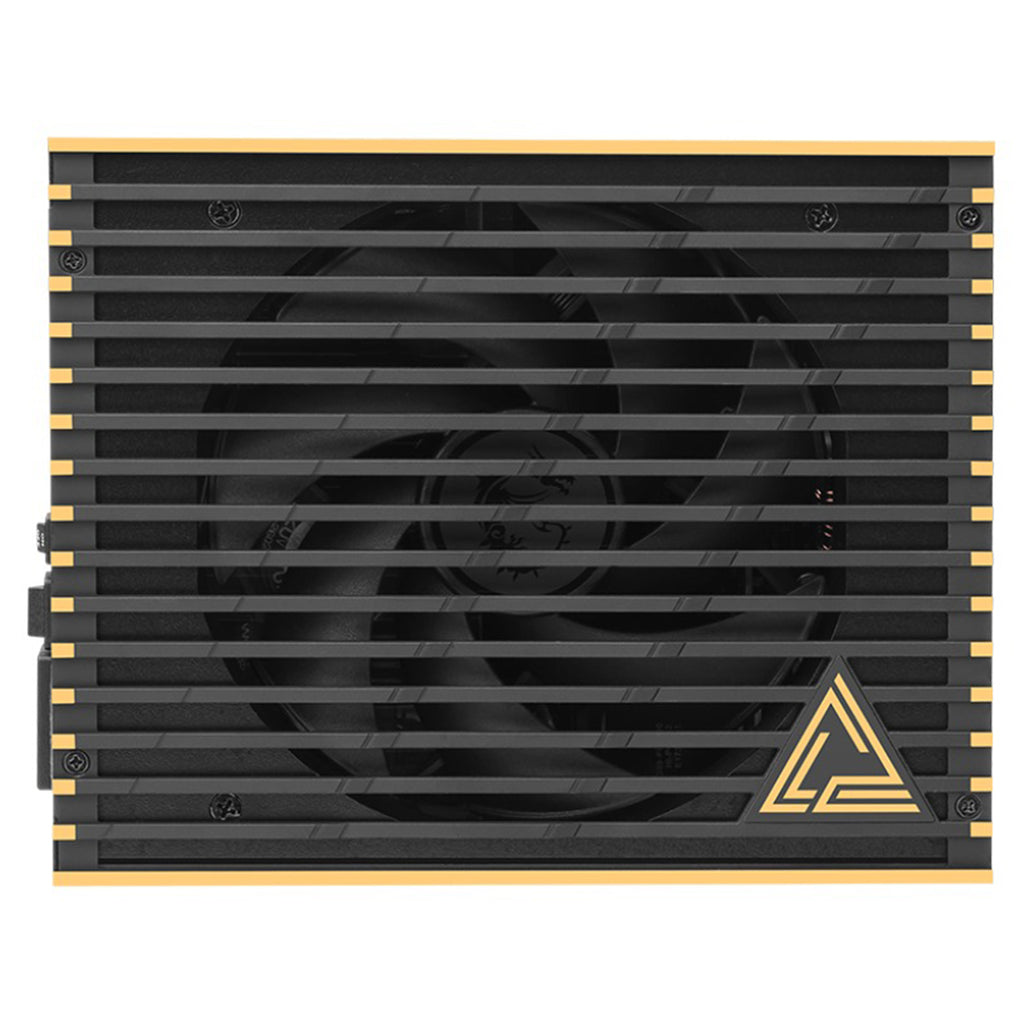

| Fan Size | 135 mm |
| Fan Bearing | Double Ball Bearing |
| Dimensions (DxWxH) | 190 x 150 x 86 mm |
| PFC Type | Interleaved PFC |
| Input Voltage Range | 100-240 |
| Power Watt | 1600W |
| Power Excursion | 3840W (*up to 240% of the PSU's rated power for 100μs) |
| Input Frequency Range | 50~60 Hz |
| Protection | OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO |

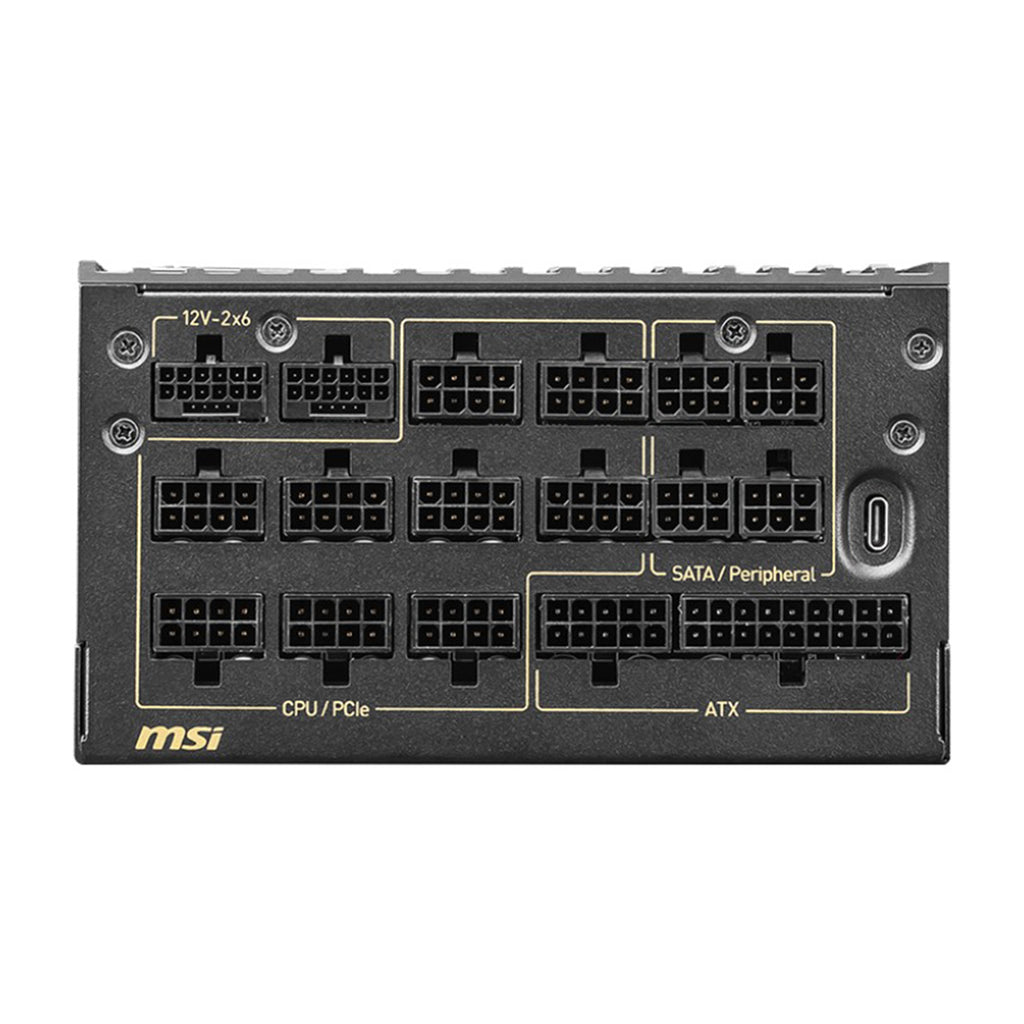

| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.1 (16 pin) | 2 (600W) |
| PCI-E (6+2 pin) | 9 |
| SATA (15 pin) | 8 |
| PERIPHERAL (4 pin) | 8 |
