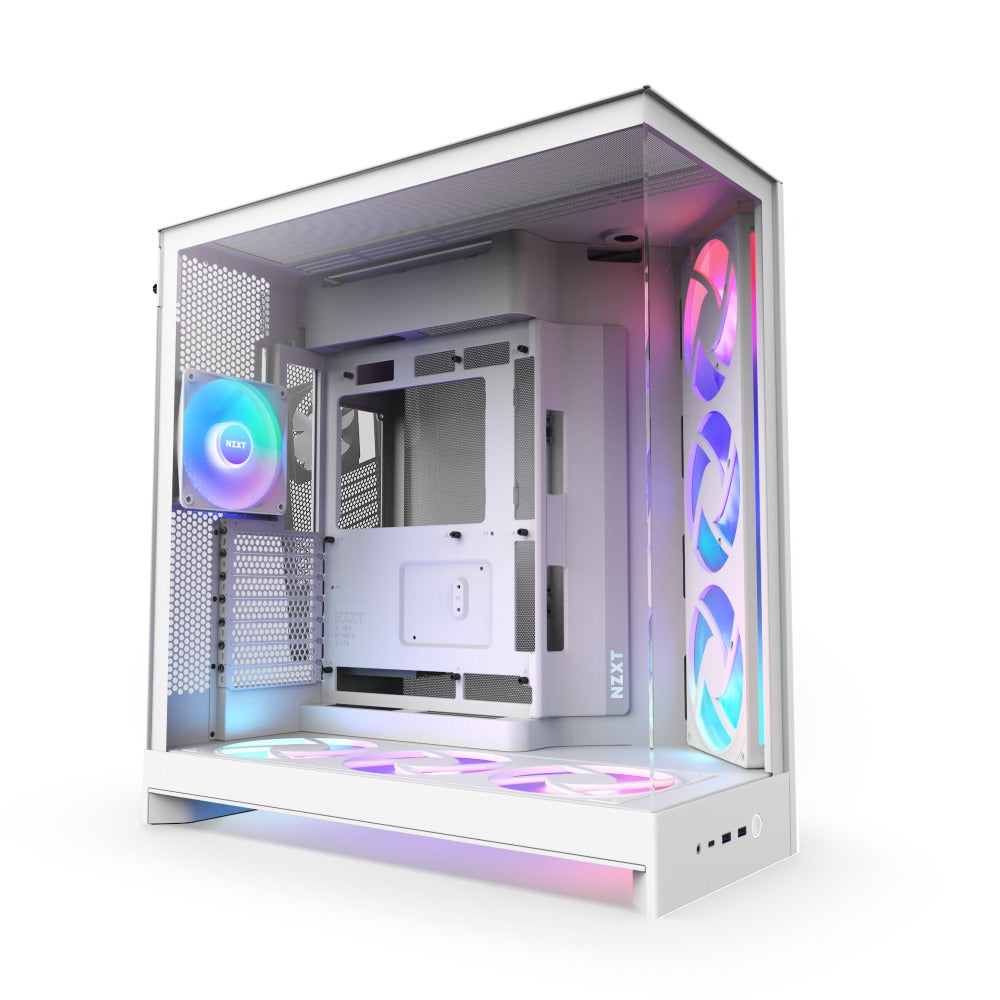

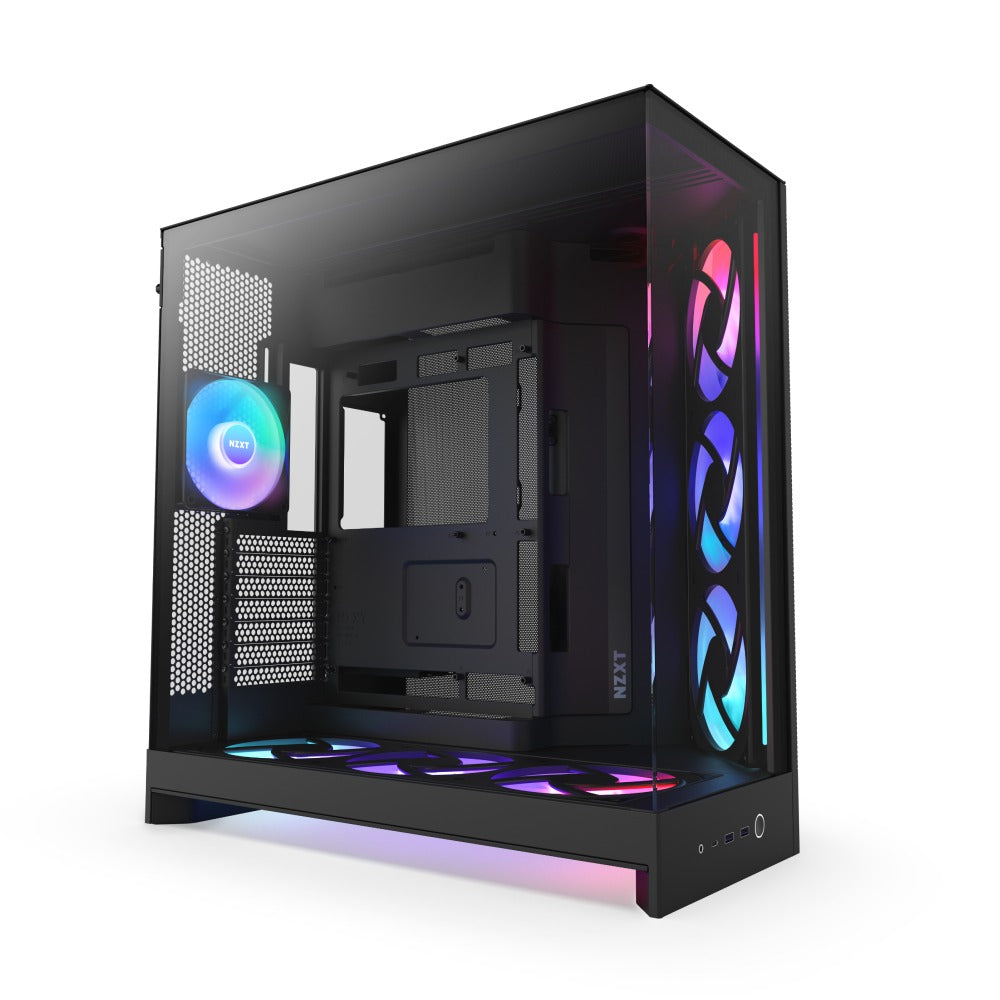

NZXT H9 Flow RGB+ Large Dual-Chamber Mid-Tower ATX Airflow Case with RGB & Control Hub
The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

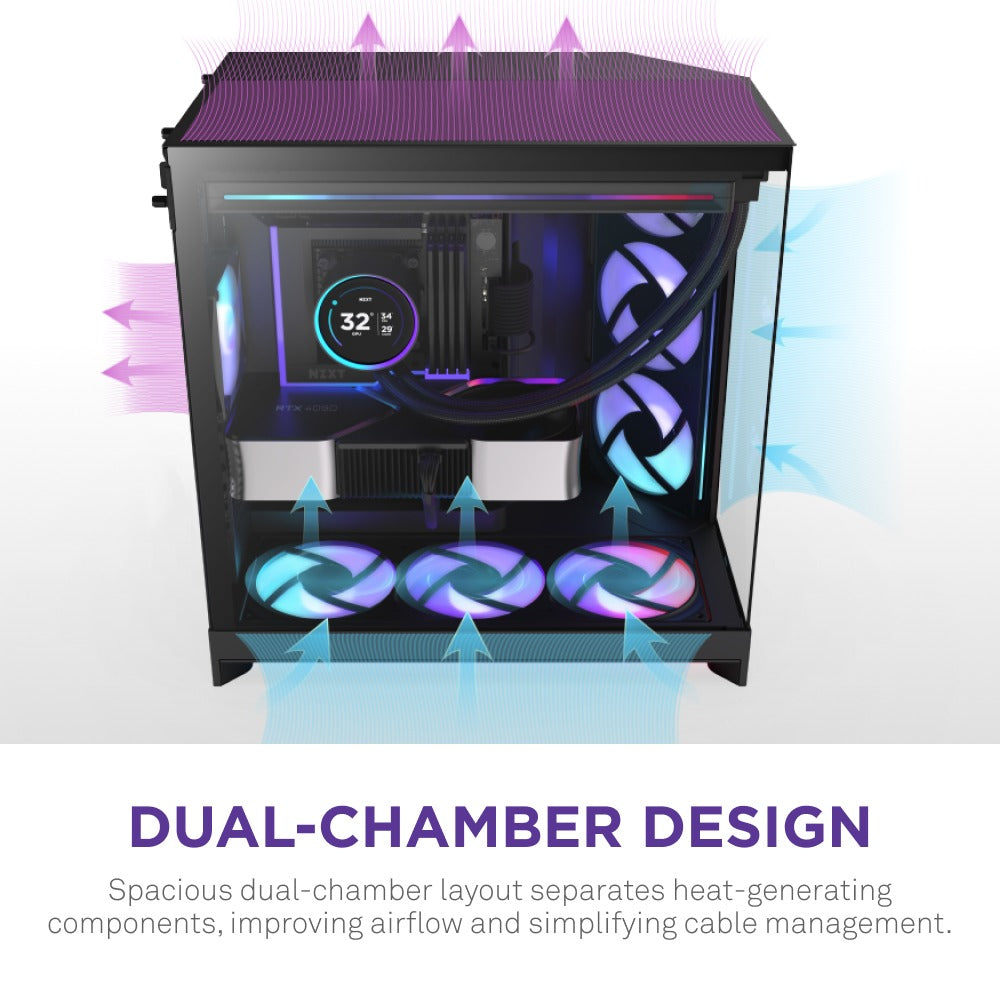

- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
- Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

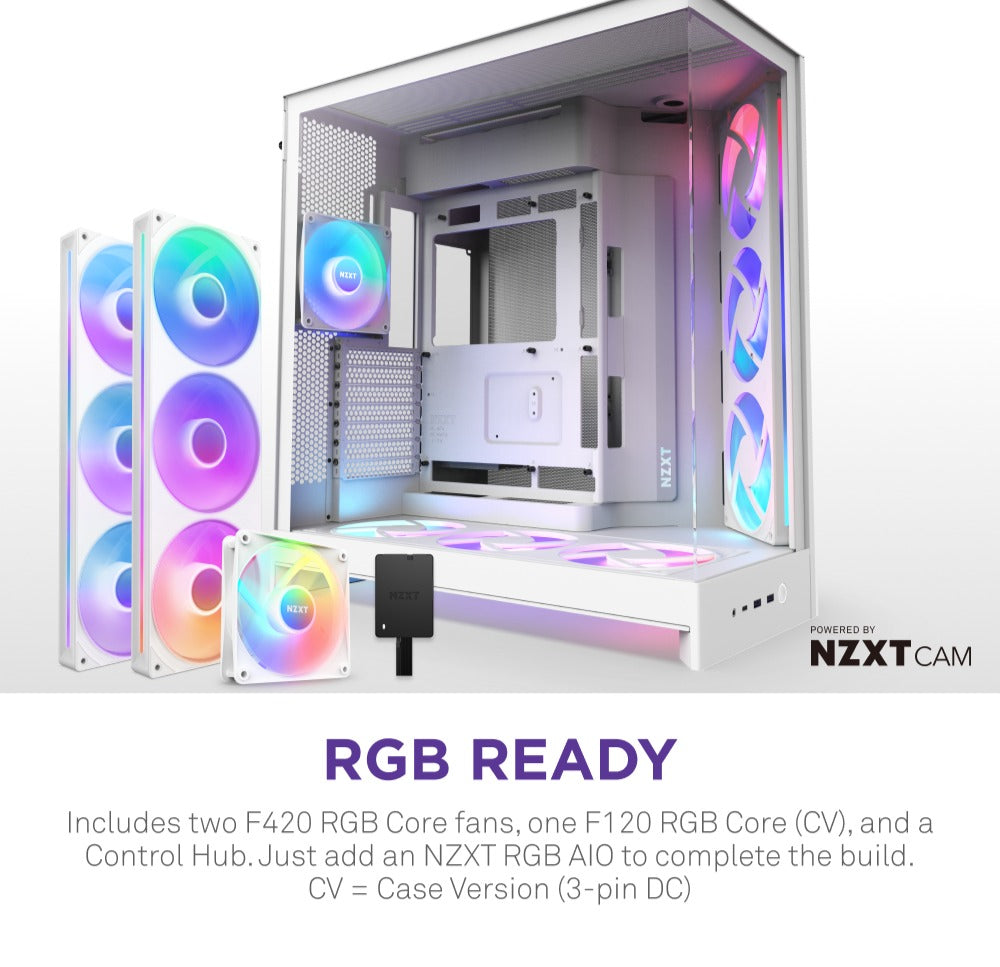

- RGB Ready: Includes two F420 RGB Core single-frame fans, one F120 RGB Core (CV) fan in the rear, and an NZXT Control Hub. CV = Case Version (3-pin DC)

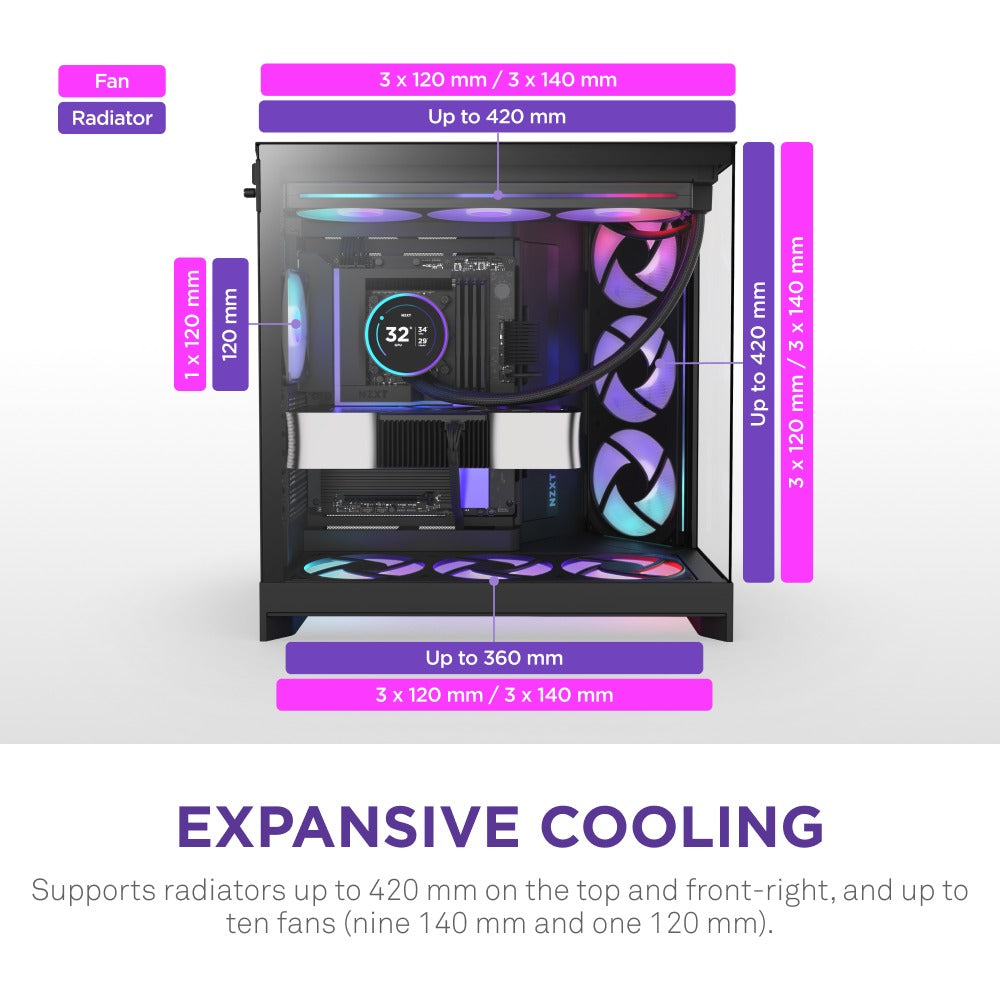

- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.

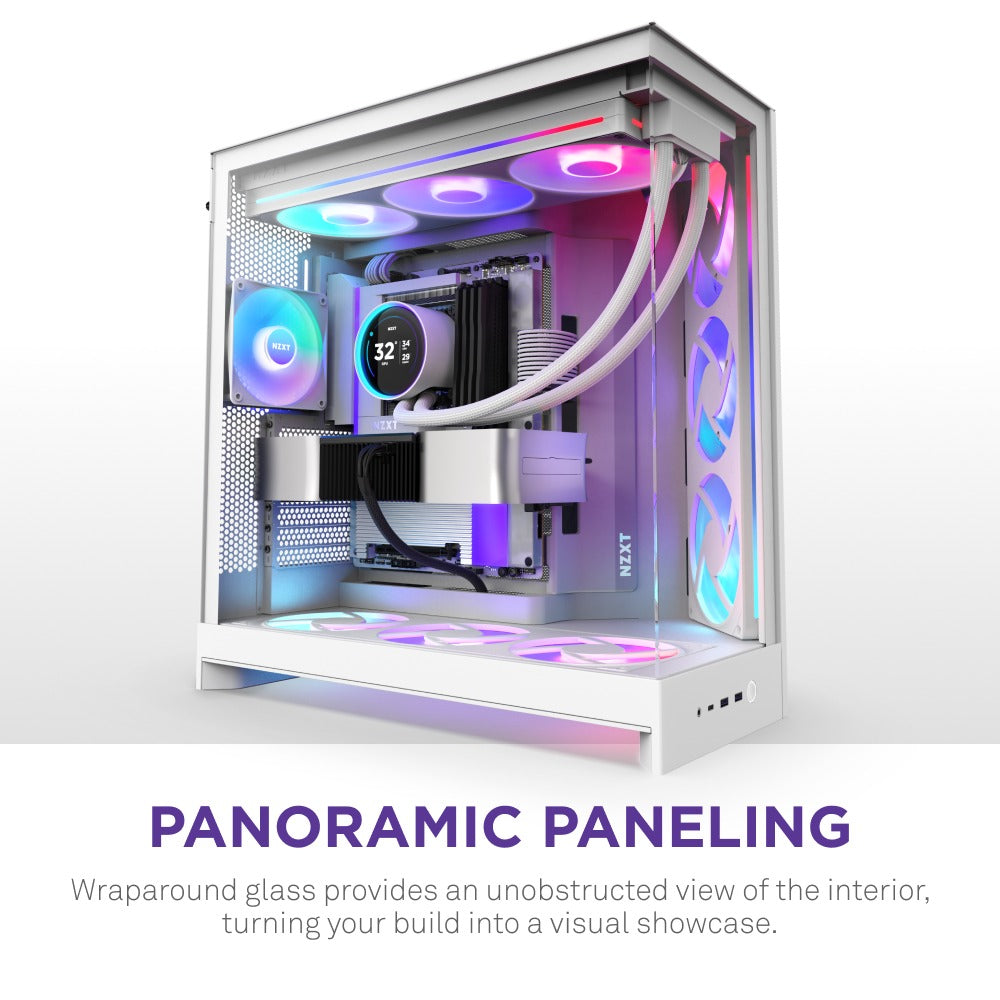

- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.

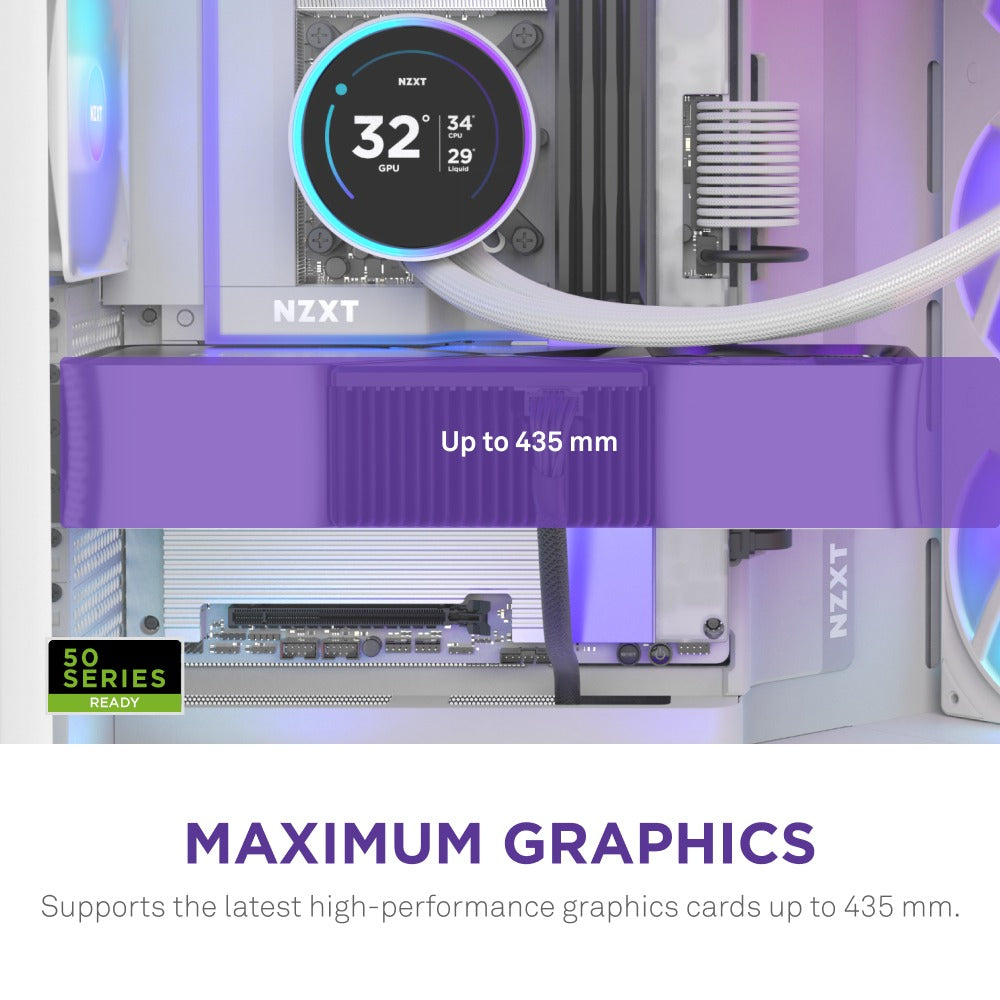

- Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.

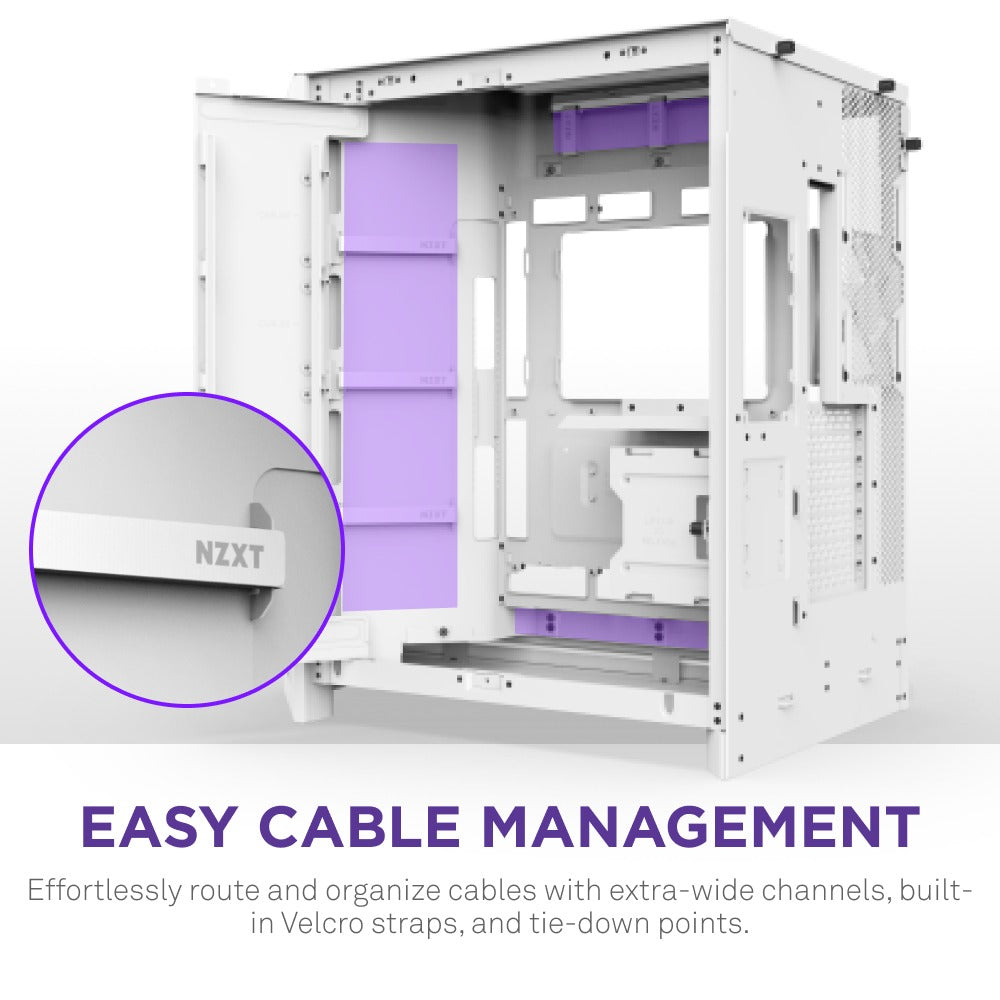

- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.

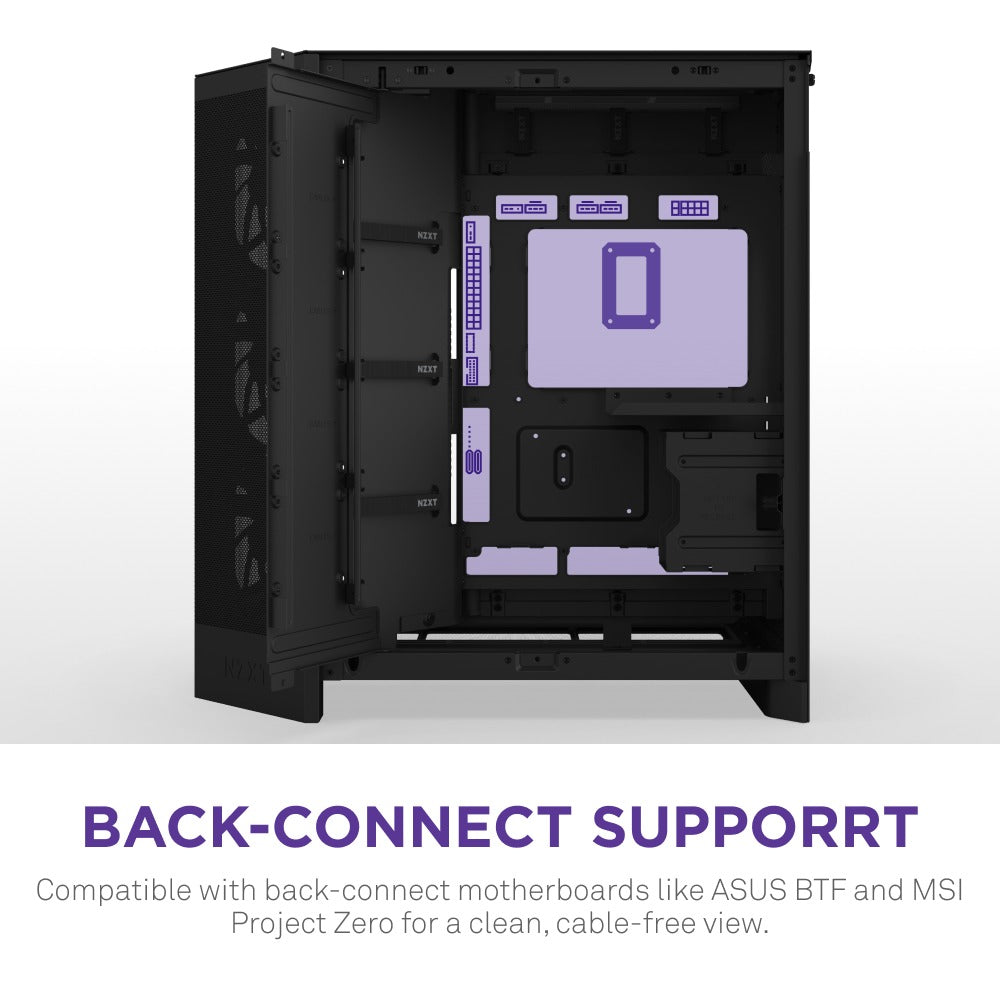

- Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
Specification:

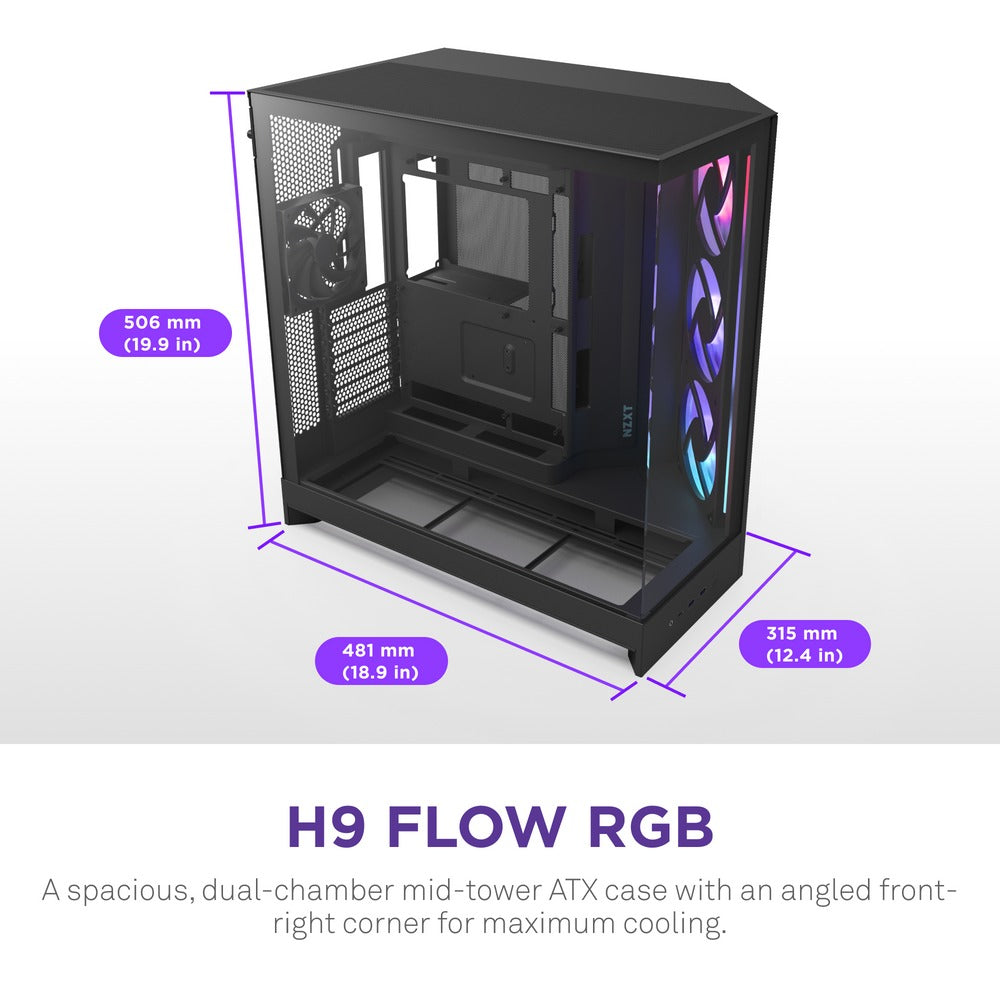

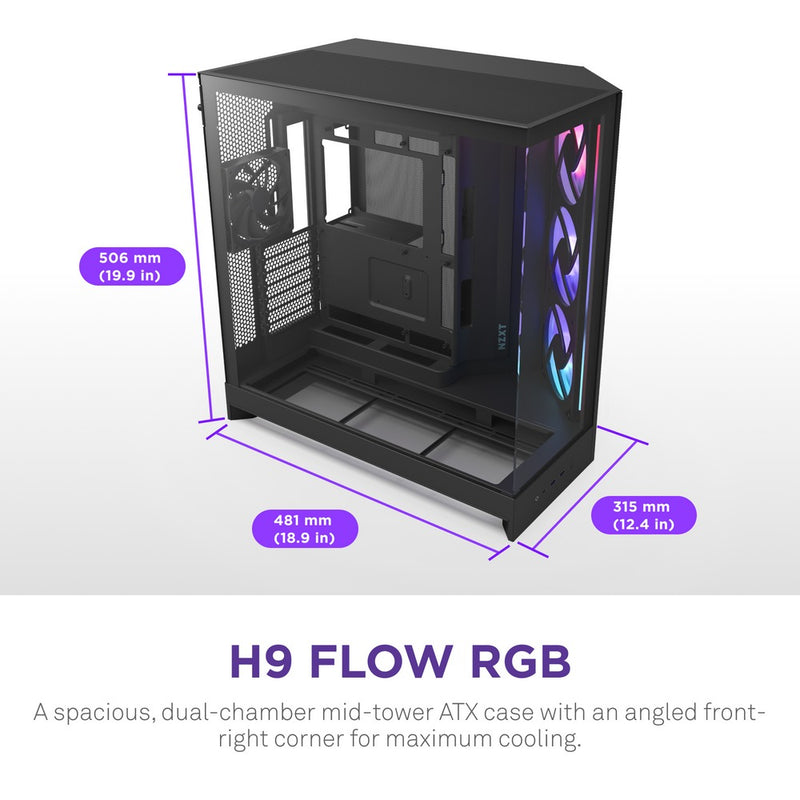

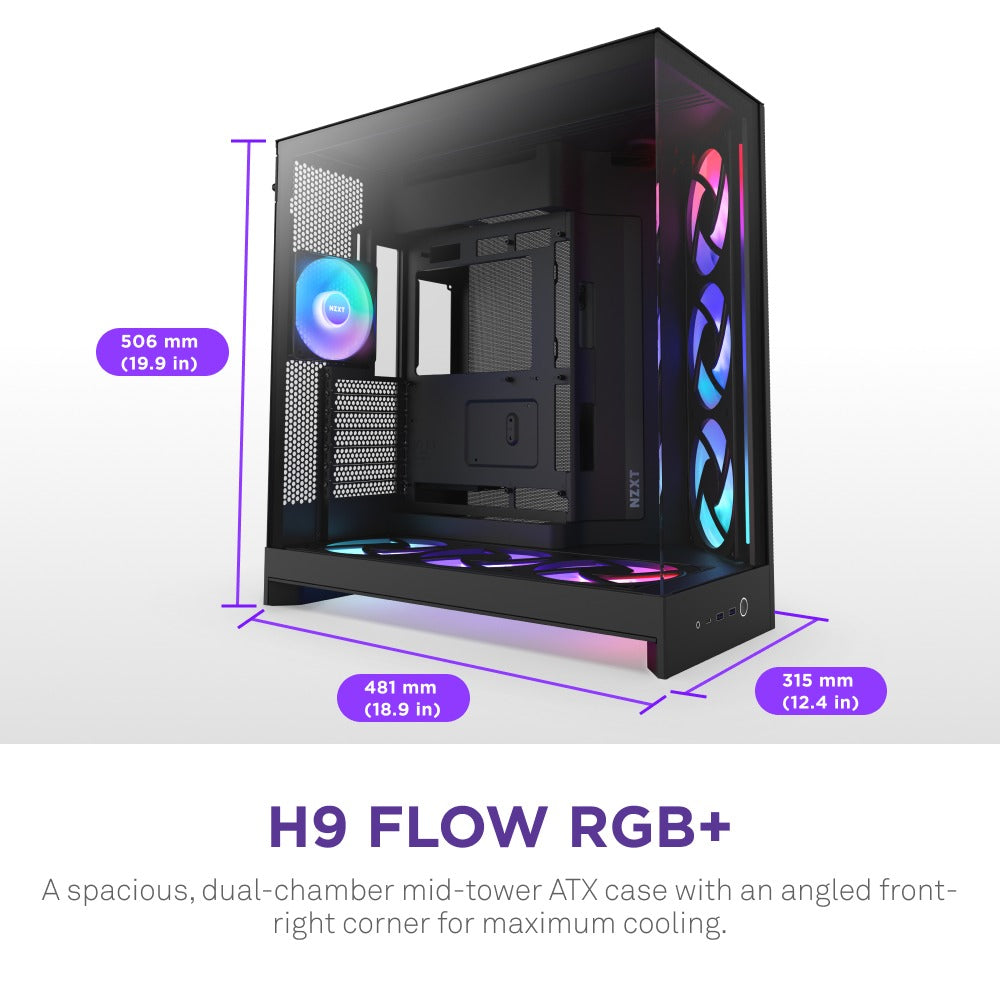

| Height | 506 mm (19.9 in) |
| Width | 315 mm (12.4 in) |
| Depth | 481 mm (18.9 in) |
| Volume | 76.7 L |
| Weight | 13.4 kg (29.54 lb) |
| Enclosure Type | Mid-tower |
| Motherboard Compatibility | E-ATX (up to 277 mm), ATX, Micro-ATX, Mini-ITX |
| Rear-Connecting Motherboard Support | Yes (ATX, BTF, Project Zero) |

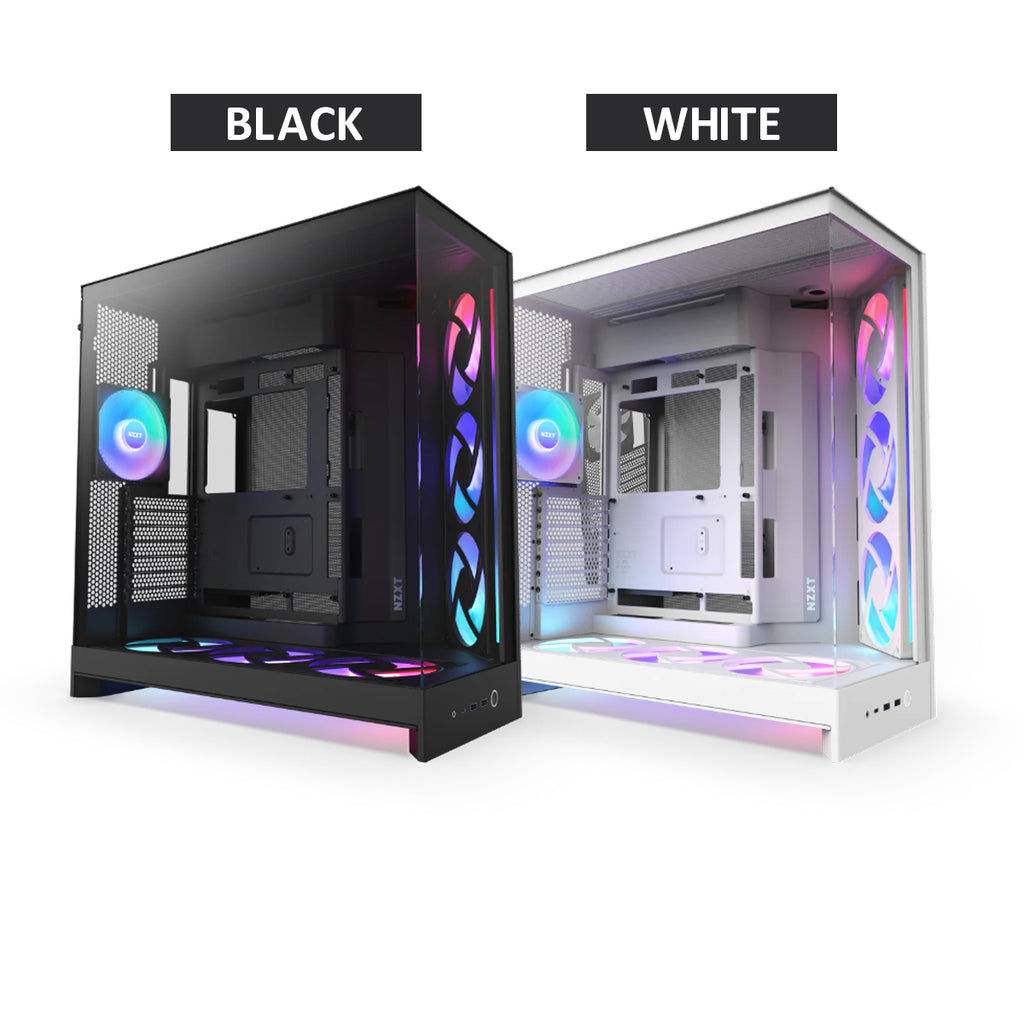

| Materials | SGCC steel, clear tempered glass (white), tinted tempered glass (black) |
| CPU Cooler Height | 165 mm |
| GPU Length | Up to 459 mm (with <56 mm thickness fans at front-right) / Up to 410 mm (with 56 mm thick 420 mm AIO & fans at front-right) |
| PSU Length | 200 mm |
| Top Radiator & Fan Thickness | Up to 80 mm (360 mm) / Up to 62 mm (420 mm) |
| Front I/O Ports | 2 × USB 3.2 Type-A, 1 × USB 3.2 Gen2x2 Type-C, 1 × Headset Jack |
| Expansion Slots | 7 standard, 0 vertical |
| Drive Bays | 4+2 × 2.5", 2 × 3.5" |
| Fan Support (Front-Right) | 3 × 120 mm / 3 × 140 mm (1 × F420 RGB Core included) |
| Fan Support (Top) | 3 × 120 mm / 3 × 140 mm |
| Fan Support (Bottom) | 3 × 120 mm / 3 × 140 mm (1 × F420 RGB Core included) |
| Fan Support (Rear) | 1 × 120 mm (1 × F120 RGB Core (CV) included) |
| Radiator Support (Front-Right) | Up to 420 mm |
| Radiator Support (Top) | Up to 420 mm |
| Radiator Support (Bottom) | Up to 360 mm |
| Radiator Support (Rear) | Up to 120 mm |
| F420 RGB Core Fan Speed | 2,000 ± 200 RPM |
| F420 RGB Core Airflow | 98.61 CFM |
| F420 RGB Core Static Pressure | 3.2 mmH2O |
| F420 RGB Core Noise | 34.5 dBA |
| F420 RGB Core Connector | 8-pin |
| F120 RGB Core (CV) Speed | 1,300 ± 130 RPM |
| F120 RGB Core (CV) Airflow | 55.17 CFM |
| F120 RGB Core (CV) Static Pressure | 1.27 mmH2O |
| F120 RGB Core (CV) Noise | 26.1 dBA |
| F120 RGB Core (CV) Connector | 3-pin |
| Control Hub - Fan Channels | 3 × NZXT 8-pin (PWM only) / 1 × NZXT 8-pin (DC+PWM) / 1 × 4-pin PWM (DC+PWM) |
| Control Hub - RGB Channels | 4 × NZXT 8-pin / 1 × NZXT RGB |
| Max LED Support | 96 LEDs per NZXT 8-pin channel, 40 LEDs & up to 5 devices for NZXT RGB channel |
| System Requirements | USB 2.0 internal header, 8-pin PCIe power |
