Description
The H Series delivers reliable, stable power for gaming PCs. It features a single +12V rail to ensure consistent GPU and CPU performance, along with a DC-to-DC design for precise regulation of the +3.3V and +5V rails. Certified to 80 PLUS 230V EU standards, it minimizes heat waste. A quiet 120mm fan provides effective cooling under load while balancing efficiency and voltage stability.
| GENERAL SPECIFICATIONS | |
|---|---|
| Form Factor | ATX 2.52 |
| Modularity | Non-Modular |
| Dimensions | 140 x 150 x 86 mm (L x W x H) |
| Color | Black |
| Efficiency Rating | 80 PLUS 230V EU Standard (>85% Typical Load) |
| MTBF | 100,000 Hours |
| FAN SPECIFICATIONS | |

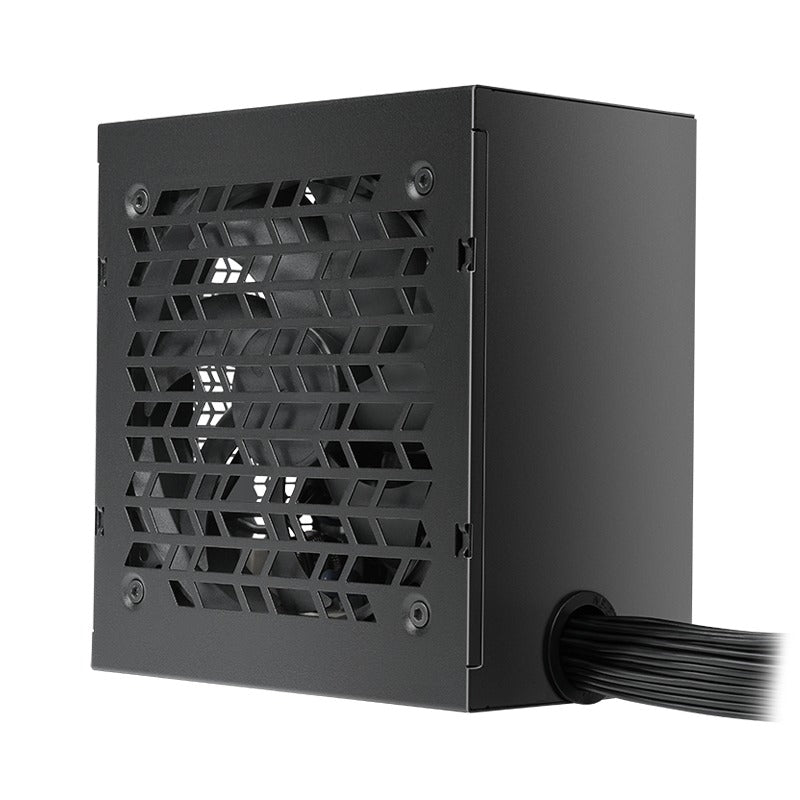

| Fan Size | 120 mm |
| Fan Bearing | Hydraulic Bearing |
| ELECTRICAL CHARACTERISTICS | |

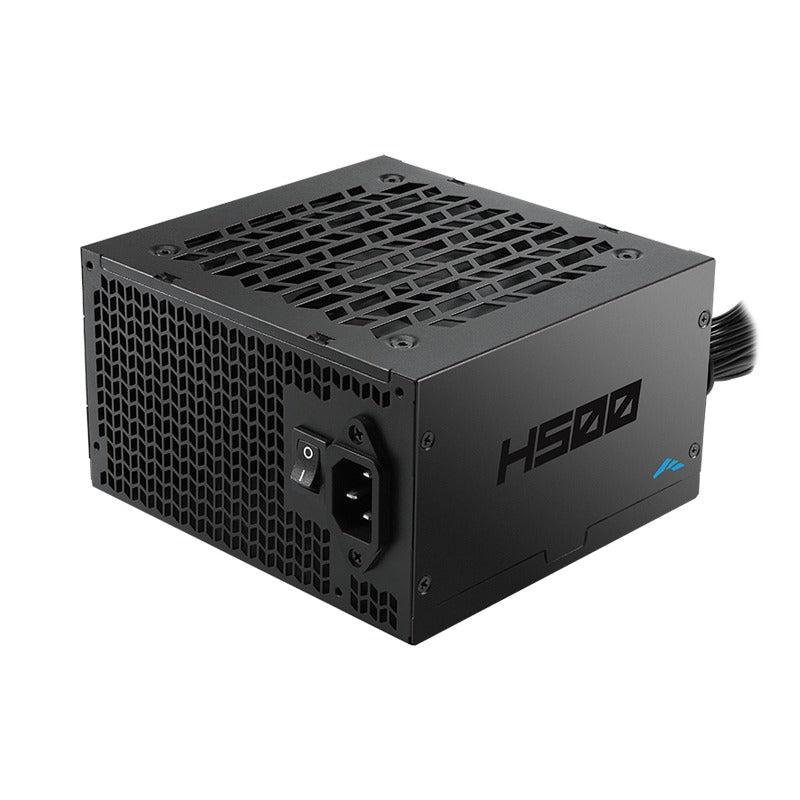

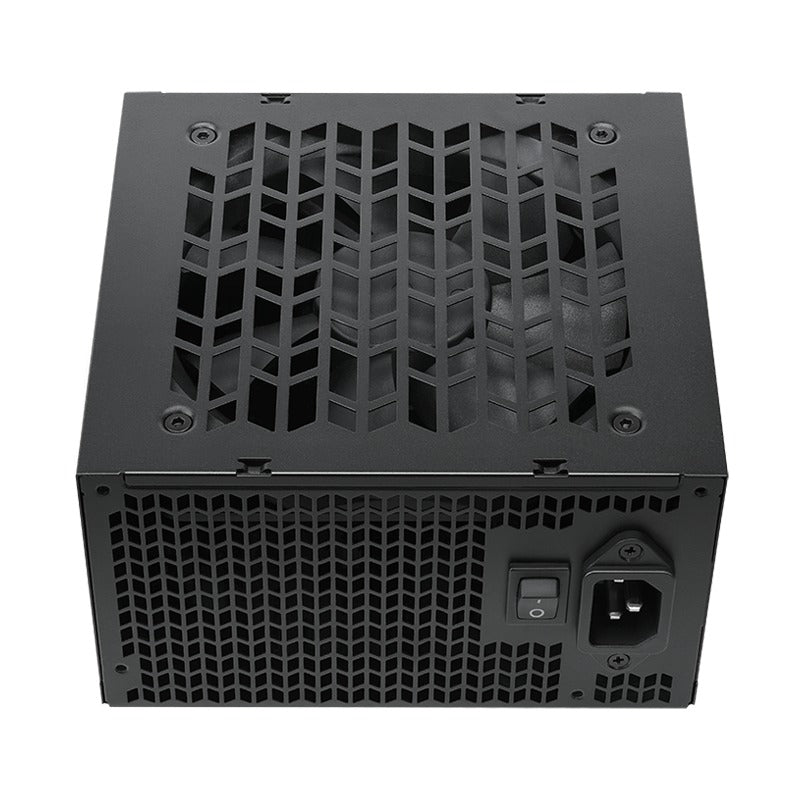

| AC Input | 100–240 Vac (Active PFC) |
| Topology | APFC + SR + DC-DC (Single Rail) |

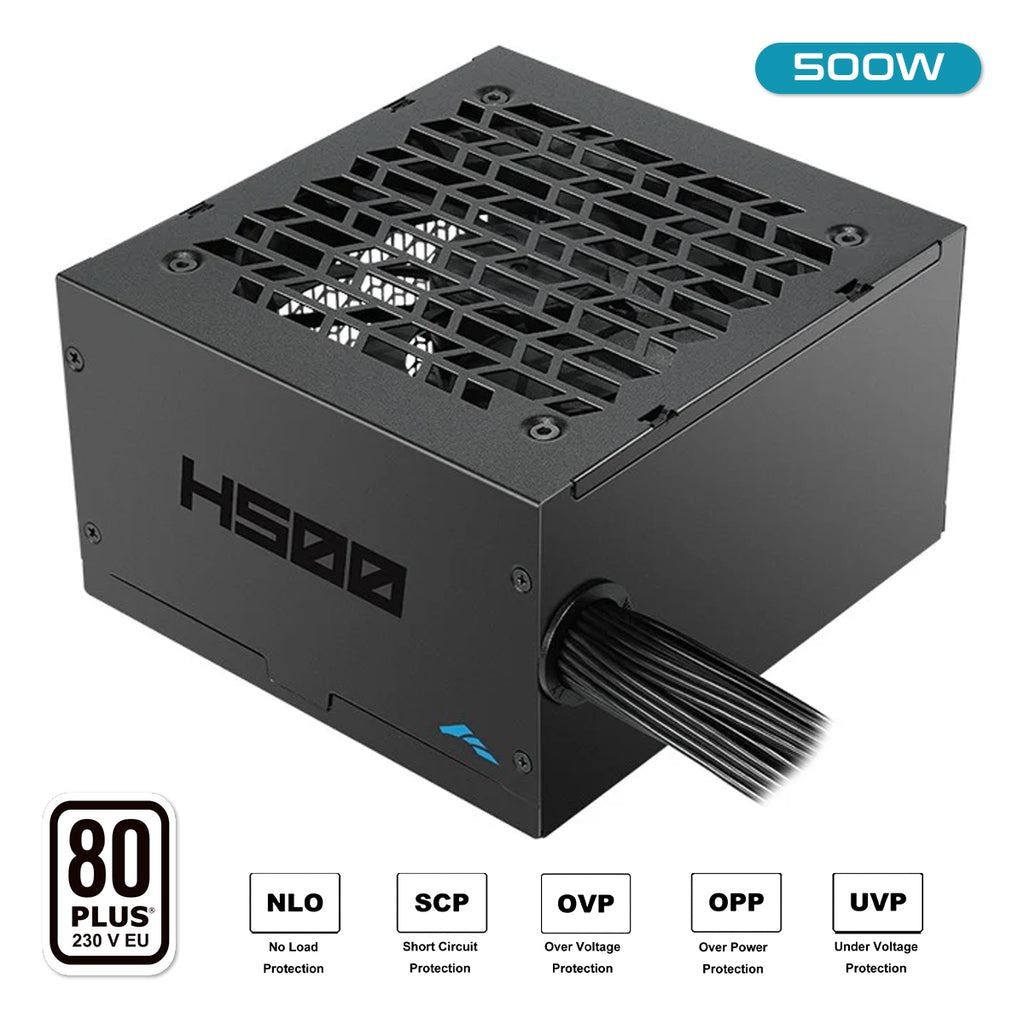

| Protections | OCP, OPP, SCP, OVP, UVP, NLO |
| Operating Temp. | 0–30 °C |
| CONNECTORS & CABLES | |
| Mainboard | 1 x ATX 24-Pin (550 mm) |
| CPU | 1 x EPS (4+4) Pin (600 mm) |
| PCI-E | 1 x (6+2) Pin + (6+2) Pin (550 + 150 mm) |
| SATA | 4 x Connectors (450 + 150 + 150 + 150 mm) |
| Molex | 4 x Connectors (450 + 150 + 150 + 150 mm) |
