Description
- GPU: Boost Clock: Up to 2599 MHz
- GPU: Game Clock: Up to 2276 MHz
- Memory: 12GB/192 bit DDR6. 18 Gbps Effective
- Stream Processors: 3456
- RDNA™ 3 Architecture
- Ray Accelerator: 54
SPECIFICATION

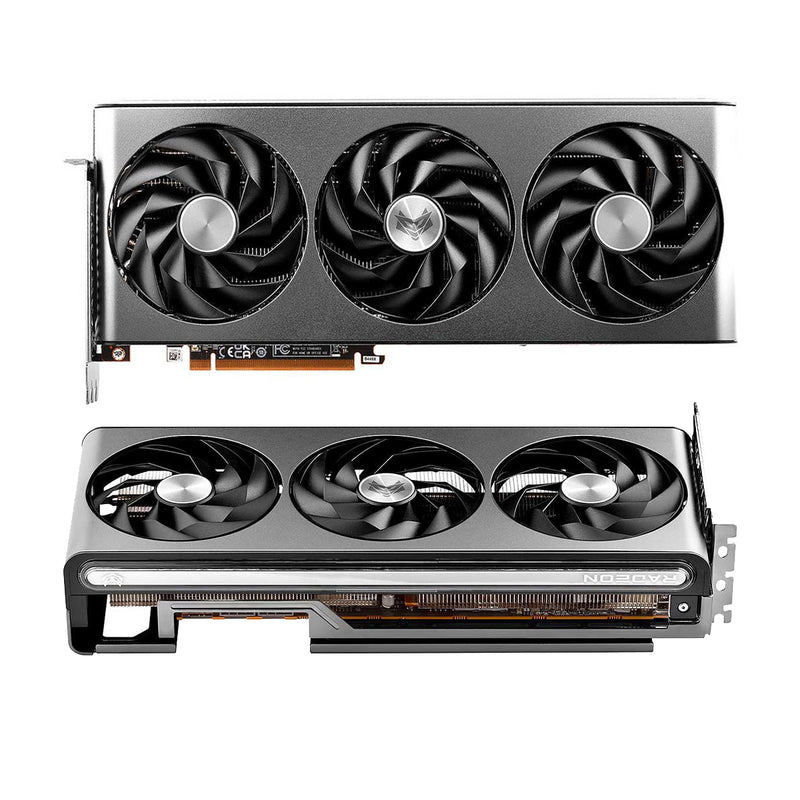

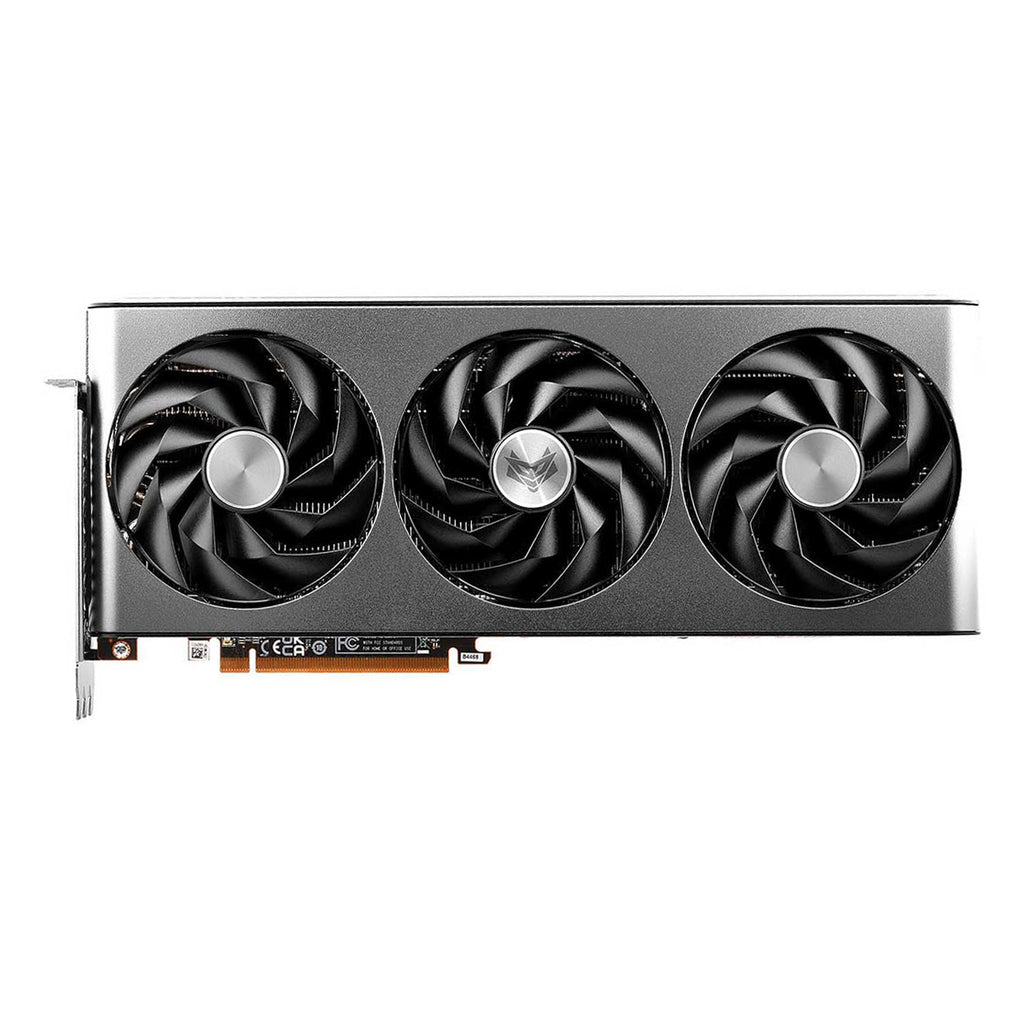

| GPU | AMD Radeon RX 7700 XT Graphics Card |
| 5nm GPU | |
| AMD RDNA 3 Architecture | |
| Engine Clock | Boost Clock: Up to 2584 MHz |
| Game Clock: Up to 2226MHz | |
| Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. | |
| Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. | |
| Stream Processors | 3456 |
| Compute Units | 54 CU (with RT+AI Accelerators) |
| Infinity Cache | 48MB |
| Ray Accelerators | 54 |
| Memory Size/Bus | 12GB/192 bit GDDR6 |
| Memory Clock | 18 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI™: 7680×4320 |
| DisplayPort 2.1: 7680×4320 | |
| Interface | PCI-Express 4.0 x16 |
| Output | 2x HDMI |
| 2x DisplayPort | |
| GPU | AMD Radeon™ RX 7700 XT Graphics Card |
| 5nm GPU | |
| AMD RDNA™ 3 Architecture | |
| Engine Clock | Boost Clock: Up to 2599 MHz |
| Game Clock: Up to 2276MHz | |
| Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. | |
| Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. | |
| Stream Processors | 3456 |
| Compute Units | 54 CU (with RT+AI Accelerators) |
| Infinity Cache | 48MB |
| Ray Accelerators | 54 |
| Memory Size/Bus | 12GB/192 bit GDDR6 |
| Memory Clock | 18 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI™: 7680×4320 |
| DisplayPort 2.1: 7680×4320 | |
| Interface | PCI-Express 4.0 x16 |
| Output | 2x HDMI |
| 2x DisplayPort | |
| BIOS Support | Dual UEFI |
| Game Index | 1440P |
| Sapphire Features | Dual BIOS |
| TriXX Software Switch | |
| Premium Digital Power Design | |
| Ultra High Performance Conductive Polymer Aluminum Capacitors | |
| Fuse Protection | |
| Tri-X Cooling Technology | |
| High TG Copper PCB | |
| Optimized Composite Heatpipe | |
| Intelligent Fan Control | |
| Precision Fan Control | |
| Metal Backplate with ARGB | |
| ARGB Light Bar | |
| Two-Ball Bearing Fans | |
| Angular Velocity Fan Blade | |
| Assistive System Fan Control | |
| Aluminum Alloy Frame | |
| Dedicated VRM Cooling | |
| Wave Fin Design | |
| V Shape Fin Design for GPU Cooling | |
| TriXX Supported | |
| Fan Check | |
| Fan Quick Connect | |
| TriXX Boost | |
| NITRO Glow | |
| External RGB LED MB Synchronization | |
| Accessories Bundled | Graphics Card Supporter |
| ARGB Extension Cable | |
| AMD Features | AMD RDNA™ 3 Architecture |
| 54 AMD RDNA™ 3 Compute Units | |
| 48MB AMD Infinity Cache™ Technology | |
| DisplayPort™ 2.1 Support | |
| AMD Radiance Display™ Engine | |
| 12GB GDDR6 on 192-Bit Memory Bus | |
| PCI® Express 4.0 ready | |
| AMD FidelityFX™ Super Resolution technology* | |
| Microsoft® DirectX® 12 Ultimate Support | |
| Microsoft® DirectStorage Support | |
| Vulkan® Optimized | |
| AMD Smart Technologies | |
| AMD Software: Adrenalin Edition™ | |
| AMD Noise Suppression | |
| AMD Privacy View | |
| AMD Radeon™ Super Resolution technology | |
| AMD Link | |
| AMD FreeSync™ Technology | |
| Cooling | 3 Fans |
| Form Factor | 3 slot, ATX |
| Dimension: 320(L)X 134.85(W)X 61.57 (H)mm | |
| Power Consumption | 252W Total Board Power |
| OS | Linux, Windows 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 700 Watt Power Supply |
| 2 x 8-pin Power Connector. | |
| PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. | |
| Minimum 8GB of system memory. 16GB recommended. |
