Description

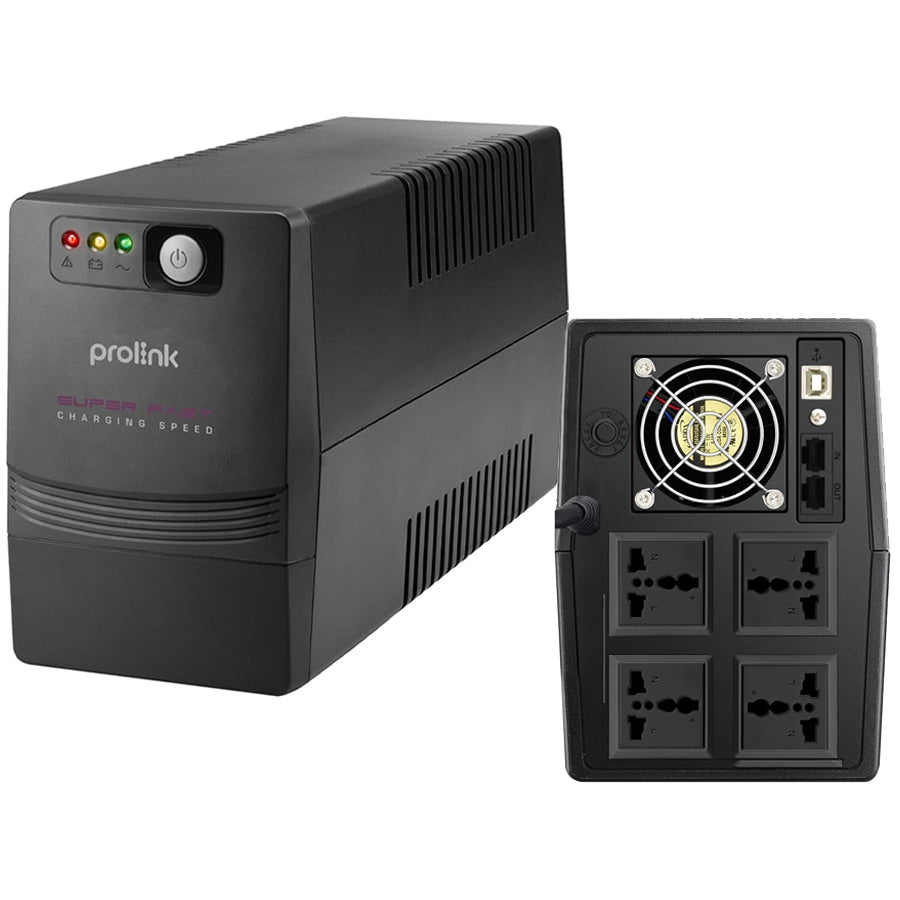

Prolink PRO2000SFC/SFCU single-phase input/ single-phase output Line-Interactive 2000VA UPS is a single-phase input/ single-phase output
Line-Interactive UPS system with PROLiNK's latest Super-Fast Charging technology. This cutting-edge technology is able to recharge the battery back
to 90% of its capacity within 2-4 hours, perfect for areas with intermittent power.
Advance Early Warning system immediately alerts you to an output overload, high temperature or low battery condition, giving you ample time to
either correct the condition or shut down your system before battery time runs out.
Intelligent Battery Management system provides additional protection for battery overcharging or deep discharging, while maximizing battery
performance, life and reliability through intelligent precision charging. In the event of over temperature and overload, the device will automatically
shutdown to prevent any damage from occurring.
Lastly, this device is supported with a wide input voltage range. The unit also comes with universal sockets to provide better compatibility with a wider
range of connected devices.
PRO2000SFC/SFCU is an ideal solution for safe and stable backup power to home/ small office applications.
Prevents Data Loss
With battery backup, you can continue working during short power outages and save your data before shutting down.
Protects Hardware
By regulating voltage and providing surge protection, your equipment is shielded from damage, extending its lifespan.
Reduces Downtime
Ensures continuous operation, minimizing disruptions and maintaining productivity even during power interruptions.
Prolink Power Backup Solutions
By choosing our Line Interactive UPS, you are investing in a reliable power protection solution that ensures the uninterrupted operation of your critical
systems. Whether you are protecting a home office setup or safeguarding sensitive network equipment, our UPS delivers the performance and reliability
you need.
| Capacity | 2000VA |
| Voltage Range | 140~300VAC ±5% |
| Frequency | 50Hz/60Hz (Auto-sensing) |
| Phase | Single + GND |
| Output Voltage Range | 230VAC +12% -14% |
| Battery Mode Voltage | 230VAC +10% -10% |
| Output Frequency | 50Hz/60Hz ±1% (Battery mode) |
| Waveform | Simulated sine wave (Battery mode) Sine wave (AC mode) |
| Transfer Time | 2ms typical |
| Type | 12V/10AH - 2pc |
| Backup Time | Up to 40 mins depending on load |
| Recharge Time | 2-4 hours recover to 90% capacity |
| Short Circuit Protection | Yes (Line mode & battery mode) |
| Surge Protection | Yes |
| Alarm | Audible & visual |
| UPS Protection | Load Auto Sensing and Abnormal Protection |
| Overload Protection (Line mode) | 110 - 120% 5 mins & shutdown >120% shutdown immediately |
| Overload Protection (Battery mode) | 100 - 110% alarm & shutdown in 10 secs >120% shutdown immediately |
| Intelligent Battery Management | Prevent overcharging of battery Protect battery and prolong battery life |
| RJ45 Ports | Modem/Fax Protection |
| USB Connector* | AC fault, battery low, shutdown UPS |
| Software | Support Windows® 2000/2003/XP/Vista/2007/8/10, Linux, and Mac |
| Noise Level | <40dB |
| Temperature | 0C-40℃ |
| Humidity | 0 - 90% |
| Power Factor | Up to 0.7 |
| Built-in AVR | TRUE Full AVR (3 Steps) |
| Dimension (D x W x H) | 320 x 130 x 182mm |
| Weight | 10.6kg |
