Description
3-IN-1 ROUTER ESPECIALLY DESIGNED FOR SMALL BUSINESS AND HOME NETWORK

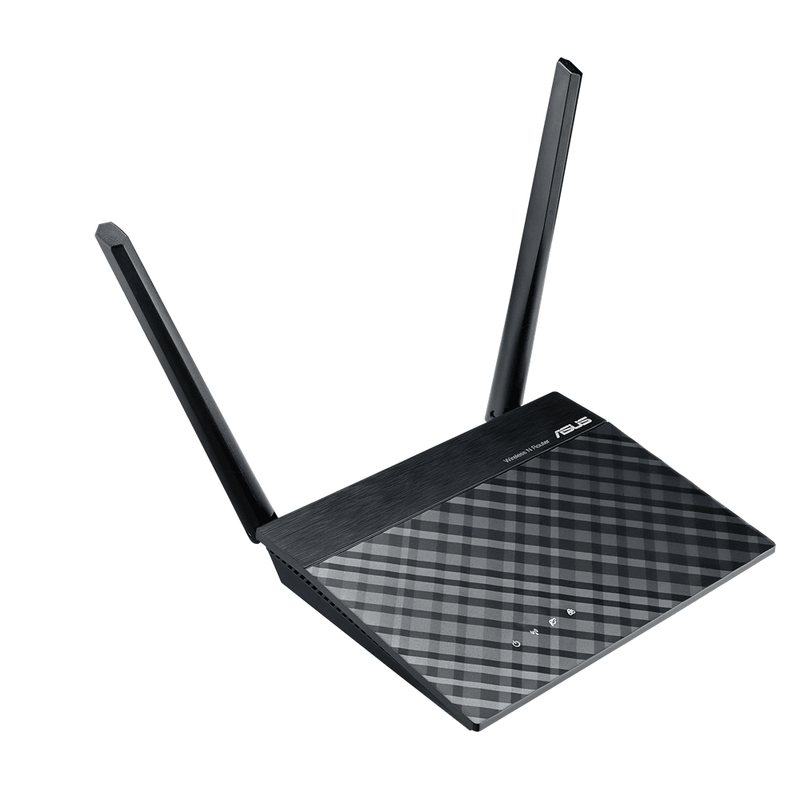

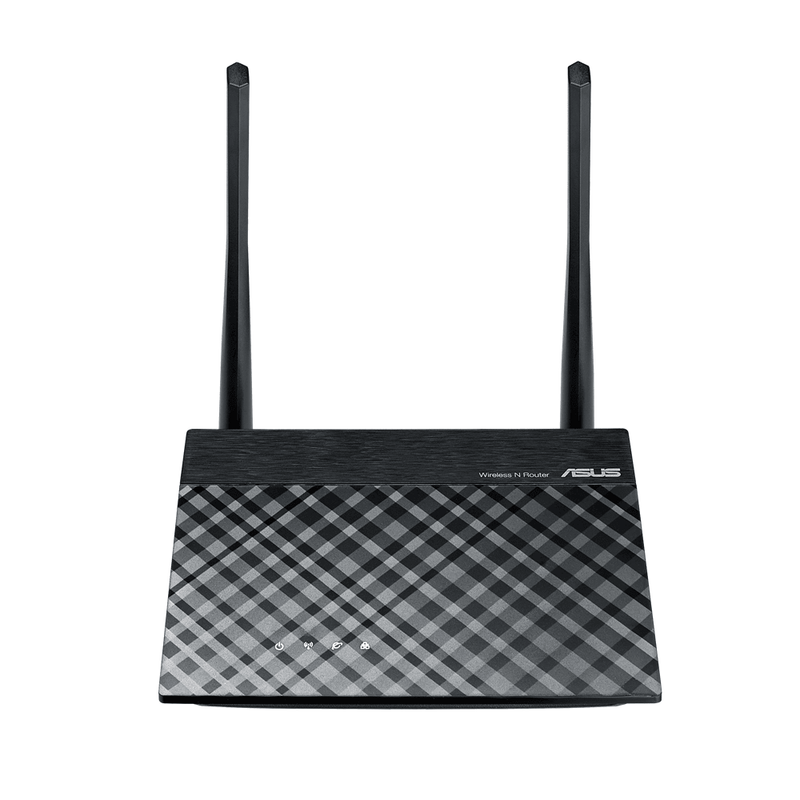

ASUS RT-N12+ B1 is a 300Mbps Wireless N Router with both wired and wireless network connections designed specifically for small business and home office networking use. With 2T2R MIMO Technology and the external high-performance antenna, the RT-N12+ B1 creates an extended coverage area with advanced wireless performance, making it ideal for streaming HD video, placing VoIP calls and online gaming. With the ASUS unique Quick Internet Setup and Graphical User Interface, the RT-N12+ B1 is easy for anyone to install and manage, even for novices!
POWERFUL WIDE-RANGE COVERAGE
Enhanced signal strength and wider coverage for larger homes and offices are driven two external high-performance antennas. The design is also ideal for multi-floor locations with devices located on different levels.
DEDICATED WI-FI FOR YOUR VISITORS
Share your internet connection with your guests with no need to share your personal password or network resources. ASUS Guest Network supports up to three separate guest networks, each with its own usage limits and password. Guests cannot access your primary network or any other connected devices.
CONTROL YOUR NETWORK ANYWHERE
In your increasingly mobile-enabled life, having control over your network via an app is more important than ever. The new ASUS Router App is built from the ground-up to be both intuitive and robust, allowing you to setup your router, manage network traffic, diagnose connection issues and even update firmware, all without needing to boot up a PC.
ROBUST CONTROL AND OPTIMIZATION WITH ASUSWRT
With the ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. The whole-new dashboard interface lets you manage all clients and settings via a single graphical interface, and provides 1-click updates.
EASY 3-STEP SETUP
Use your smartphone, tablet, or PC to effortlessly set up your ASUS router in less than 30 seconds¹ and in only 3 easy steps. Simply connect the cables to the router, open a Web browser, and follow the setup wizard to get you to the internet in no time.
EXTEND WI-FI COVERAGE QUICKLY AND SIMPLY
Universal repeater mode instantly extends the Wi-Fi range of any standard wireless router, sustaining smooth and fast connections in larger and even multi-floor locations.
KEEP UP TO DATE!
Remember to always keep your device’s firmware up to date so you can benefit from the very latest service and security enhancements — and get exciting new features!
TECH SPECS
Model Name
- RT-N12+ B1
Network Standard
- IEEE 802.11b
- IEEE 802.11g
- WiFi 4 (802.11n)
- IPv4
- IPv6
Data Rate
- 11b: up to 11 Mbps
- 11g: up to 54 Mbps
- 11n: up to 300 Mbps
Antenna
- Fixed antenna x 2
Transmit/Receive
- MIMO technology
- 4 GHz 2 x 2
Memory
- 8 MB Flash, 32 MB RAM
Operating Frequency
- 4G Hz

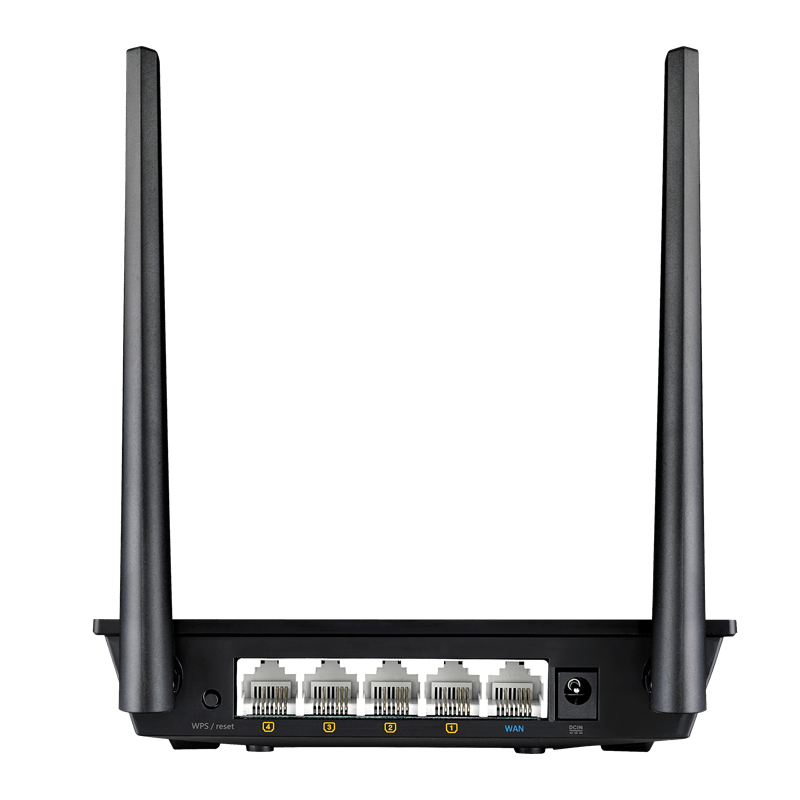

Ports
- RJ45 for 10/100 BaseT for WAN x 1, RJ45 for 10/100 BaseT for LAN x 4
Button
- WPS Button, Reset Button
LED Indicator
- Power x 1
- Wi-Fi x 1
- WAN x 1
- LAN x 1
Power Supply
- AC Input: 110V~240V(50~60Hz)
- DC Output: 12 V with max. 0.5 A current
Package content
- RT-N12+ B1 Router x 1
- Warranty Card x 1
- Power Supply x 1
*Package content varies according to local requirements of each country
Product Weight (g)
- 9 g
AiMesh
- AiMesh: No
- Primary AiMesh router: No
- AiMesh node: No
Router APP
- ASUS Router APP: Yes
Game
- Game Boost/acceleration: No
- WTFast: No
Alexa
- Support Alexa skil : No
IFTTT
- Support IFTTT: No
AiProtection
- AiProtection: No
- Router Security Assessment: No
- Malicious site blocking: No
- Two-Way IPS: No
- Infected Device Prevention and Blocking; No
Parental Control
- Parental Control: Yes
- Parental Control Customized Internet schedule: Yes
Traffic Control
- Adaptive QoS : No
- Bandwidth Monitor : No
- Bandwidth limiter : Yes
- Maximum Bandwidth limiter rule : 32
- Traditional QoS : Yes
- Maximum Traditional QoS rule : 32
- Traffic Monitor : Yes
- Real-time traffic monitor : Yes
- Wired Traffic Monitor : Yes
- Wireless Traffic Monitor : Yes
- Traffic Analyzer : No
- Traffic analysis period : Daily, Weekly, Monthly
- Website history : No
Wireless
- IPv6 : Yes
- MU-MIMO : No
- Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
- UTF-8 SSID : Yes
- Guest Network : Yes
- Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
- Guest Network Encryption : Open system, WPA/WPA2-Personal
- WPS : Yes
- Wi-Fi MAC address filter : Yes
- Maximum MAC filters : 64
- Wireless scheduler : Yes
- Airtime fairness : No
- RADIUS Server : Yes
- Universal beamforming : No
- Explicit beamforming : No
- IGMP snooping : Yes
WAN
- Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
- Dual WAN : No
- WAN Aggregation : No
- 3G/4G LTE dongle : No
- Android tethering : No
- Port forwarding : Yes
- Maximum port forwarding rule : 64
- Port triggering : Yes
- Maximum port triggering rule : 32
- DMZ : Yes
- DDNS : Yes
- NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
- DHCP Server : Yes
- IPTV : Yes
- LAN Link Aggregation : No
- Manually assign IP address : Yes
VPN
- VPN Client L2PT : Yes
- VPN Client OVPN : No
- VPN Client PPTP : Yes
- VPN Server IPSec : No
- VPN Server OVPN : No
- VPN Server PPTP : Yes
- VPN Fusion : No
USB application
- File System : No
- 3G/4G LTE dongle : No
- HDD hibernation : No
- Safely Remove disk : No
- AiCloud : No
- Download master : No
- AiDisk : No
- Media Server : No
- Time Machine : No
- Samba Server : No
- FTP Server : No
- Shared Folder privileges : No
Administration
- Operating mode : Accesspoint, Router
- Operating system : ASUSWRT
- Free OS upgrade : Yes
- Firewall : Yes
- Maximum Firewall keyword filter : 64
- Maximum Firewall network service filter : 32
- Maximum Firewall URL filter : 64
- Wake on LAN (WOL) : Yes
- SSH : Yes
- Configuration backup and restore : Yes
- Diagnosis tools : Yes
- Feedback system : Yes
- System log : Yes
