Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Dual-Band Wi-Fi 6 Up to 1.8 Gbps
Every application feels more fluid with drastically improved Wi-Fi speeds. Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K streaming, online gaming, and fast downloading.

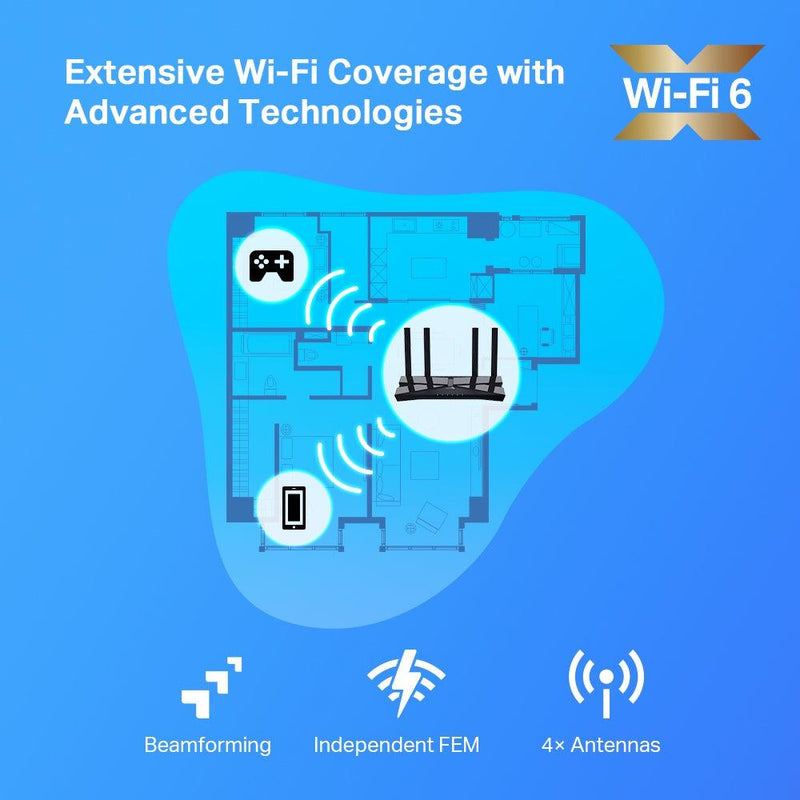

Extensive Wi-Fi Coverage with Advanced Technologies
Beamforming technology, high-power Front-End Module, and four high-gain antennas combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.
Connect More, Stay Fast
Easily handle dozens of devices streaming and gaming at the same time—OFDMA future-proofs your home networks by providing greater capacity to connect more devices.
OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.

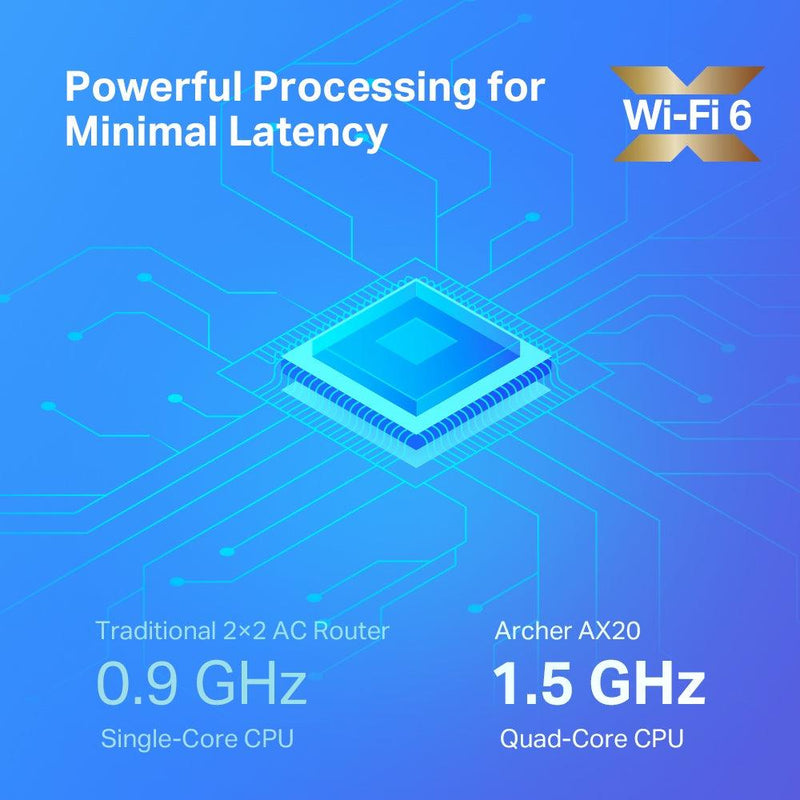

Powerful Processing for Minimal Latency
A powerful 1.5 GHz quad-core CPU generates minimal latency within your network even under heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.
Easy File Sharing
Share music, movies, and documents easily on every device across your home network.
Full Gigabit Ports
Connect to your devices using a wired network for robust stability.
WPA3—New Level of Cyber Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Concentrates wireless signal strength towards clients to expand WiFi range
Improves transmission power to strengthen signal coverage
Allocate devices to different bands for optimal performance
Simultaneously communicates with multiple Wi-Fi 6 clients
Improves network efficiency by limiting excessive occupation
Connect your devices to more bandwidth
|Working Modes||Router Mode
Access Point Mode
|Processor||1.5 GHz Quad-Core CPU|

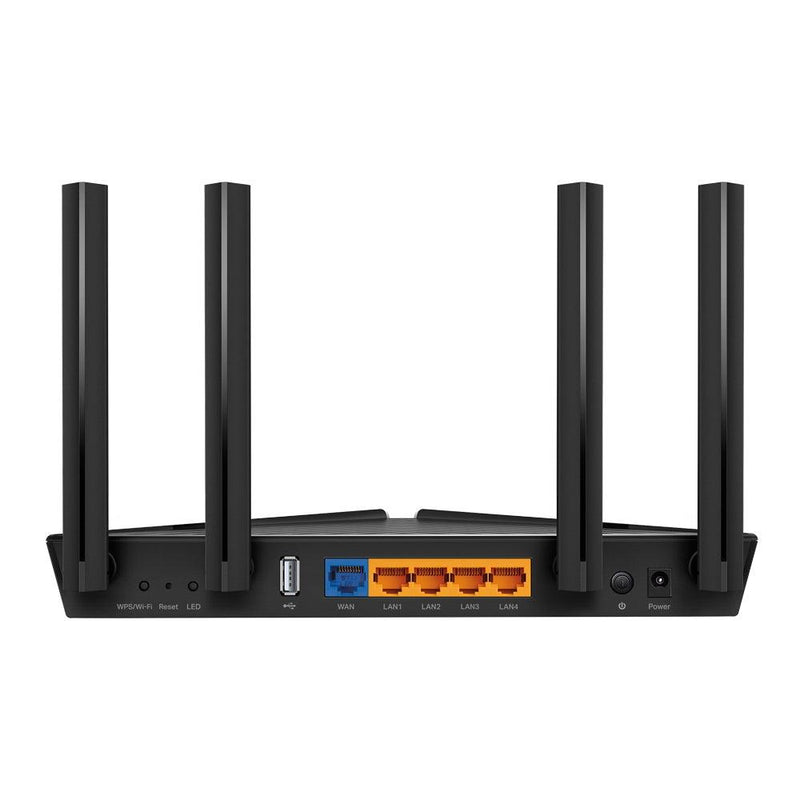

|Ethernet Ports||1× Gigabit WAN Port
4× Gigabit LAN Ports
|USB Support||1× USB 2.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Apple Time Machine
Power On/Off Button
LED On/Off Button
|Power||12 V ⎓ 1.5 A|
|Network Security||SPI Firewall
IP & MAC Binding
Application Layer Gateway
|Guest Network||1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
|Parental Controls||URL Filtering
|WAN Types||Dynamic IP
|Quality of Service||QoS by Device|
|Cloud Service||Auto Firmware Upgrade
OTA Firmware Upgrade
|NAT Forwarding||Port Forwarding
DHCP Client List
|Dimensions (W×D×H)||10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
|Package Contents||Wi-Fi Router Archer AX20
RJ45 Ethernet Cable
Quick Installation Guide
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
|Certifications||FCC, CE, RoHS|
|Environment||Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|WiFi Transmission Power||CE:
<23dBm(5.15 GHz~5.25 GHz)
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
