Description
- GPU: Boost Clock: Up to 3290 MHz
- GPU: Game Clock: Up to 2700 MHz
- Memory: 8GB/128 bit DDR6. 20Gbps Effective
- Stream Processors: 2048
- AMD RDNA™ 4 Architecture
- Ray Accelerator: 32
Specifications:

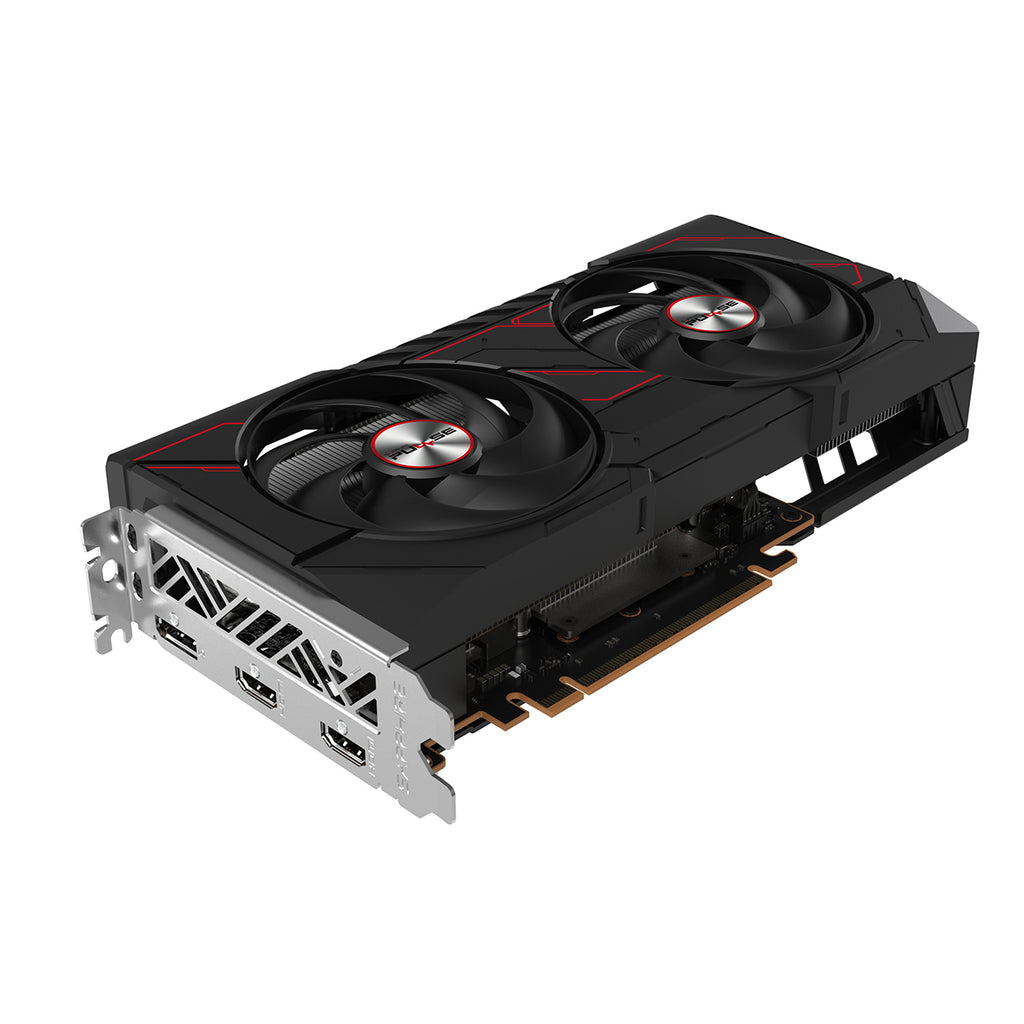

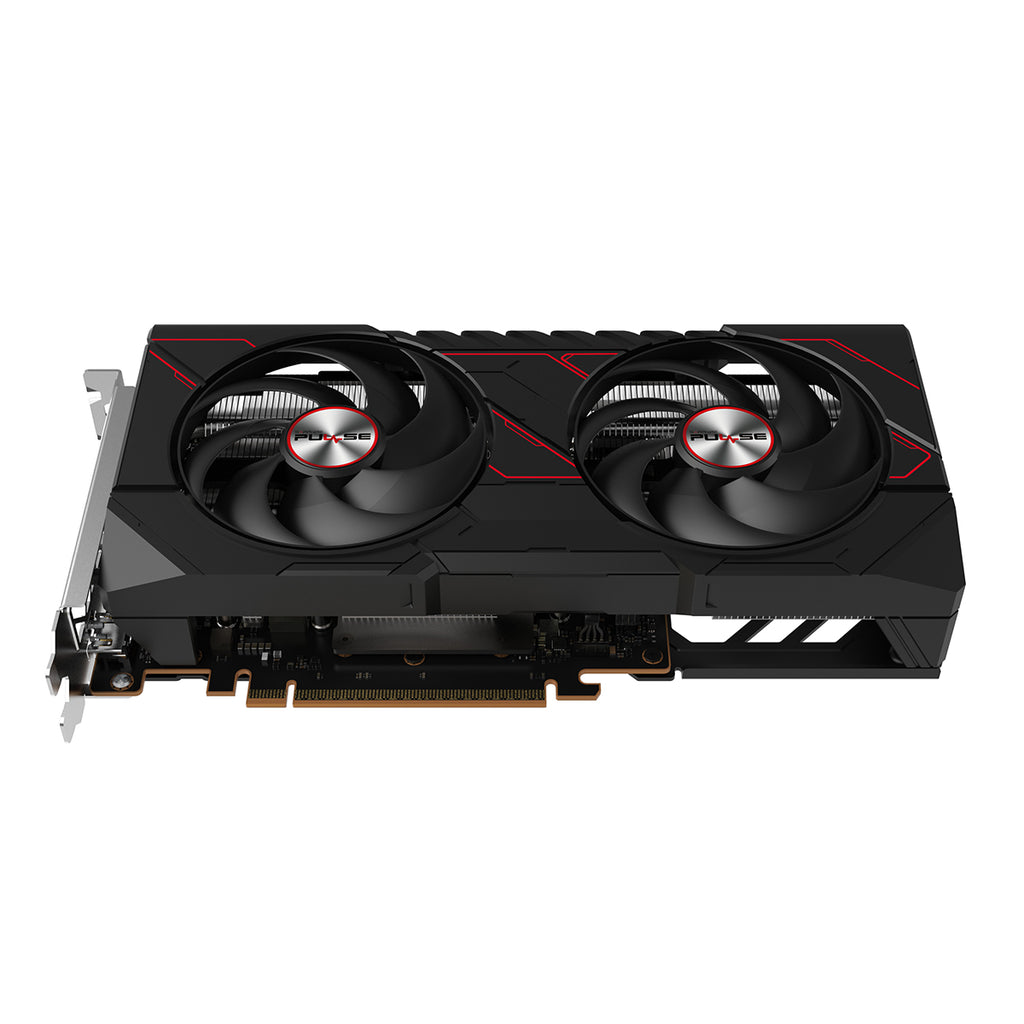

| GPU | AMD Radeon™ RX 9060 XT Graphics Card |
| Architecture | AMD RDNA™ 4 |
| Boost Clock | Up to 3290 MHz |
| Game Clock | Up to 2700 MHz |
| Stream Processors | 2048 |
| Compute Units | 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 32MB |
| Ray Accelerators | 32 |
| AI Accelerator | 64 |
| Memory Size/Bus | 8GB/128-bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 3 Displays |
| Resolution | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 1x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 1440P |

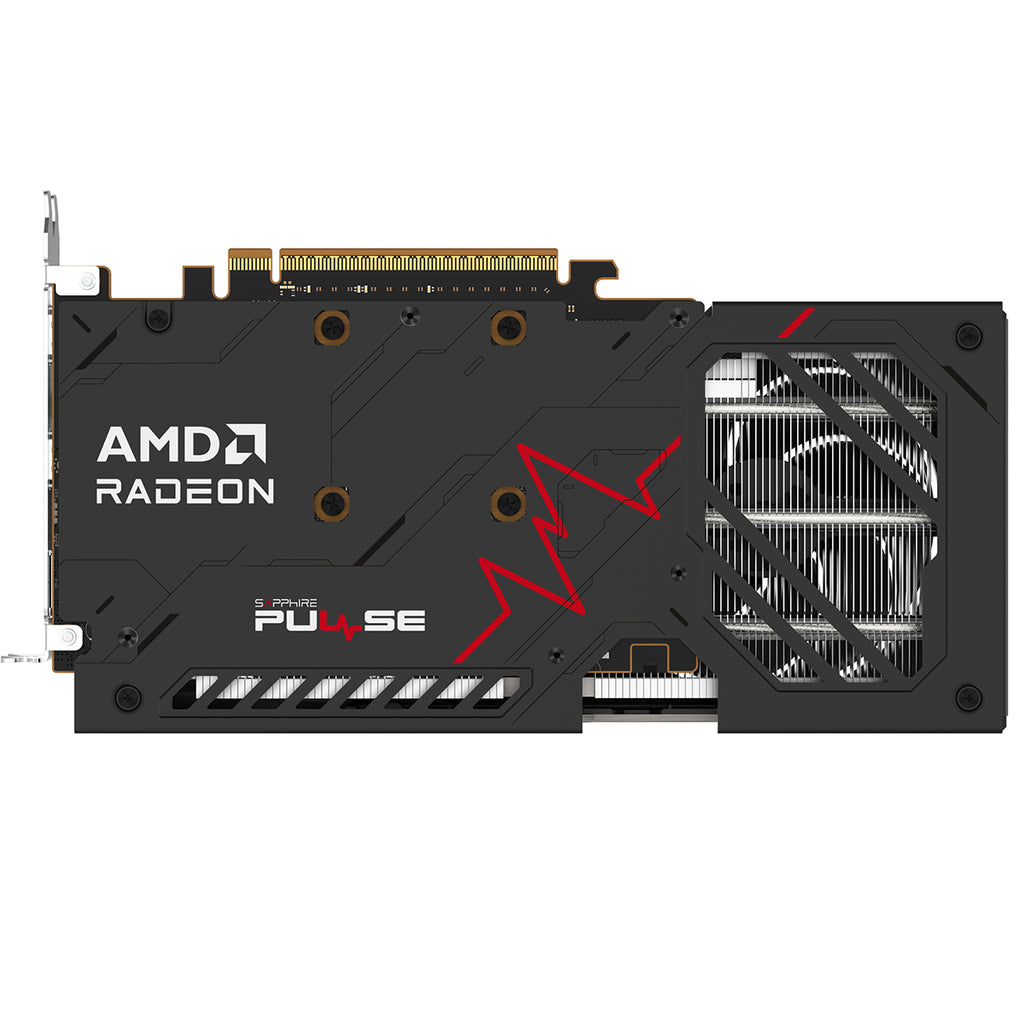

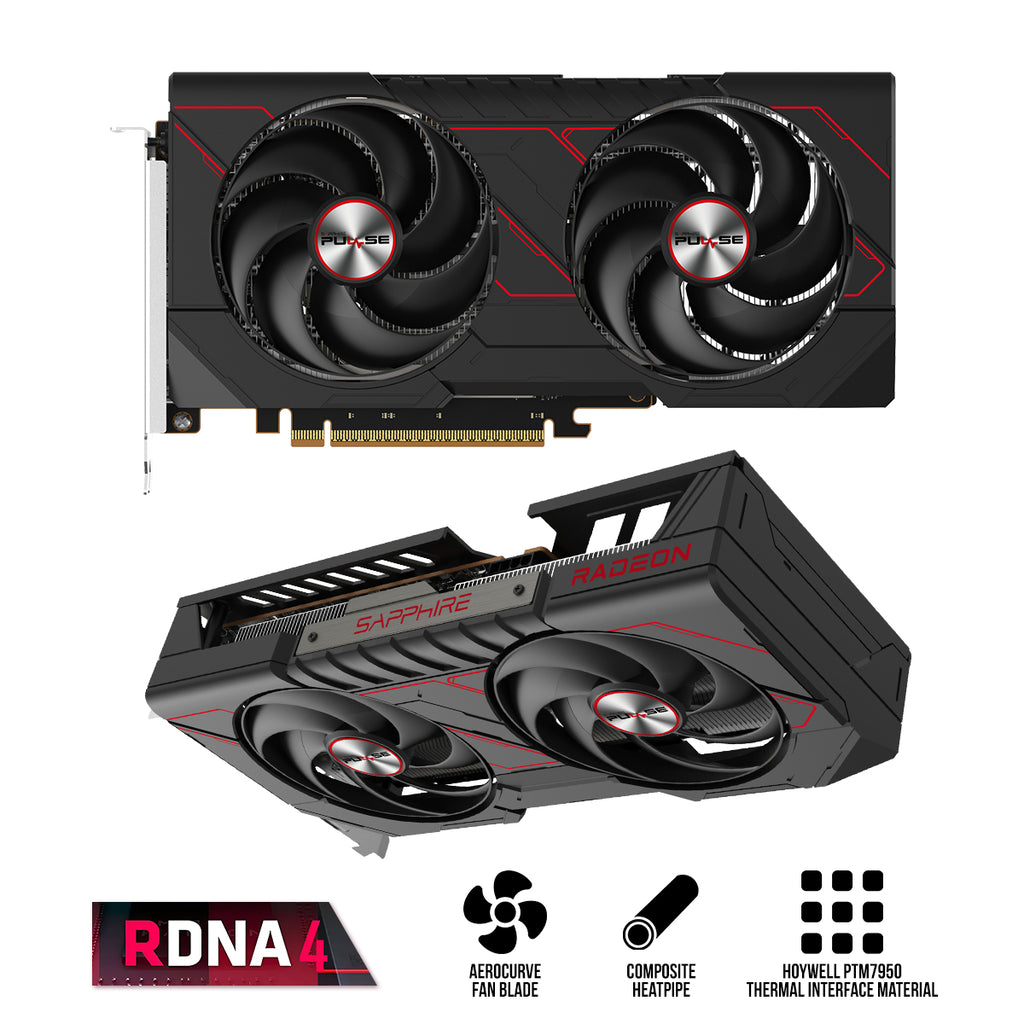

| Sapphire Features | Honeywell PTM7950 TIM AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Dual-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate Sleeve Bearing Fans 9-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported TriXX Boost |
| AMD Features | AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 AMD Radeon™ Anti-Lag 2 AV1 Encode/Decode AMD FidelityFX™ technologies DirectX® 12 Ultimate AMD Noise Suppression AMD FreeSync™ AMD Infinity Cache AMD Smart Technologies AMD Software: Adrenalin Edition™ |

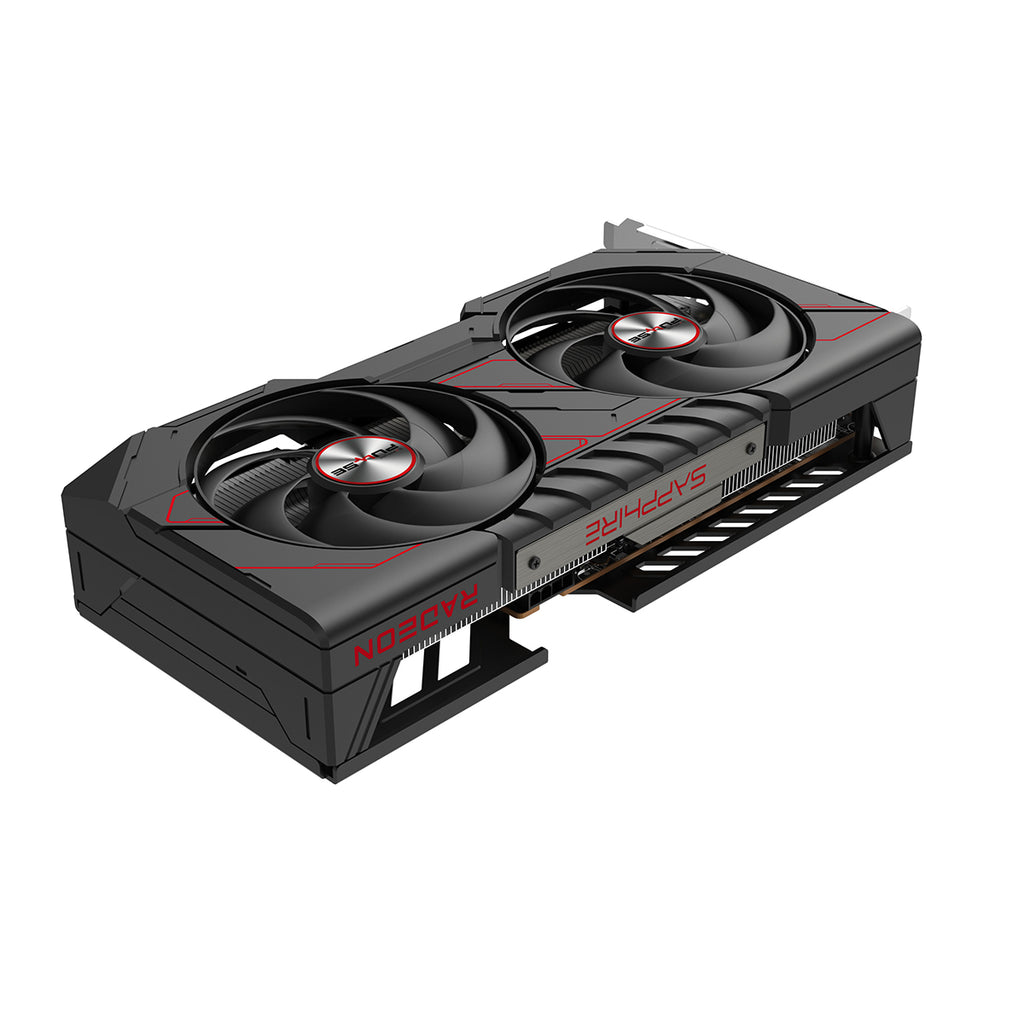

| Cooler Type | Dual-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Sleeve Bearing |
| Form Factor | 2.3 slot, ATX |
| Dimensions | 244(L) x 124(W) x 46.1(H) mm |
| Power Consumption | 170W Typical Board Power |
| Operating System | Linux®, Windows® 10, Windows 11 (64-bit) |
| System Requirements | Minimum 450 Watt Power Supply 1 x 8-pin Power Connector PCI Express® based PC with one x16 lane slot Minimum 8GB of system memory (16GB recommended) |
