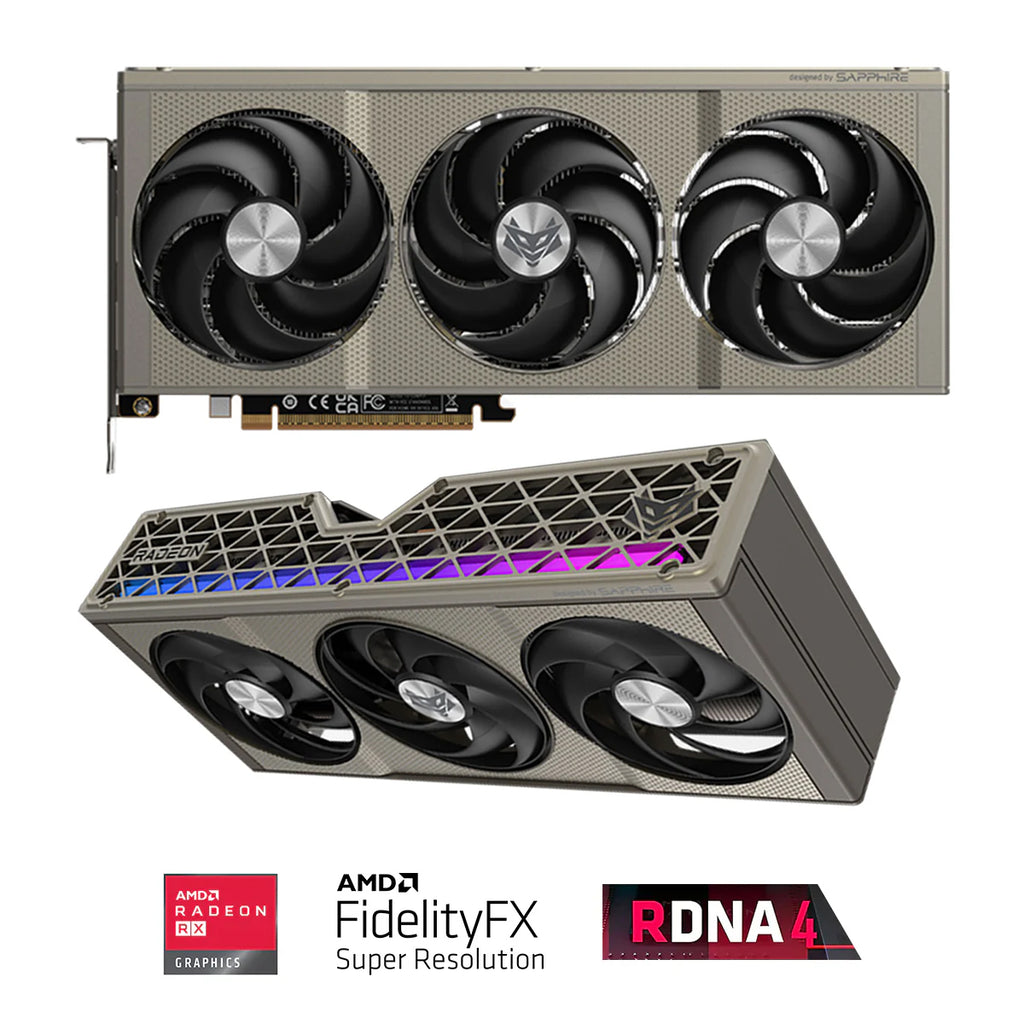

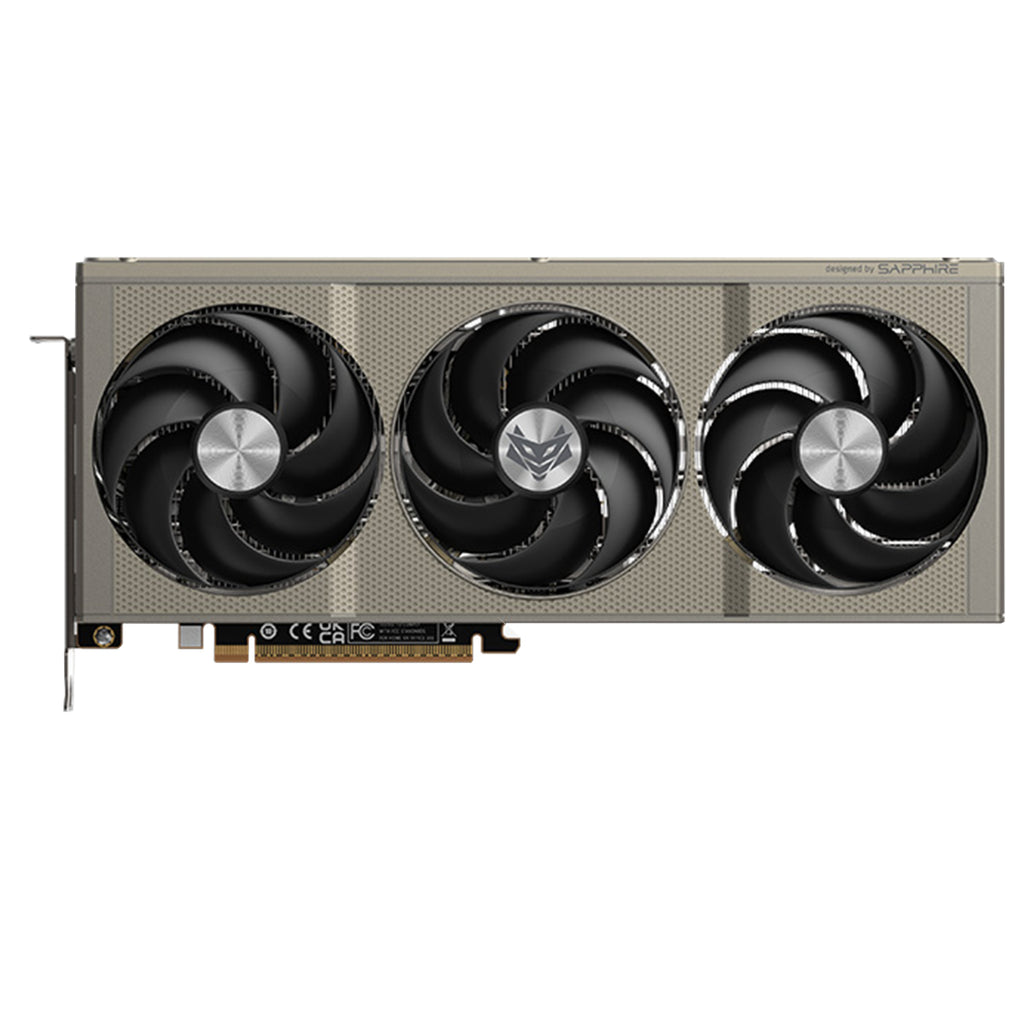

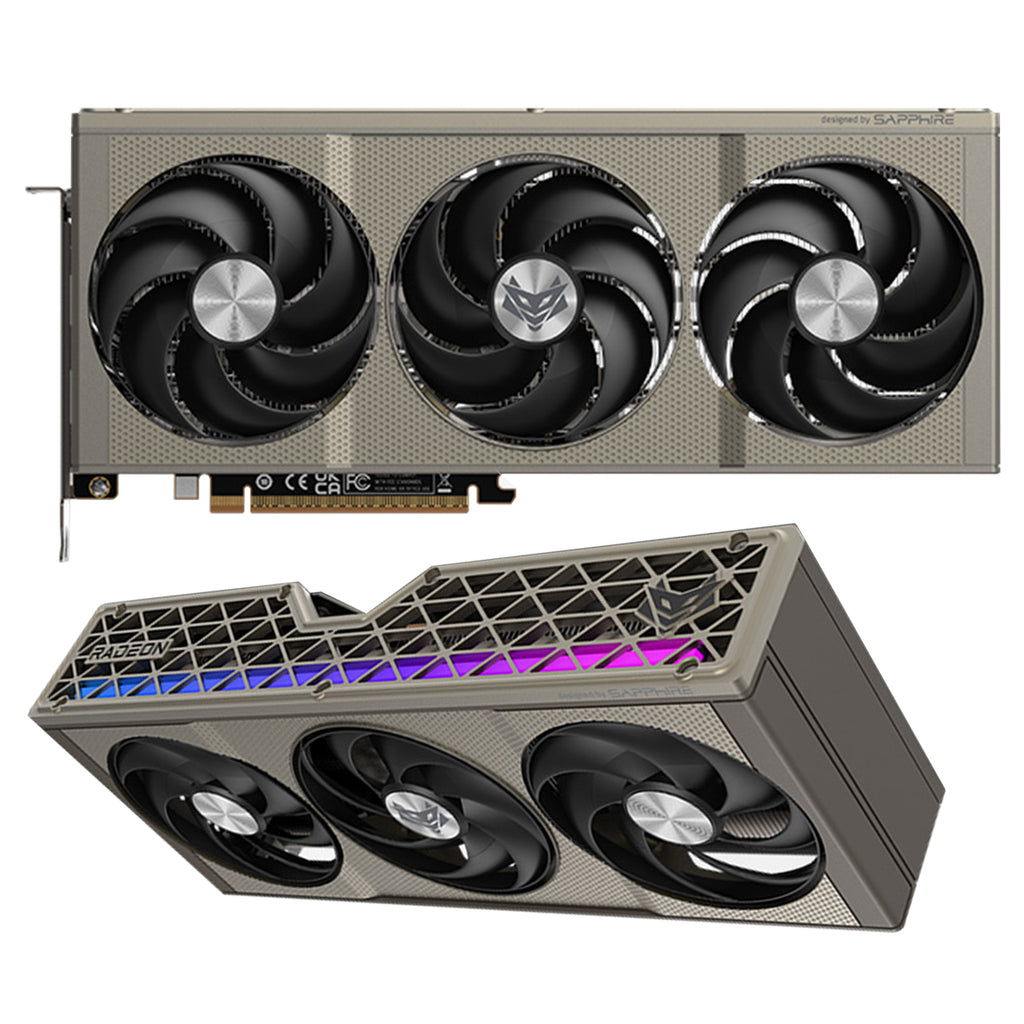

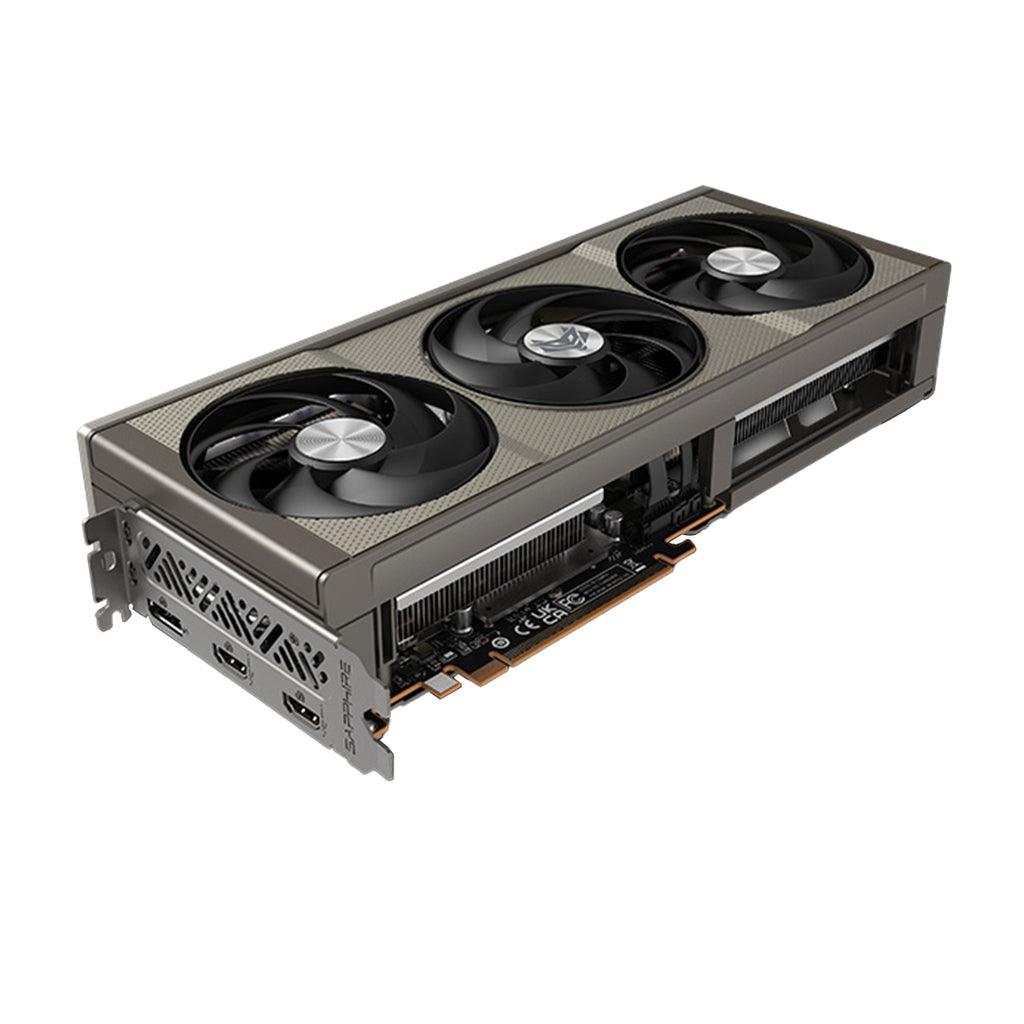

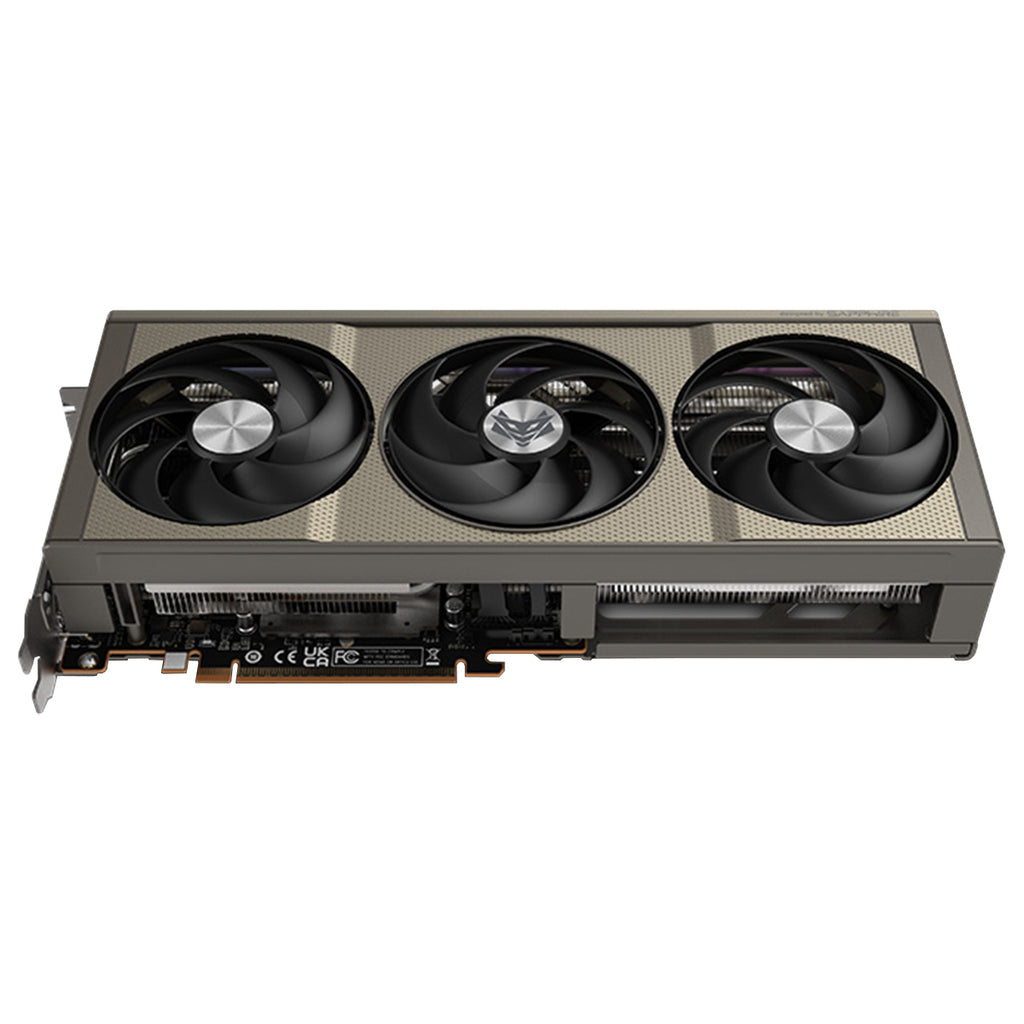

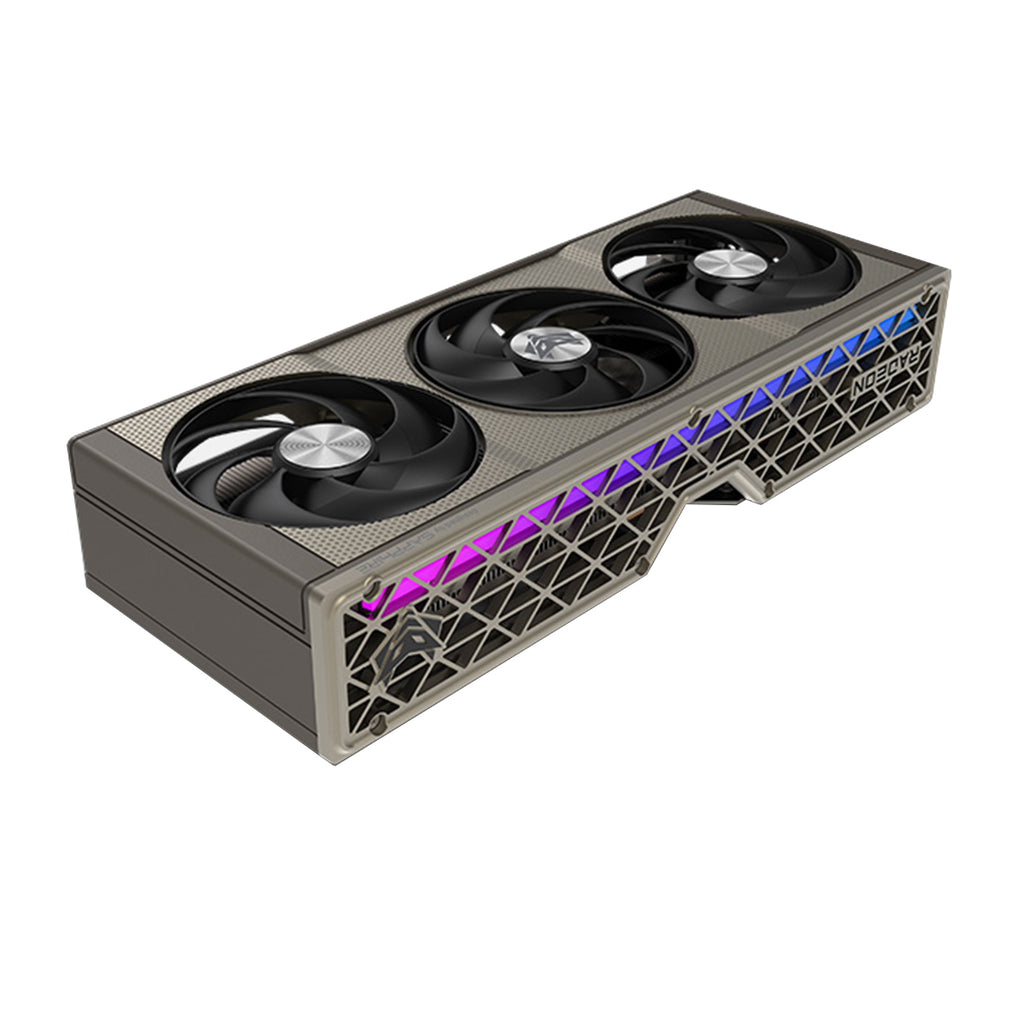

Sapphire Nitro+ AMD Radeon RX 9060 XT Gaming OC 16GB Dual HDMI Graphics Card

SapphireSKU: 0840777092019
  • GPU: Boost Clock: Up to 3320 MHz
  • GPU: Game Clock: Up to 2780 MHz
  • Memory:   16GB/128 bit DDR6. 20 Gbps Effective

banner
Price:
₱27,395.00
Stock:
Sold out

Description

NITRO+ AMD Radeon™ RX 9060 XT GPU

  • GPU: Boost Clock: Up to 3320 MHz
  • GPU: Game Clock: Up to 2780 MHz
  • Memory:   16GB/128 bit DDR6. 20 Gbps Effective
  • Stream Processors: 2048
  • AMD RDNA™ 4 Architecture
  • Ray Accelerator: 32





Specification:

GPU

AMD Radeon™ RX 9060 XT Graphics Card
AMD RDNA™ 4 Architecture

Engine Clock


  • Boost Clock: Up to 3320 MHz
  • Game Clock: Up to 2780MHz



Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.



Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

2048

Compute Units

32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache 32MB
Ray Accelerators 32
AI Accelerators 64

Memory Size/Bus

16GB GDDR6 / 128-bit
Memory Clock 20 Gbps Effective
Displays Max 3 Displays
Resolution 7680×4320 (HDMI & DisplayPort)
Interface PCIe 5.0 x16
Output 2x HDMI®, 1x DisplayPort™ 2.1a
BIOS Support UEFI
Game Index 1440p
Cooling & Features

Sapphire Features

  • Honeywell PTM7950 Thermal Interface Material (TIM)
  • AeroCurve Fan Blade
  • Free Flow
  • FrameDefense
  • Integrated Cooling Module
  • Tri-X Cooling Technology
  • High TG Copper PCB
  • Optimized Composite Heatpipes

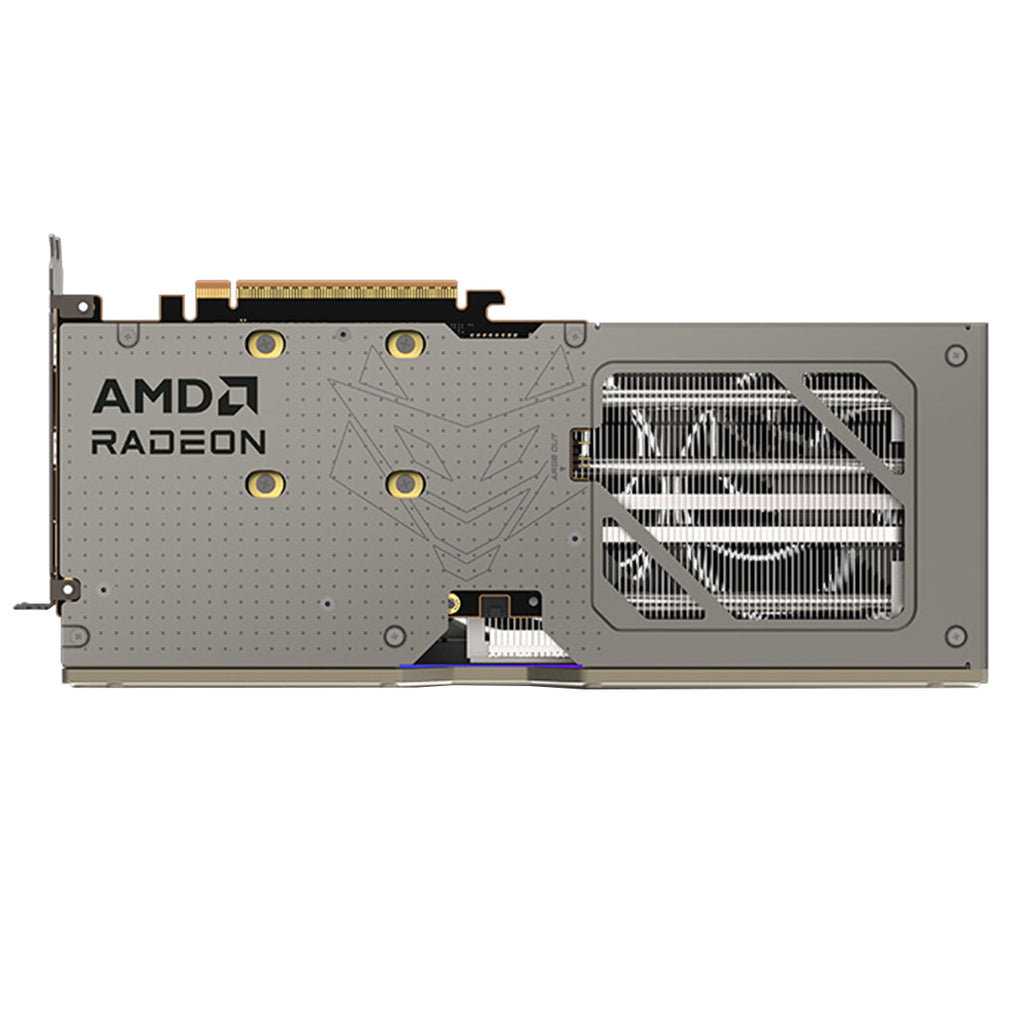

  • Metal Backplate
  • ARGB Light Bar
  • Fan Quick Connect
  • Two-Ball Bearing Fans
  • Premium 9-Phase Digital Power Design
  • Fuse Protection
  • Intelligent Fan Control
  • Precision Fan Control
  • TriXX Supported
  • Performance vs. Efficiency Quicksets
  • Glow!
  • Fan Check
  • TriXX Boost
  • External RGB LED MB Synchronization

Accessories Bundled


  • L-Shape Support Bracket
  • 3pin 5V ARGB Cable

AMD Features


  • AMD RDNA™ 4 Architecture
  • 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
  • AMD HYPR-RX with AFMF 2
  • AMD FidelityFX™ Super Resolution 4 with AI Upscaling
  • DisplayPort™ 2.1a
  • AMD Radiance Display™ Engine
  • AMD Fluid Motion Frames 2 technology
  • AMD Radeon™ Anti-Lag 2 technology
  • AV1 Encode/Decode
  • AMD FidelityFX™ technologies
  • Microsoft® DirectX® 12 Ultimate
  • AMD Noise Suppression
  • AMD Freesync™ technology
  • AMD Infinity Cache
  • 16 GB of GDDR6 on 128-bit Memory Bus
  • AMD smart technologies
  • AMD Software: Adrenalin Edition™ application

Cooler Type

  • Tri-X Cooling
  • AeroCurve Fan Blade
  • Free Flow
  • Integrated Cooling Module
  • High TG Copper PCB
  • Optimized Composite Heatpipes
  • Two-Ball Bearing
Form Factor 2.7 slot, ATX
Dimension: 300(L)X 131(W)X 55(H)mm

Power Consumption

182W Typical, 1x 8-pin
System Requirements
  • Minimum 450 Watt Power Supply
  • 1 x 8-pin Power Connector.
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  • Minimum 8GB of system memory. 16GB recommended.
OS Support Linux®, Windows® 10/11 64-bit
