Description
Experience panoramic surround sound

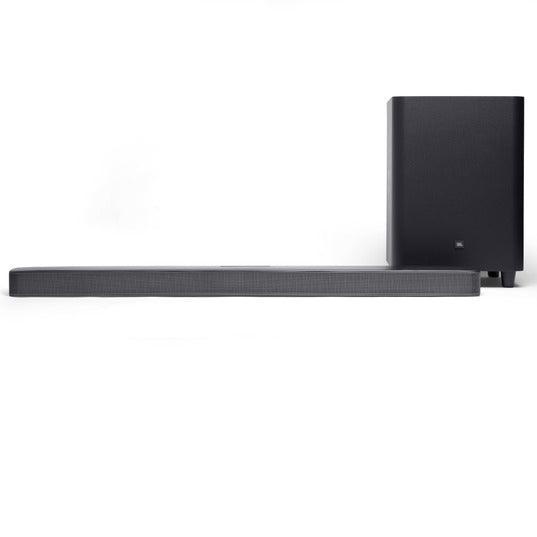

The impressive JBL Bar 5.1 Surround delivers the ultimate home cinematic experience. Bring everything you watch to life with 550 Watts of power and a 10’’ subwoofer: the driving bass of an action movie, the tension of a thriller or the beauty of a nature documentary. Built-in Chromecast and Airplay 2 lets you stream and manage online content, and Bluetooth means your streamed music sounds great, too. Amazing surround sound comes from JBL MultiBeam™ technology. JBL has powered the world’s movie theatres for more than 75 years. Now you can bring that power home.
General Specifications
- ModelBar 5.1 CNTR (Soundbar Unit), BAR 5.1 SUB (Subwoofer Unit)
- Power supply100 - 240V AC, ~ 50/60Hz
- Soundbar output power (Max. @THD 1%)5 x 50W
- Subwoofer output power (Max. @THD 1%)300W
- standby power<0.5W
- networked standby power<2.0W
- Operating temperature0°C - 45°C
- BAR 5.1 SURROUND is in compliance with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013.Yes
- Off ModeN/A
- Network Standby<2.0W
- Time to standby<20minutes
- * Standbyin the condition of all wireless connections of Soundbar are deactivated, if no provide any audio or video signal to the Soundbar unit, the Soundbar unit will automatically into standby mode in 10 minutes.
- * Networked standbyin the condition of any wireless connection of Soundbar is activated, if no provide any audio or video signal to the Soundbar unit, the Subwoofer and Soundbar unit will automatically into networked standby mode in 10 minutes.
- Any audio or video recover will bring device from standby to operation mode.Yes
Audio Specifications
- Total speaker power output (Max. @THD 1%)550W
- Max SPL103dB
- Frequency response40Hz - 20KHz
- Audio inputs1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
- MP3 CodecMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate16KHz - 48 KHz
- MP3 bitrate80kbps - 320kbps
Dimensions
- Soundbar transducer5 x 4690” racetrack drivers +2 x 1.25” side-firing tweeters
- Subwoofer transducer10”
- Dimensions (W x H x D)1018 x 58 x 100mm / 40” x 2.28” x 3.94” (Soundbar); 305 x 440 x 305mm / 12” x 17.3” x 12” (Subwoofer)
- Weight2.85KG (Soundbar); 10.62Kg (Subwoofer)
