Description

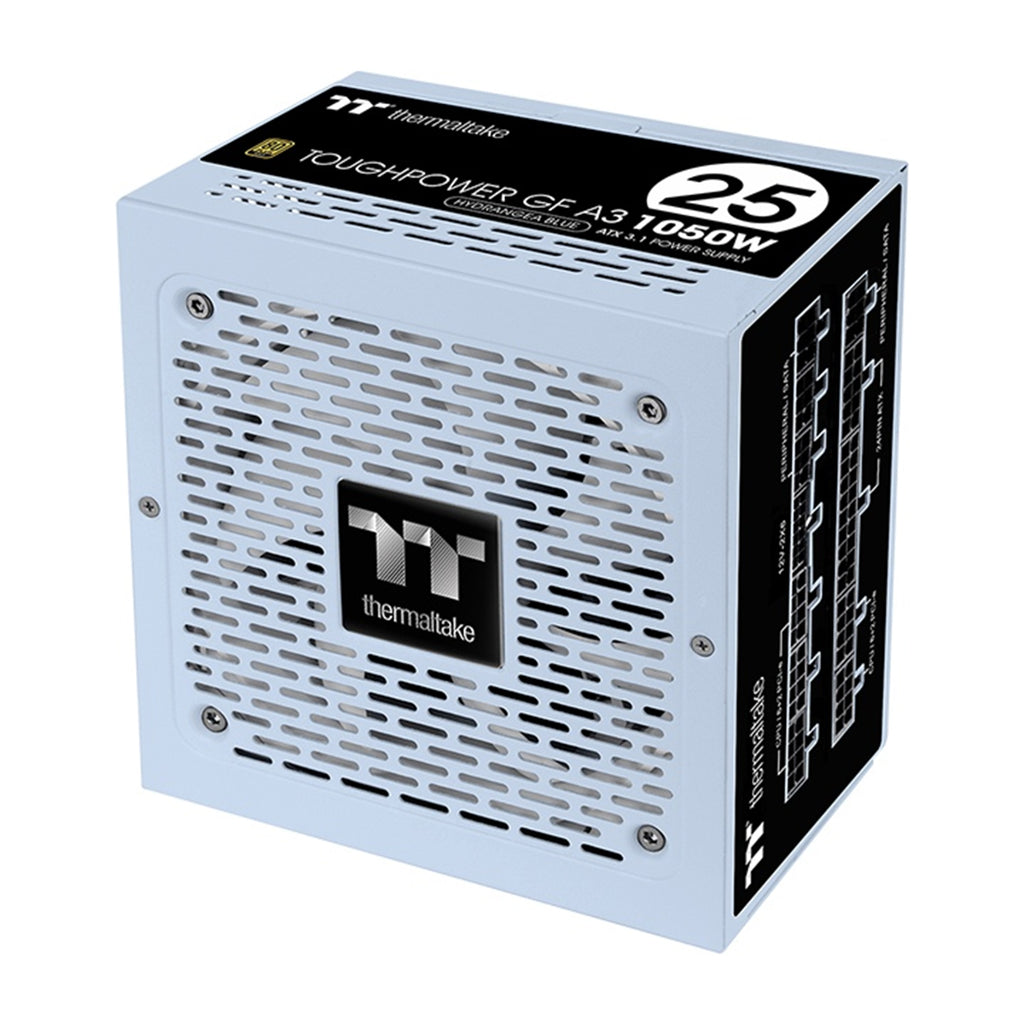

Toughpower GF A3 Hydrangea Blue is 80 PLUS Gold certified and compatible with Intel’s ATX 3.1 specifications and designed with a native PCIe 12V-2x6 connector.
SPECIFICATION
| P/N | PS-TPD-1050FNFAG*-B |
|---|---|
| WATTS | 1050W |
| MODEL | TTP-1050AH2FLG |
| MAX. OUTPUT CAPACITY | 1050W |
| COLOR | Hydrangea Blue |
| DIMENSION ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-150 msec |
| HOLD UP TIME | > 17msec |
| INPUT CURRENT | 16A-8A |
| INPUT FREQUENCY RANGE | 50Hz/60Hz |
| INPUT VOLTAGE | 100-240V～ |
| OPERATING TEMPERATURE | 5°C to + 45°C |
| OPERATING HUMIDITY | 20% to 85%, non-condensing |
| STORAGE TEMPERATURE | -40°C to + 55°C |
| STORAGE HUMIDITY | 10% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| EFFICIENCY | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | FCC/ICES/CB/cTUVus |

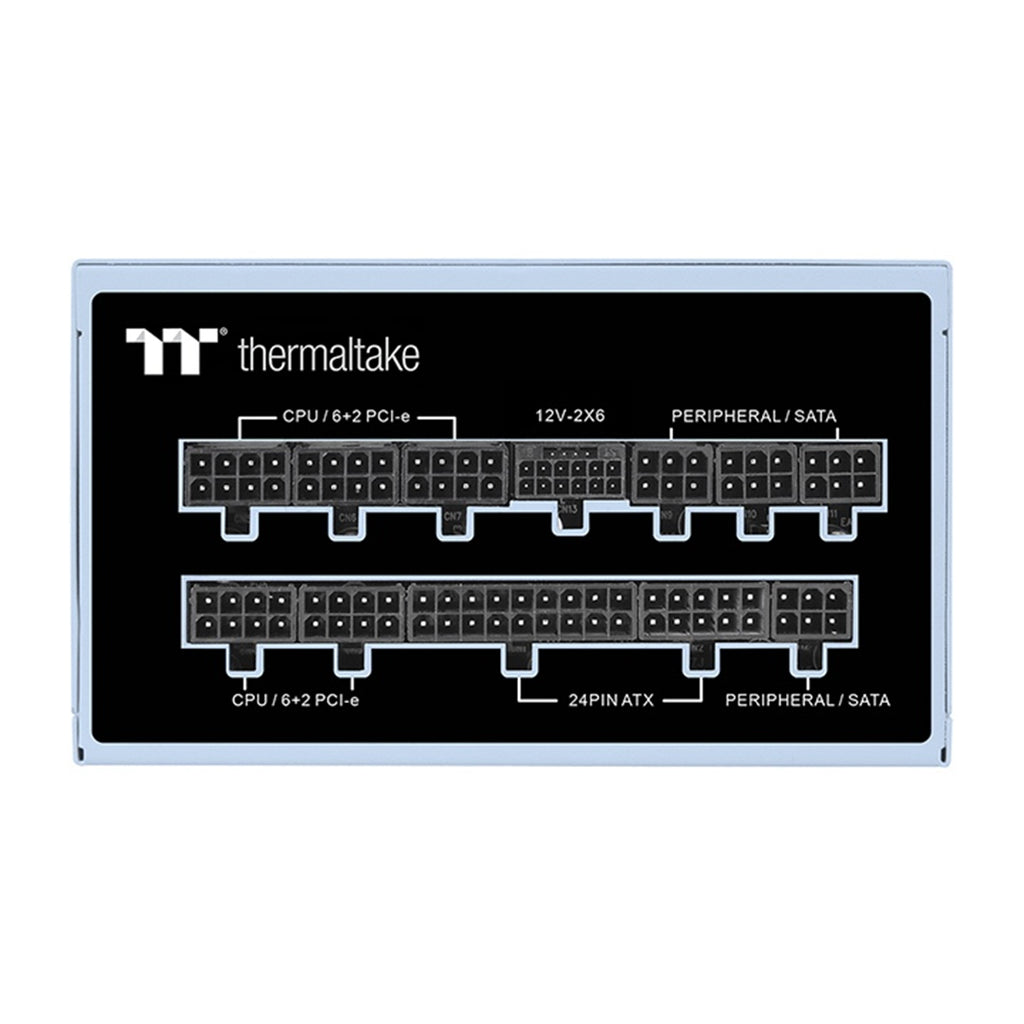

| PCI-E 6+2PIN | 5 |
| PCIE 12+4PIN | 1 |
| PROTECTION | OCP, OVP, UVP, OPP, SCP, OTP |
