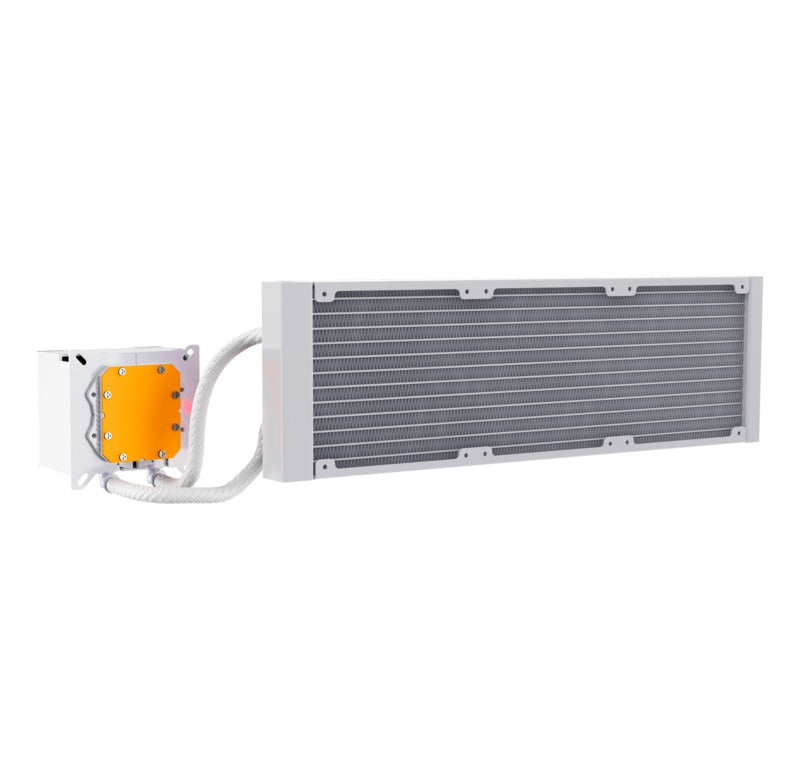

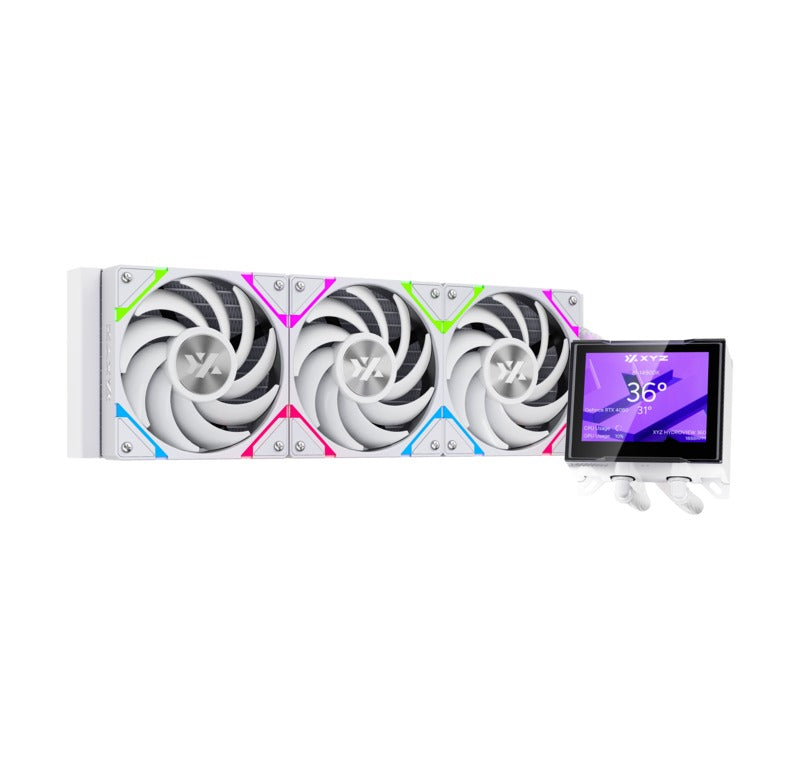

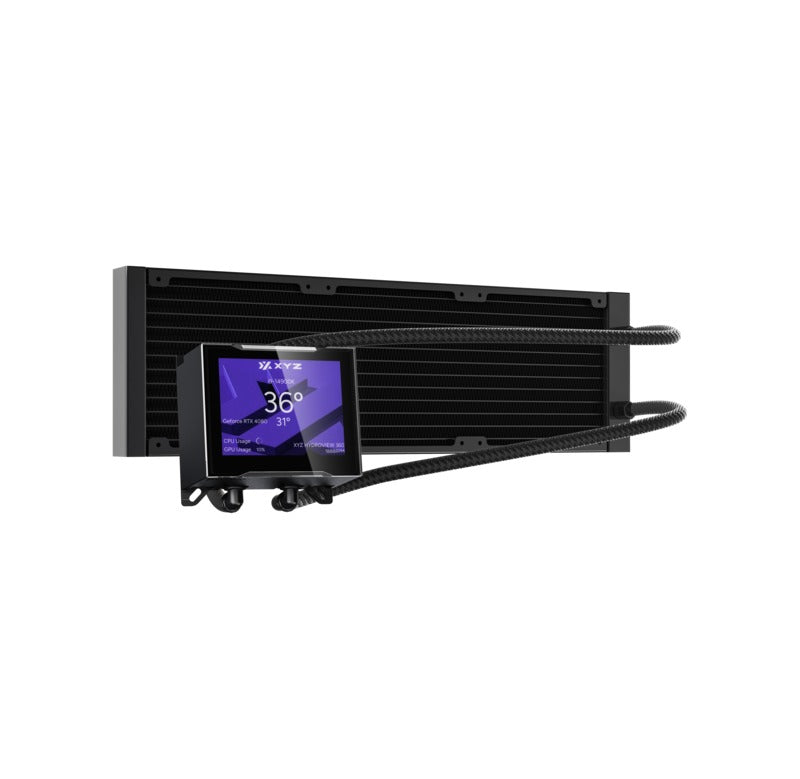

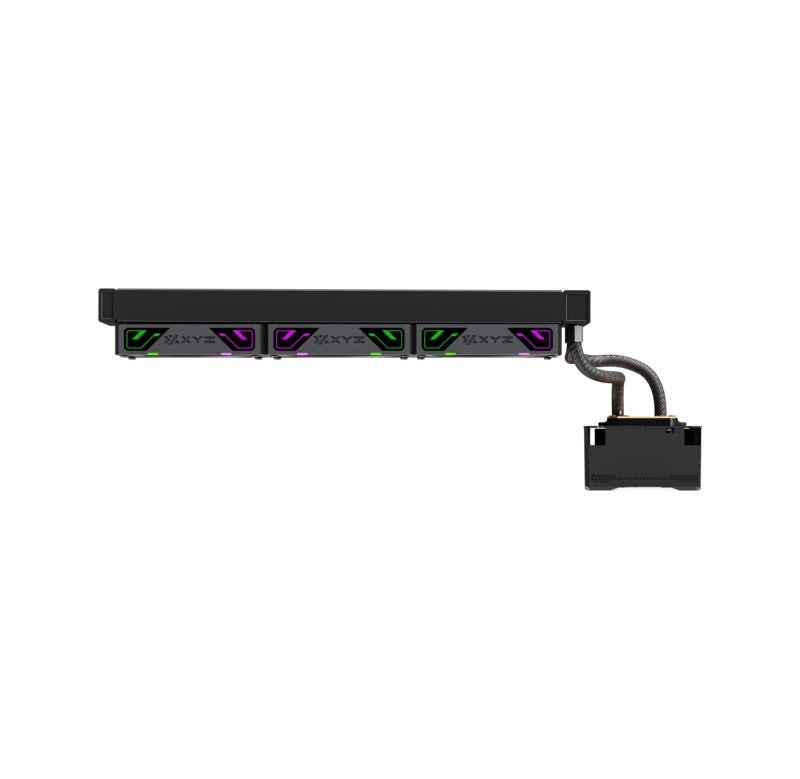

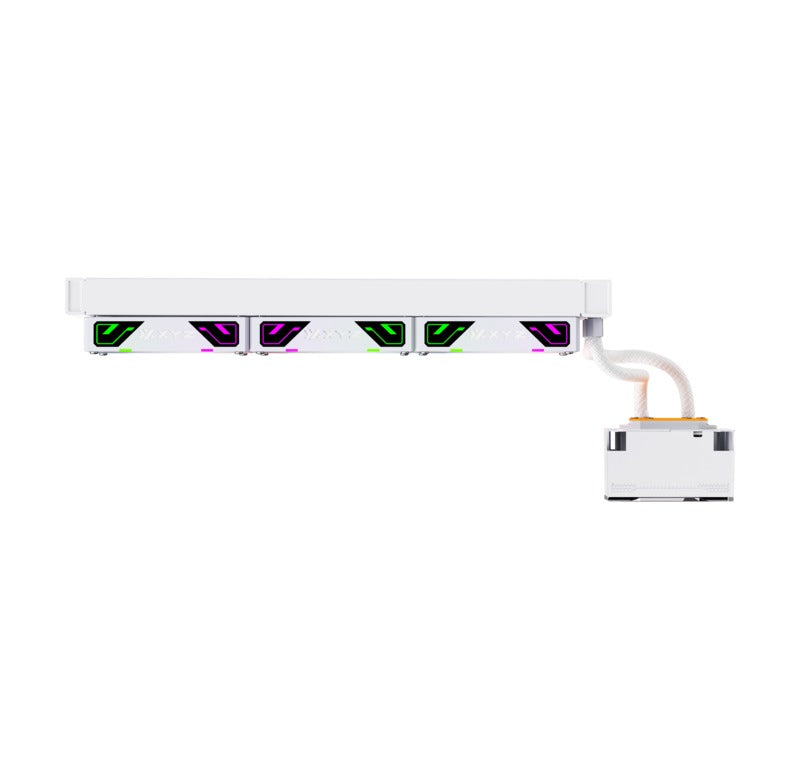

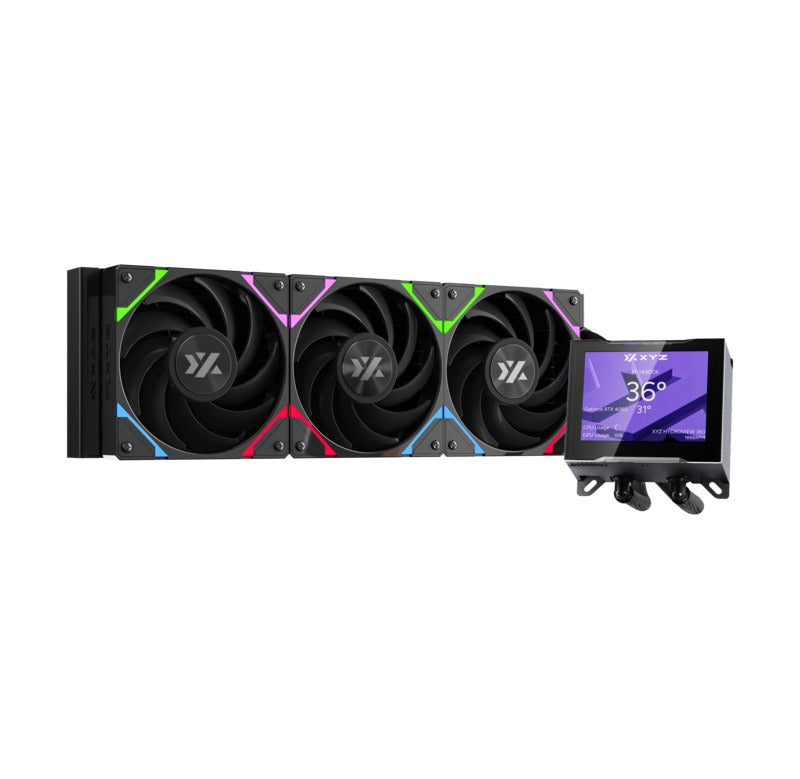

XYZ HYDROVIEW AIO 360
Our Smart AIO designed for future of Customised Cooling
Master the heat and take your performance to the next level with the XYZ HYDROVIEW 360 AIO Liquid CPU Cooler. This all-in-one liquid cooling solution combines exceptional performance, a sleek aesthetic, and intelligent features to keep your CPU running at optimal temperatures, even under the most demanding workloads.

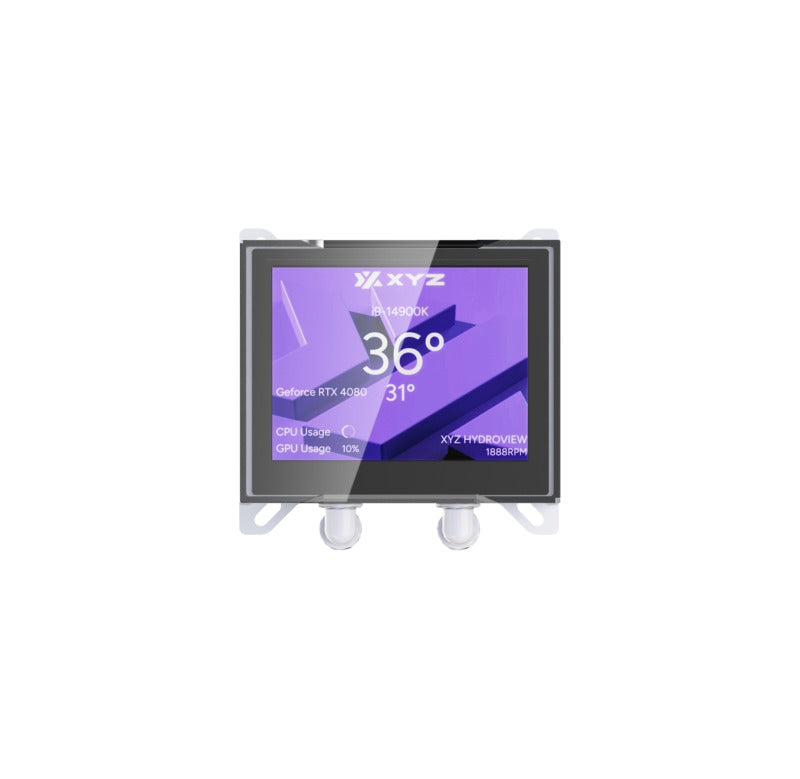

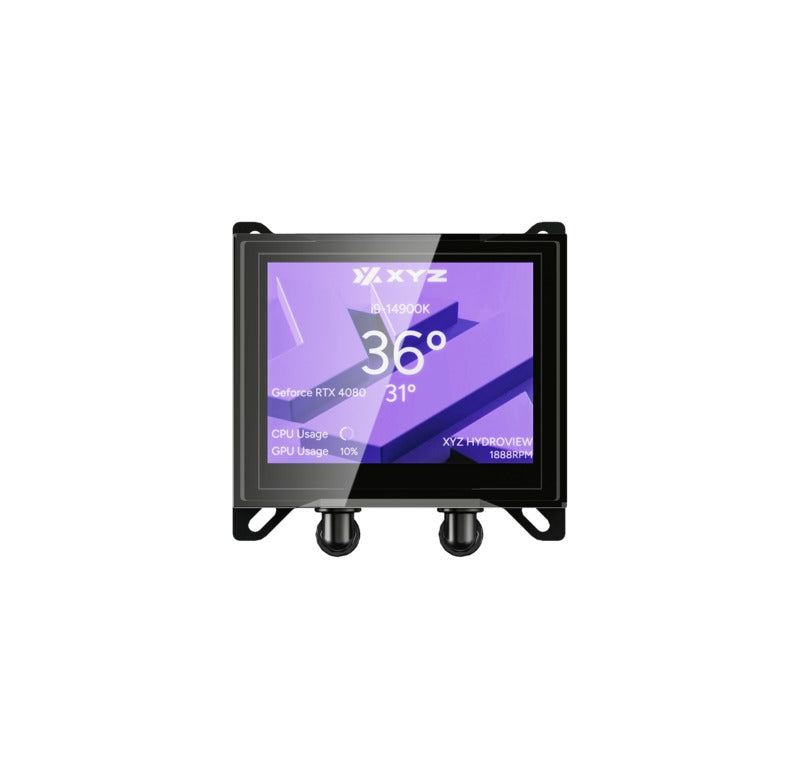

- 3.5″ LCD detachable Digital Screen: Maintain complete control over your cooling system with the 3.5″ LCD screen integrated into the pump block. View your CPU and GPU temperature, customize your themes and customize ARGB lighting effects in real-time thanks to MB Sync support.

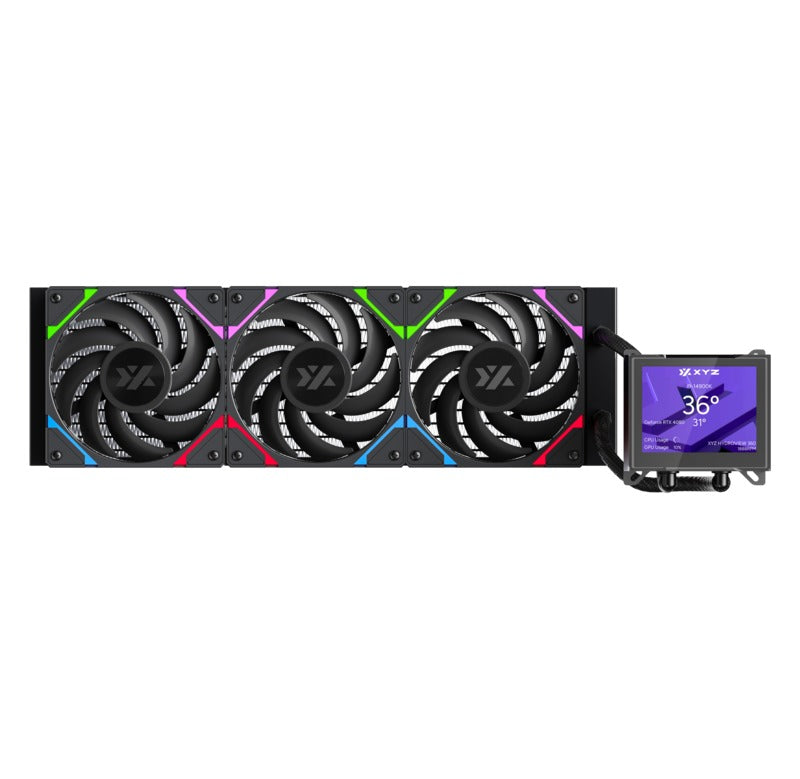

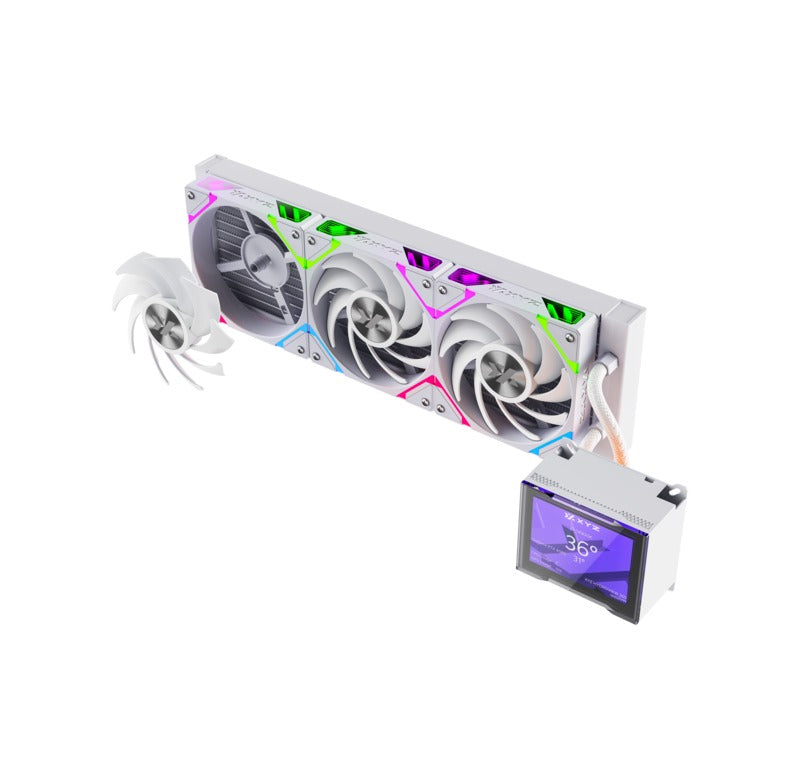

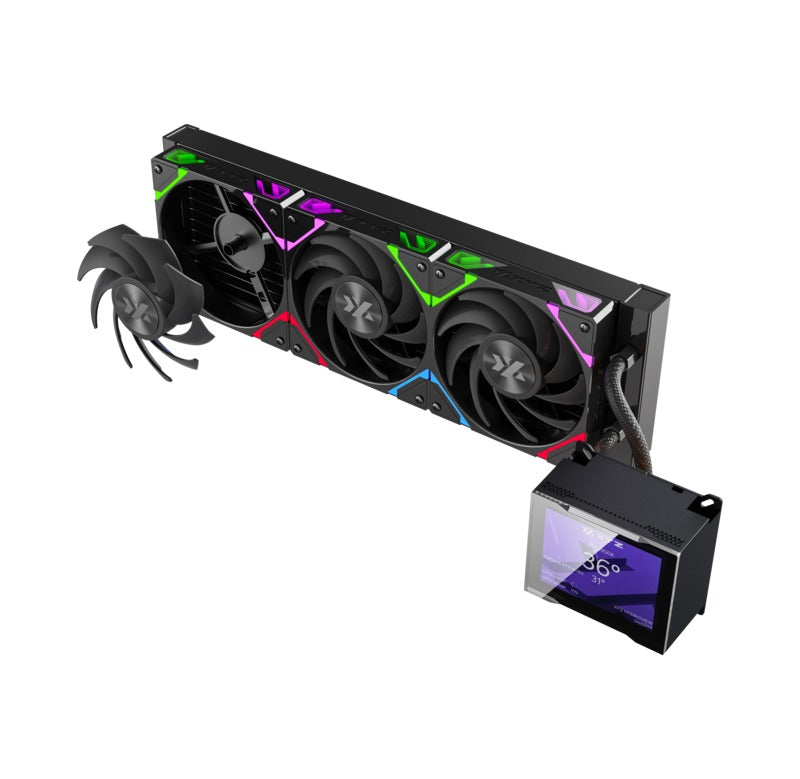

- Three Vortex PRO 120mm PWM A-RGB Fans: Enjoy quiet and efficient cooling with the three included 120mm Vortex PRO fans. These PWM fans offer precise speed control, powerful airflow, and feature customizable ARGB lighting to create a mesmerizing light show in your PC.
- Intuitive Software Control: Customise and control every aspect of your HYDROVIEW 360 with the included software. Adjust and customise the 3.5″ display of your HYDROVIEW with videos, images and many other customisable effects. In addition, thanks to its A-RGB lighting, you can synchronise your HYDROVIEW with your system thanks to its MB-SYNC synchronisation and create unique effects.

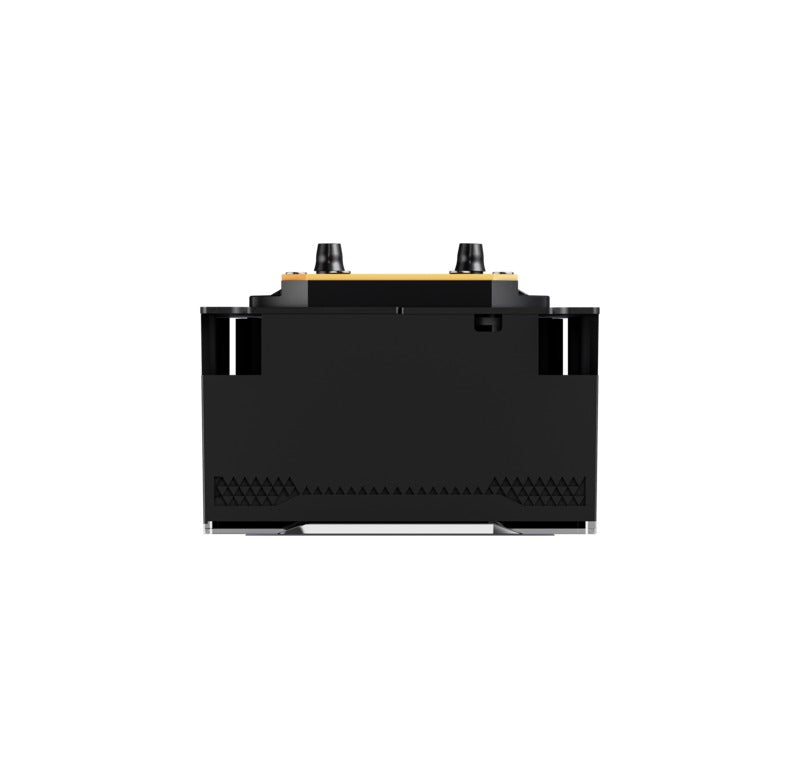

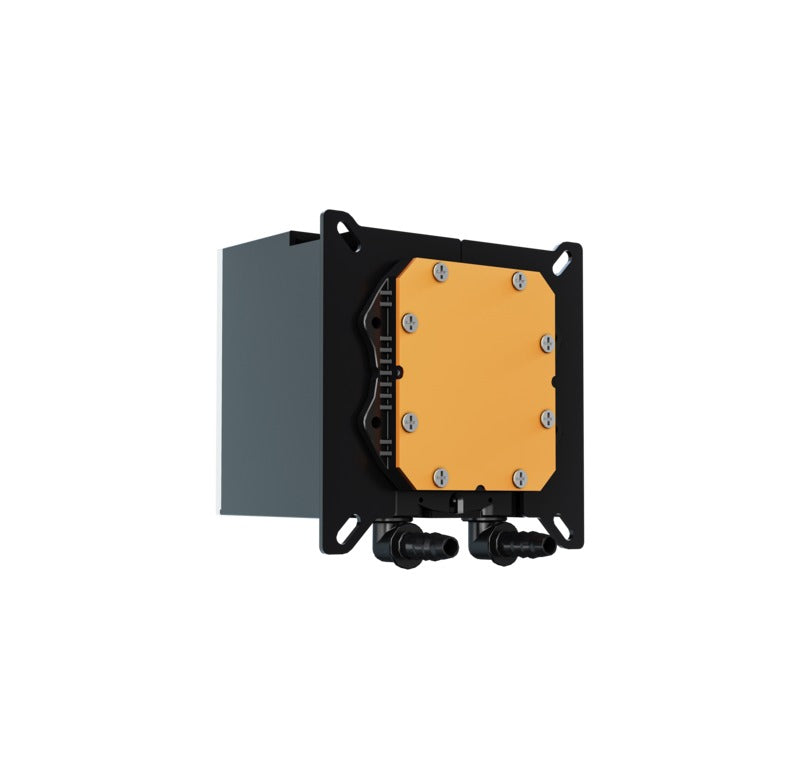

- High-Efficiency Pump: The high-efficiency pump ensures a constant flow of coolant, maximizing heat dissipation and keeping your CPU running at optimal temperatures even under heavy workloads.
- Ultra-Quiet Operation: With a minimum noise level of just 18.5 dB(A), the HYDROVIEW allows you to enjoy a quiet gaming environment without sacrificing performance. Even at maximum speed, the noise remains under control at 30 dB(A).
- Optimized Airflow and Flow Rate: The Vortex PRO fans deliver an impressive airflow of up to 62.7 CFM, while the pump guarantees a minimum flow rate of 1300 ml/min, ensuring fast and efficient heat dissipation.
Specification:
| GENERAL | |
| Type | 360 AIO liquid cooling |
| Rated Voltage | 12V DC |
| Minimum Starting Voltage | ≤4.0 V |
| Screen Resolution | 640×480 |
| Electric Current | ≤0.30 A |
| Power | ≤3.6 W |
| Maximum Head | 1.5M |
| Minimum Flow Rate | ≥1300 mL/min |
| Pump Speed | 2500RPM ±10% |
| Storage Temperature | -10°C ~ 70°C |
| Operating Temperature | -10°C ~ 60°C |
| Estimated Maximum Service Life | 50,000 hours under normal working conditions |
| Maximum Noise | ≤30 dB |

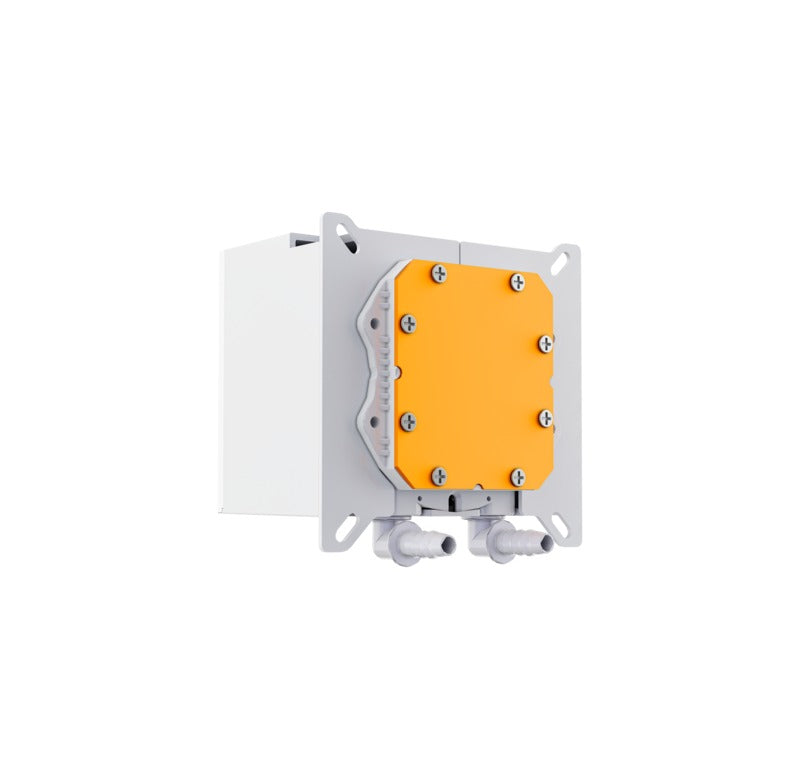

| Pump Size | 92.7 x 92.5 x 59.5 mm (L x W x H) |
| Catheter | Braided tube, L=380 ±2mm |
| TDP | 340W |

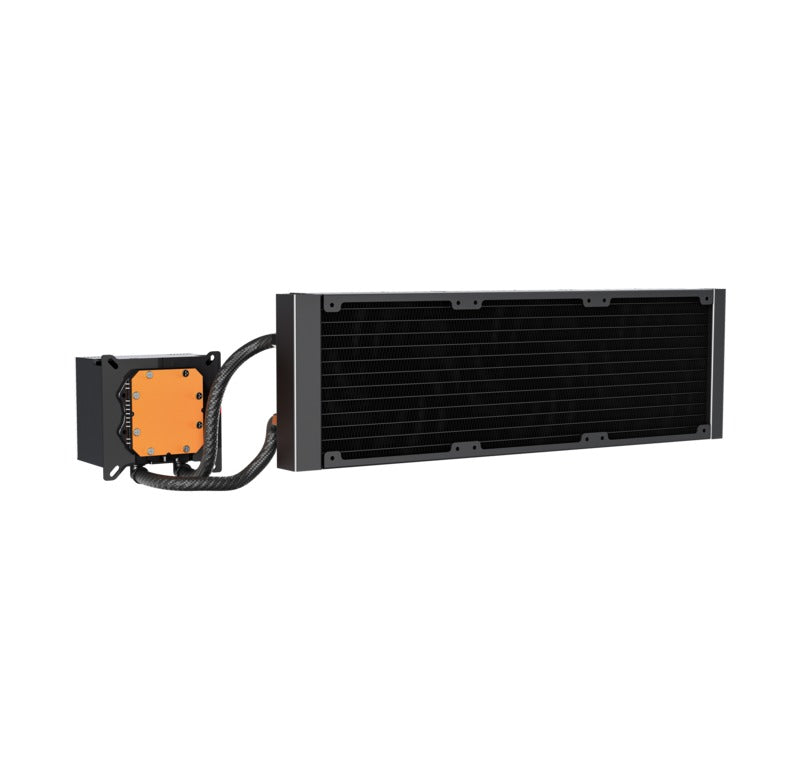

| Radiator Dimensions | 397 x 120 x 27 mm (L x W x H) |
| Socket Compatibility | AMD: AM4, AM5 Intel: LGA 775, 1150, 1151, 1155, 1156, 1200, 1366, 1700, 2011, 1851 |
| Software Compatibility | Windows 10 & 11 |
| VORTEX FANS ARGB | |
| Bearing | FDB (Fluid Dynamic Bearing) |
| Rated Voltage | DC 12V |
| Operating Voltage | 10.8 ~ 13.2V |
| Starting Voltage | DC 5V MAX |
| Rated Current | 0.20A ±20% MAX (Labeled Current: 0.20A) |
| Locked Current | 0.21A ±20% MAX |
| Power Consumption | 1.80W ±20% MAX |
| Speed | 600 - 2000 ±20% RPM |
| Max. Airflow | 62.7 CFM (ft³/min) |
| Max. Static Pressure | 2.68 mm-H₂O |
| Max Noise Level | 32.0 dB(A) |
| Min. Noise Level | 18.5 dB(A) |
| Estimated Minimum Service Life | 60,000 hours at 25°C |
| No. of Blades | 9 |
| No. of Poles | 4 |
| Airflow | Regular (outtake) |

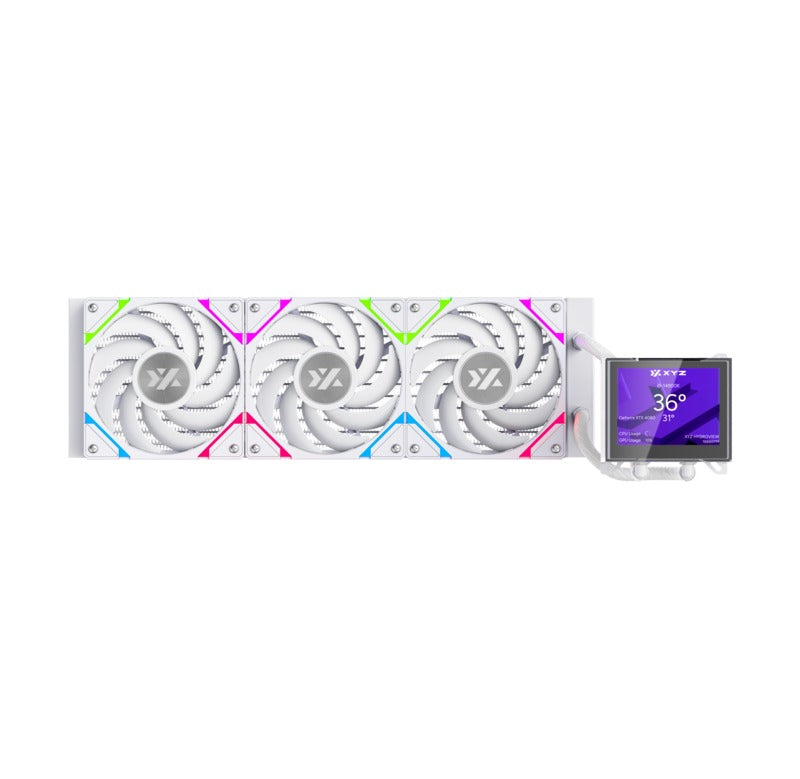

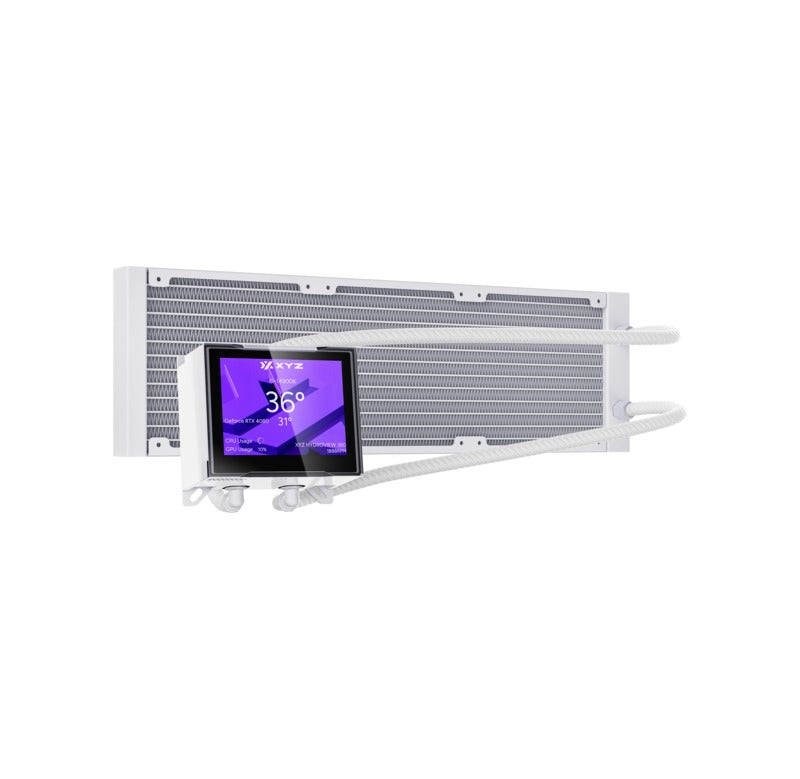

| Available Colors | White - SKU: X-WC-HYDROVIEW-360W Black - SKU: X-WC-HYDROVIEW-360B |
