Description

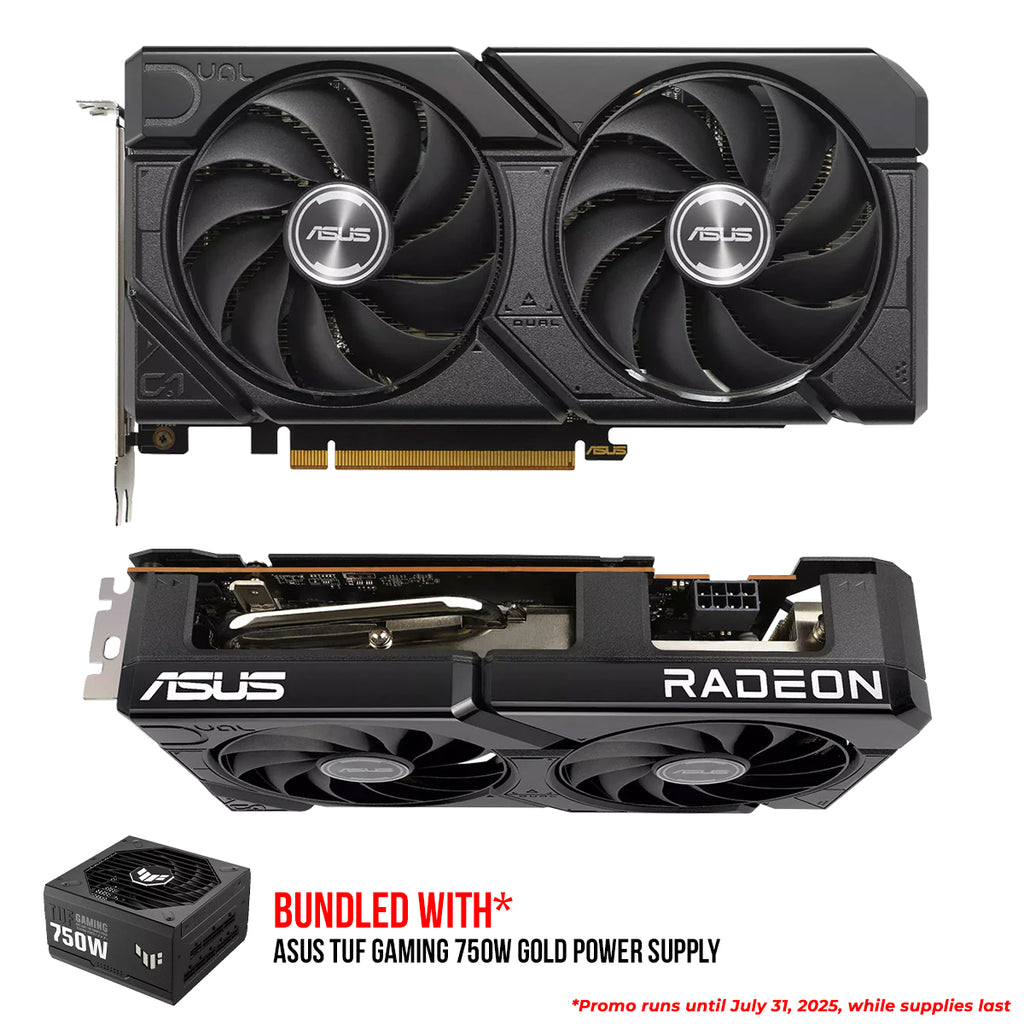

ASUS Dual Radeon™ RX 7600 EVO OC Edition 8GB GDDR6 is optimized inside and out for lower temps and durability.
- OC Mode: up to 2715 MHz (Boost Clock)/ up to 2300 MHz (Game Clock)
- Axial-tech Fan design features a smaller fan hub to increase airflow through the cooling array
- Dual ball fan bearings last up to twice as long as conventional designs
- 2.5-Slot design allows for greater build compatibility while maintaining premium cooling
- 0dB technology lets you enjoy light gaming in relative silence
- Auto-Extreme precision automated manufacturing for higher reliability
- A stainless-steel bracket is harder and more resistant to corrosion
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
COOLING
ENGINEERING
SOFTWARE
SPECIFICATION
| Graphic Engine | AMD Radeon™ RX 7600 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 8GB GDDR6 |
| Engine Clock | OC mode: up to 2715 MHz (Boost Clock)/up to 2300 MHz (Game Clock) |
| Default mode: up to 2695 MHz (Boost Clock)/up to 2280 MHz (Game Clock) | |
| Stream Processors | 2048 |
| Memory Speed | 18 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 1 (Native HDMI 2.1) |
| Yes x 3 (Native DisplayPort 1.4a) | |
| HDCP Support Yes (2.3) | |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Speedsetup Manual |
| Software | ASUS GPU Tweak III & Drivers: please download all software from the support site. |
| Dimensions | 22.9 x 12.3 x 4.9 cm |
| 9.02 x 4.85 x 1.96 inch | |
| Recommended PSU | 550W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html |
| * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. | |
| * Crossfire Support for DirecX® 12 and Vulkan® | |
| * ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. | |
| * ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. |
