Description

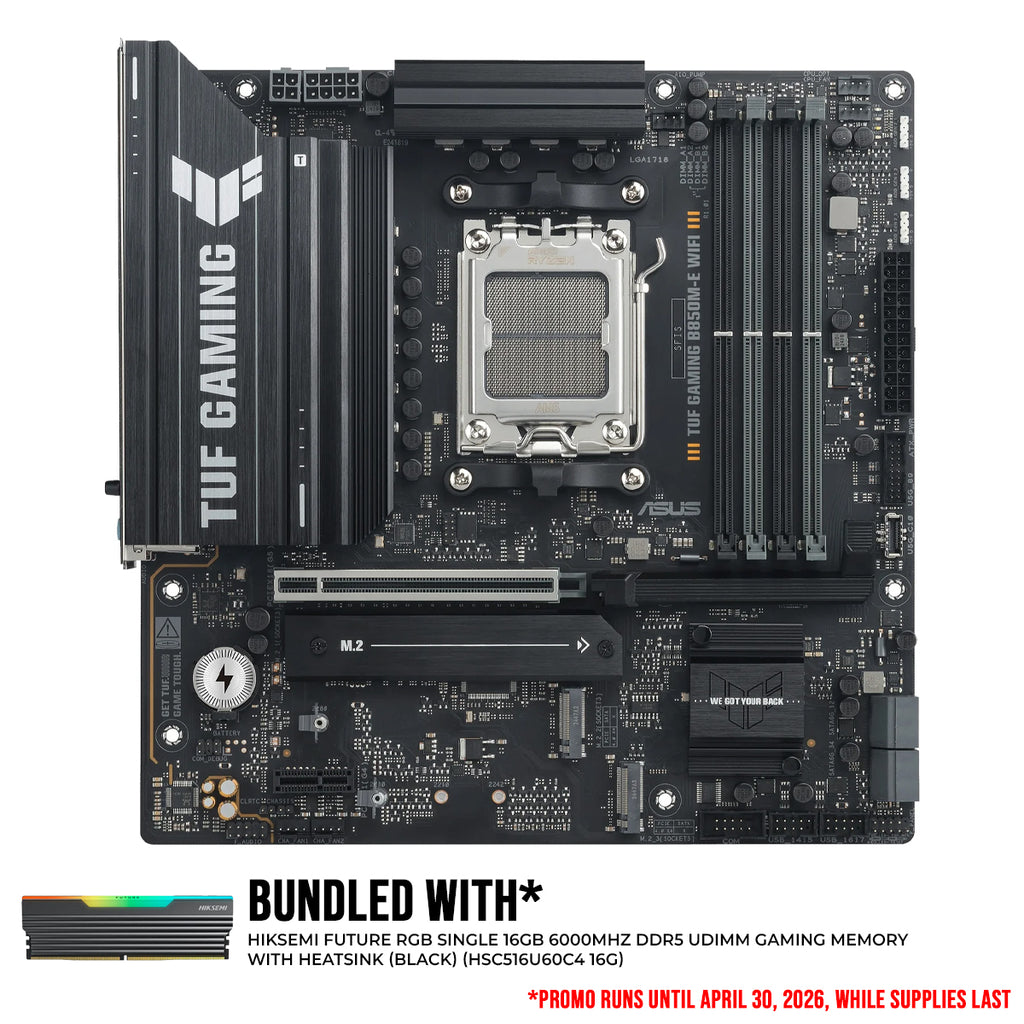

ASUS TUF Gaming B850M-E Wifi DDR5 Motherboard
ASUS TUF GAMING B850M-E WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specification
| TUF GAMING B850M-E WIFI | |
|---|---|
| CPU | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DDR5 DIMM slots, up to 256GB Supports up to 8000+MT/s (OC) ECC & Non-ECC Un-buffered DIMM Dual Channel Architecture Supports EXPO™ and AEMP |
| Graphics | 2 x DisplayPort (up to 8K@60Hz) 1 x HDMI™ port (up to 4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (9000 & 7000 series) 1 x PCIe 4.0 x16 (8000 series) 1 x PCIe 4.0 x1 |
| Storage | 3 x M.2 slots 4 x SATA 6Gb/s ports RAID support (varies by CPU) |
| Networking | 1 x Realtek 2.5Gb Ethernet with TUF LANGuard Wi-Fi 6E (2x2, supports 2.4/5/6GHz) Bluetooth® v5.3 |
| USB |
Rear: 2 x USB 10Gbps (Type-A + Type-C), 2 x USB 5Gbps, 4 x USB 2.0 Front: 1 x USB-C, 2 x USB 5Gbps, 4 x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC Premium capacitors, Audio shielding, Dedicated PCB layers |
| Back Panel I/O | 2 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0 2 x DisplayPort, 1 x HDMI, 3 x Audio jacks Wi-Fi module, Ethernet port, BIOS FlashBack™ button, PS/2 port |
| Form Factor | micro-ATX (24.4 cm x 24.4 cm) |

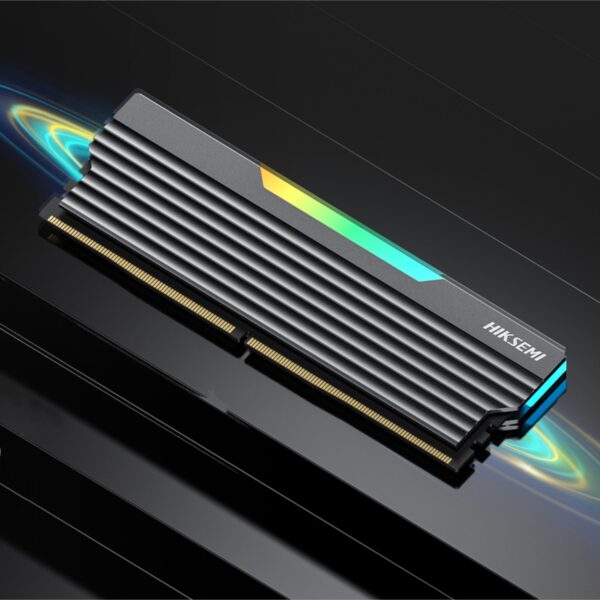

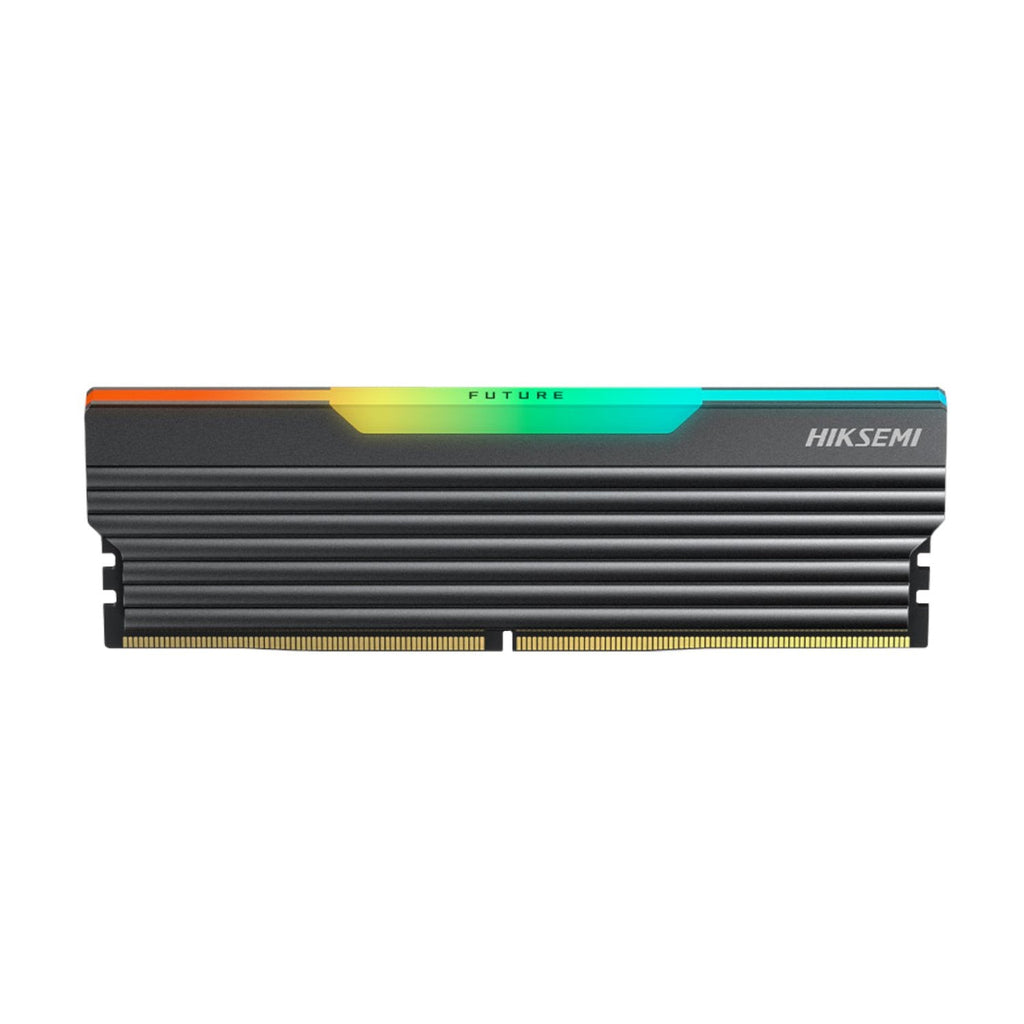

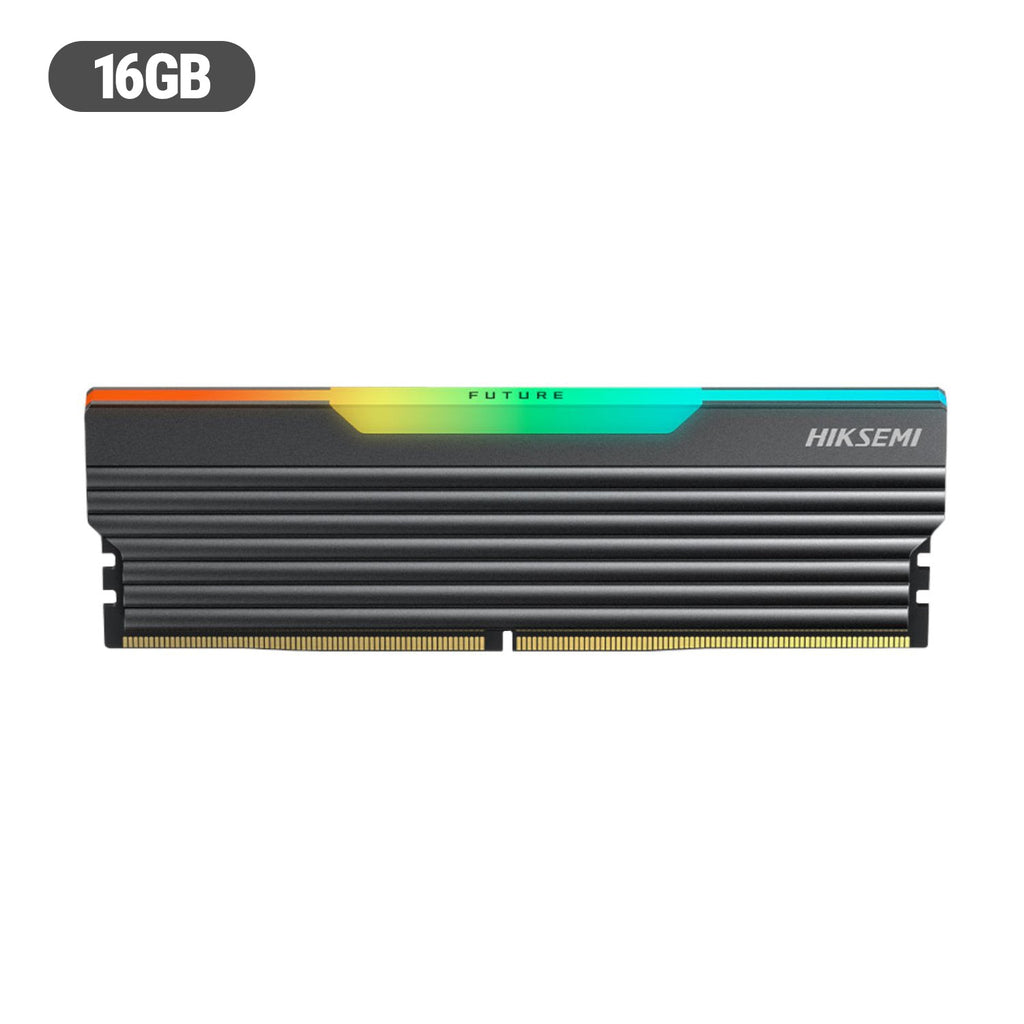

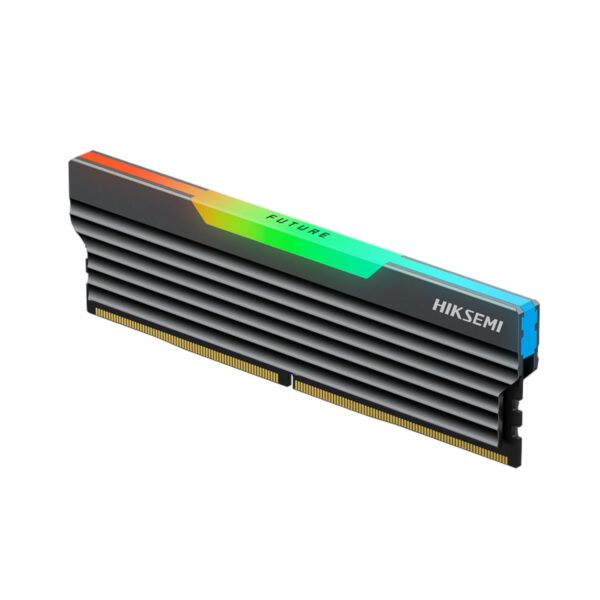

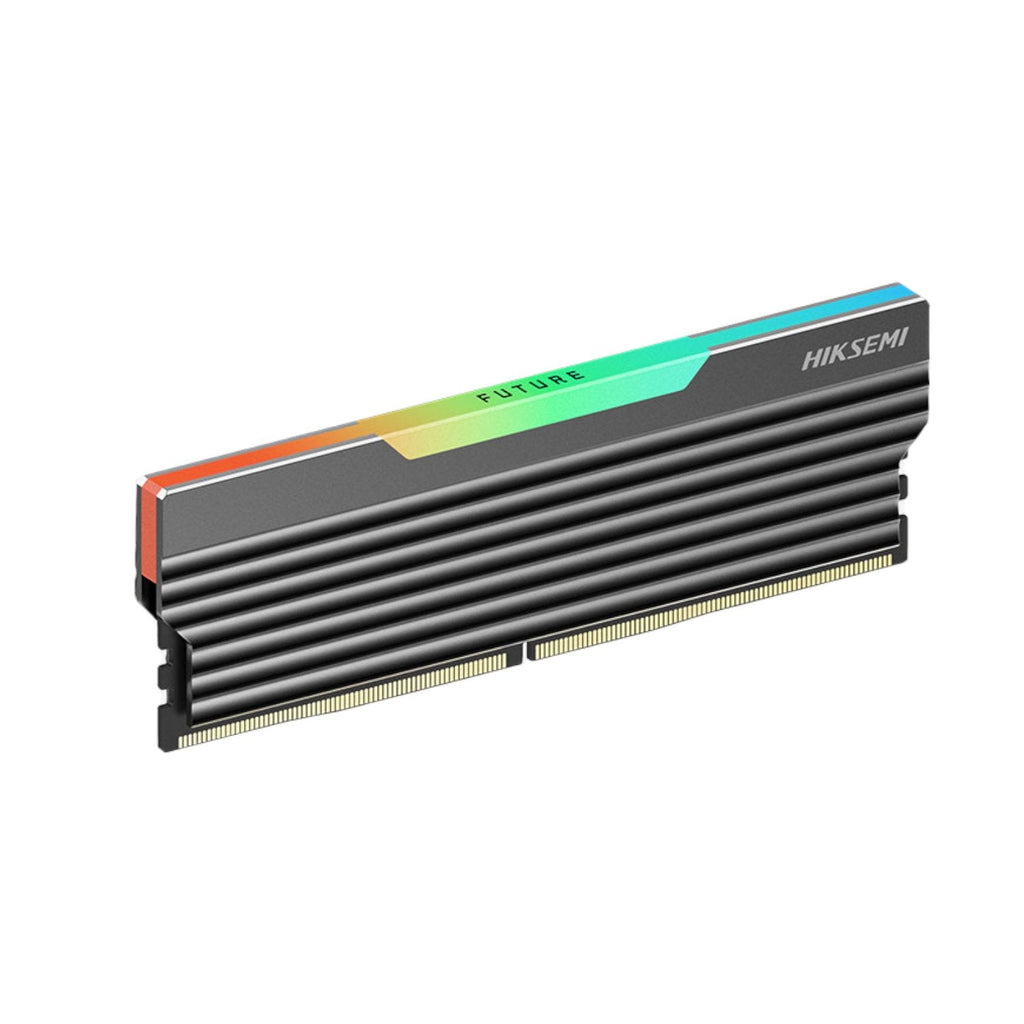

RAM SPECIFICATIONS:
| Model | HS-Udimm-FUTURE(RGB) |
|---|---|
| Capacity | 16GB |
| Interface | DDR4/DDR5 |
| Frequency | 6000 |
| Pin | 288pin |
| Size (L×W×H mm) | 133.25*31.25*1.4 / 133.25*31.25*3.77 |
| Operation temperature | 0 °C to 85 °C (32 °F to 185 °F) |
| Limited warranty period | Lifetime warranty |
| Weight | 70g |
